Product Description

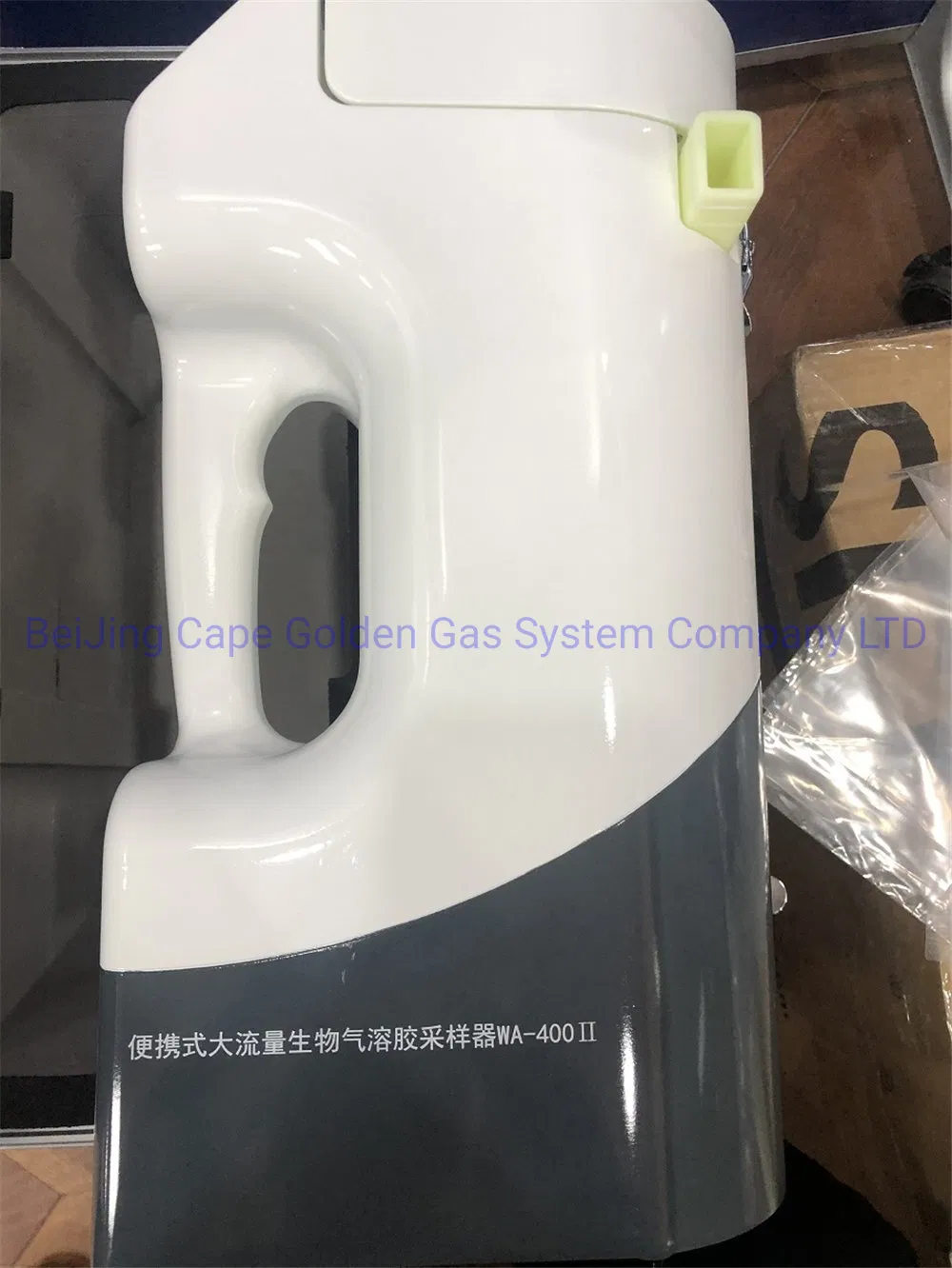

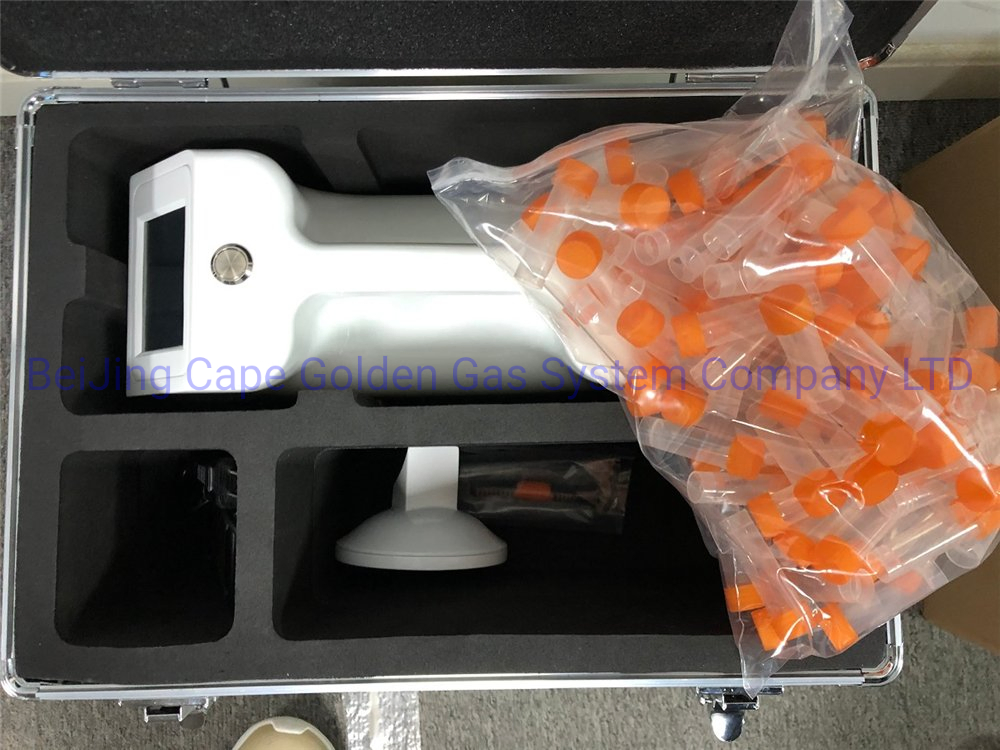

Portable High-flow Bioaerosol Sampler WA-400II for Virus Air Planktonic Bacteria Sampler
Model: WA-400II

1. Function

This is a centrifugal bioaerosol sampler Air Planktonic Bacteria Sampler, which could collect the micron and submicron biological aerosol particles into liquid directly from the air, including bacteria, viruses, fungi, mold, pollen, dust phage, worm, and brussel, etc.. Then processing with the methods of bacterial culture, PCR and LAMP, the bioaerosol kind and concentration in the air will be detected. Sampling medium includes water, cell culture fluid, virus preservation fluid, PBS buffer, etc. Portable High-Flow Bioaerosol Sampler for Virus Air Planktonic Bacteria Sampler

Portable High-Flow Bioaerosol Sampler for Virus Air Planktonic Bacteria Sampler

2. Structure & Principle

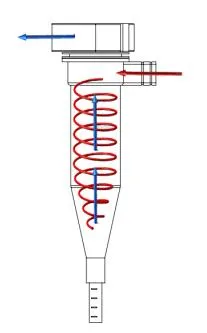

The Air Planktonic Bacteria Sampler use the rechargeable lithium battery to drive fan extraction in the sampling tube and form negative pressure, applying the principle of cyclone centrifugal separation to design sampling tube, making solid-gas separation after the air entering into the sample tube, concentrating the aerosol in the air into the collection tube which locates at the bottom of the sampling cylinder, the aerosol-enriched air samples forms cyclones in the collection tube, the particles in the cyclone collides tangentially towards collection liquid swirl during the rotation process, and then captured by the collection fluid.

3. Feature & Advantage
3.1 Centrifugal bioaerosol sampling, with large sampling flow, high flow rate and high collection efficiency.
3.2 Less collection liquid, high sample concentration and high positive rate of sample liquid detection.

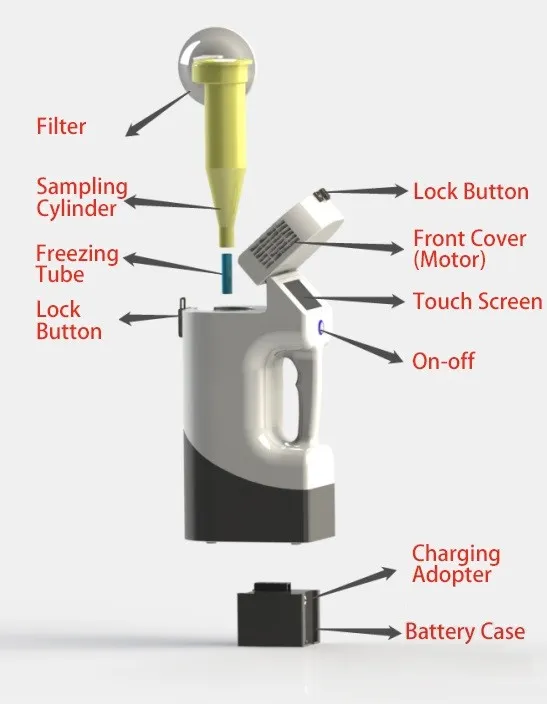

3.3 The contaminated parts, such as sampling cylinder and sampling tube, can be disassembled, replaced, disinfected and reused on site. The operation is simple and fast, avoiding the cross contamination during continuous sampling process.
3.4 Delayed start time and sampling time can be set, LCD screen display, touch screen operation, one-button start, and easy operation.
3.5 Built-in rechargeable battery, which can be fitted with 220V AC or 12V DC.
3.6 Integrated design for the whole machine, light and portable, convenient for surface disinfection.

4. Application

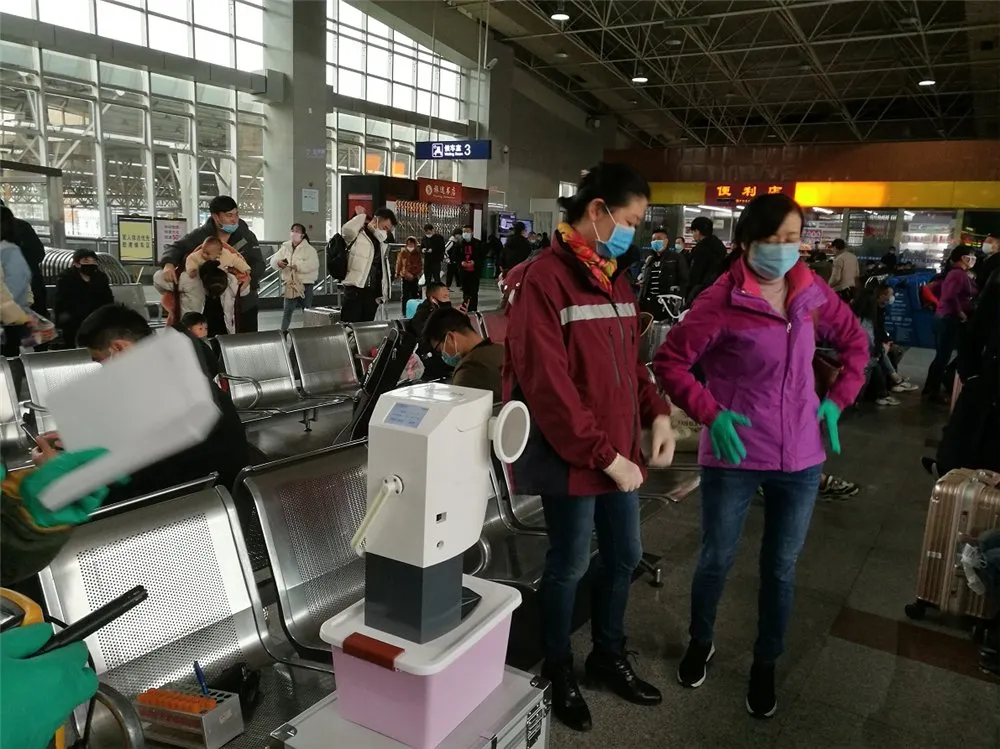

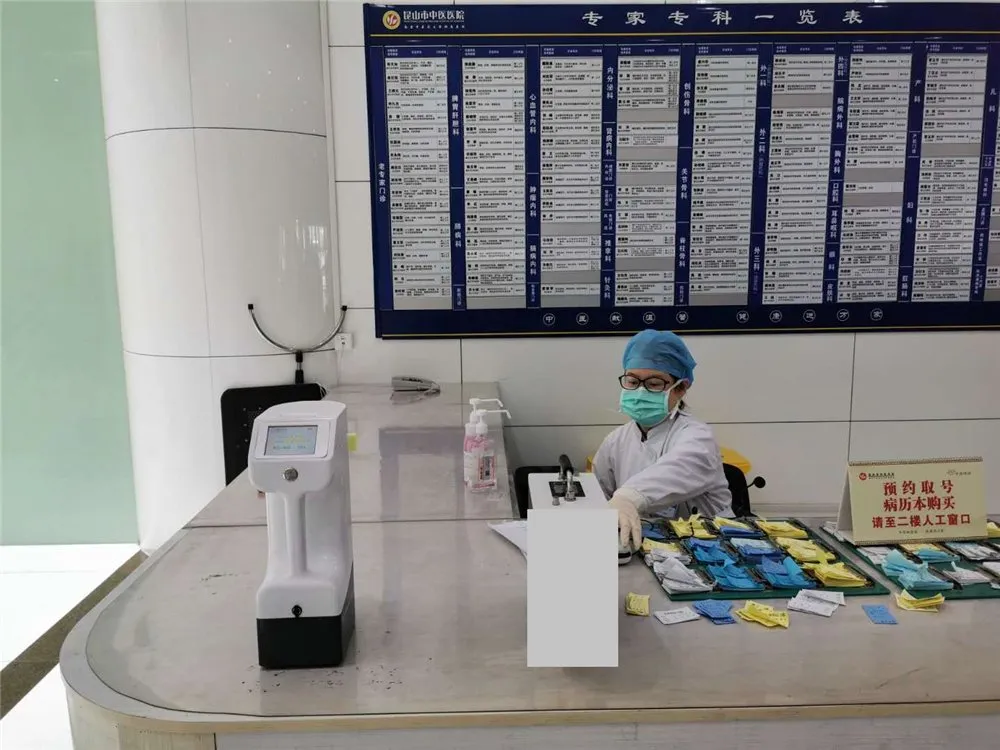

The Air Planktonic Bacteria Sampler can be applied in on-site emergency sampling, battlefield biotoxin sampling. And Air Planktonic Bacteria Sampler also be widely used in disease prevention & control, environmental protection, pharmaceutical, fermentation industry, food industry, biological cleaning and public places and other air microorganism sampling. For teaching, scientific research and other institutions, our instrument also has a good application in air microorganism sampling.

5. Specification

Flow Rate	400L/min

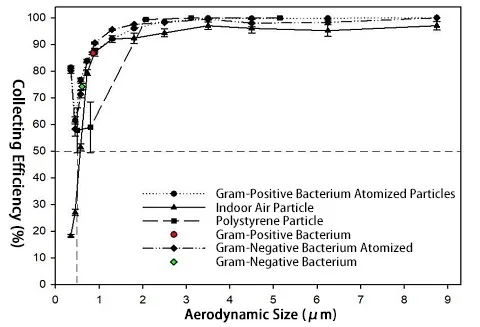

Collection Efficiency	0.5μm PM 48.6% 1μm PM 91.6%
Sampling Tube	φ15*60mm
Sampling Liquid	3ml
Sampling Time	User setting
Power Supply	Battery, 3.5hour
Temperature	0~45°C
Dimension	220130400mm
Weight	3kg
