Y09 -5100 Laser Airborne Particle Counter
Y09-5100 Laser Airborne Particle CounterProduct ApplicationY09-5100 Laser Airborne Particle Counter Y09-5100 Laser Airborne Particle Counter is used to measure the volume of air inside the clean environment of dust particles in size and number, can be directly detected cleanliness class A area, B-cl......
Send Inquiry
Product Description
Y09-5100 Laser Airborne Particle Counter
Product Application
Y09-5100 Laser Airborne Particle Counter
Y09-5100 Laser Airborne Particle Counter is used to measure the volume of air inside the clean environment of dust particles in size and number, can be directly detected cleanliness class A area, B-class area clean environment. Y09-550 laser particle counter use a semiconductor laser light source, a large touch-screen display, small size, light weight, high precision, features simple operation, microprocessor control, storage, printing the measurement results, the test environment is very clean convenient. In addition, special software can be downloaded via computer to store data. Our products are widely used in medicine, optical, chemical, food, cosmetics, e-health, biological products, aerospace and other sectors.

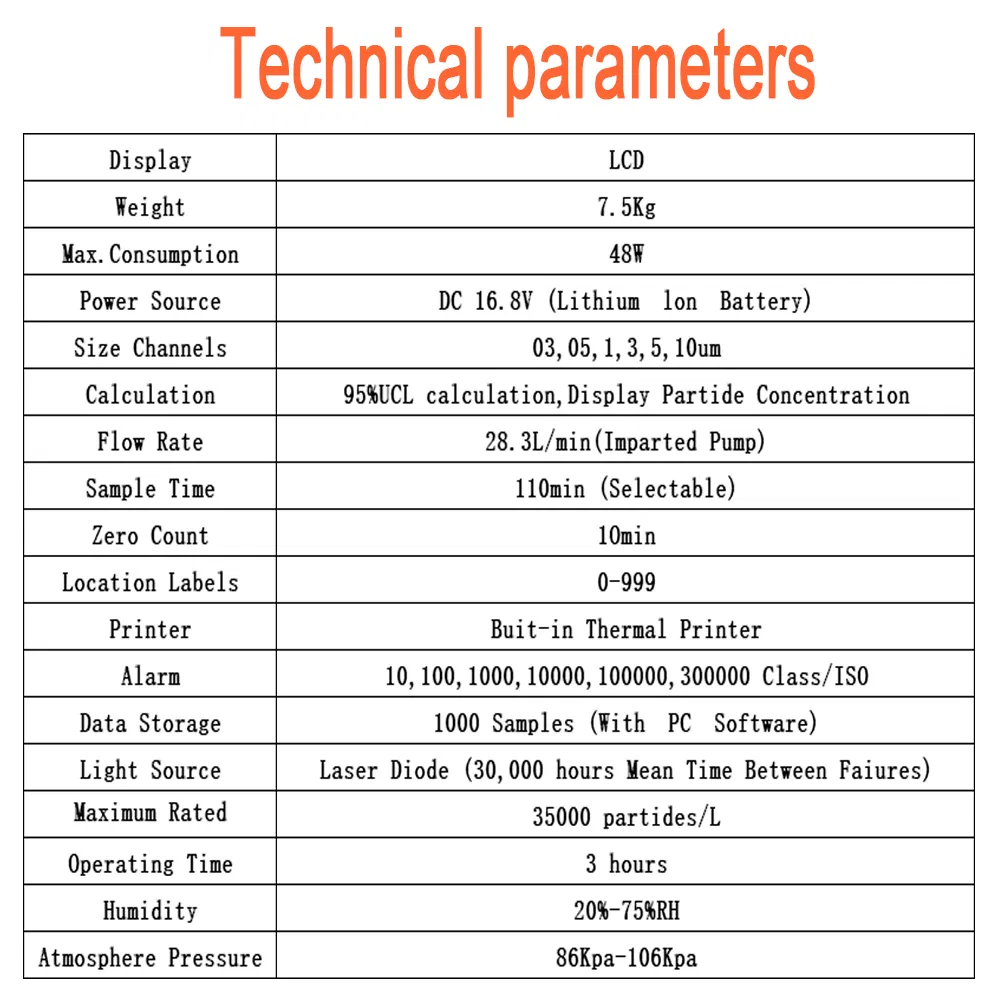

Detailed parameters:
| Outside Dim | 268*192*292(Wide*High*Deep) |
| Display | Touch screen (Lcd) |
| Weight | 7.5 Kg |
| Max.Consumption | 80W |
| Power Source | DC16.8V(Built-in Lithium Battery) |
| Size Channels | 0.5, 1, 3, 5, 10, 25μm |
| Calculation | 95% UCL calculation of particle concentration can be displayed directly (particles / cubic meter, grain / cubic feet) |
| Flow Rate | 100L/min (Imported Pump) |
| Sample Time | 0~999999s(Selectable) |
| Zero Count | ≤10min |
| Location Labels | 0~9999 |
| Printer | (Built-in Thermal Printer) |
| Alarm | ISO / own (Class) |
| Date Storage | 20000 Samples/300Samples of UCL (With PC Software) |
| Date Output | USB Port |
| Light Source | Laser Diode ( 30000 hours mean time between failures) |
| Maximum Rated Particle Concentration | 35000particles/L |
| Operating Time | 3 hours |
| Environmental | Temperature:10~35degrees celsius Humidity:20~75percent RH Atmosphere Pressure:86~106Kpa |
