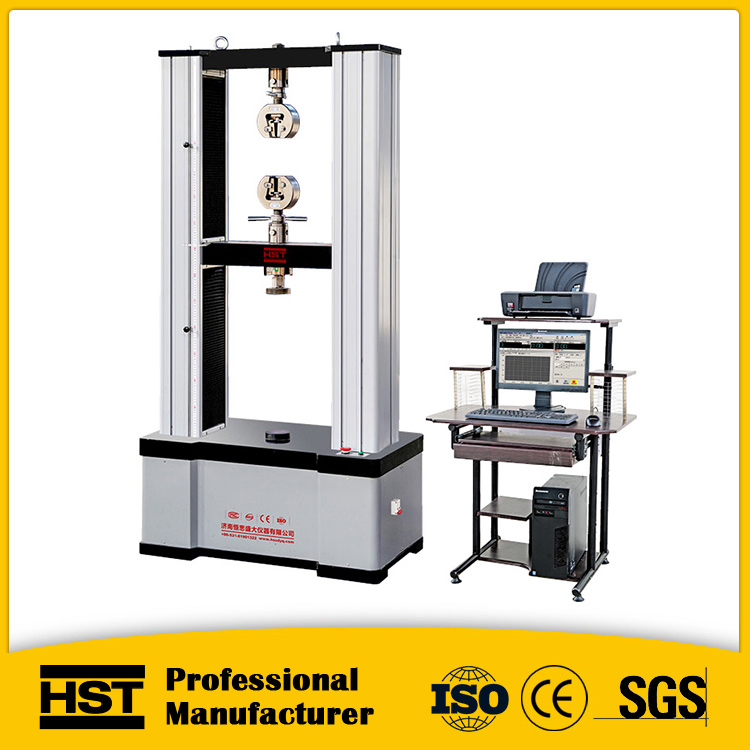

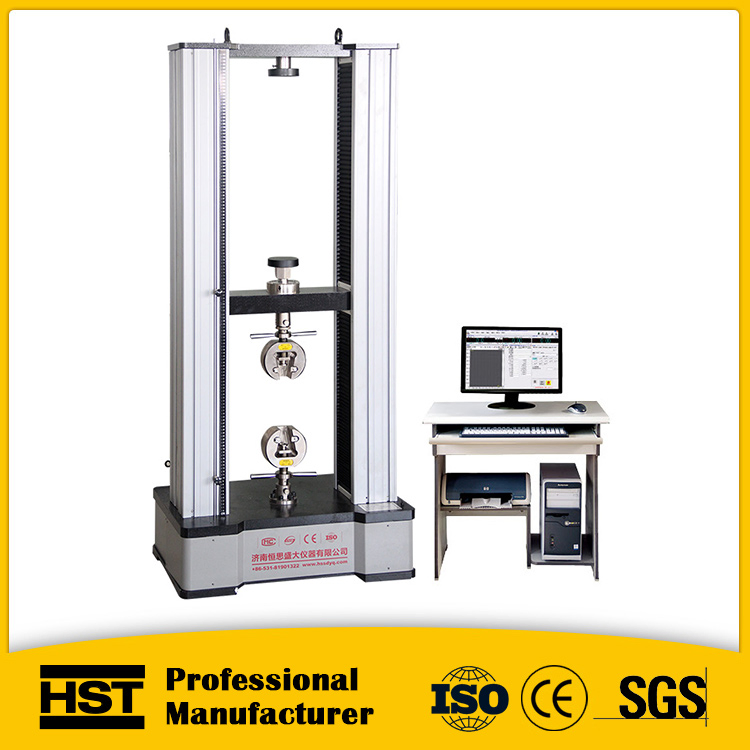

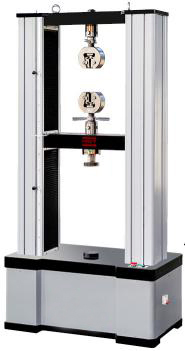

10/20kn Rubber Plastic Universal Tensile Testing Machine Price ASTM (WDW-10/20)
10/20kn Rubber Plastic Universal Tensile Testing Machine Price ASTM (WDW-10/20)Contact: Sunny telephone: +8615866777590 Application:It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and c......
Send Inquiry
Product Description
10/20kn Rubber Plastic Universal Tensile Testing Machine Price ASTM (WDW-10/20)
Contact: Sunny telephone: +8615866777590
Application:

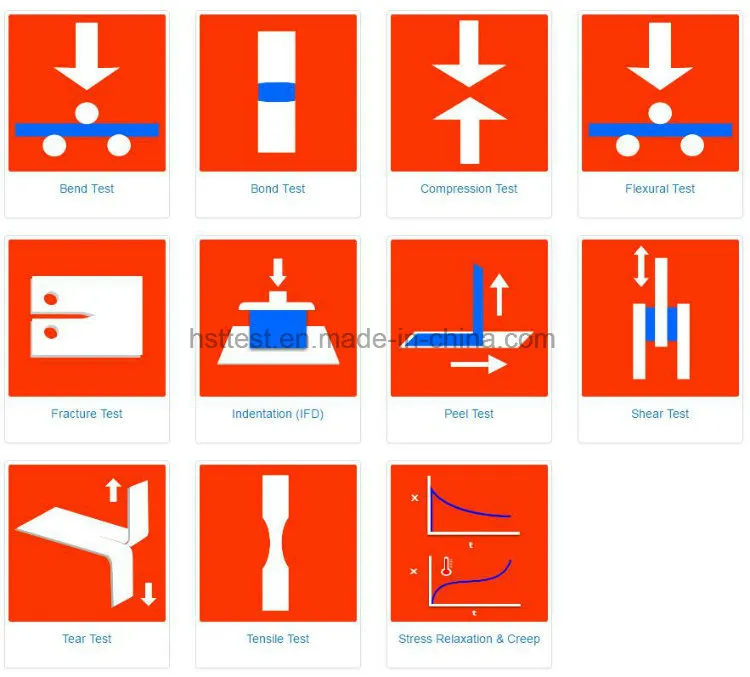

It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Standards:
ASTMA370,ASTME4,ASTME8,ASTME9,ISO6892,ISO7438,ISO7500-1,EN10002-4,GB/T228-2002,etc.
Specifications:
Test grips for choice as below:

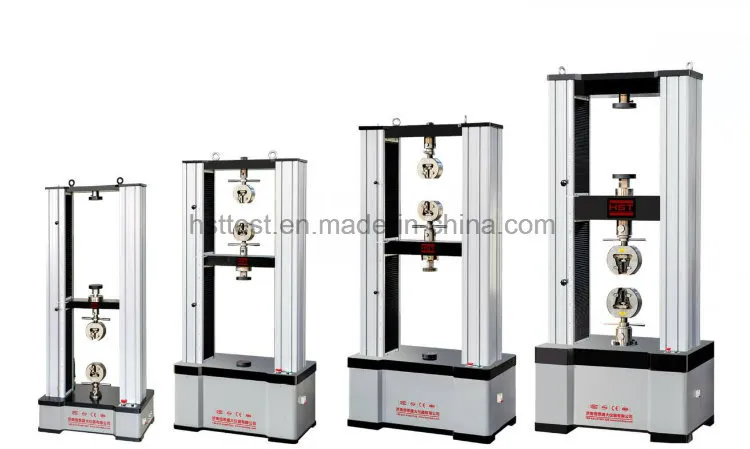

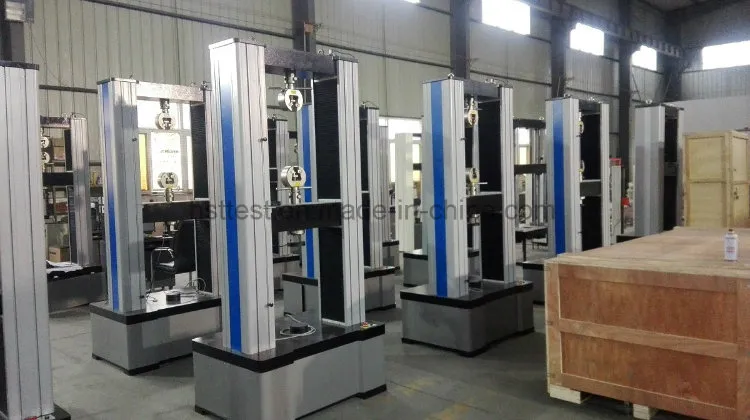

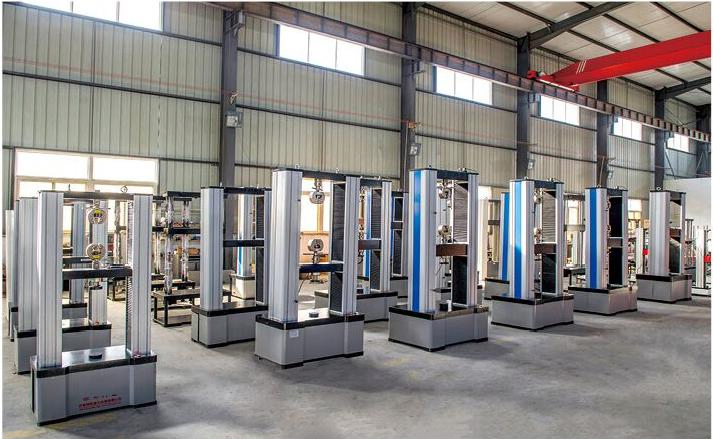

Machines in store for choice:

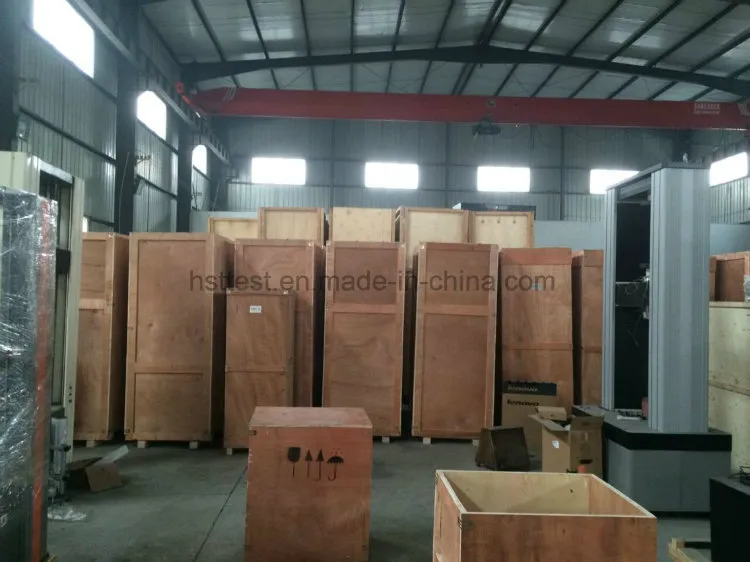

Machines after packages:
Our machines scope:
1). Electronic universal testing machine --WDS/WDW from 200N to 600KN
2). Hydraulic universal testing machine -- WE/WES/WAW from 300KN to 2000KN
3). Compression testing machine---- concrete/cement/carton box YES-300/2000/3000kn
4). Bending testing machine-----horizontal/vertical JWJ/GW series
5). Charpy/Izod impacting Testing machine----JB-300B/500B
Dear Customer, with enough technical engineers and skilled workers, we could supply high quality machines with moderated prices. All the machines could be OEM and customized according to your special requests. Welcome to visit our factory in Jinan city, for more informations please contact Sunny for more details :
Jinan Hensgrand Instrument Co., Ltd
ADD: NO. 4915, West Jingshi Road, Jinan 250012, PR CHINA.
Fax: +86-531-81901323
Mobile/whatsapp/line: +86-15866777590
Website: http://hsttest.en.made-in-china.com
Contact: Sunny telephone: +8615866777590
Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Standards:
ASTMA370,ASTME4,ASTME8,ASTME9,ISO6892,ISO7438,ISO7500-1,EN10002-4,GB/T228-2002,etc.
Specifications:
| Model | WDW-10 | WDW-10E | WDW-20 | WDW-20E | |
| Max. Load(kN) | 10 | 10 | 20 | 20 | |
| Structure | Four-column floor or desk model, (upper is compression and lower is tensile) | ||||
| Cover | All aluminum alloy | ||||
| Control method | Computer control | ||||
| Load accuracy | Class 1 | Class 0.5 | Class 1 | Class 0.5 | |
| Load range | 2%~100%F·S | 0.2%~100%F·S | 2%~100%F·S | 0.2%~100%F·S | |
| Load resolution | 1/300000 | ||||
| Rang of deformation | 4%-100%FS | ||||
| Resolution of deformation | 0.04um | ||||
| Accuracy of displacement | Within±0.5%of indicating load | ||||
| Resolution of displacement | 0.01mm | ||||
| Test speed(mm/min) | 0.05-1000 stepless arbitrary setting | ||||
| Tensile space(mm) | 800(can be customized) | ||||
| Compression space(mm) | 800(can be customized) | ||||
Test grips for choice as below:
Machines in store for choice:
Machines after packages:
Our machines scope:
1). Electronic universal testing machine --WDS/WDW from 200N to 600KN
2). Hydraulic universal testing machine -- WE/WES/WAW from 300KN to 2000KN
3). Compression testing machine---- concrete/cement/carton box YES-300/2000/3000kn
4). Bending testing machine-----horizontal/vertical JWJ/GW series
5). Charpy/Izod impacting Testing machine----JB-300B/500B
Dear Customer, with enough technical engineers and skilled workers, we could supply high quality machines with moderated prices. All the machines could be OEM and customized according to your special requests. Welcome to visit our factory in Jinan city, for more informations please contact Sunny for more details :
Jinan Hensgrand Instrument Co., Ltd
ADD: NO. 4915, West Jingshi Road, Jinan 250012, PR CHINA.
Fax: +86-531-81901323
Mobile/whatsapp/line: +86-15866777590
Website: http://hsttest.en.made-in-china.com
