Product Description

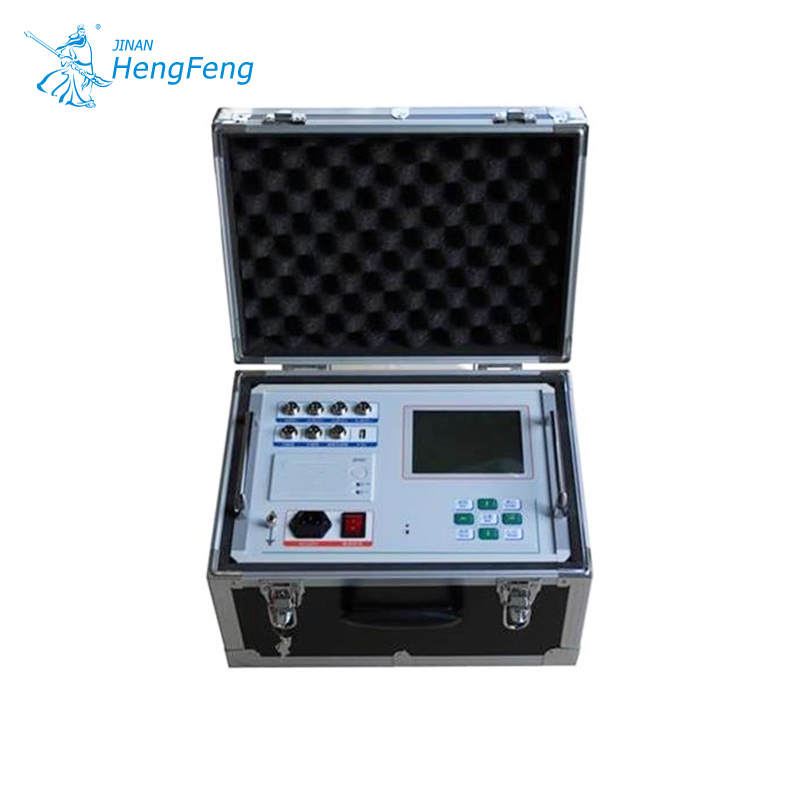

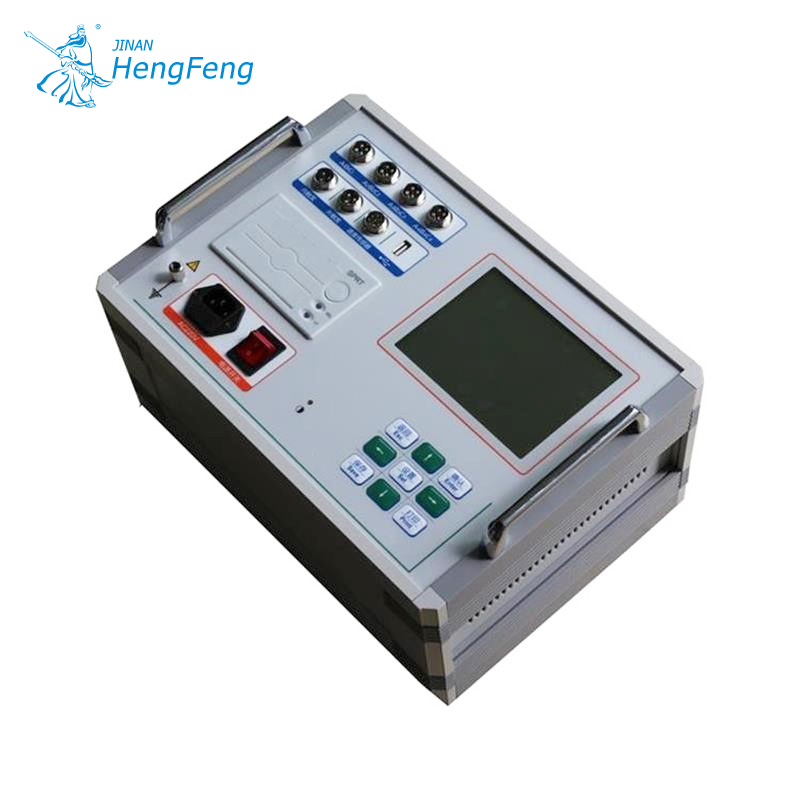

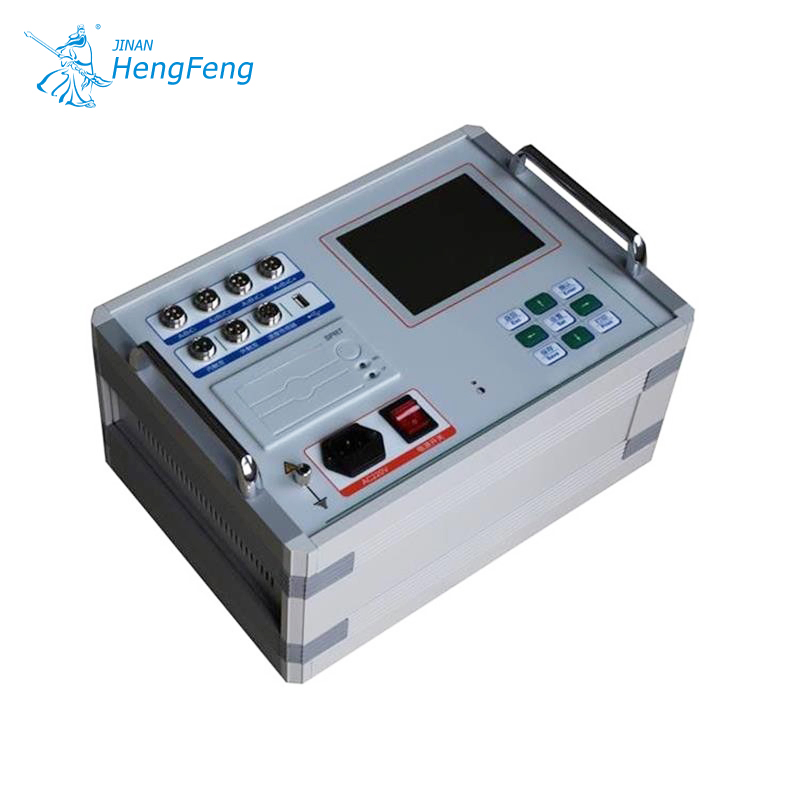

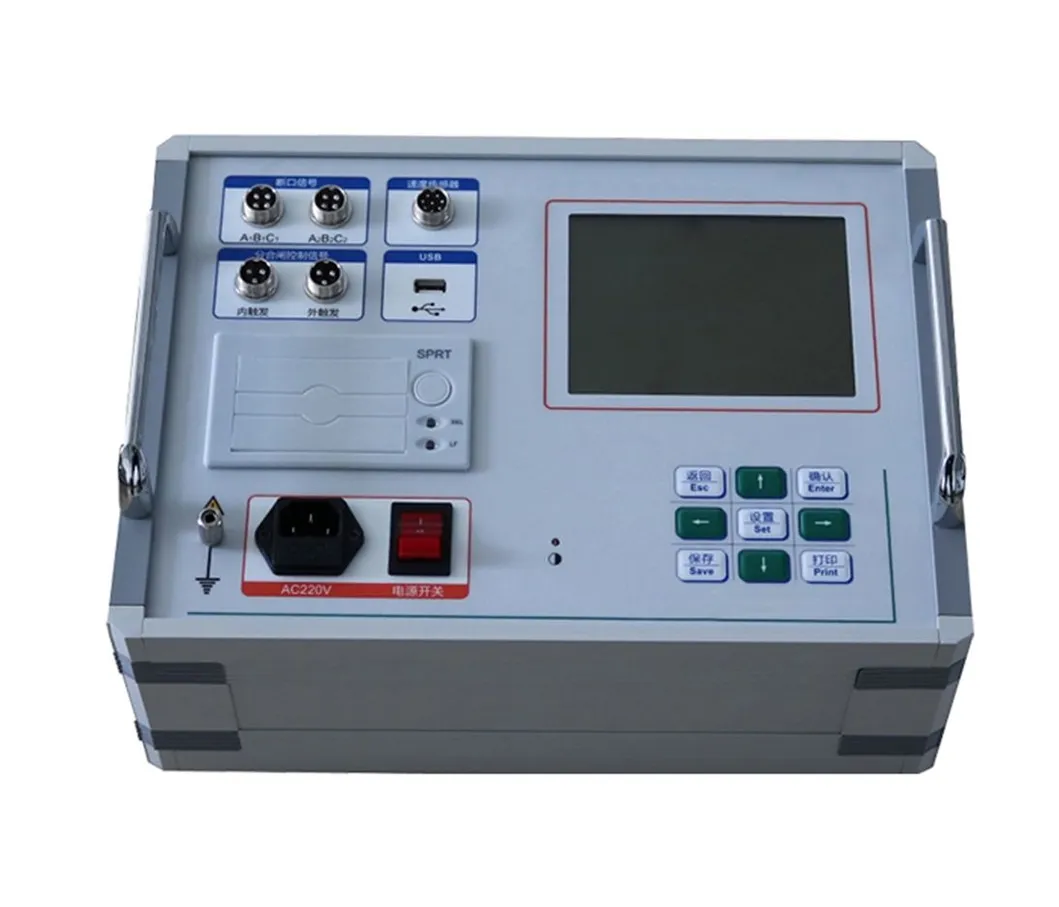

12 Channels High Voltage Circuit Breaker Transformer Tester CB Analyzer China Supplier

Product introduction
Circuit breaker analyzer is specially developed and produced to test the dynamic characteristics of various high voltage switches, such as oil switches, vacuum switches and sulfur hexafluoride switches.
6 or12 independent contact
10/20/30A current can be customized.

Features
1. Automatically identify breaker status (on or off) for contacts & operate accordingly with clue.

2. Independent 6 contacts, can test and indicate their connection status for user to check wiring.

3. Storage capacity up to 100 sets of testing results

4. 320×240 LCD grey display, clear in sunshine, friendly interface, easy to operate

5. Powerful graphic function, can display waveform and measurement data simultaneously

6. Delay and protection function, auto cut off coil voltage after circuit breaker operates

7. Measure switch electrically or manually

8. Can do low voltage and high voltage test, auto check minimum opening or closing voltage

9. In reclosing measurement, close-open, open-close, open-close-open time can be tested

10. Can measure vacuum contactor (single coil) parameters

Specifications:

Time test:	6 channels (12 channels is for option)
	Open(Close)time
	Open(Close)one phase no- synchronism
	Open(Close)phase to phase no-synchronism
	Close(Open)bounce time(bounce numbers)
Test range:	0.1ms~999.99ms
Accuracy:	1%±(1% read+2digits)
Velocity test:	Open(Close)velocity
	Pointed periods of time(travel period or angle period)average speed
	Open(Close)max.velocity.
Range:	1mm Sensor:0.01~25.00m/s
	0.1mm sensor: 0.001~2.50m/s
	0.5°angle sensor: 1cycle/ 0.5°
Accuracy:	1mm Sensor ±(1% reading+1digit)
	0.1mm sensor ±(2% reading +1digit)
	0.5°angle sensor ±(1% reading+1digit)
Travel test:	Active contactor travel
	Contactor travel (open distance)
	Overshoot travel or bounce travel (amplitude)
	Sensor:50mm,Resolution:0.1mm
	Sensor:300mm(option),Resolution:1mm
	360line sensor:360,resolution:0.5 ,accuracy: ±1%
Screen:	320×240LCD
Data Storage:	100 groups
Printer:	Build-in thermal printer
AC source:	AC 220V ± 10%;50Hz ± 2%
DC source:	Output voltage:30~245V continuous adjustment,output current:≤ 15A(short time)
Control unit oversize:	380×280×140mm
Working Conditions:	Temperature:-10ºC~+50ºC RH:≤90%

FAQ:

1. How can I choose the suitable one?
Please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.

2. Does your price is competitive?
We have our own factory,we make sure to offer you the best quality with competitive price.

3. How can I pay?
We accept many payment term, such as T/T, Western Union…

4. When I receive it after pay?
Normal models can be delivered with 4-7days, please contact us to check transport time to your address.

5. How to deliver?
We can send by Express, by Sea and by Air.

7.What should I do if I do not know how to use?
We provide detailed operation instructions, operation videos, and engineer's online technical support.

8.What should I do if some parts broken?
We provide a 12-month warranty period and long-term maintenance services.
