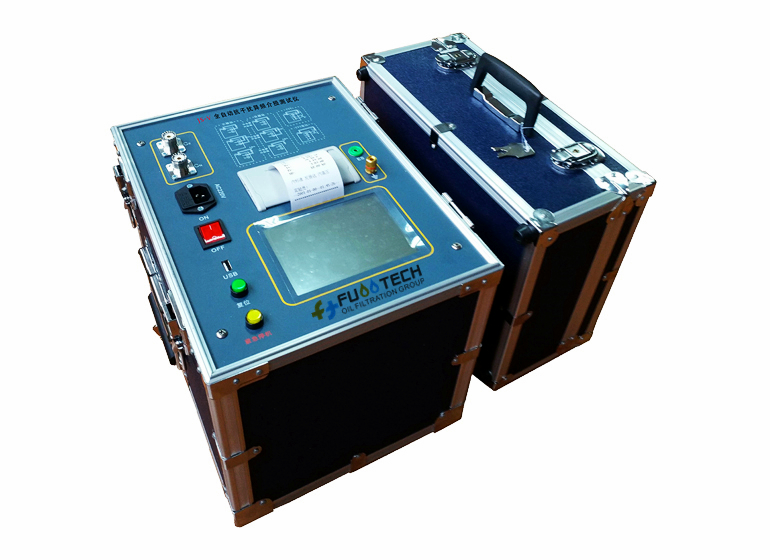

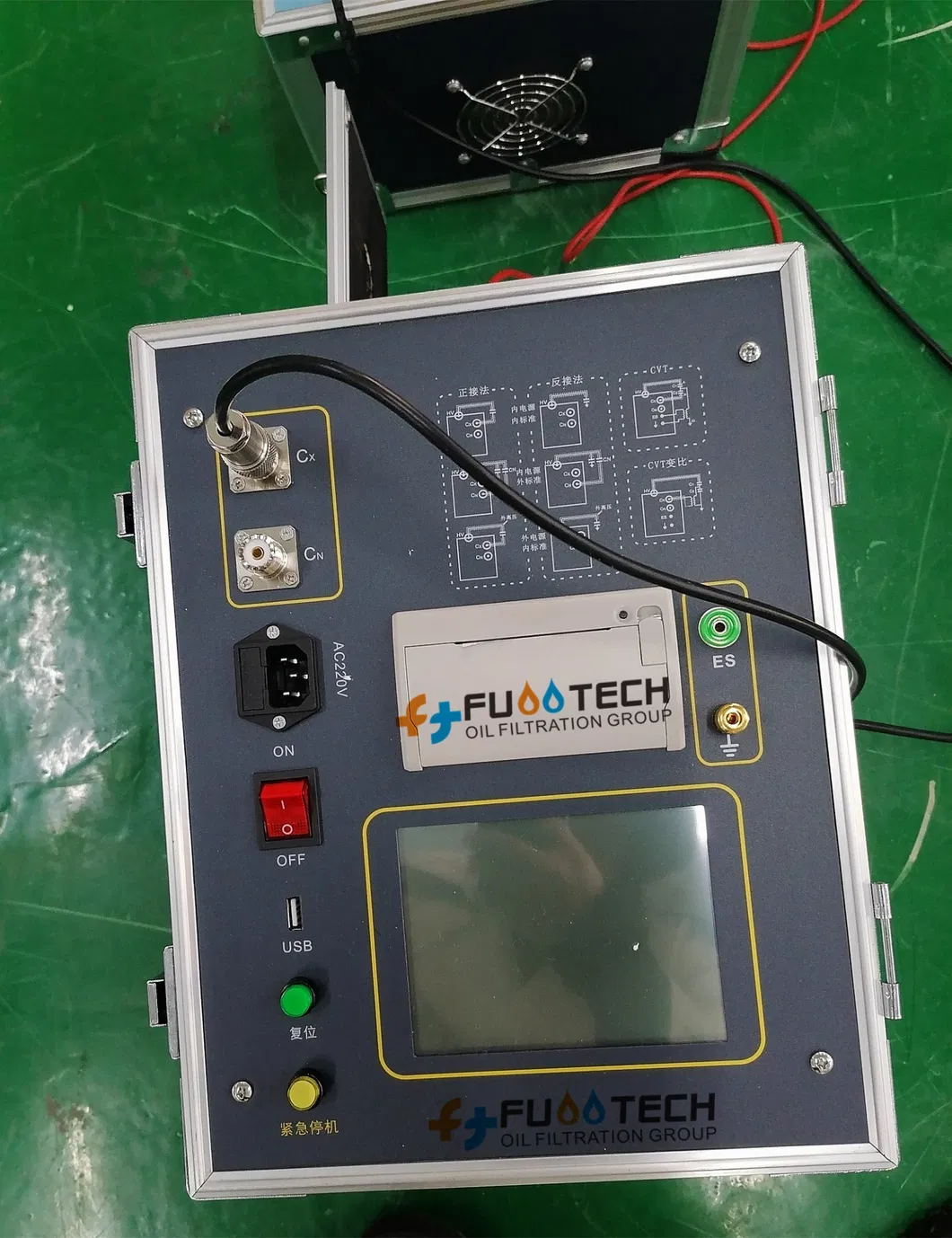

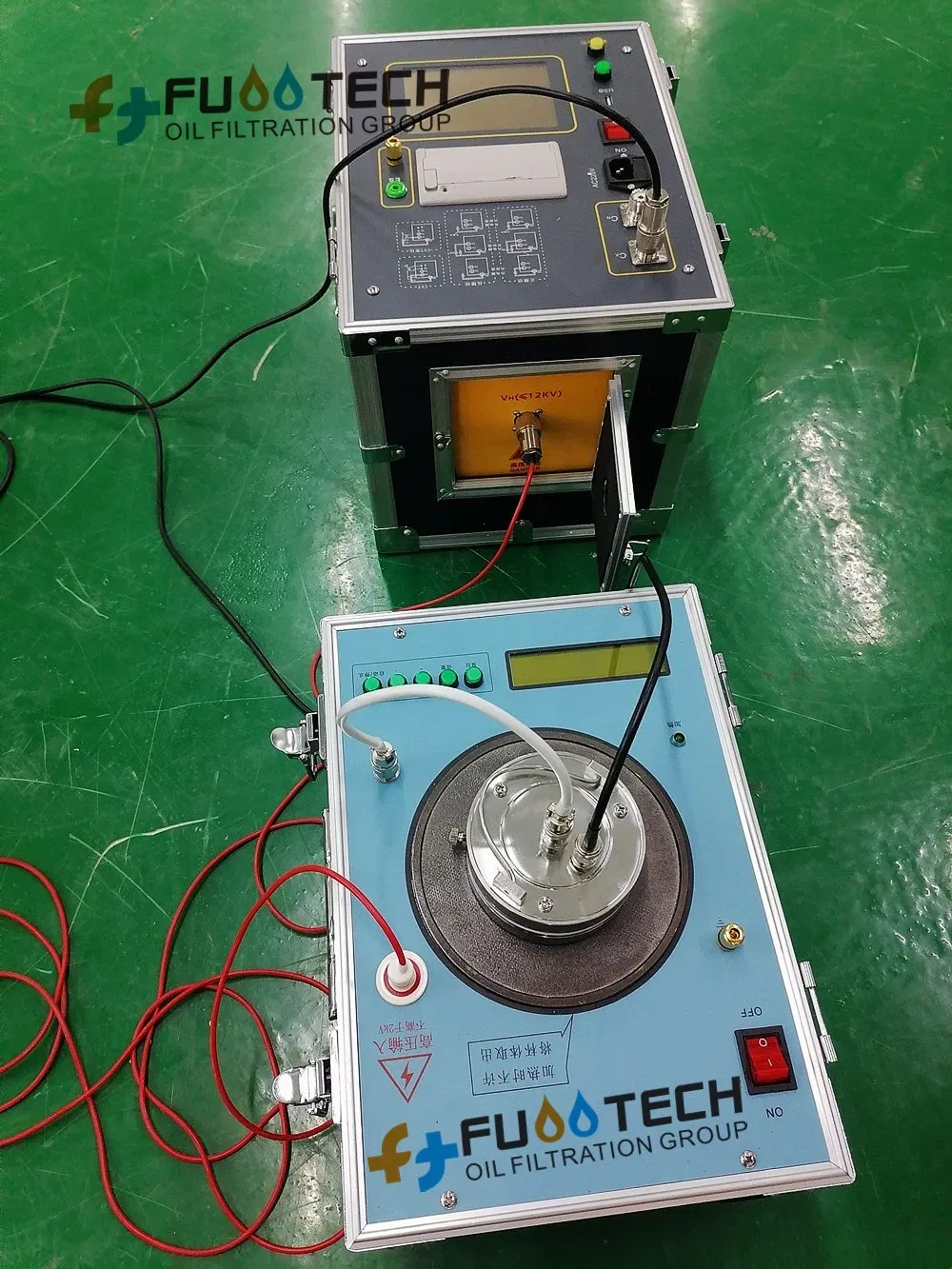

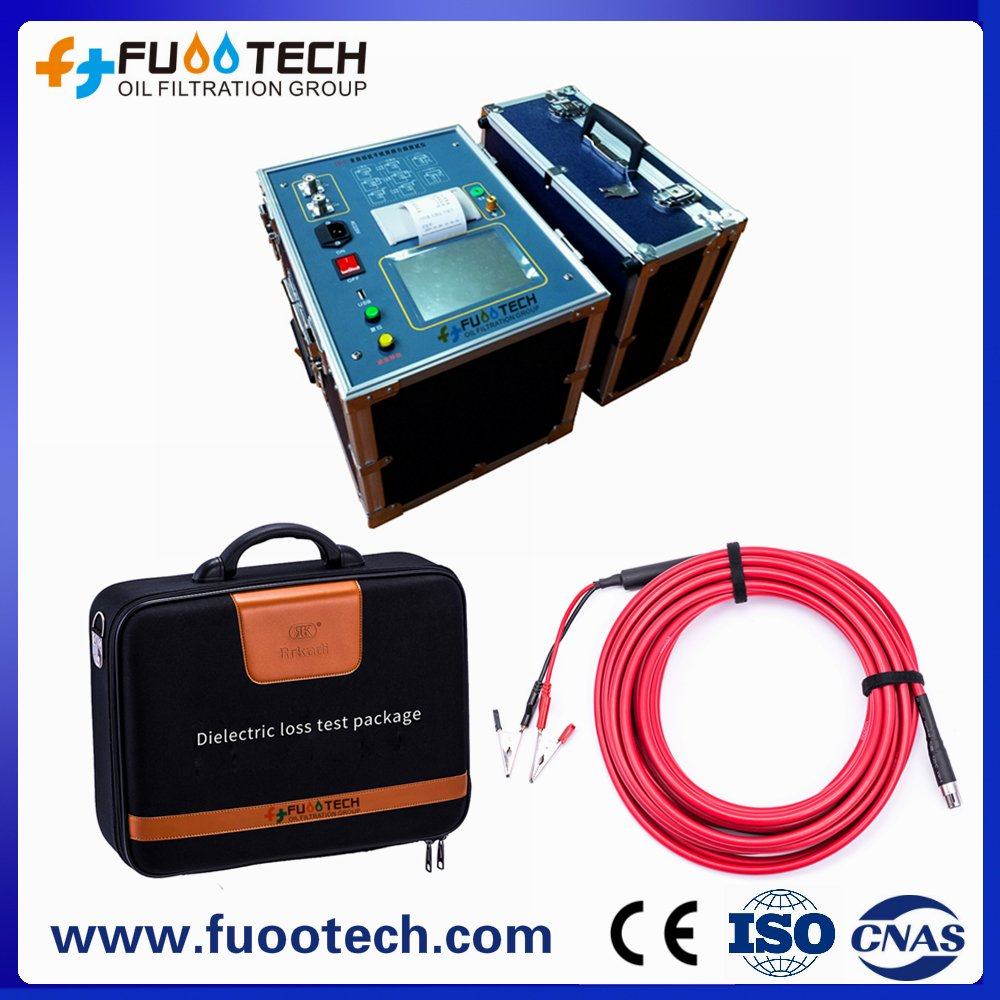

FUOOTECH JS-V Automatic anti-interference Tan Delta Tester (Touch Screen Type)
Electric equipment Dielectric Loss Tester with CVT test method

Brief Introduction
Measuring dielectric Loss is a basic method in insulation test, which can effectively find the deterioration damp of insulator on electrical equipment as well as local defects. It is widely used in electrical manufacturing, electrical equipment installation, handover and preventive tests. It is the most basic way to evaluate the insulation of electric equipment through measuring the dielectric losses of its transformers, instrument transformers, reactors, capacitors, bushing and arresters.

12kv Touch Screen Transformer Tan Delta Tester Electric Equipment Dielectric Loss Tester Transformer Dissipation Factor Tester

12kv Touch Screen Transformer Tan Delta Tester Electric Equipment Dielectric Loss Tester Transformer Dissipation Factor Tester

Features:

1. Big touched screen LCD display:easy to use and no need to train user, only click the screen to finish whole test process
2. High storage capacity:can save 200 group data,results can be saved in chronological order, historical records can be viewed at any time, and can be printed out;
3. data manage:The instrument data can be exported through U disk, and can be viewed and managed on any PC.

4. Multiple test modes:It can test by internal high voltage, external high voltage, internal standard, external standard,
positive connection method, reverse connection method, self-excitation method and other methods;High voltage (> 10kV) medium loss can be made under the condition of external standard external high voltage.
5. CVT test:can test CVT(capacitor voltage transformer) C1/C2 of dielectric loss and capacitance,can test C1/C2 simultaneously. Can also test CVT Variation ratio and voltage Angle difference;

6. no need remove high voltage cable to test CVT: can test CVT dielectric loss and capacitance with no need remove HV cable
7. CVT Reverse connection shielding measuring C0:can test the dielectric loss value and capacitance value of CVT upper C0.

8. high speed sampling signal:The inverter and sampling circuit inside the instrument are all controlled by digital, and the output voltage is continuously adjustable.

9. LCR full auto test:Automatic display inductance, capacitance, resistance measurement, Angle.
10. multiple protection features:such as input voltage fluctuation, high voltage current, output short circuit, power supply fault, overvoltage, overcurrent and temperature, etc., to ensure the safety and reliability of the instrument. also equipped with grounding detection function to ensure that the ungrounded equipment does not allow voltage boost.

Technical Specifications:

Work condition	-15ºC∽40ºC		RH<80%
Principle of anti-interference	Variable frequency
Power supply	AC 220V±10%		Permissible generator
Output high voltage	0.5KV∽12KV		Every each 0.1kV
	Accuracy		2%
	Max current		200mA
	Capacitance		2000VA
self-excitation power supply	AC 0V∽50V/15A		50HZ,60HZ single frequency, 45HZ/55HZ,47.5HZ/52.5HZ,55HZ/65HZ,57.5HZ/62.5HZ, Automatic double frequency conversion
resolution	tgδ: 0.001%		Cx: 0.001pF
Accuracy	△tgδ:±(reading*1.0%+0.040%)
	△C x :±(reading*1.0%+1.00PF)
Test range	tgδ	No limitation
	C x	15pF < Cx < 300nF
		10KV	Cx < 60 nF
		5KV	Cx < 150 nF
		1KV	Cx < 300 nF
	CVT test		Cx < 300 nF
LCR test range	L>20H(2kV)		R>10KΩ(2kV)
LCR test accuracy	1%	angular resolution	0.01
CVT turn ratio range	10∽10000
CVT turn ratio accuracy	1%	CVT turn ratio resolution	0.01
size(host)(mm)	350(L)×270(W)×270(H)
size(accessory)(mm)	350(L)×270(W)×160(H)
Memory capacity	200 group Support U disk data storage
weight(host)	22.75Kg
weight(accessory)	5.25Kg

Accessories

Serial Number	Name	Amount
1	Inter-frequency dielectric loss tester	one
2	High voltage output shielded cable	one
3	Test input cable	two
4	Power line	one
5	Ground lead	one
6	CVT Line	one
7	5A Fuse (Internal)	four
8	Printing paper (50ml)	two
9	Specification	one
10	Inspection Report	one
11	Certification	one

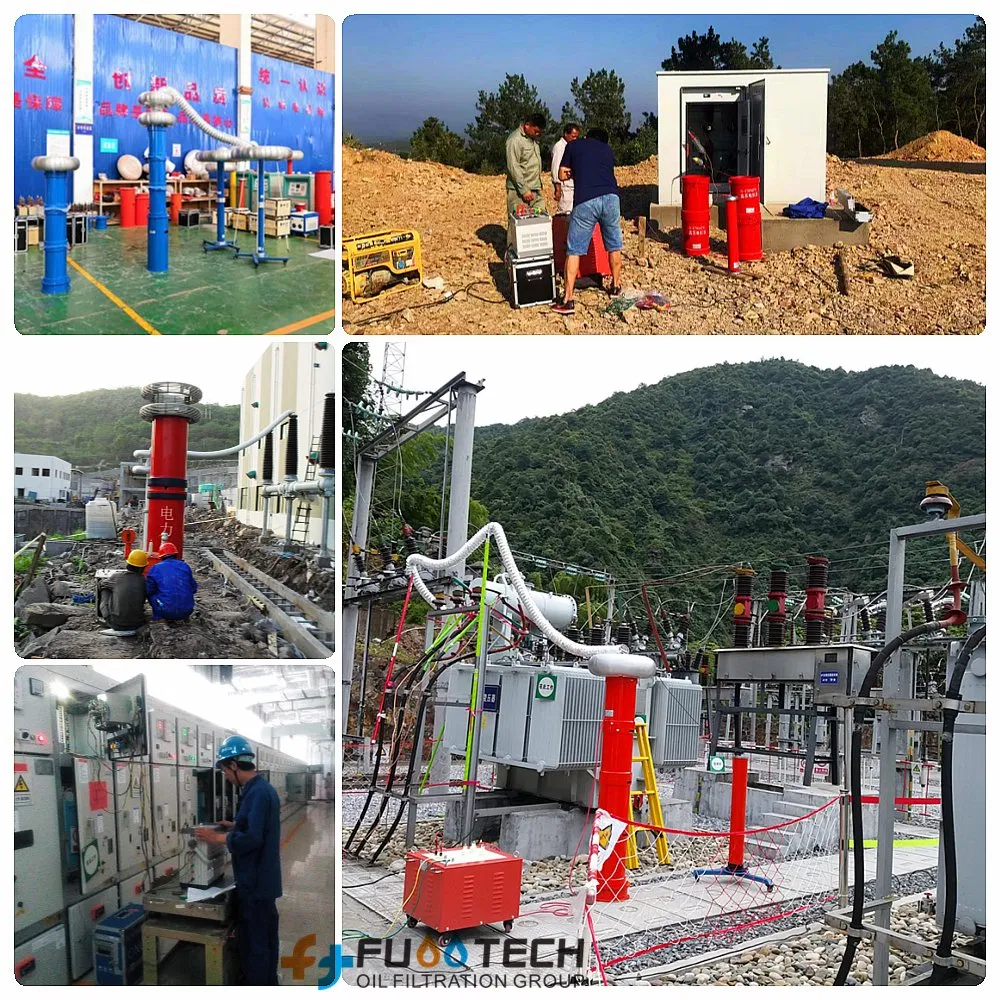

Field Test & Services:
