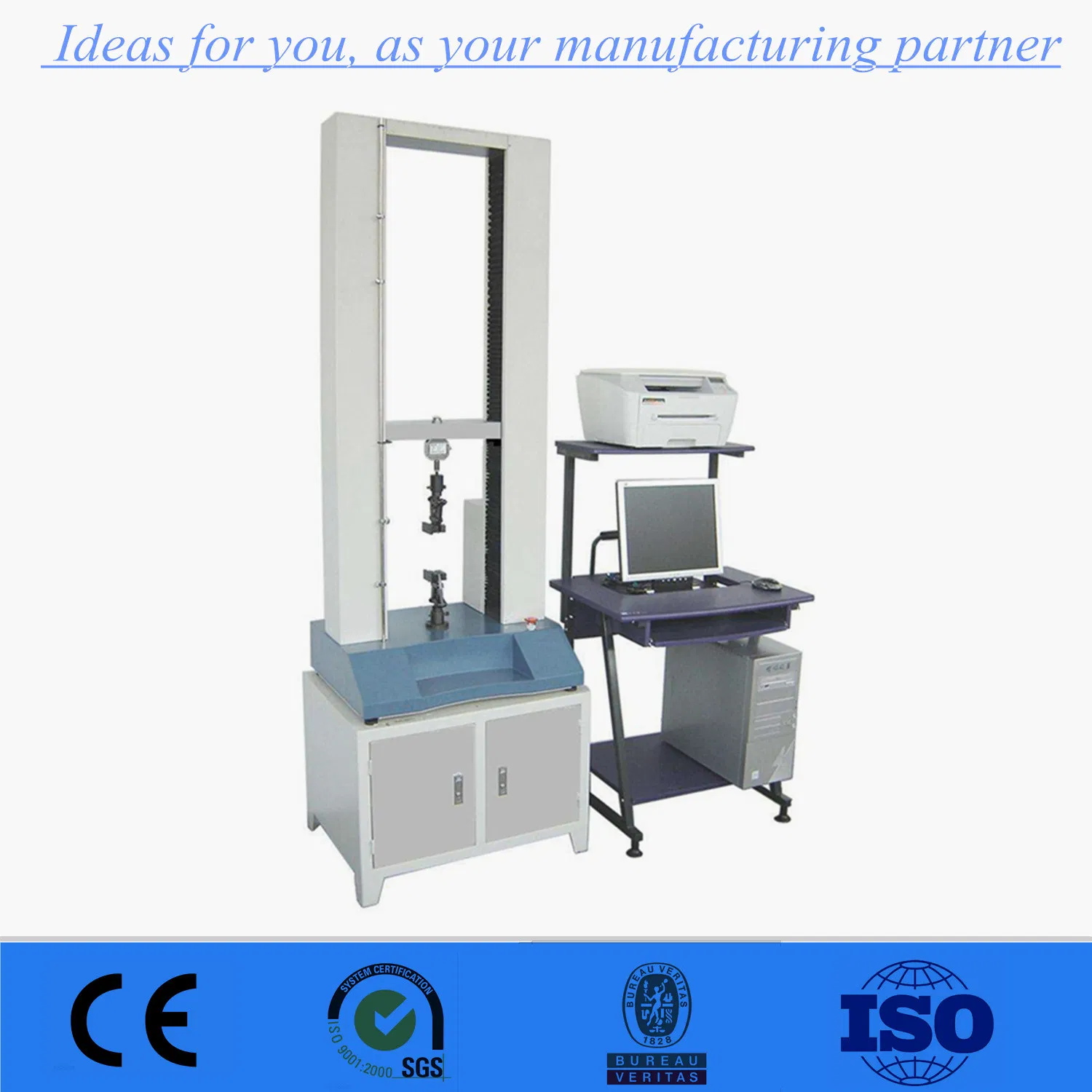

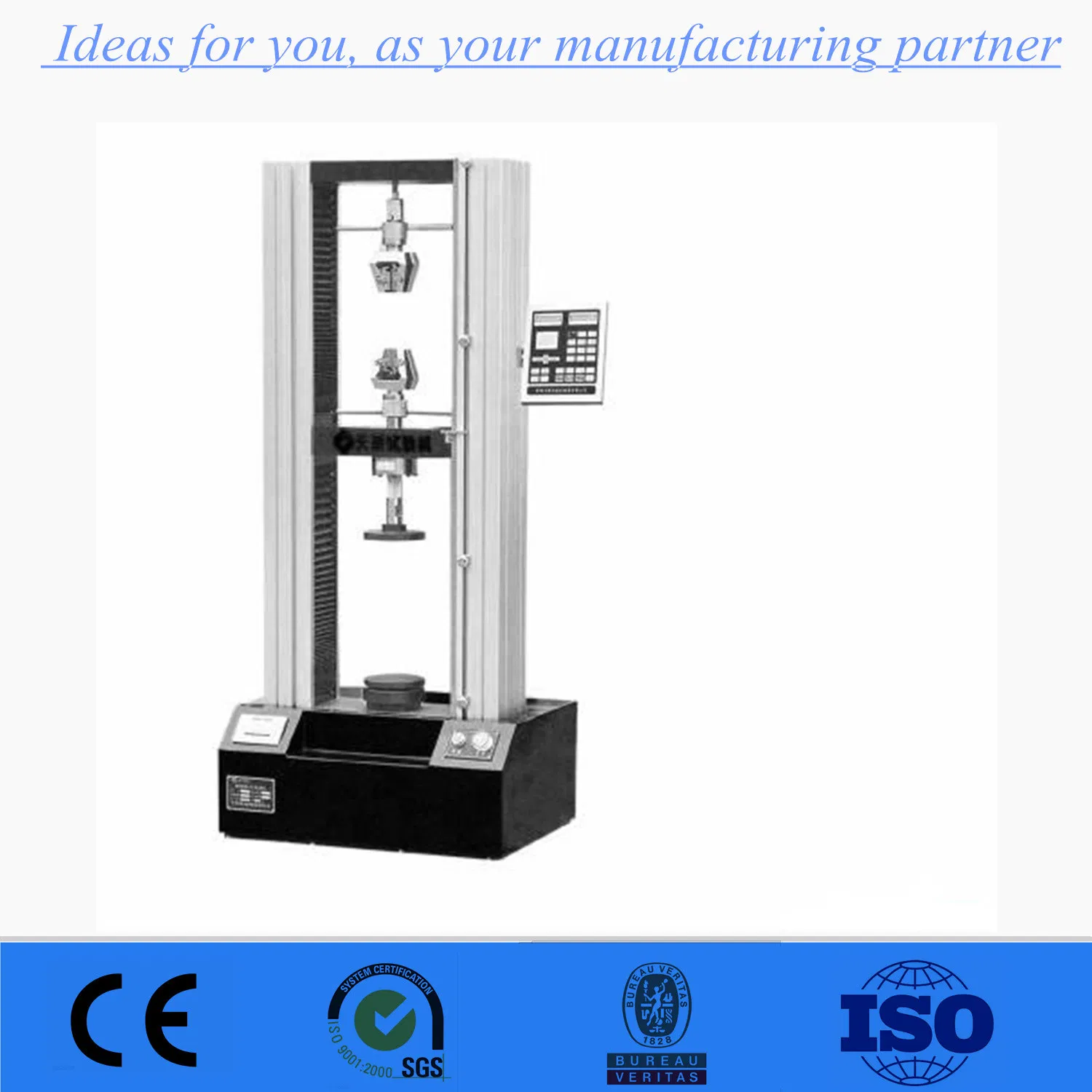

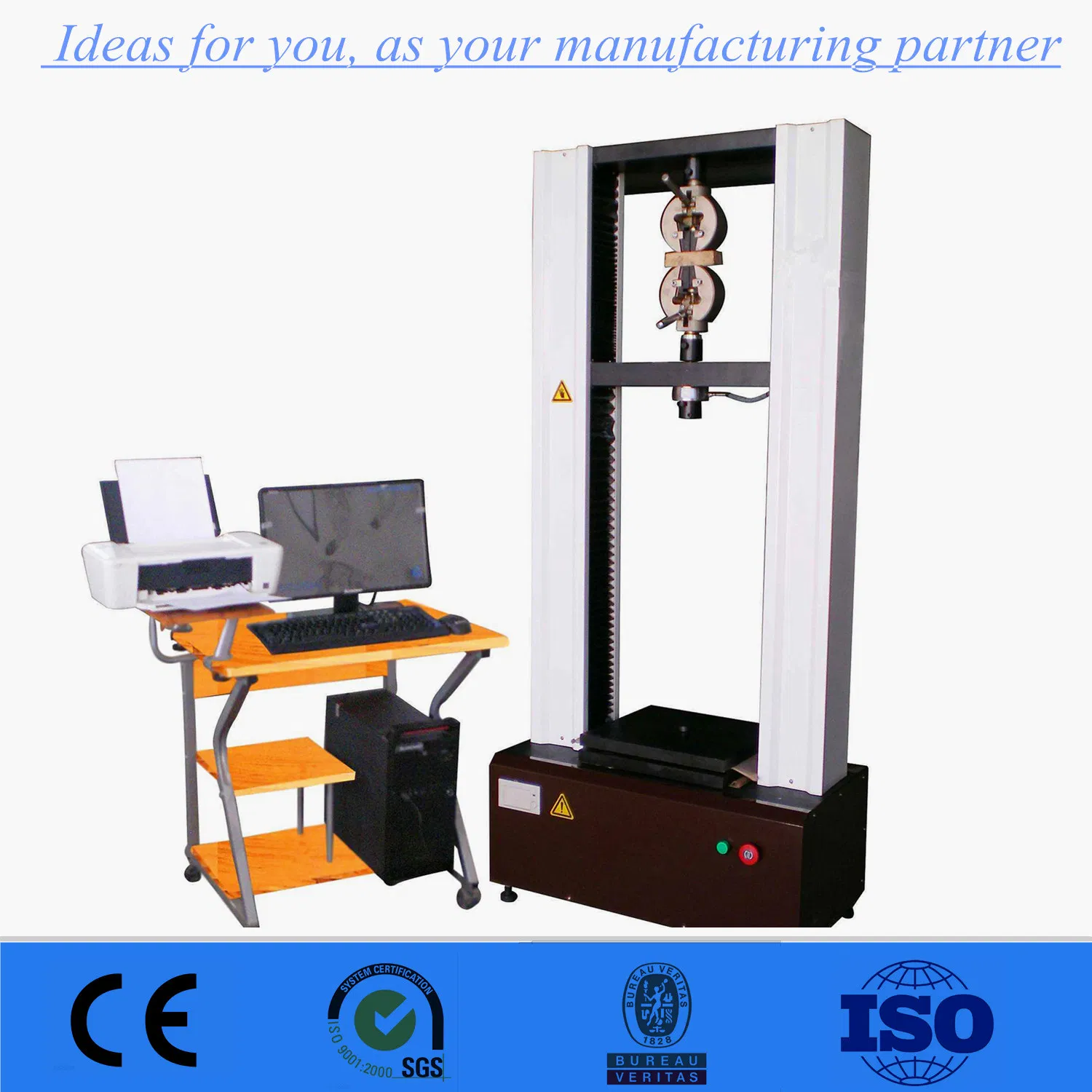

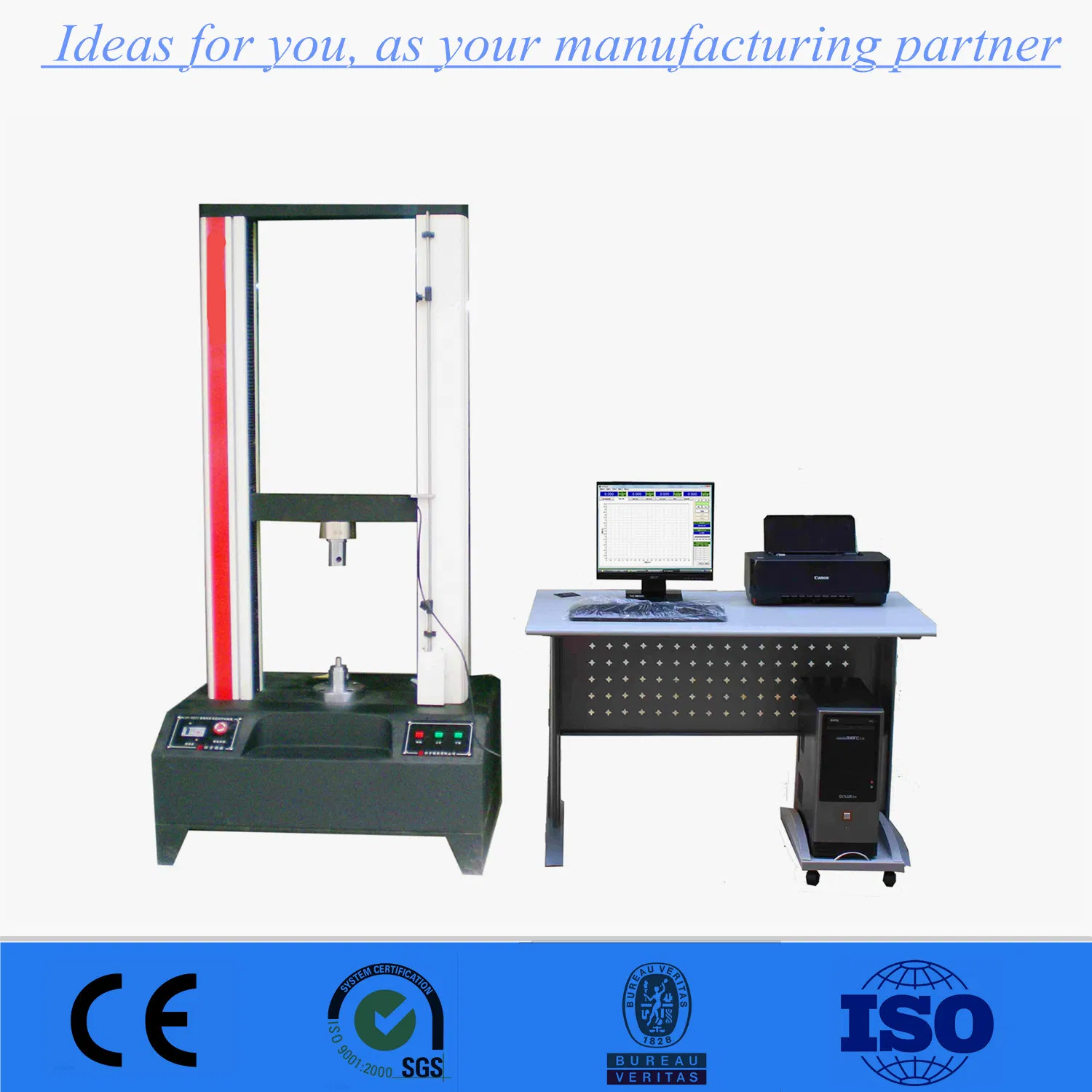

300kn Metal Tensile Tester Price/Lab Testing Machine Utm/Tensile Testing Machine

Product Description

Specifications

tensile testing machine
1. Manual/hydraulic clamp
2. Computer control
3.Factpry with CE certificate

Metal tensile tester price/lab testing machine utm/Tensile testing machine

1. Application:

Universal tesnile testing machine is designed and manufacturedaccording to

ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubberplastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

2. Main Specifications:

Model	WDW-200	WDW-300	WDW-500	WDW-600
Max. Load	200kN 20000kgf 44800lbf	300kN 30000kgf 67200lbf	500kN 50000kgf 112000lbf	600kN 60000kgf 134400lbf
Load accuracy	≤±1%
Load range	2%-100% of full scale
Load resolution	1/200000 of full scale
Defor. resolution	0.005mm
Defor. test range	2%-100% of full scale
Defor, resolution	1/20000
Disp. speed control range	0.001-200mm/min
Disp. accuracy	≤± 0.5%
Tensile. space	600mm 600 mm 650mm 650mm
Test width	550mm	550mm	650mm	650mm

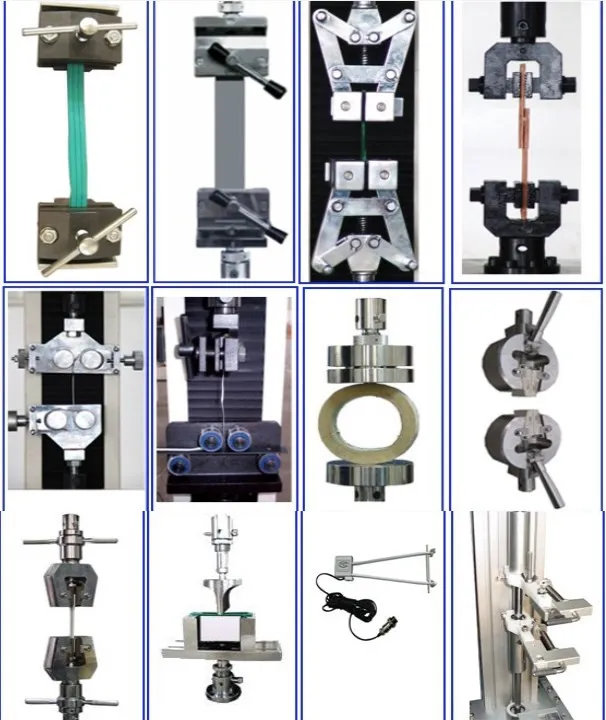

Grips	Manual(Hydraulic grip optional)		Hydraulic grip
Dimension	1110×750×2560mm		1110×780×2600mm
round specimen	9-26mm		9-32mm
flat specimen	0-20mm		0-20mm
Power supply	380V, 3ph, 3KW		380V, 3ph, 4KW
Weight (kg)	2100kg\|4620lb		2500kg\|5500lb

3. Feature:

3.1 Main Unit:

Electronic Universal Testing Machine adopt double space structure, the upper space used for tensile test, the lower space used for compression and bending test. The beam moving speed is stepless adjust. The drive system consist of servo control reduction motor, arc synchronous belt, ball screw, moving steadily, high working efficiency, low noise, no pollution.

3.2 Electrical measurement and control system

3.2.1 With protect function of overload,over current, over voltage, displacement limit, emergency stop, etc .

3.2.2 The controller can control more load sensor, high integration, stable and reliable, easy to adjust.

3.2.3 When finished testing, automatic stop.

3.2.4 Control system with programmable amplifier A/D conversion, digital I/O, counting and pulse happen (PWM), and other functions in one

3.2.5 Mechanical zero setting, automatic force measurement, zero setting, calibration and save, highly integrated control circuit

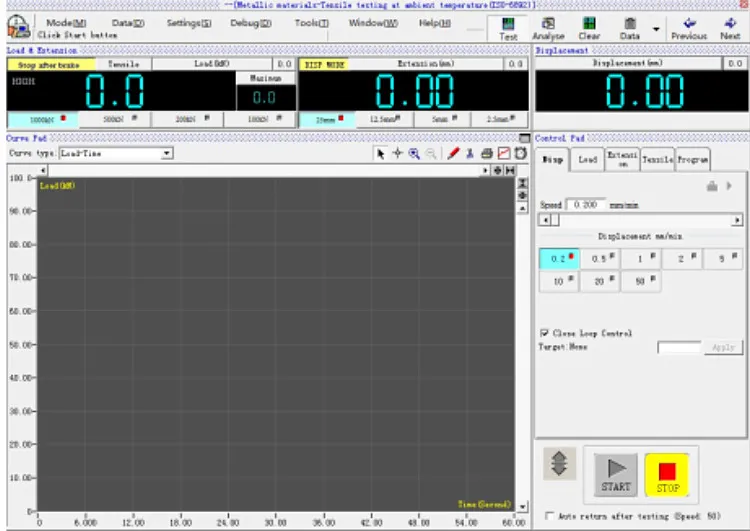

3.3 Software and software interface

3.3.1 Based on Windows operation platform, the software adopting modulus design, with simple operation and powerful functions

3.2.2 The control panel has defined all the control parameters, data dealing method and report content and form, different test can be set according to the control panel.

3.2.3 Program adopting open database structure, integrated the GB, ISO,ASTM,JIN, DIN testing methods and can customized according to special requirements

3.2.4 With internet interface, can transmit, save and print data. Can connect enterprise Internal LAN and Internet.

3.2.5 Can edit and set the report form freely, also can print the testing data

Tensile Testing Machine for Copper Wire:

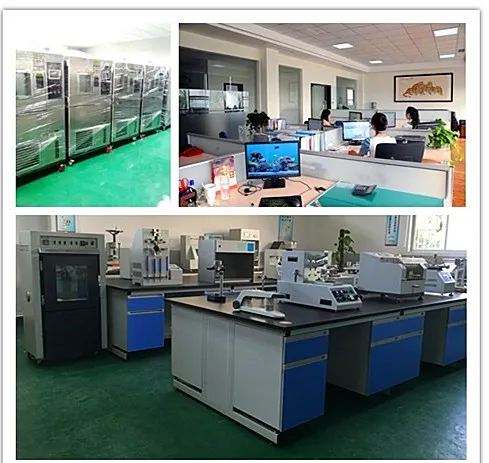

Factory Show:

Cooperate Partner:
