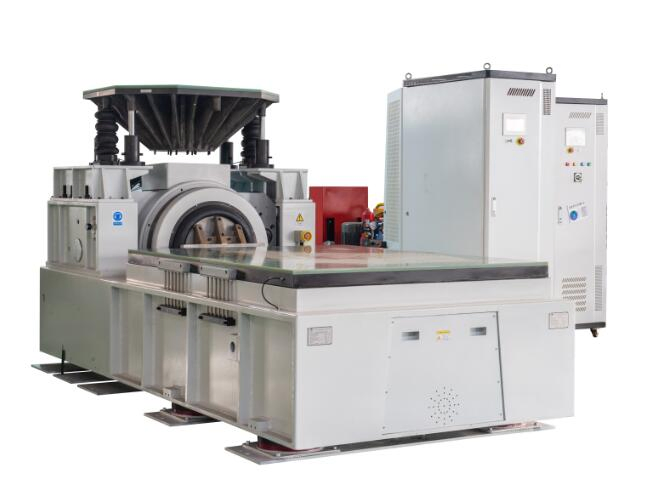

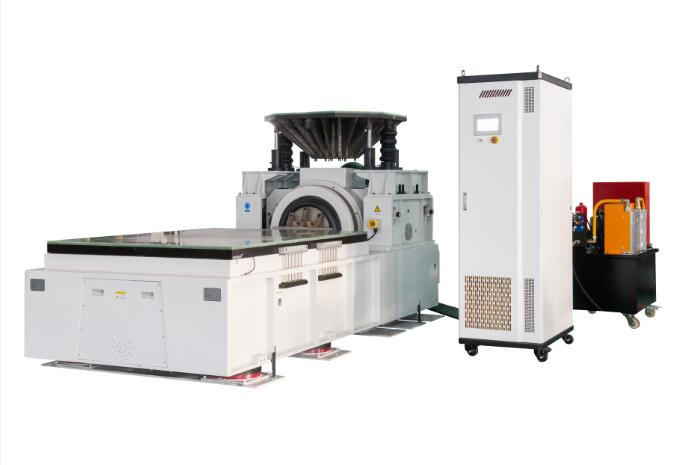

80kN Electro-Dynamic Vibration Testing Shaker - TS80W-445 -High Force Series (testing machine)
Working Principle:Description: The high force series shakers are featured by large force, high cooling efficiency, high bearing capacity and excellent guiding capacity, which are suitable for large specimen test. Typical fields of applications are rail transit, ships, automotive, aerospace and aviat......
Send Inquiry
Product Description

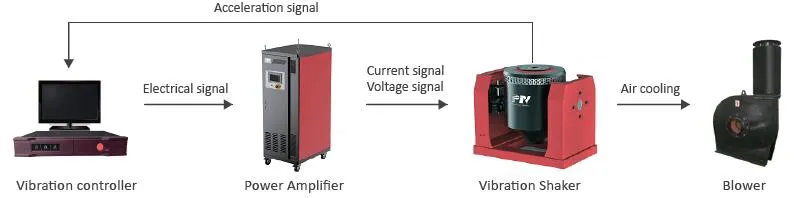

Working Principle:
Description:
The high force series shakers are featured by large force, high cooling efficiency, high bearing capacity and excellent guiding capacity, which are suitable for large specimen test. Typical fields of applications are rail transit, ships, automotive, aerospace and aviation, military and defense, etc.
Features:
1. The optimized armature is characterized by high strength, high vibration-resistance, good stiffness and high first resonance frequency;
2. The armature winding adopts high-strength material to ensure excellent insulating performance and high structural strength;
3. Adopt water-cooling design for short circuit ring to improve cooling efficiency;
4. Adopt parallel design for water circuit to improve cooling efficiency and ensure that the heating parts can be cooled down sufficiently;
5. Optimized magnetic circuit design to achieve higher magnetic circuit utilization and lower flux leakage;
6. Random excitation force is equivalent with sine excitation force;
7. Multi-interlock protection to ensure the safety of system and customer's specimen.
Specifications:
| System model | TS80W-445 |
| Sine(peak)/Random(rms)(kN) | 80 |
| Shock force(kN) | 160/240 |
| Frequency range(Hz) | 5-2,500 |
| Max.acceleration(m/s²) | 1000 |
| Max.velocity(m/s) | 2 |
| Max.displacement(mm) | 51 |
| Max.load(kg) | 800 |
| Mass of moving elements(kg) | 60 |
| Armature diameter(mm) | 445 |
| Body suspension natural frequency(Hz) | 2.5 |
| Power amplifier model | PWA80W |
| Power(kVA) | 80 |
| Power requirement(kVA) | 140 |
| Cooling type | Water cooled |
| Cooling unit model | CW-80-1 |

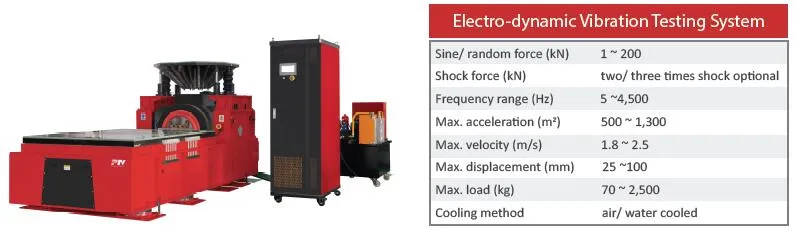

Main Products:

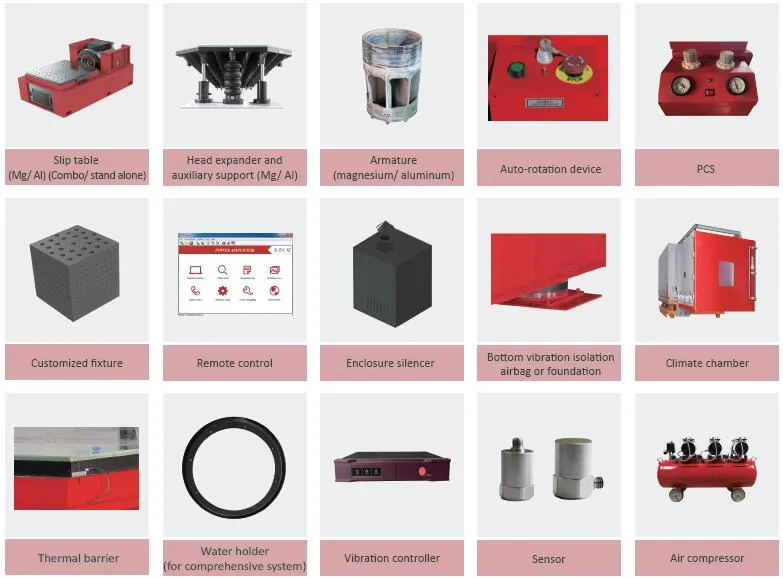

Options:
Maintenance & Repair:
PIV is equipped with a professional post-sales team. Moreover, we set up the distributor network in over 20 countries and regions to ensure quick response. PIV post-sales engineers have rich theory experience and practical capability, which guarantees overall service in aspects of failure diagnosis, maintenance plan, material preparation and on-site operation.
