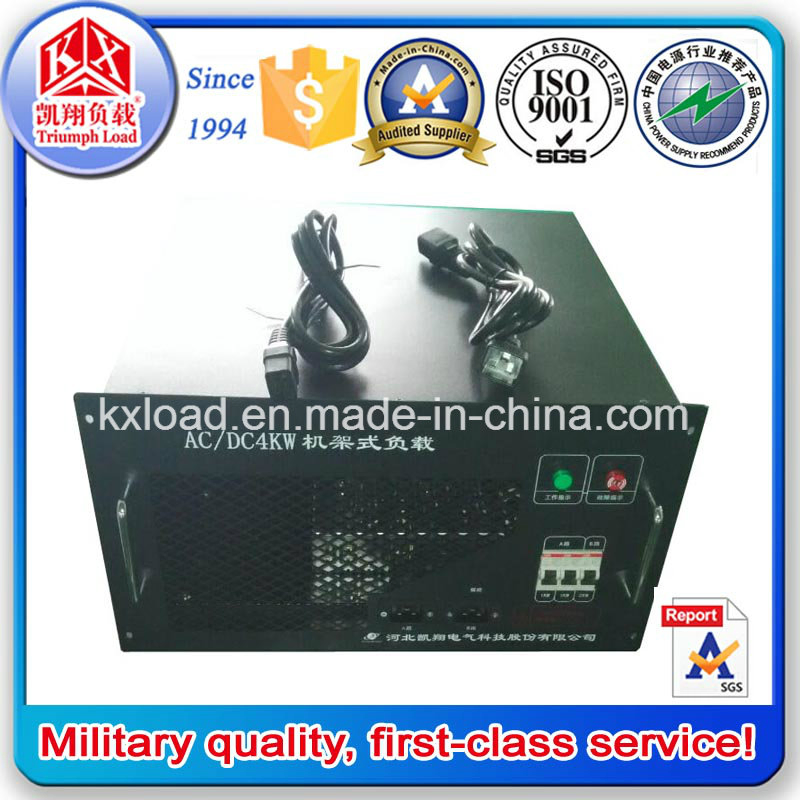

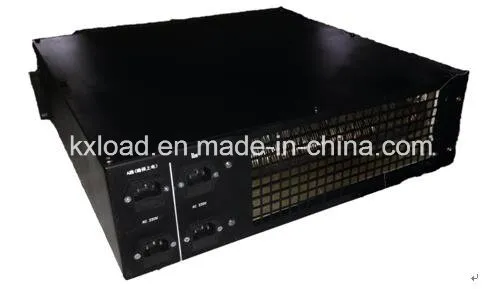

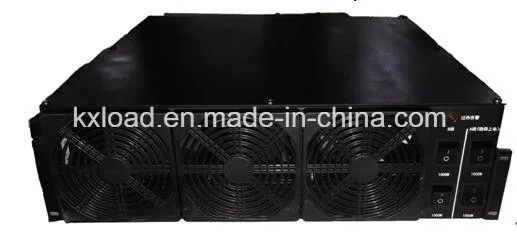

AC/DC220V-4kw Rack-Mounted Server- Simulating Load Bank
AC/DC220V-4kW Rack-mounted Server-Simulating Load Bank1 SummaryThis unit specially designed for data center, it's safe, reliable, small volume and can simulate the on-site server load. Constant power, the unit is Kaixiang self-developed electric power load simulation equipment. 2 Technical Para......
Send Inquiry
Product Description
1 Summary
This unit specially designed for data center, it's safe, reliable, small volume and can simulate the on-site server load.Constant power, the unit is Kaixiang self-developed electric power load simulation equipment.
2 Technical Parameters
| System Parameter | |
| Rating voltage/frequency | Single phase 220VAC/50Hz or DC220V |
| Max Load Power | Resisitive Power: 4kW |
| Load Resolution | Resistive Load: 3 steps. A circuit 1kW, 1kW; B circuit 2kW |
| Power Factor | 1 |
| Load Tolerance (each step) | ±5% |
| Load Tolerance (overall) | ±3% |
| Fan Control Power | Single phase 220VAC/50Hz or DC240V |
| Fan | 24V/2.4A/260.74CFM (total 2 fans) |
| Wire Connection | Load bank input--3 pin socket |
| Insulation Grade | Grade F |
| Way of Working | Continuous Working |
| Cooling | Forced air cooling, intake air in front and exhaust cooling in back |
| Case Color | Black |
| Case Dimension | About 445 mm×445mm×267mm (L×W×H) |
| Weight | About 18kgs |
| Working Environment Parameter | |
| Ambient Temperature | -10ºC~+40ºC |
| Relative Humidity | ≤95% |
| Altitude | ≤2500 meters |
| Atmospheric Pressure | 86~106kPa |
| Brands of Main Components | |
| Button Switch | |
3 Main Functions
(1) Load Bank Testing: User could load any power within rated power to test the output performance of generator set.
(2) Control Mode: There are 3 rocker switches to make loading/unloading.
(3) Over-heat protection: There will be sound-light alarm when temperature is over safety thresholds.

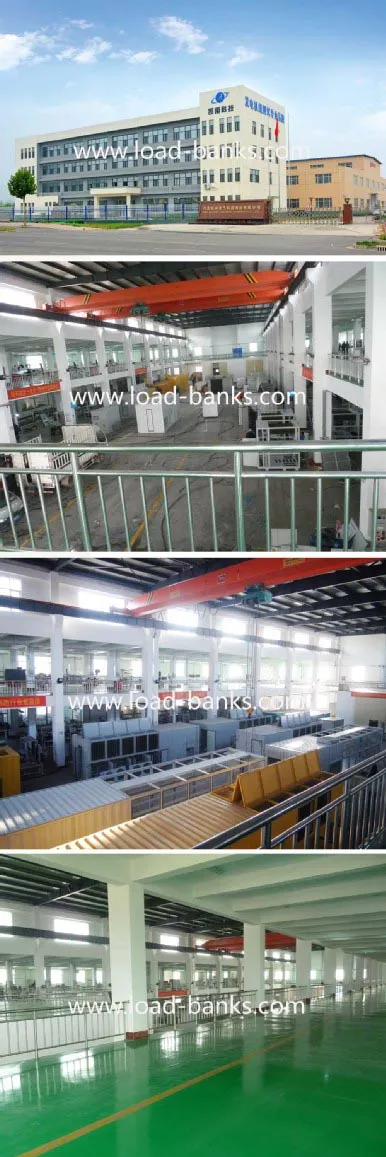

1. Hebei Kaixiang Electrical Technology Co., Ltd is the largest and earliest load bank manufacturer in China, we have 20 years experience. Our factory has 25,000 square meters. We are the leader in domestic market.
