ASTM Computer Control Rubber Universal Tensile Tearing Test/Testing Equipment

Product Description

^{ASTM Computer Control Rubber Universal Tensile Tearing Test/Testing Equipment}

Product Description:

Tensile Testing Equipment is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture.the instrument can measure paper tension, tensile strength, elongation, fracture length, tensile energy absorption, tensile index, tensile energy absorption index and other items.

The tensile machine is also suitable for all kinds of disposable masks and surgical masks for regular mechanics performance test, also widely used in medical equipment resistance to bending, a scalpel (needle sharpness, syringe sliding performance, body fit) detection, such as fiber, plastics, paper, cardboard, film and other non-metallic materials jacking, RuanSu packing heat sealing strength, tear, drawing, piercing and compression, ampoule bottle breaking strength, 180 degrees 90 degrees stripping, stripping, shear force and thermal bonding strength test project.

Testing machine operation:Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.

Product features:

---The top 10 programs address diverse needs:

The instrument integrates ten professional and independent testing procedures, such as tension, stripping, tearing, heat sealing, tension tension, pressure, puncture retention, etc., providing users with a variety of test items.
Support the pressure test of rubber plug puncture and ampoule breaking force, and the test speed can be set freely.
Limit protection, overload protection, automatic return and other intelligent design, to ensure safe operation.

---Excellent test organization precision upgrade:

Equipped with force testing system of world famous brands, it provides force accuracy better than 0.5 level, better repeatability and more flexible testing
Equipped with the servo operation system of the world famous brand, with the multi-axis positioning technology of precision ball screw, it provides the displacement accuracy better than 0.5 level, stepless speed regulation, convenient to use and more stable operation

---High-end embedded computer system platform safe and easy to use:

Integrated system design, instrument and software into one.
Support group test data comparison analysis, with multi-unit conversion function.
USB interface and network port are embedded in the system to facilitate external access and data transmission of the system.

Standard features:

Indicators	Parameter
Capacity	5-200kg imported sensor
Motor	400w panasonic servo motor
Drive	400w panasonic servo driver
Screw	Imported ball screw
Control mode	Panel control (touch screen), connected to the computer
Speed is adjustable	0.1-500mm/min
Largest travel	900mm (excluding fixture)
Load refactorization	1/250,000
Load precision	≤0.5%
Unit switch	gf/kgf/N//kN/LBf/T
Overall dimensions	(LWH)5205151250mm
Net weight	About 70 kg
Power supply	AC 220V

(The table parameters for the company Standard Model parameters, we support customer customization parameters)
Note: the above data of the instrument are the standard parameters of the instrument and are for reference only.If you need to test the samples of medical products, the technical parameters of the instruments will be different. Please refer to the actual situation.

Advantage:

1.High-Tech, Low Noise
2.Humanized Industrial Design, Easy To Place And Transport
Security Protection System
Technical Engineer Support After Service
Manufacturers Direct Sales, Factory Prices
1 Year Warranty , Free The Use Of Equipment Manual
Sales In Stock, Fast Delivery Time

Applications:

Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber,disposable masks,surgical masks, medical apparatus and instruments,etc.
Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
Deformation under defined load: Test deformation under defined load of tested sample
Load under defined deformation: Test load under defined deformation of tested sample
Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

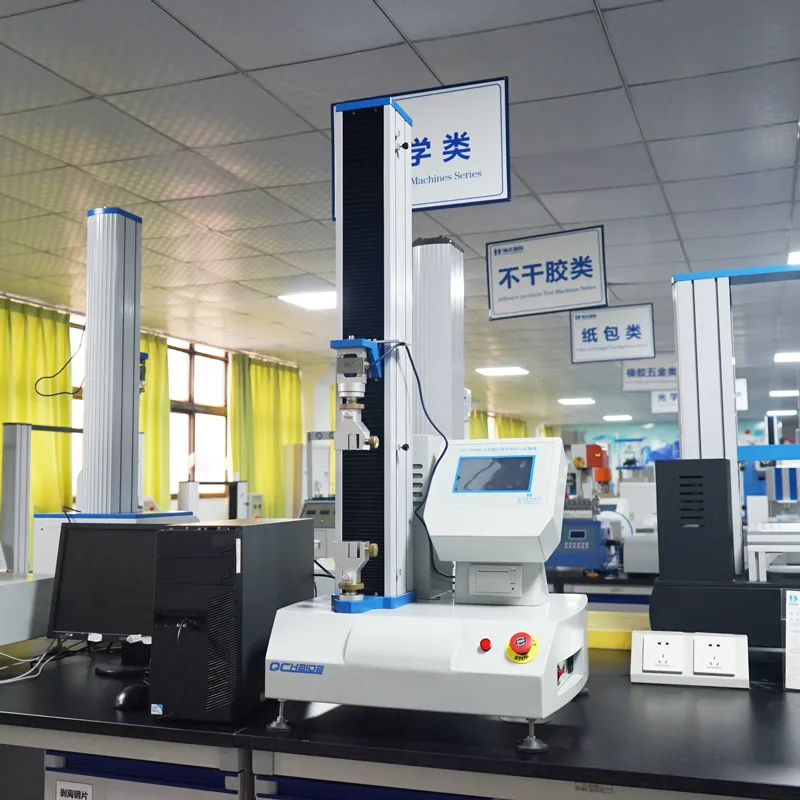

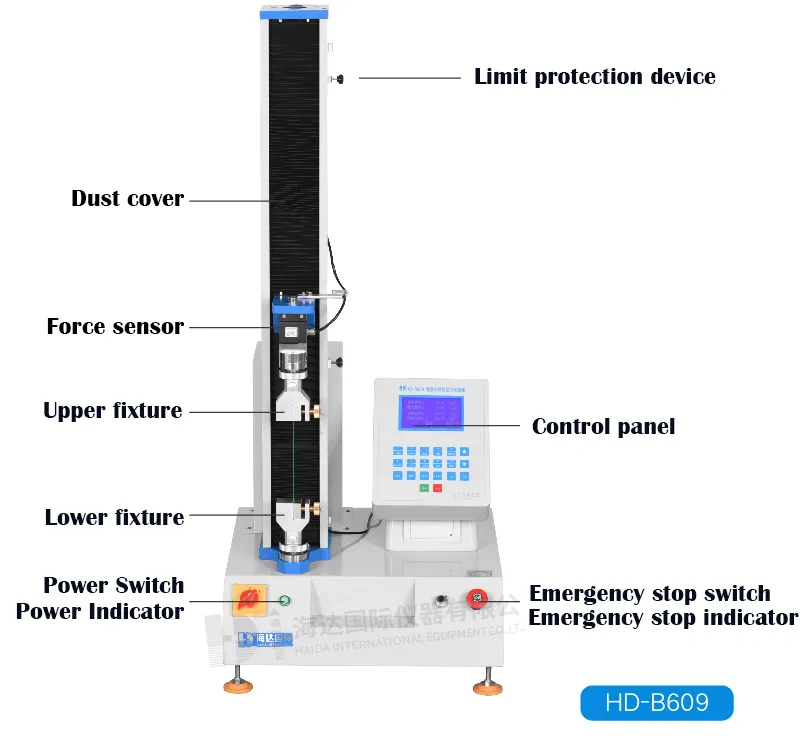

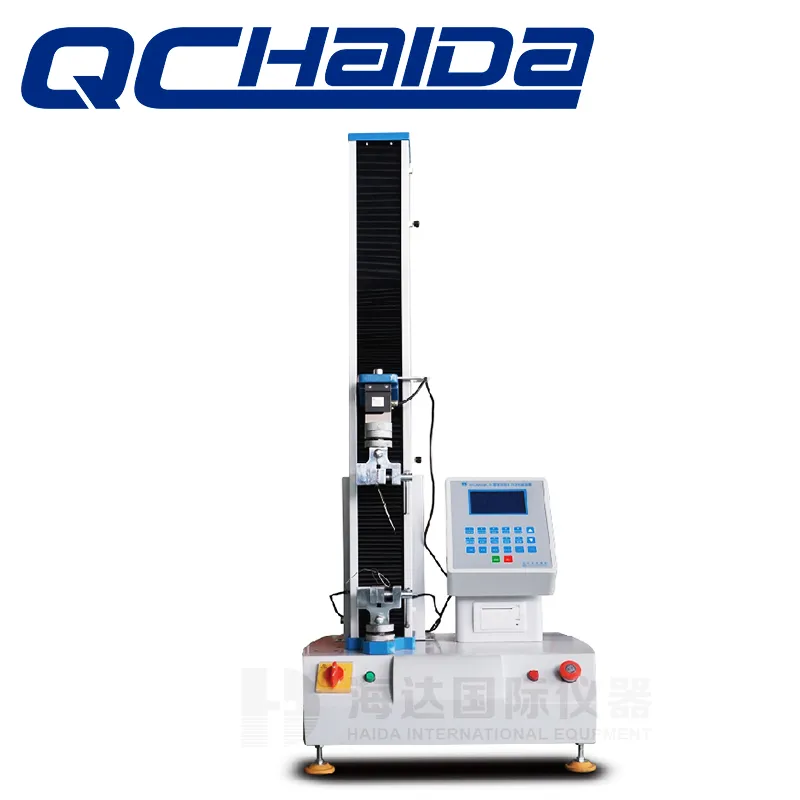

Product Image:

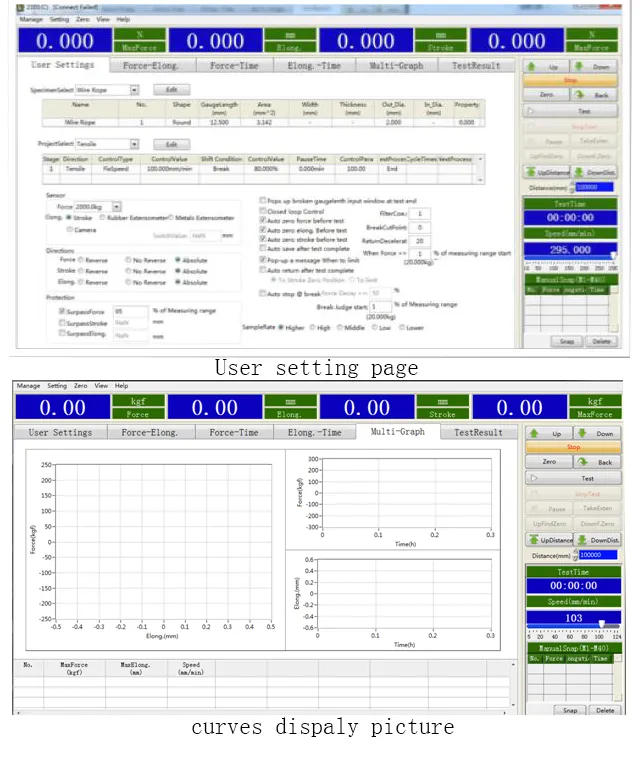

Software:

ASTM Computer Control Rubber Universal Tensile Tearing Test/Testing Equipment

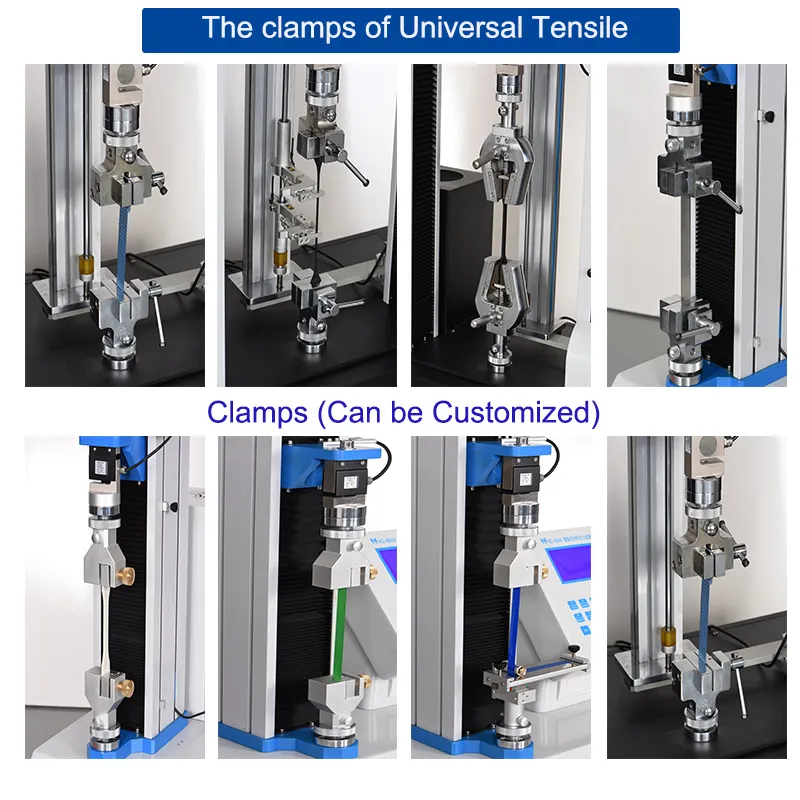

Tensile Tester Fixtures

ASTM Computer Control Rubber Universal Tensile Tearing Test/Testing Equipment
NOTE: All kinds of fixture and elongation measurement device and other accessories can be equipped depending on client's demand, our company would give client the most appropriate advice.
If any specification or content of product has changed, please refer to our company's actual price list.
