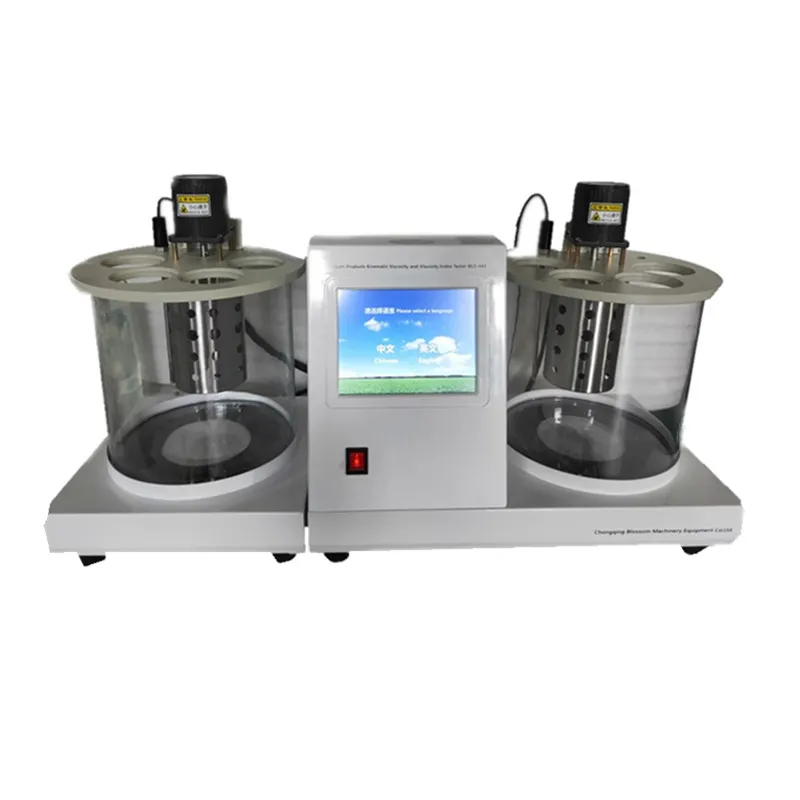

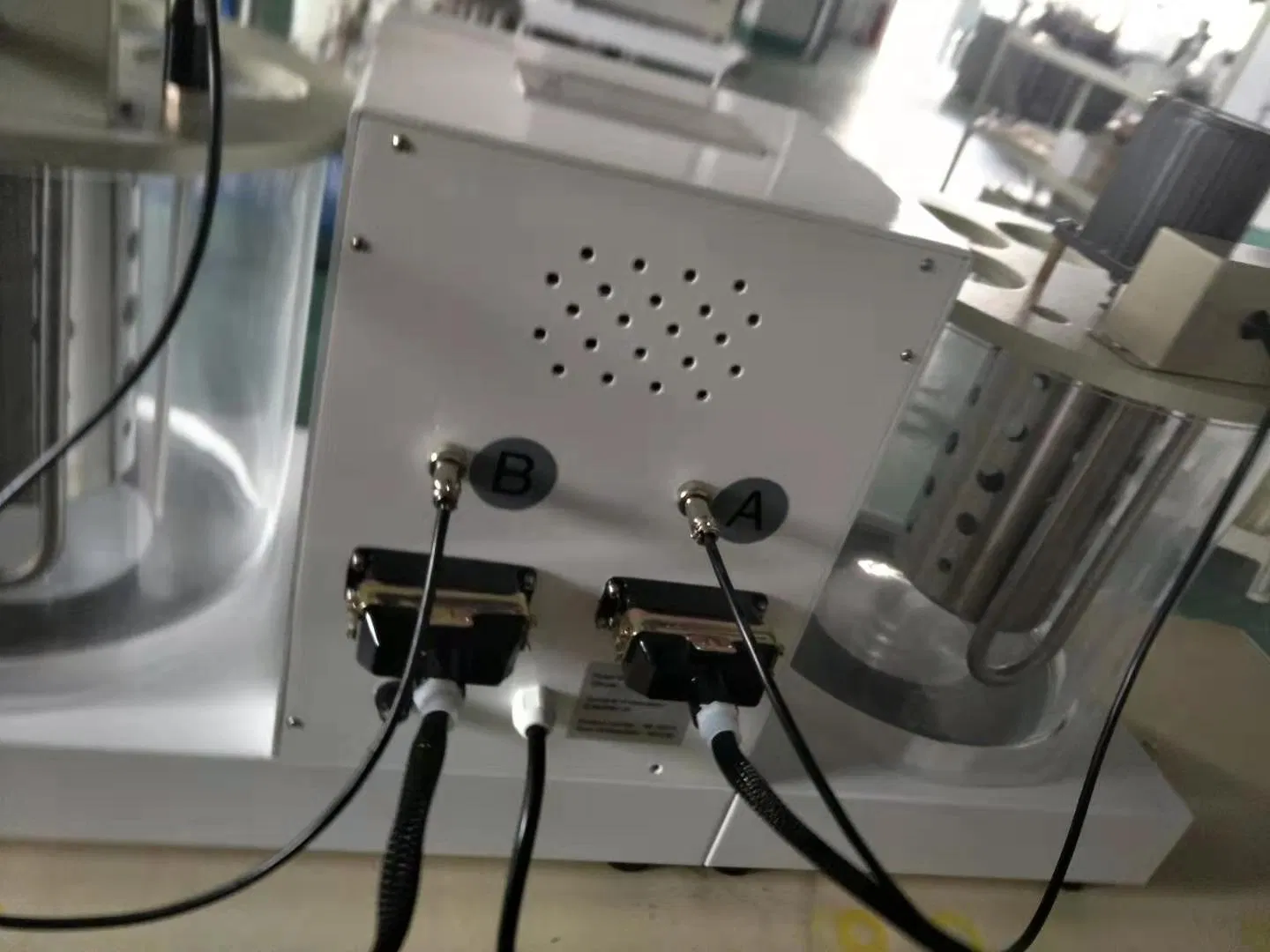

Automatic Base Oils and Lubricants Viscosity Index Tester at 40. and 100 Degrees Centigrade
Product DescriptionAutomatic Base Oils and Lubricants Viscosity Index Tester at 40. and 100 Degrees CentigradeApplicationThe instrument complies to ASTM D445, ASTM D2270 and national standard GB265-88. It adopts advanced single-chip control, English display, automatic results printing and uniform ......
Send Inquiry
Product Description
Application

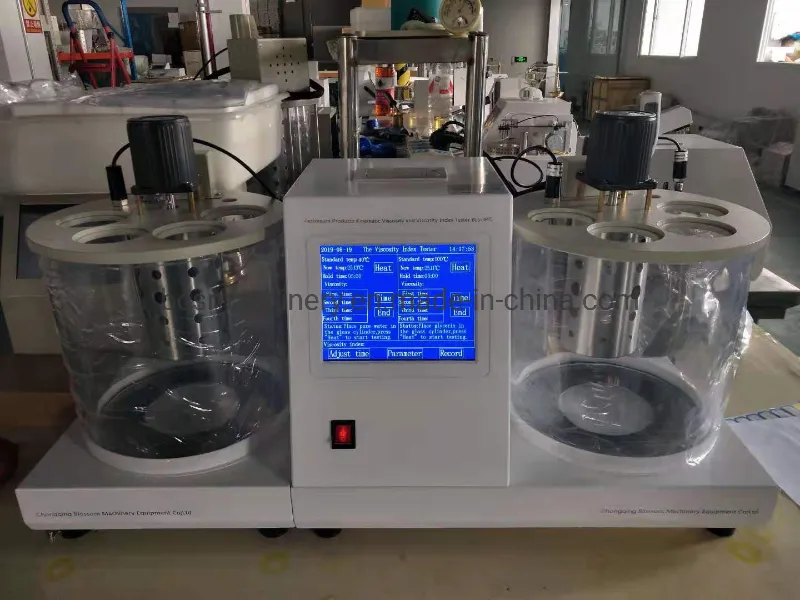

The instrument complies to ASTM D445, ASTM D2270 and national standard GB265-88. It adopts advanced single-chip control, English display, automatic results printing and uniform temperature of the constant temperature bath. Four viscometers can be placed at the same time. It can also be used to perform other experiment as high viscosity constant temperature bath.
Main Features
1.The instrument adopts advanced single-chip intelligent temperature control, timely temperature display working status such as time and other parameters;
2.It has outer plexiglass insulation cover with uniform temperature distribution in the bath, which has good temperature control effect;
3.Four samples can be simultaneously used for the test, which makes the experiment faster and more convenient;
4.The heater and other components are made of stainless steel that is resistant to corrosion and durable. It has LED lighting with long service life and is easy to observe;
5.The capillary meter card adopts three-point vertical type, which is flexible and convenient to operate with tight clamping.
6.Automatic calculation of kinematic viscosity values and test averages, and automatic printing and storage of measurement results;
7.The number of experiments can be freely adjusted for 1-6 times, and parallel experiments can be performed on two or more oil samples at the same time.
Technical Parameters
| Display | English LCD display |
| Temperature control range | Arbitrarily set from room temperature to 110 °C; |
| Temperature control accuracy | ±0.01 °C or ±0.1 °C, optional |
| Timing accuracy | ±0.1S |
| Timing range | 0.1S-999.9S |
| Thermostatic bathtub | 250×250mm |
Printer | Low-power consumption thermal printer with paper width 56mm |
| Temperature measurement element | Imported precise platinum resistance |
| Stirring speed | 1520 rpm |
| Maximum power | Main heating: 600W;auxiliary heating: 1000W |
| Sampling number | 4 |
| Working environment | Ambient temperature:15--35ºC;ambient humidity< 85% |
| Power supply | 220V ±10%50Hz±1Hz(can be customized) |
| Dimensions | 560×370×520mm(L×W×H) |
| Weight | About 22Kg |
1. Outside package: Standard export packing or neutral packing if needed, carton box, wooden case or upon request, packing carefully.
2. Inside package: strength film and foams.
Shipping Method: Air / Sea / Express(UPS, FEDEX, DHL, TNT, EMS, etc)

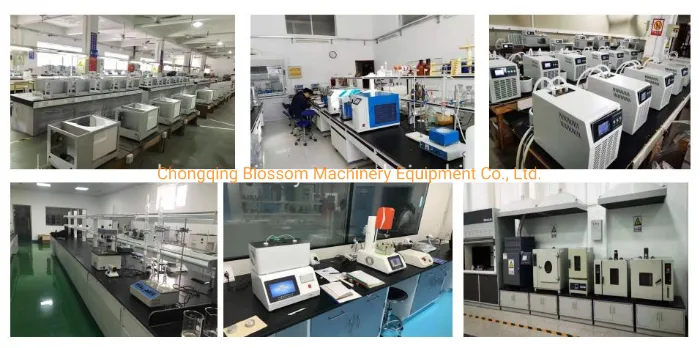

Chongqing Blossom Machinery Equipment Co., Ltd is located in Chongqing, one of the municipalities directly under the central government. The main products include instrument and apparatus, mechanical machinery such as liquid purification equipment and electric hoist, etc. The equipment is widely applied in construction, petroleum, mechanical, ships, pharmaceutical, lab test and edible oil processing, etc.
1. What's the payment method?
Payment can be done by cash T/T, L/C, Western Union, Alibaba Trade Assurance,etc.
2. How long is the delivery period?
Generally it takes about 10 working days for production and then the delivery will be done timely.
3.What's the package made of?
The package is made of international export standard wooden case.
4.What's the delivery method?
By train, by air, by sea, by truck, by express(TNT, DHL, FedEx, Ups, etc).
5. How long is the guarantee period?
The guarantee period is 2 years due to the product quality problems itself.
6.What services can you provide?
Online support through email, telephone, Whatsapp or other communication method; onsite taining and installation if you need;filed maintenance and repair, technical video support, etc

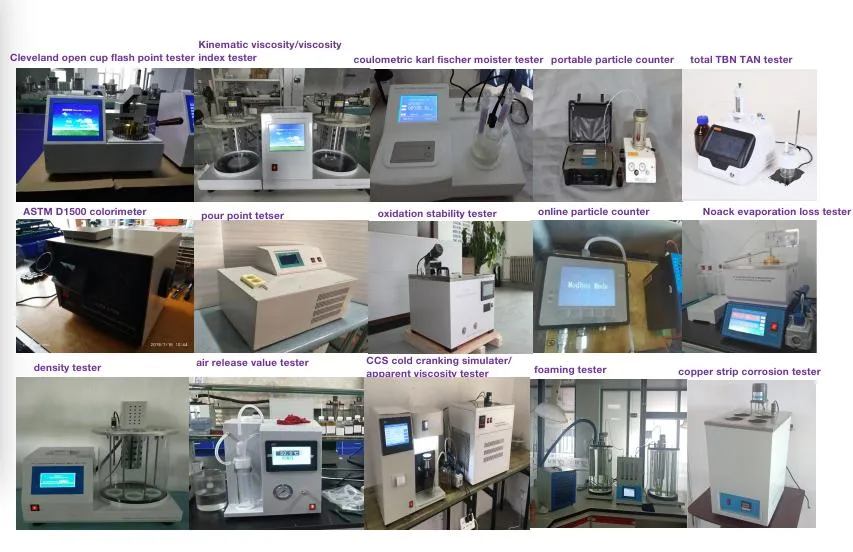

I.General Petroleum Products Testers
1. Karl Fisher Oil Water Content Tester BLS-6304
2.Digital Oil Moisture Meter BLS-D6304
3.Petroleum Products Kinematic Viscosity and Viscosity Index Tester BLS-445
4.Digital Kinematic Viscosity Meter BLS-D445
5. Fully Automatic Petroleum Products Acidity Meter BLS-974
6.Cleveland Open Cup Flash and Fire Point Tester BLO-92
7.Pensky-Martens Closed Cup Flash Point Tester BLC-93
8.Pour Point and Cloud Point Tester BLS-97
9.Petroleum Products Density Meter BLS-1298
10.Copper Corrosion Tester BLS-130
11.Petroleum Products Aniline Point Tester BLS-611
12.Petroleum Products Colorimeter BLS-1500
13.Petroleum Products Carbon Residue Tester (Micro Method) BLS-4530
14.Petroleum Product Vapor Pressure Tester (Reid Method) BLS-3231
15.Total Acid Number and Total Base Number TAN/TBN Tester BLS-2896
16.Petroleum Products X-ray Fluorescence XRF Sulfur Analyzer Sulfur BLS-4294
17.Petroleum Products Online Moisture Meter BLS-PPM
18.Online Moisture ppm Meter/ Particle Counter/ Pollution Degree Analyzer NAS-01
19.Petroleum Products Saponification Number Tester BLS-94
20.Micro Coulometry Sulfur and Chlorine Content Tester BLS-3120
21.Ultraviolet Fluorescence Sulfur Analyzer BLS-5453
22.Conradson Method Petroleum Products Carbon Residue Tester BLS-189
23.Ramsbottom(Electric Furnace) Method Petroleum Products Carbon Residue Tester BLS-524
24.Hydrogen Sulfide in Liquefied Petroleum (LP) Gases Tester (Lead Acetate Method) BLS-2420
25.Hydrocarbon Types in Petroleum Products Tester by Fluorescent Indicator Adsorption BLS-1319
II. Specialized Oil Testers
i.Lube Oil Testers
1. Anti-rust Grease Salt Spray Corrosion Tester BLS-117
2.Lube Oil Air Release Value Tester BLS-3427
3.Petroleum Products Demulsification/Water Separability Tester BLS-1401
4.Vehicle Gear Oil Channel Point Tester BLS-0030
5.Lube Oil Oxidation Stability Tester (Rotary Oxygen Bomb Method)BLS-942
6. Lube Oil Foaming Characteristics Tester BLS-892
7.Petroleum Products Ash Content Tester BLS-482
8.Petroleum Products and Additives Mechanical Impurity Tester BLS-473
9.Liquid Phase Corrosion/ Rust Preventing Characteristics Tester BLS-665
10.Automatic Lubricating Oil Grease Four-ball Friction Tester BLS-2783
11.Lubricating Grease Sulfated Ash Content Tester BLS-874
12.Water Content Tester by Distillation BLS-95
13.Petroleum Products Water Soluble Acid and Alkalis Tester BLS-259
14.Engine Oil CCS Cold Cranking Simulator/Apparent Viscosity Tester BLS-5293
15.Noack Method Lubricating Oil Grease Evaporation Loss Tester BLS-5800
16.Lubricating Oil Grease Evaporation Loss Tester BLS-972
17.Lubricating Oil Insolubles Tester BLS-893
18.Inhibited Mineral Oils Oxidation Characteristics Tester BLS-943
19.Dropping Point Tester of Lubricating Grease Over Wide Temperature Range BLS-2265
20.Pressure Differential Scanning Calorimetry (PDSC) Lubricating Oil Oxidation Induction Time Tester BLS-6186
21.Lubricating Grease Dropping Point Tester BLS-566
22.Lubricating Grease Cone Penetration Tester BLS-217

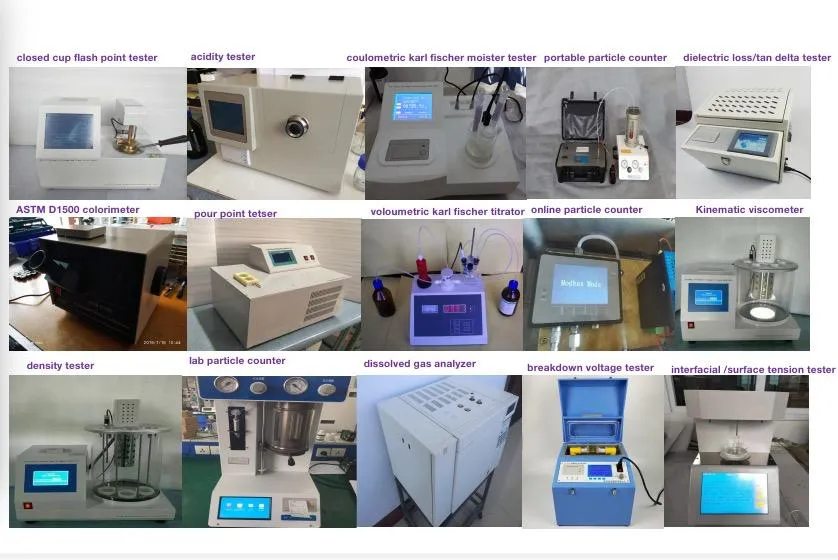

ii.Insulating Oil/Transformer Oil Testers
