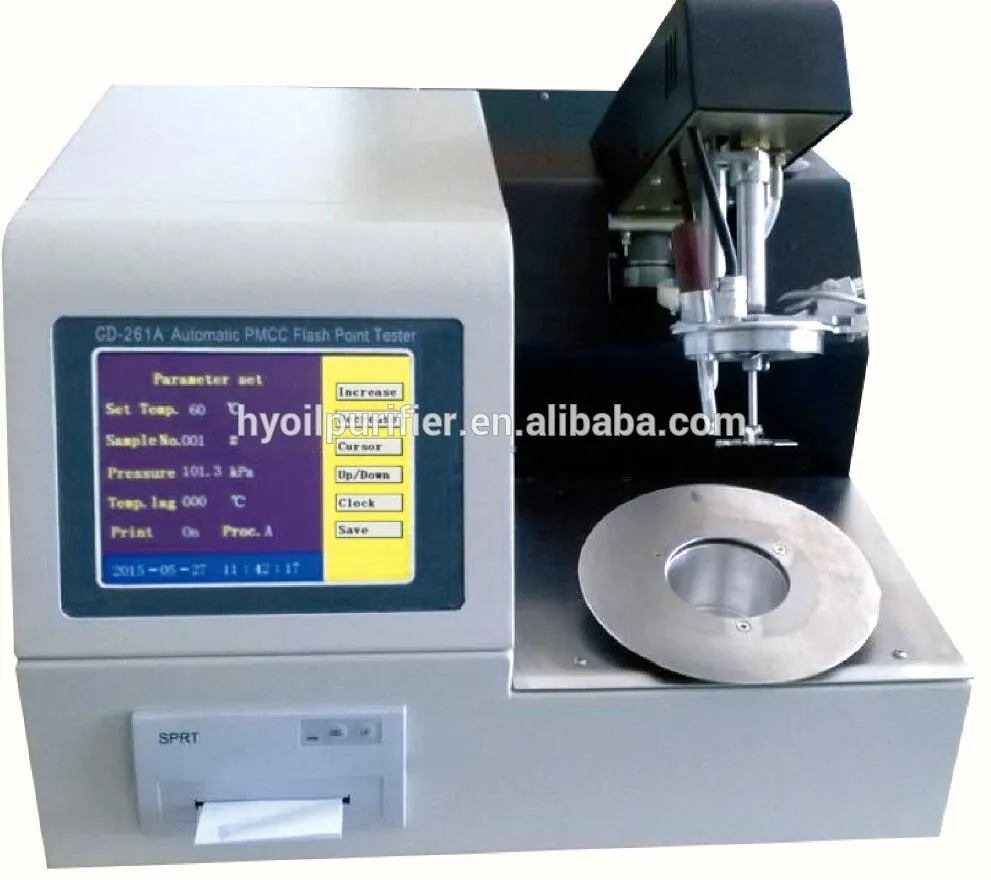

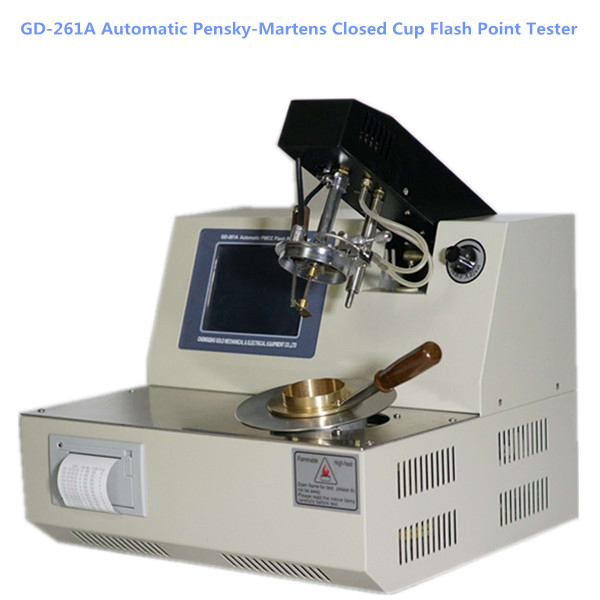

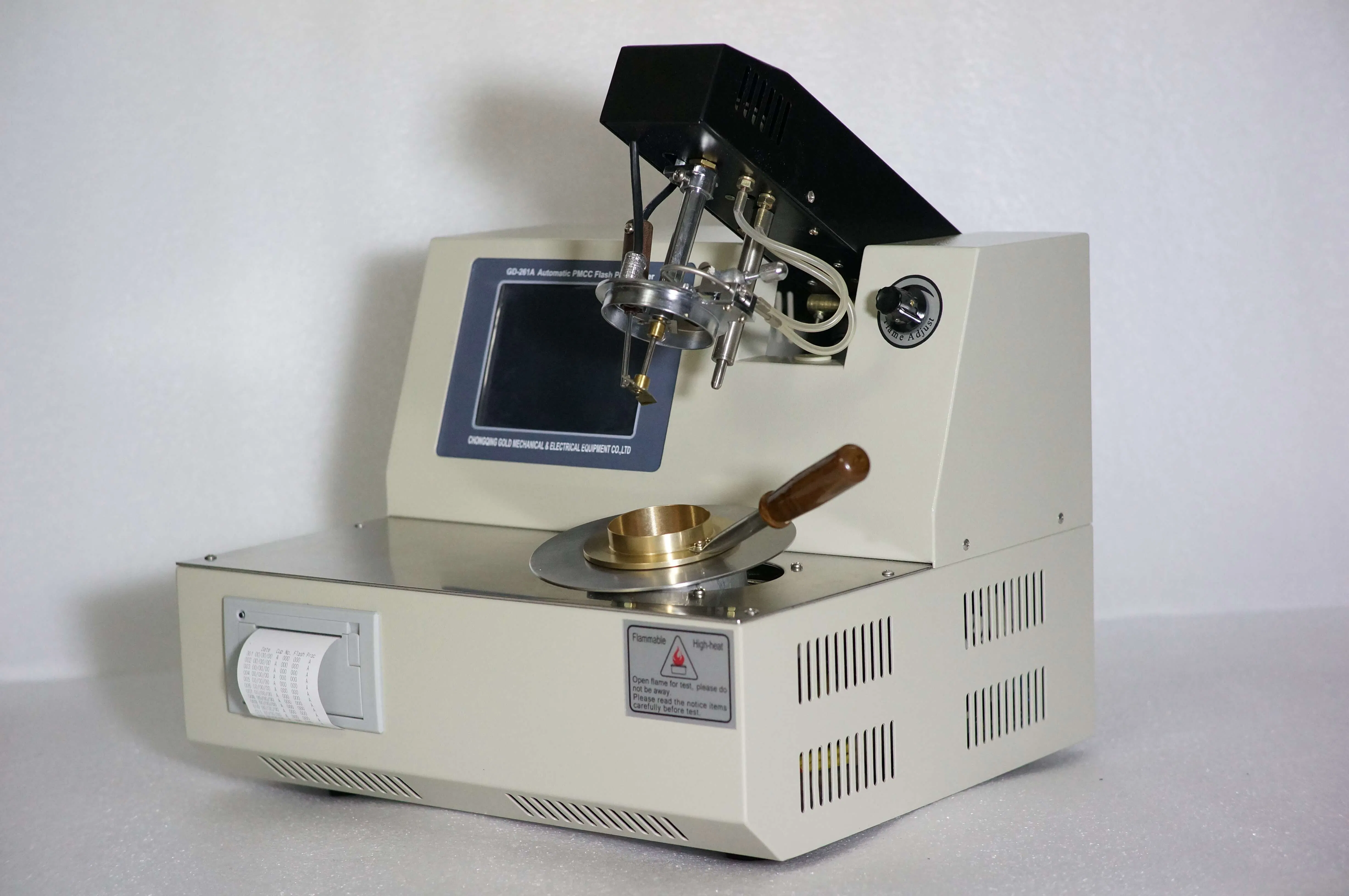

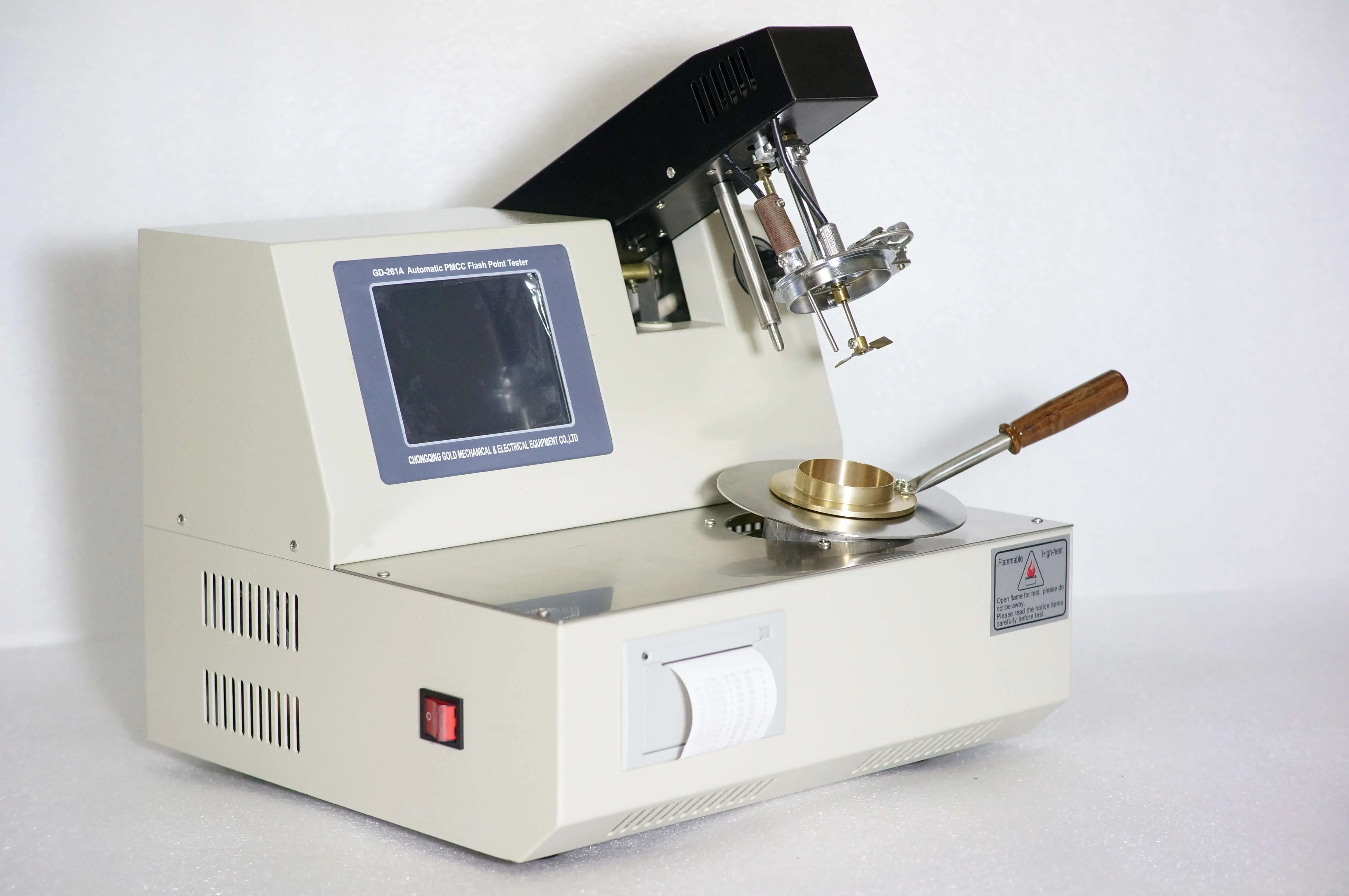

Automatic Pensky Martens Closed Cup Flash Point Testing Equipment of Diesel and Gasoline
Automatic Pensky Martens Closed Cup Flash Point Testing Equipment of Diesel and Gasoline Introduction:Closed Cup Flash Point Tester is designed and manufactured as per standards ASTM D93 Standard Test Methods for Flash Point by Pensky-Martens Closed Cup Tester.Closed Cup Flash Point Tester is used ......
Send Inquiry
Product Description
Automatic Pensky Martens Closed Cup Flash Point Testing Equipment of Diesel and Gasoline
Introduction:
Closed Cup Flash Point Tester is designed and manufactured as per standards ASTM D93 Standard Test Methods for Flash Point by Pensky-Martens Closed Cup Tester.
Closed Cup Flash Point Tester is used to make determination of the closed cup flash point of the petroleum products.
Features:

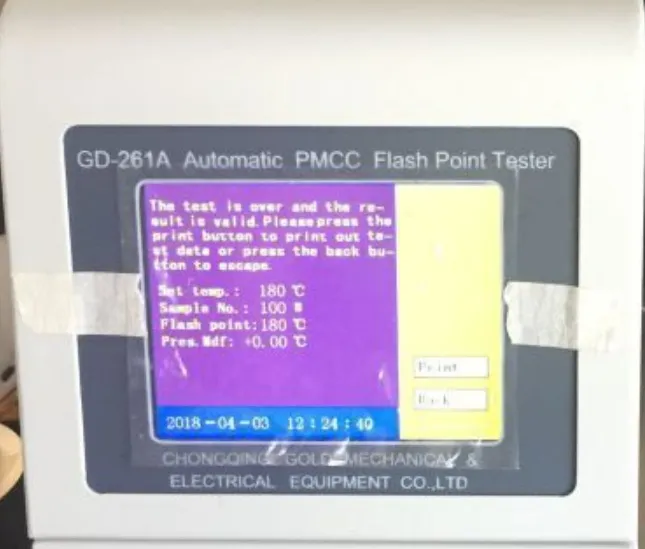

1. Light-touch colored LCD. English man-machine dialog interface. All parameters including preset flash temperature, sample number, atmospheric pressure and date can be set by prompt menu.
2. Simulation tracking of temperature rising curve with time. Prompt function. Test date and time can be modified.
3. 120 groups of data can be saved.
4. Automatically calculate the corrected flash point when the pressure differs from standard atmospheric pressure.
5. Differential detection. Automatic correct the system bias.
6. Automatically open cover, ignite, detect and print result.
7. Safe and easy to operate.
Specifications:
| Product name | Automatic Pensky Martens Closed Cup Flash Point Testing Equipment of Diesel and Gasoline |
| Power supply | AC(220±10%)V, 50Hz |
| Flash point determination | Range: Ambient to 300ºC Meet requirement of GB/T 261-2008 Meet requirement of GB/T 261-2008 Resulotion: 0.1ºC |
| Heating rate | Procedure A: (5~6)ºC/min Procedure B:(1~1.5)ºC/min Automatic control and manually adjustable |
| Stirring rate | Procedure A: (90~120)RPM Procedure B: (250±10)RPM Automatic control and manually adjustable |
| Igniting mode | Igniting source: gas (or other civilian fuels) Electric ignition. Gas flame diameter:3.2mm~4.8mm |
| Ambient temperature | ≤ 40ºC |
| Relative humidity | ≤ 80% |
| Maximum power consumption | 500W |
| Overall dimension | 410*360*310mm |
More Closed Cup Flash Point Apparatus
Model | GD-261 | GD-261-1 | GD-261A | GD-261D | GD-5208 | GD-5208A |
Standard | ASTM D93 | ASTM D93 | ASTM D93 | ASTM D93 | ASTM D3934 | ASTM D3934 |
Range | ambient~30°C | ambient~25°C | ambient~2°C | ambient~3°C | -30~50°C | 50~100°C |
Repeatability | ≤2°C | ≤2°C | Flash point≤104°C, error: 2°C Flash point>104°C, error: 6°C | ≤2°C | <2°C(same operator) <3°C(different operators) | |
Reproductivity | ≤4°C | ≤4°C | Flash point≤104°C, error :4°C Flash point>104°C, error:8°C | ≤4°C | ||
Automatic up/down | N | N | Y | Y | N | N |
With micro printer | N | Y | Y | Y | Y | Y |
Display | N | N | Y | Y | Y | Y |
Communication port | N | N | N | Y | N | N |
Sample |
Standard oil cup |
Standard oil cup |
Standard oil cup |
Standard oil cup |
2ml |
2ml |
Detail Images:
Petroleum & Oil Analyzer Petroleum Testing Instruments
Open Cup Flash Point Tester
Flash & Fire Point Tester for Petroleum Products
Closed Cup Flash Point Tester
Engler Viscometer
Water Content Tester
Rotational Viscometer
Kinematics Viscometer
Distillation Tester
Density Tester
Rust and Corrosion Tester
Sulphur Content Tester
Acid and Alkali Tester
Dropping Point Tester
Demulsibility Characteristics Tester
Ash Content Tester
Aniline Point Tester
Low Temperature Tester(Including solidifying point, cold filter plugging point, pour point, cloud point, and freezing point)
Residue Carbon Tester
Existent Gum Tester
Vapor Pressure Tester
Bomb Calorimeter
OCTANE & CETANE ANALYZER
Lubricating Oils Foaming Characteristics Tester
Petroleum Products Color Tester
Petroleum Wax Oil Content Tester
Automatic Interfacial Tension Tester
Liquid Petroleum Products Hydrocarbon Tester
Lubricating Oil Air Release Value Tester

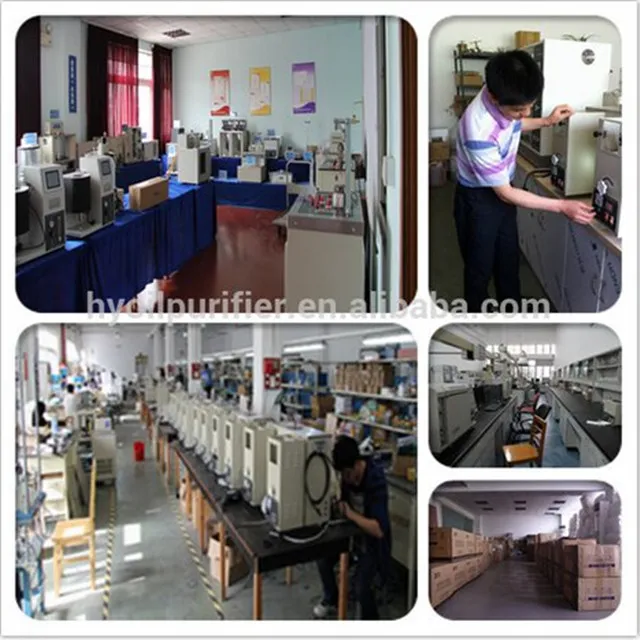

Company Information:
