Automatic Pensky-Martens Closed-Cup Tester for Residual Fuel Oils, Cutback Residua, Used Lubricating Oils
GD-261A Automatic Pensky-Martens Closed-cup Tester for residual fuel oils, cutback residua, used lubricating oilsIntroduction:Flash point is an attribute associated with events far more ferocious and destructive than a simple flash of light. Defined as the lowest temperature of a liquid at which its......
Send Inquiry
Product Description

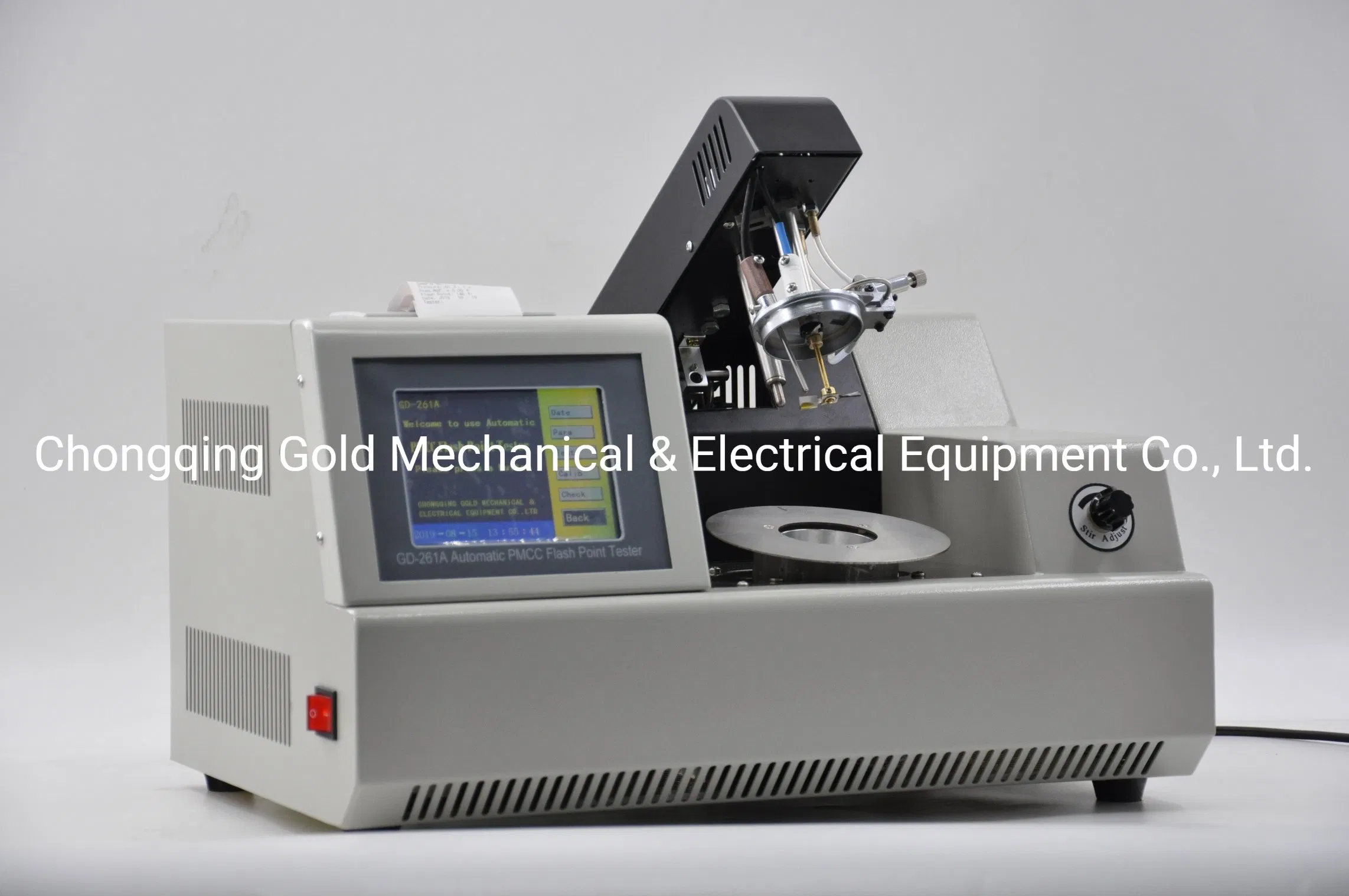

GD-261A Automatic Pensky-Martens Closed-cup Tester for residual fuel oils, cutback residua, used lubricating oils
Introduction:
Flash point is an attribute associated with events far more ferocious and destructive than a simple flash of light. Defined as the lowest temperature of a liquid at which its vapors will form a combustible mixture with air, flash point is a convenient and reliable classification of flammability for numerous petroleum liquids and related substances.
Pensky-Martens test procedures can determine the flash point of petroleum products in the 40°C to 370°C range by either manual or automated closed-cup apparatus, as well as determining the flash point of biodiesel in the 60°C to 190°C range by an automated closed-cup apparatus.
The PMCC Flash Point Tester is used to test the biodiesel, distillate fuels, new lubricating oils, residual fuel oils, cutback residua, used lubricating oils, mixtures of petroleum liquids with solids, petroleum liquids that tend to form a surface film during testing.
Features:
1. Simulation tracking displays function curves of heating up and test time.
2. Equipped with the English prompt function of mis-operation.
3. Equipped with prompt function of test date,test time and other parameters.
4. Automatically calibrate the effect of atmospheric pressure to test and calculate the corrected value.
5. Differential coefficient detection.Automatically correct the system deviation.
6. Automatically open the lid,detect the flash point and print test data.
7. The test arm rises up and lowers down automatically.
8. Igniting with electric igniting gun,forced air cooling.
Speficiations:
1. Power supply: AC(220±10%)V, 50Hz.
2. Flash point determination: Range: Ambient to 300ºC
Repeatability: ≤ 2ºC
Reproducibility: ≤ 4ºC
Accuracy: 0.1ºC
3. Heating rate: Procedure A: (5~6)ºC/min
Procedure B:(1~1.6)ºC/min
Automatic control and manually adjustable.
4. Stirring rate: Procedure A: (90~120)RPM, Procedure B: (250±10)RPM
Automatic control and manually adjustable.
5. Igniting mode: (1) Igniting source: gas(or other civilian fuels,the same below)
(2) Electric ignition. Gas flame diameter:3.2mm~4.8mm
6. Ambient temperature: ≤ 40ºC
7. Relative humidity: ≤ 80%
8. Maximum power consumption: 500W
Welcome to visit us!
Introduction:
Flash point is an attribute associated with events far more ferocious and destructive than a simple flash of light. Defined as the lowest temperature of a liquid at which its vapors will form a combustible mixture with air, flash point is a convenient and reliable classification of flammability for numerous petroleum liquids and related substances.
Pensky-Martens test procedures can determine the flash point of petroleum products in the 40°C to 370°C range by either manual or automated closed-cup apparatus, as well as determining the flash point of biodiesel in the 60°C to 190°C range by an automated closed-cup apparatus.
The PMCC Flash Point Tester is used to test the biodiesel, distillate fuels, new lubricating oils, residual fuel oils, cutback residua, used lubricating oils, mixtures of petroleum liquids with solids, petroleum liquids that tend to form a surface film during testing.
Features:
1. Simulation tracking displays function curves of heating up and test time.
2. Equipped with the English prompt function of mis-operation.
3. Equipped with prompt function of test date,test time and other parameters.
4. Automatically calibrate the effect of atmospheric pressure to test and calculate the corrected value.
5. Differential coefficient detection.Automatically correct the system deviation.
6. Automatically open the lid,detect the flash point and print test data.
7. The test arm rises up and lowers down automatically.
8. Igniting with electric igniting gun,forced air cooling.
Speficiations:
1. Power supply: AC(220±10%)V, 50Hz.
2. Flash point determination: Range: Ambient to 300ºC
Repeatability: ≤ 2ºC
Reproducibility: ≤ 4ºC
Accuracy: 0.1ºC
3. Heating rate: Procedure A: (5~6)ºC/min
Procedure B:(1~1.6)ºC/min
Automatic control and manually adjustable.
4. Stirring rate: Procedure A: (90~120)RPM, Procedure B: (250±10)RPM
Automatic control and manually adjustable.
5. Igniting mode: (1) Igniting source: gas(or other civilian fuels,the same below)
(2) Electric ignition. Gas flame diameter:3.2mm~4.8mm
6. Ambient temperature: ≤ 40ºC
7. Relative humidity: ≤ 80%
8. Maximum power consumption: 500W
Welcome to visit us!
