Product Description

1.battery charging and discharging testing Product Description
1. The battery tester is according to the international standard design, battery tester each channel has an independent constant-current source and constant-voltage source. It is used to test rechargeableas( Ni-MH battery, Ni-CD battery, Lithium-ion battery and polymer batter, etc.) pack battery, and so on.

2. Battery tester's internal electrical power supply uses the high efficiency switching power supply, the energy conservation effect isemarkable, each power tube has the independent protection circuit, guarantees the Equipment works with safety and reliability.

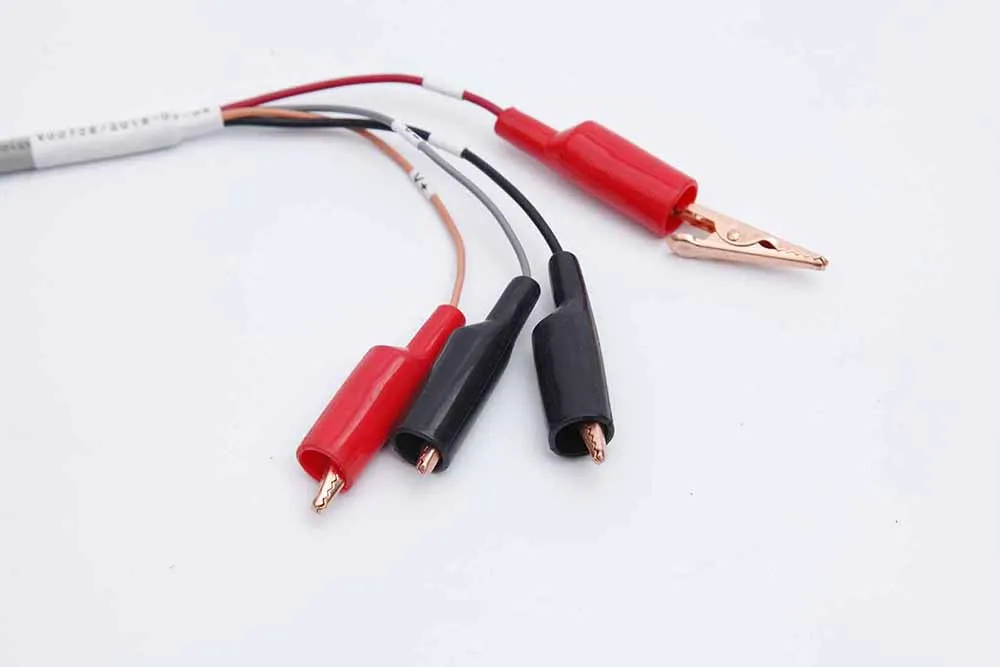

3. Measure adopts four wire method, decrease contact error, increase measure precision.

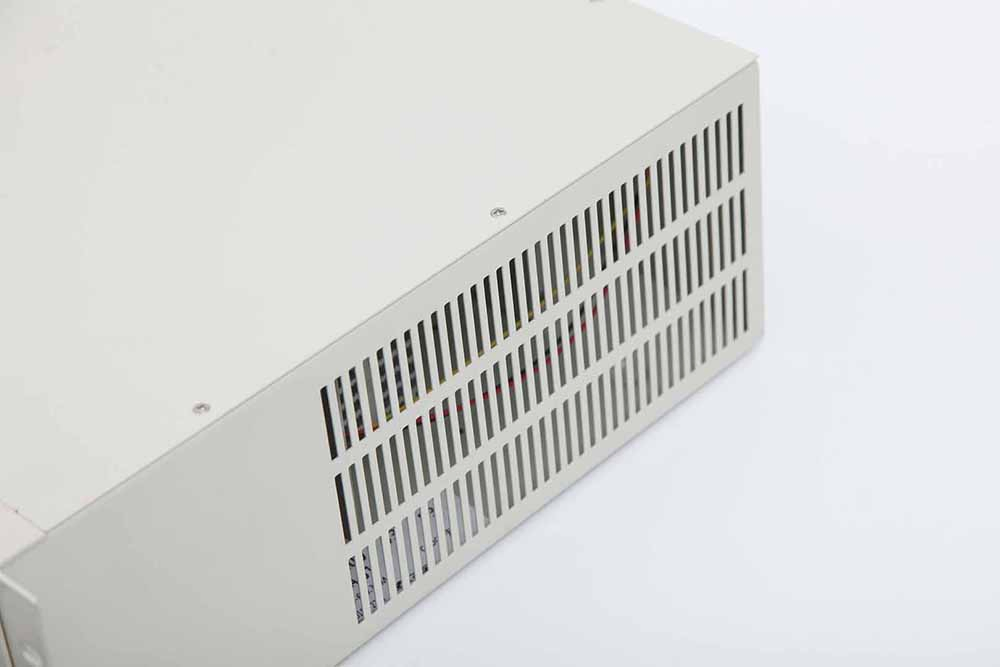

4. Battery tester e ach channel is independent; With high efficient cooling system, Equipment can work 24 hours with full load.

We also provide the different USES of various types of testers.

What's our advanatge:
a:  full set of products chain from lithium ion battery materials, equipment, battery production technology
b.  10 years lithium ion battery experiences
c.   more than 8years exportting experiences and 5years golder  supplier in Alibaba
d.  Strong teams for markets and agents, and customers all over the world from Asia,American, Europe. Middle east etc

We are the first and earliest exporter for thermal battery materials.Our original Alibaba company name is Linyi Gelon New Battery Materials Co.,Ltd.which has 9years exporting experience and 5years gold supplier memberships in alibaba.

We can provide one-stop solution for you, provide a "turn key" project for you!

Bolivia project show:

we just successfully completed the lithium ion battery production line project for Lab, Pilot Line of Mobile Battery & EV Battery which cooperation with Bolivia's state-owned enterprises"COMIBOL"company.
All of the materials, equipments and technology that used in the project is provided by our company.
The produced battery performance is very good, highly praised by Bolivia president.

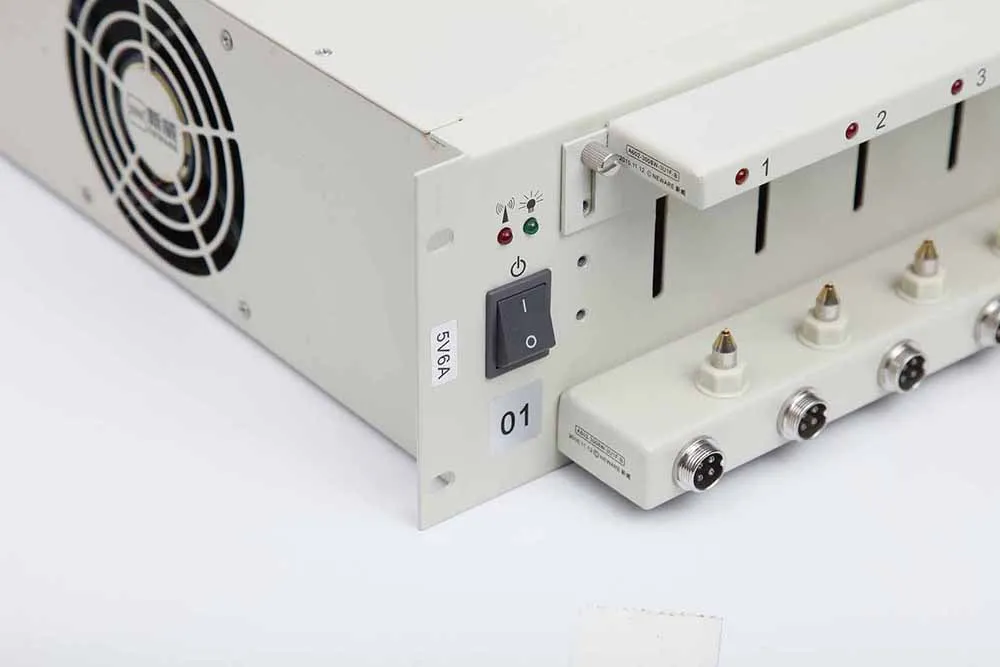

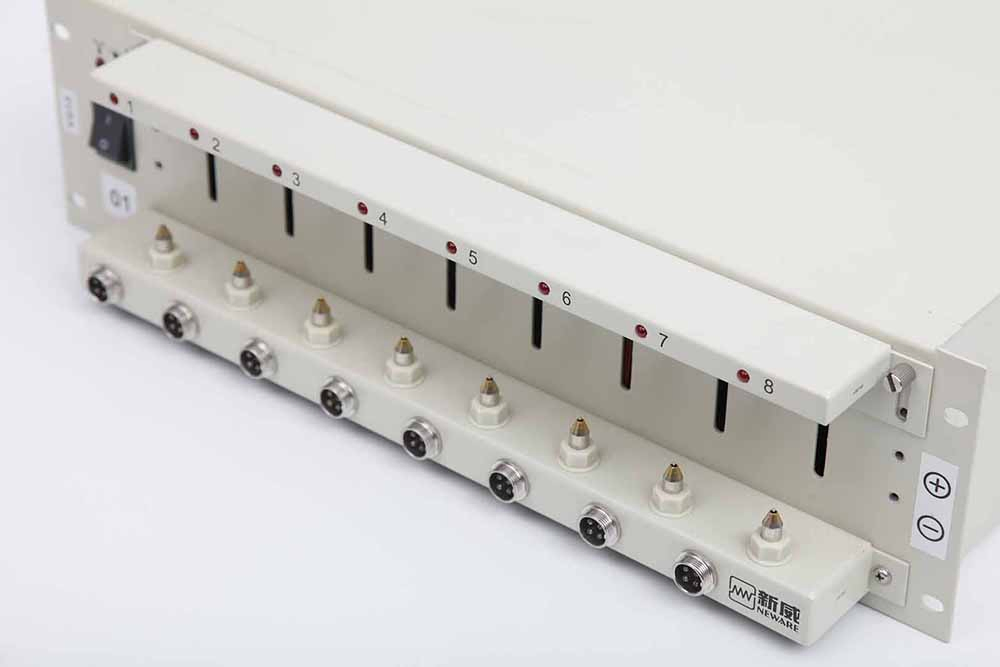

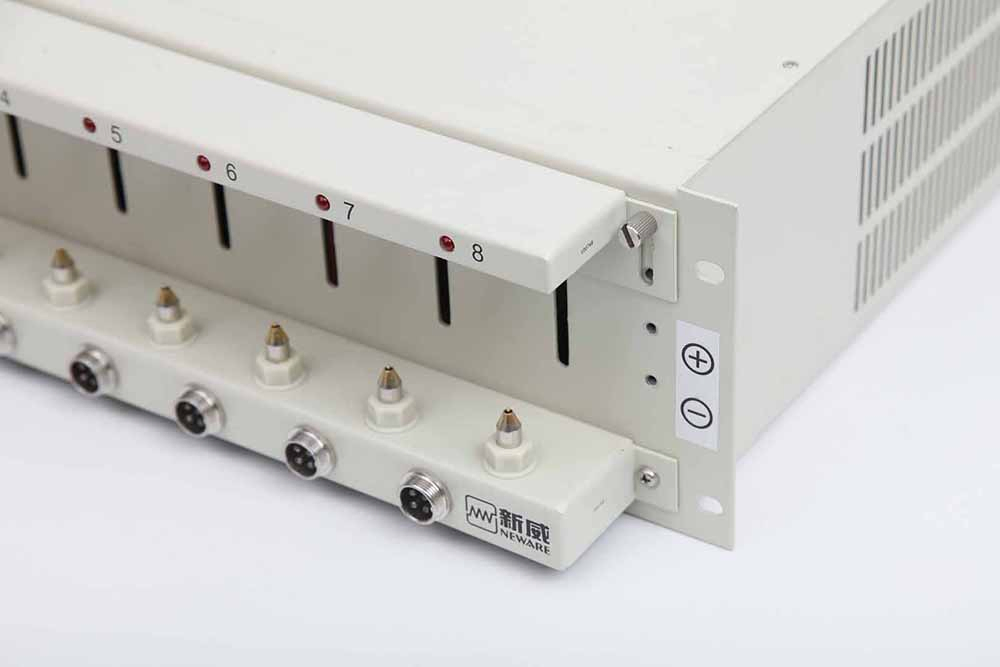

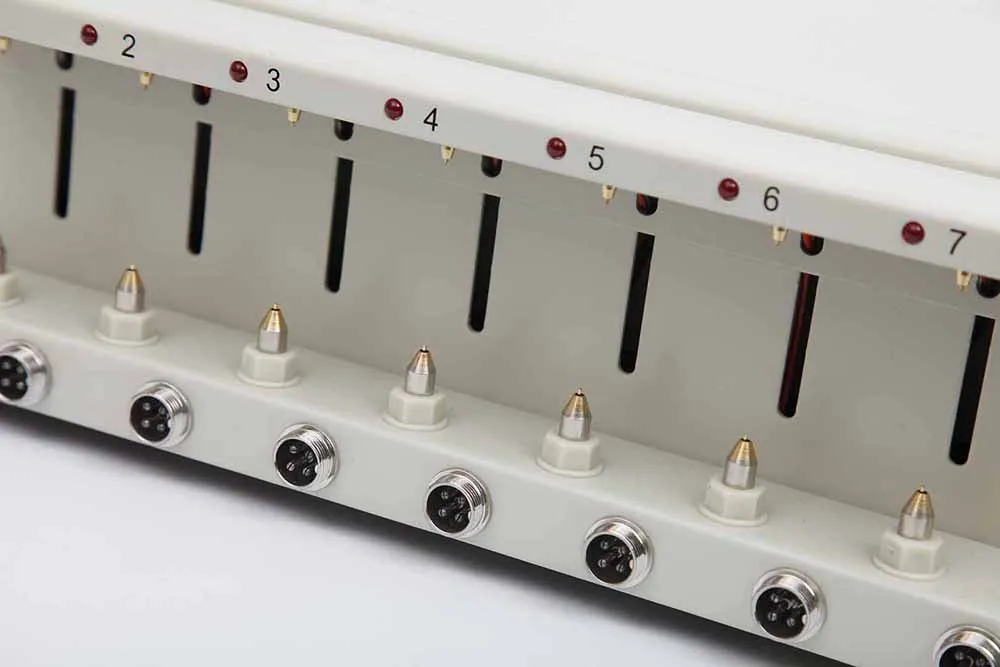

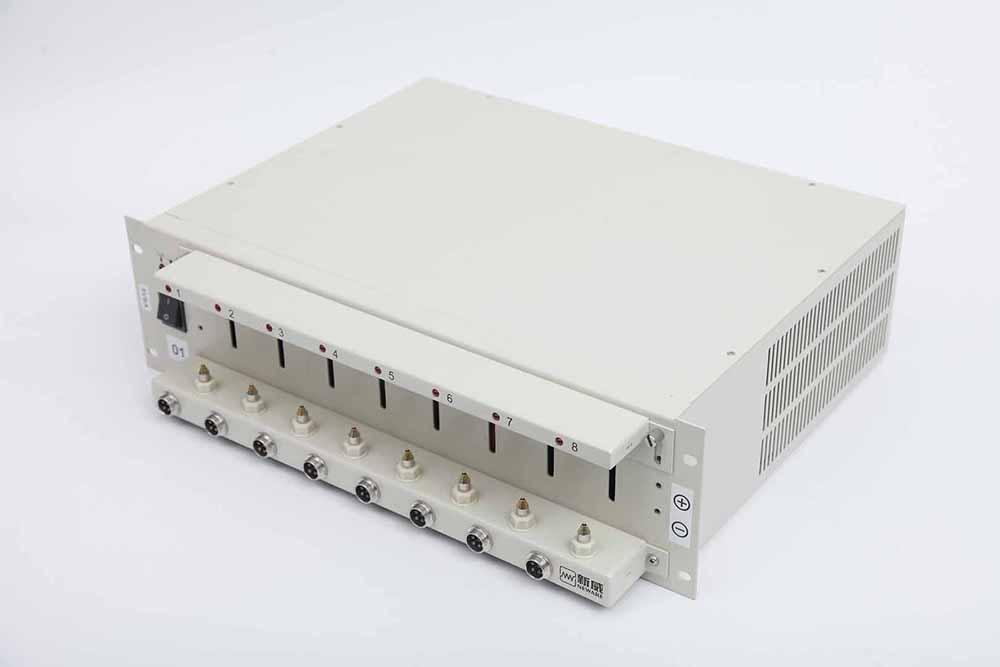

   Battery Tester Battery Analyzer with 8 Channel for All Kinds Lithium Rechargeable Battery (GN-BTS-5V1mA 5V3A and etc)

Battery Tester Battery Analyzer with 8 Channel for All Kinds Lithium Rechargeable Battery (GN-BTS-5V1mA 5V3A and etc)

Choose us means you choose the all-powerful partner for your business
For more detail information ,pls contact us any time

Input power		AC 220 V ±10% / 50 Hz
AD,DAResolution		AD:16bit DA:14bit
Input Resistance		≥1MΩ
Voltage	Per Channel Voltage Range	Charge0V-5V;Discharge2.5V-5V
	Stability	±(0.05% of reading + 0.1% of range)
	Resolution	1/16384*range(5V)
	Stability	≤0.1%
Current	Per Channel Current Range	Charge0A-20A;Discharge0A-20A
	Accuracy	±(0.05% of reading + 0.1% of range)
	Resolution	1/16384*range(20A)
	Stability	≤0.1%
Power	Per Channel Output Power	800W
Power	Stability	≤0.1%
Time	Current Response Time	≤50ms
	StepTime Range	>1000h/step
	Stability	≤0.1%
Data Recording	Record Condition	Δt:(1~60000S)ΔV:(5mV~5V) ΔI:(20mA~20A)
Data Recording	Record Frequency	1Hz
Charge	Charge Mode	Constant Current Charge,Constant Voltage Charge, Constant Current and Constant Voltage Charge
Charge	End Conditon	Voltage,Current,Relative Time,Capacity
Discharge	Discharge Mode	Constant Current Discharge
Discharge	End Condition	Current,Current,Relative Time,Capacity,
Cycle	LoopMeasure Range	1-9999times
	Per Loop Step No.	64
	Nested Loop	Nested loop Function,Max Support 3 Layers
Protection	Software Protection	Power-down Data Protection , Off-line Testing Function , Setting Protection Condition,Setting Parameter:Voltage Low limit,Voltage Upper limit,Current Low limit,Current Upper limit,Delay Time
Protection	Hardware Protection	Addition Avoiding Reverseconnection Protection Model

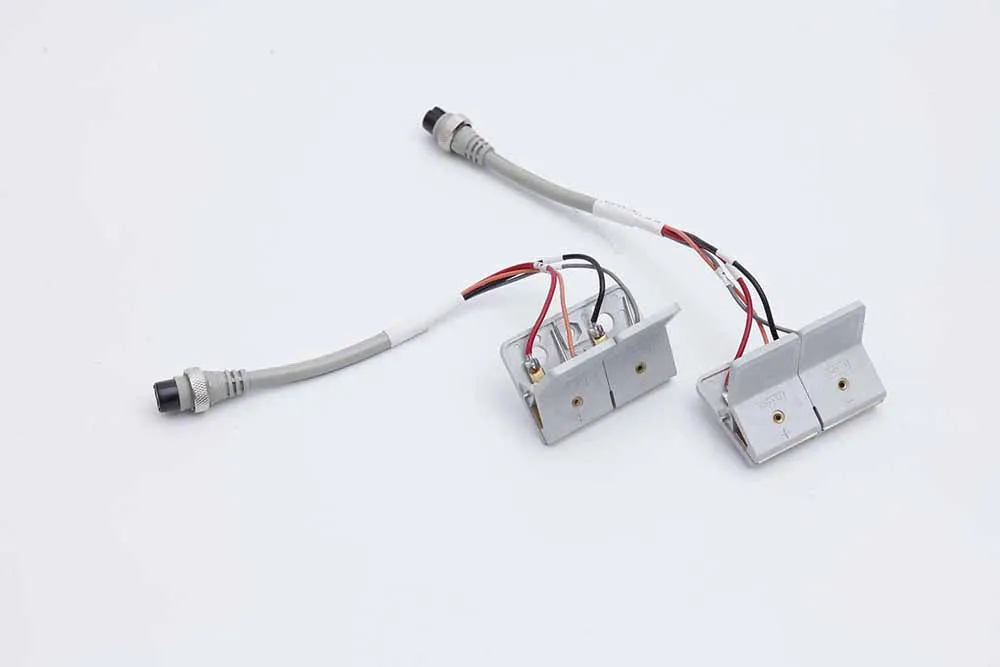

Voltage and Current Testing Sample		4-wire connecting
Noise		<65DB
Database		My SQL Databace
A Means of Communication of Upper Machine		TCP/IP
Data Output		EXCEL,TXT,Graph
Communication Interface		EthernetPort
Per Unit Main Channels No.		8
