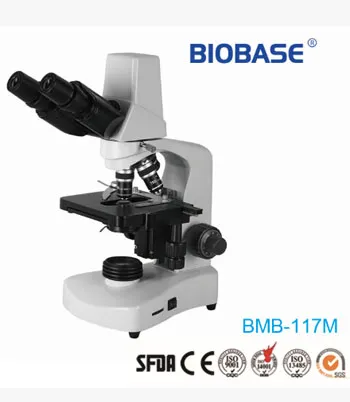

Build-in Camera Biological Microscope
Build-in Camera Biological Microscope Technical Parameters:SpecificationBMB-117MBMB-300MViewing HeadCompensation Free Binocular Head, Inclined at 30°, Interpupilary Distance 48-75mm√√CameraSystemValid Pixel1280*1024(1.3M Pixel)√ 2048*1036 (3.0M Pixel) &radic......
Send Inquiry
Product Description
Build-in Camera Biological Microscope
Technical Parameters:
Specification | BMB-117M | BMB-300M | |||
Viewing Head | Compensation Free Binocular Head, Inclined at 30°, Interpupilary Distance 48-75mm | √ | √ | ||
Camera | Valid Pixel | 1280*1024(1.3M Pixel) | √ |
| |
2048*1036 (3.0M Pixel) |
| √ | |||
2052*1944 (5.0M Pixel) |
|
| |||
Output Mode | USB2.0 | √ | √ | ||
Operation System | WINDOWS7/8 2000 / XP/ VISTA | √ | √ | ||
Software | ScopeImage 9.0 | √ | √ | ||
Range of Viewing Field | 90% | √ | √ | ||
Eyepiece | WF10×/ 18 | √ | √ | ||
P16×/ 11 |
|
| |||
Extra wide filed eyepiece EW10×/ 20 with diopter |
|
| |||
Objective | Achromatic Objective 4×,10×,40×,100× | √ |
| ||
Infinite planAchromatic Objective 4×,10×,40×,100× |
| √ | |||
Nosepiece | Backward Quadruple Nosepiece | √ |
| ||
QuintupleNosepiece |
|
| |||
Quadruple Nosepiece |
| √ | |||
Stage | Double Layers Mechanical Stage 132*142mm,Moving range 75*40mm | √ |
| ||
Double Layers Mechanical Stage 140*140mm Moving range 75*40mm |
| √ | |||
Condenser | Abbe NA1.20 with Iris Diaphragm & Fliter | √ |
| ||
Abbe NA1.25 sliding-in centerable condenser |
| √ | |||
Focusing | Coaxial Coarse & Fine Adjustment System, Range 24mm, Fine Division 0.004mm | √ |
| ||
Coaxial Coarse & Fine Adjustment System, Range 20mm |
| √ | |||
Illumination | LED 3W, Brightness Adjustable | √ |
| ||
Halogen Lamp 6V/ 20W, Brightness Adjustable |
|
| |||
220V or 110V/ 6V/ 20W Halogen Lamp, Brightness Adjustable |
| √ | |||
Power Supply | AC110/220V±10%, 50/60Hz | √ | √ | ||
Accessories | Phase Contrast Kit |
|
| ||
Dark-Field Attachment |
|
| |||
Polarization Attachment |
|
| |||
Package Size | 396*262*492(BMB-117M), 334*334*533(BMB-300M) | √ | √ | ||
Gross Weight | 7.5kg (BMB-117M), 12.5kg (BMB-300M) | √ | √ | ||
Note: √ Standard Outfit, .Optional\ Without this feature |
Note: √Standard Outfit, Optional
