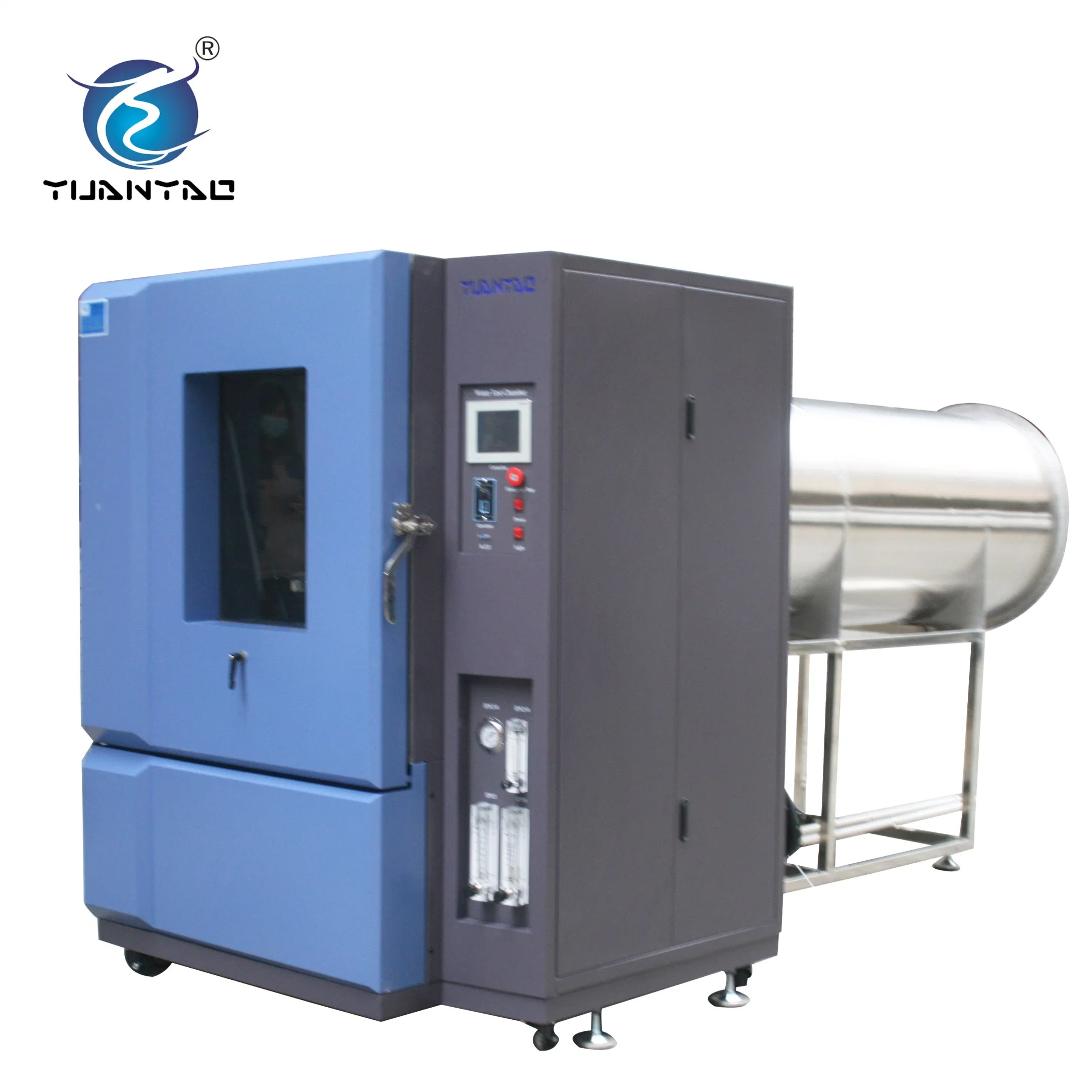

Climatic Rain Spray Chamber IEC 60529 Accept OEM Service

Product Description

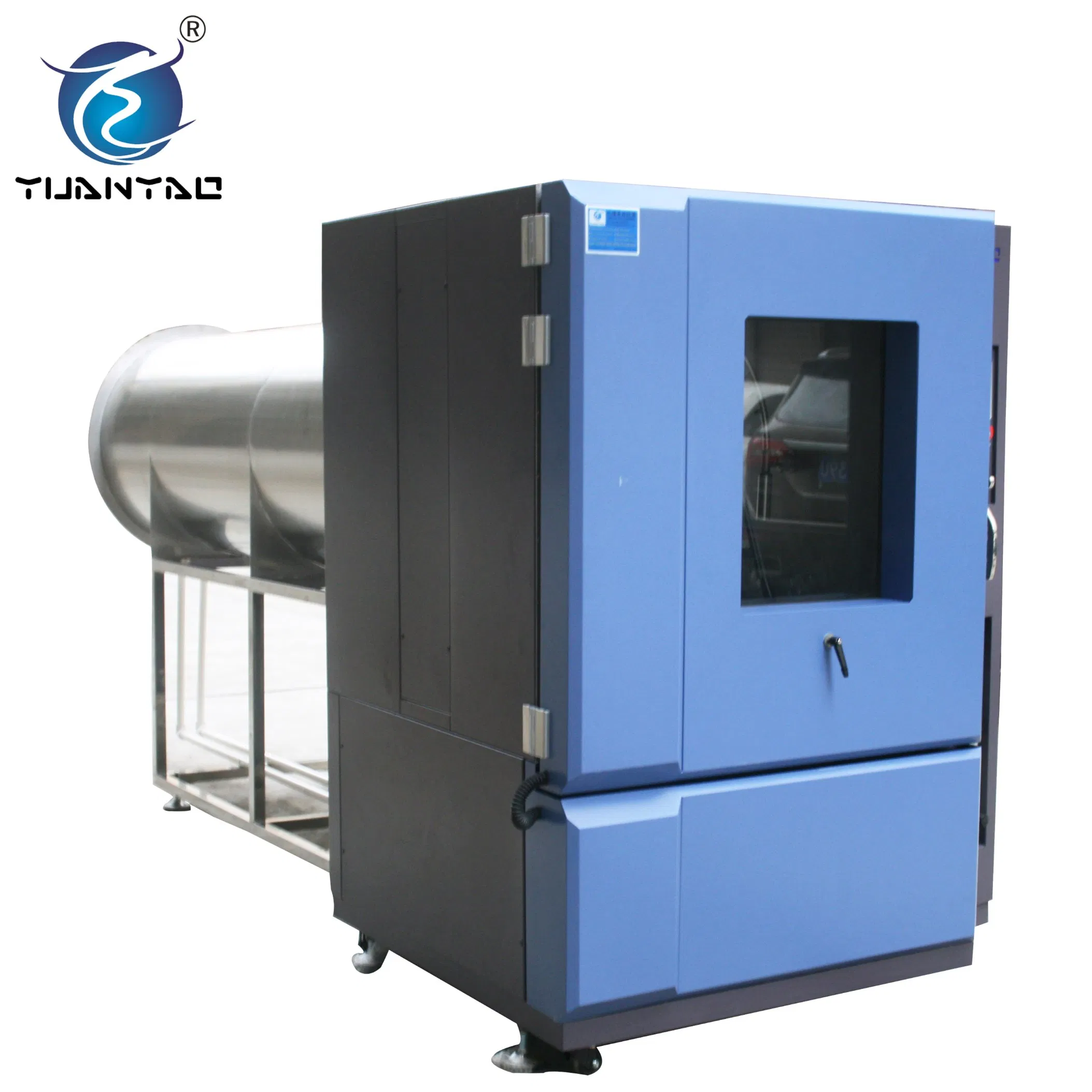

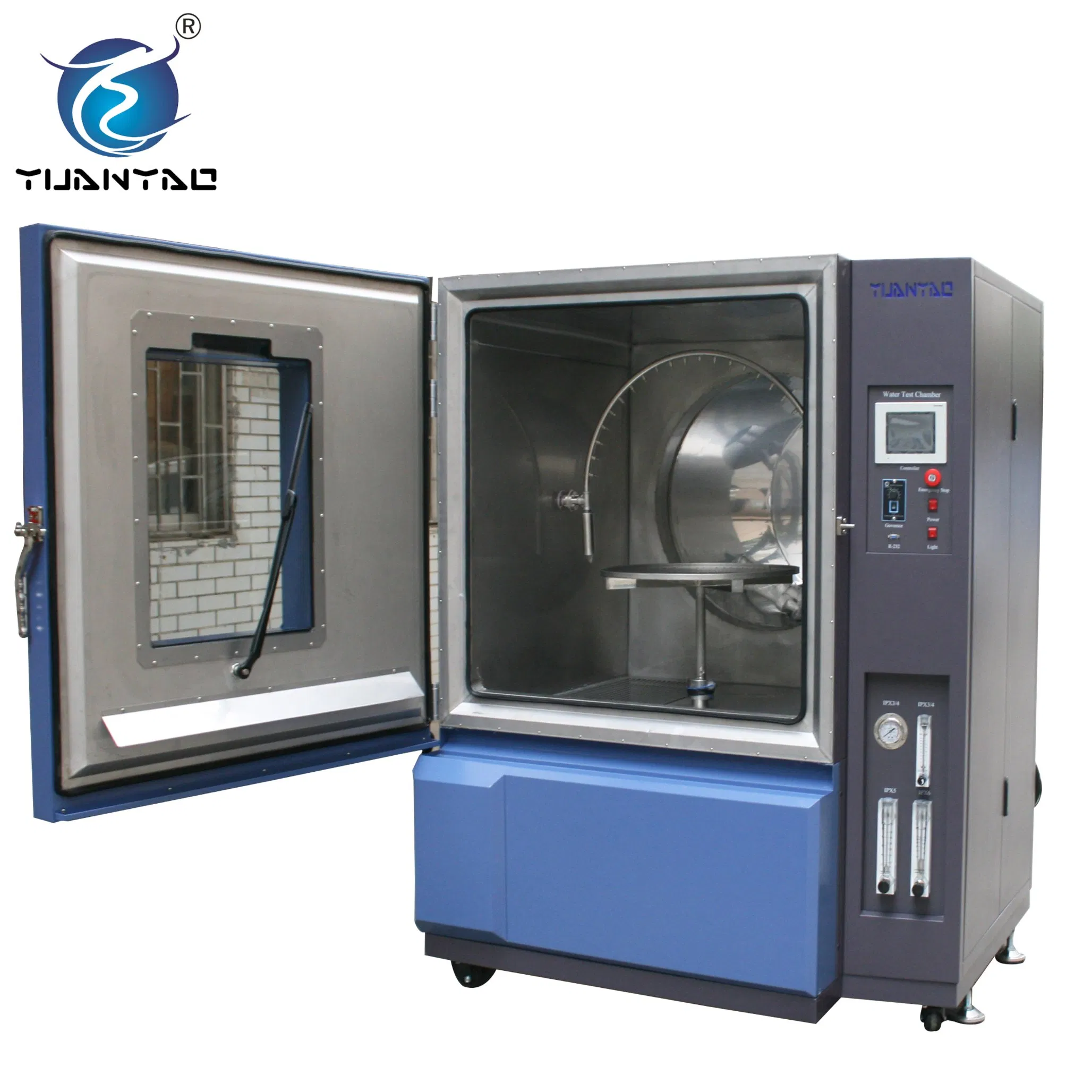

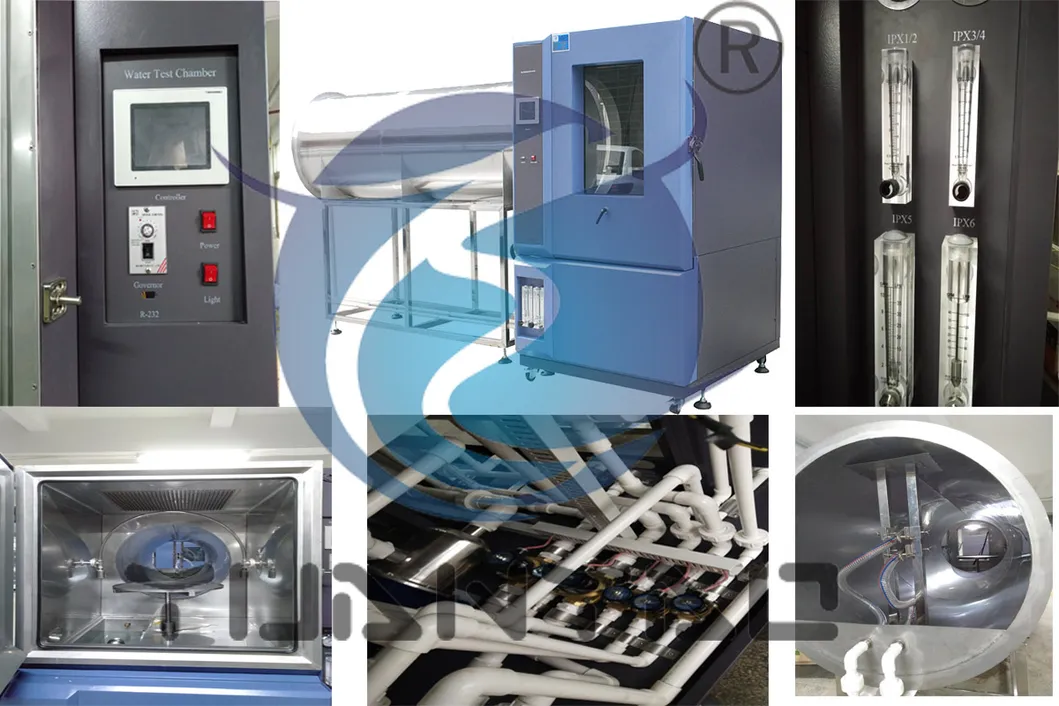

Climatic Rain Spray Chamber IEC 60529 Accept OEM Service

Description

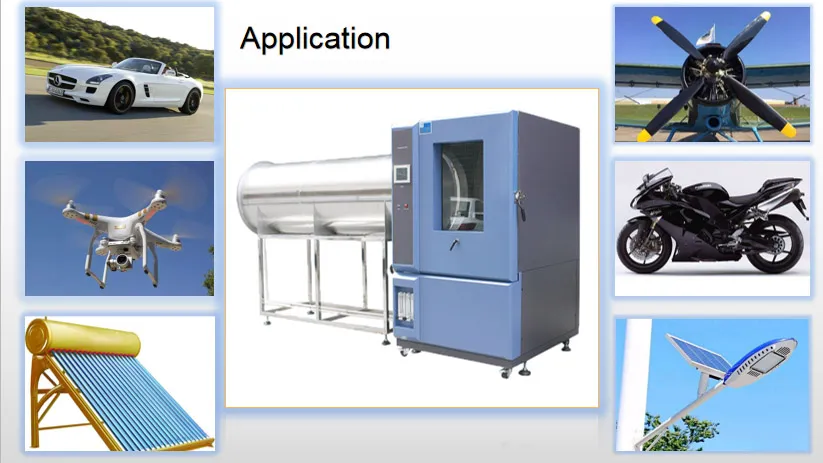

This equipment is mainly used in electronic, electrical products, lamps and lanterns, electrical cabinets, electrical components, automobiles, motorcycles and their parts, and other products under the condition of the climate simulation in the rain, for the physical test of the products. Determine whether the product performance meets the requirements by measuring.
Climatic Rain Spray Chamber IEC 60529 Accept OEM Service

Product Specification:

Model No.	YSRT-1728
Inner chamber size(WHD)	120012001200mm
Exterior chamber size (WHD)	170019501370mm
Temperature range	Normal
Inner diameter of spray inlet	φ10mm
Sprinkler	Made and mounted vertically according to stand JIS D0203 and IEC60529
Length of sprinkler pipe	400mm
Distance between	400mm
Inner diameter of spraying pipe	16mm
Diameter of spraying holes	1.2mm
Distanxe between spraying holes	12.5mm
Raining pressure	0.003~0.1Mpa (adjustable)
Water flow	1.9 ~ 39.2L/min adjustable
Sprinkler pipe speed adjustmeter	Step-less speed regulating (0~23r/min)
Rotating platform speed adjusment	Step-less speed regulating (0~17r/min)
Structure and material	Both inner and outer body are made of SUS#304 stainless steel (outer body is made of hairline finished stainless steel plate) all other water-connect parts are made of stainless steel.
Control system	1. Adjustment device: Spraying pipe and rotating platform adopt step-less speed regulating.
	2. Electric conponents: Main components are imported.
	Main configurations: Water pump, water flow meter, speed reducer, presure meter, ball valve, filter, etc.
Testing standards	This equipment comply with IPx1, IPx2,IPx3, IPx4, IPx5, IPx6 water resistance test standards of JIS D0203-1994, standard of IEC60529, standard CB4208-93 and other technical standards equivalent to thest rules.
Package	Packing is by strong plywood box suitable for long distance transportation.
Warranty	Free parts warranty service for 12 months, during the warranty period, we will provide free parts maintenance service, over the warranty period, lifelong maintenance also available with charges.
