Combination Wave (Surge) and Telecom Surge Generator up to 10kv ( SUR T10L)
Combination Wave (Surge) and Telecom Surge Generator up to 10kV (SUR T10L)Product DescriptionLightning Surge Generator SUR T10L meets the 1.2/ 50μs and 10/ 700μs surge waveforms. The surge (impact) immunity test product is designed for various electronic and electrical product power po......
Send Inquiry
Product Description

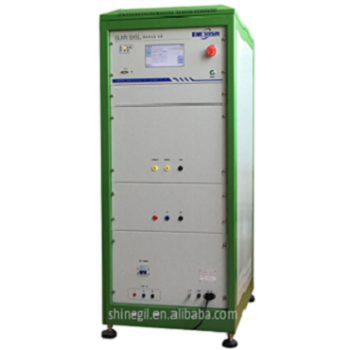

Combination Wave (Surge) and Telecom Surge Generator up to 10kV (SUR T10L)
Product Description
Lightning Surge Generator SUR T10L meets the 1.2/ 50μs and 10/ 700μs surge waveforms. The surge (impact) immunity test product is designed for various electronic and electrical product power ports and telecom/ communication product ports. It is used to evaluate the performance of products such as electronic, electrical, telecom/ communications, etc. when subjected to high energy harassment from the power line ports and other signal line ports. Products fully meet the latest requirements of standard IEC61000-4-5.
Features
1) Fully Compliant with latest Standard IEC/ EN 61000-4-5
2) User friendly 7" Touch Panel Display
3) Support multi-language & facilitate users
4) Built-in environment self-test program
5) Programmable operation
6) Pre-programmed IEC 61000-4-5 test settings
7) RS232 interface, PC control operation
8) Comfortable use and convenient operation
Technical data
Company Information
Shanghai EMCSOSIN/ Shanghai SHINEGIL is a professional supplier that specialized in R&D, manufacturing and selling EMC testing equipments. We've been committed to the electromagnetic compatibility (EMC) testing field, offering professional equipments which are widely used in electronics manufacturing, electric power, new energy, telecommunication, aerospace, teaching, renewable energy, automotive and other industries, as well as scientific research. We provide customers with professional EMC system integration solutions. We are also ISO9001 certified.
Our self-developed electrostatic discharge (ESD) generator, electrical fast transient (EFT)/ burst generator, lightning surge generator, voltage dips simulator and so on enjoy a high reputation both at home and abroad. To provide best service and create value for customers is our eternal pursuit!
Manufactory and Office
Qualification and Certificate
Our Client
Packing
Our Service
1) Our product engineers and application technicians answer various questions and deal with emergencies in real time.
2) Professional engineers will guide the installation & debugging of equipments so that users can operate devices independently and solve problems in daily test.
3) Free warranty for 1 year and lifelong maintenance.
4) Free upgrade service for the users is available as per international standard updates requirements.
If you have any further query on EMC/ EMI testing equipments, electrical fast transient/ burst generators, pls do not hesitate to contact us at linda<at>shinegil<dot>com
We look forward to working with you sincerely!
Product Description
Lightning Surge Generator SUR T10L meets the 1.2/ 50μs and 10/ 700μs surge waveforms. The surge (impact) immunity test product is designed for various electronic and electrical product power ports and telecom/ communication product ports. It is used to evaluate the performance of products such as electronic, electrical, telecom/ communications, etc. when subjected to high energy harassment from the power line ports and other signal line ports. Products fully meet the latest requirements of standard IEC61000-4-5.
Features
1) Fully Compliant with latest Standard IEC/ EN 61000-4-5
2) User friendly 7" Touch Panel Display
3) Support multi-language & facilitate users
4) Built-in environment self-test program
5) Programmable operation
6) Pre-programmed IEC 61000-4-5 test settings
7) RS232 interface, PC control operation
8) Comfortable use and convenient operation
Technical data
| Model | SUR T10L |
| Surge Waveform | Open-circuit voltage wave: 1.2/ 50μs 10/ 700μs Short-circuit current wave: 8/ 20μs 5/ 320μs |
| Output Voltage | 0.2~ ± 10kV |
| Polarity | Positive/ negative/ alternating |
| Phase Angle | 0~ 359°synchronous, asynchronous, or automatic |
| Effective output impedance | Integration waveform: 2Ω (common mode 12Ω) Telecom/ communication waveform: 15Ω/ 40Ω |
| Coupling/ decoupling network | Built-in, three-phase five-wire, AC380V/ 16A (customer specific on demand) |
| Coupling mode | Differential mode 18μF, common mode 9μF/ 10Ω |
| Count | 1~ 9999 |
| Interval | 10~ 9999s |
| Power Supply | AC 220V ±10% 50/ 60Hz |
| Operation Temperature | 15ºC~35ºC |
Company Information
Shanghai EMCSOSIN/ Shanghai SHINEGIL is a professional supplier that specialized in R&D, manufacturing and selling EMC testing equipments. We've been committed to the electromagnetic compatibility (EMC) testing field, offering professional equipments which are widely used in electronics manufacturing, electric power, new energy, telecommunication, aerospace, teaching, renewable energy, automotive and other industries, as well as scientific research. We provide customers with professional EMC system integration solutions. We are also ISO9001 certified.
Our self-developed electrostatic discharge (ESD) generator, electrical fast transient (EFT)/ burst generator, lightning surge generator, voltage dips simulator and so on enjoy a high reputation both at home and abroad. To provide best service and create value for customers is our eternal pursuit!

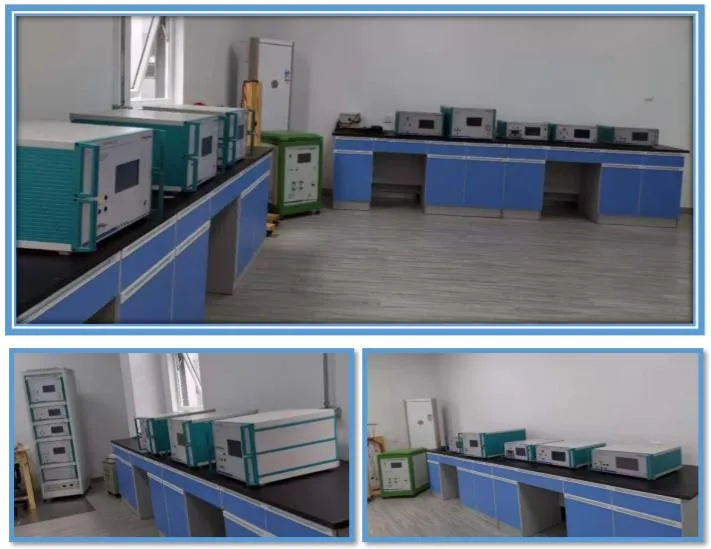

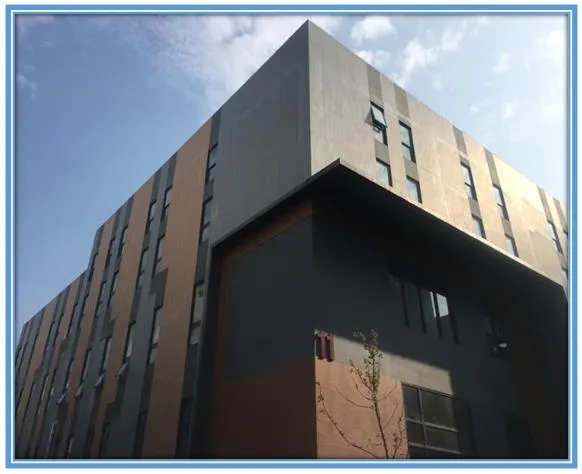

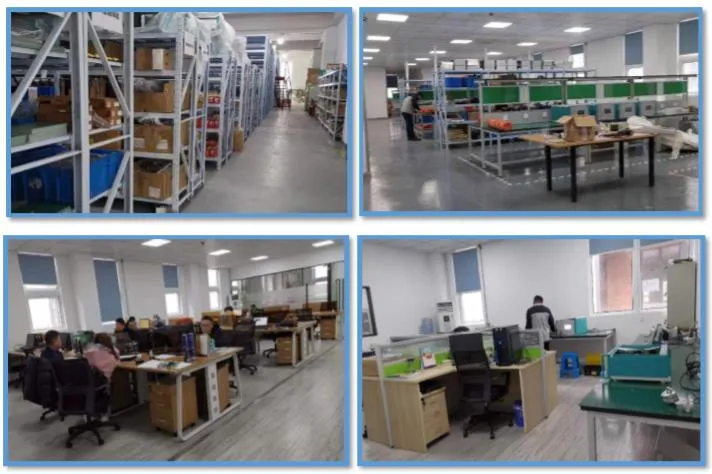

Manufactory and Office
Qualification and Certificate
Our Client
Packing
Our Service
1) Our product engineers and application technicians answer various questions and deal with emergencies in real time.
2) Professional engineers will guide the installation & debugging of equipments so that users can operate devices independently and solve problems in daily test.
3) Free warranty for 1 year and lifelong maintenance.
4) Free upgrade service for the users is available as per international standard updates requirements.
If you have any further query on EMC/ EMI testing equipments, electrical fast transient/ burst generators, pls do not hesitate to contact us at linda<at>shinegil<dot>com
We look forward to working with you sincerely!
