Computerized Electro-Hydraulic Servo Universal Tensile Compression Test Testing Machine (CXYAW-2000E)

Product Description

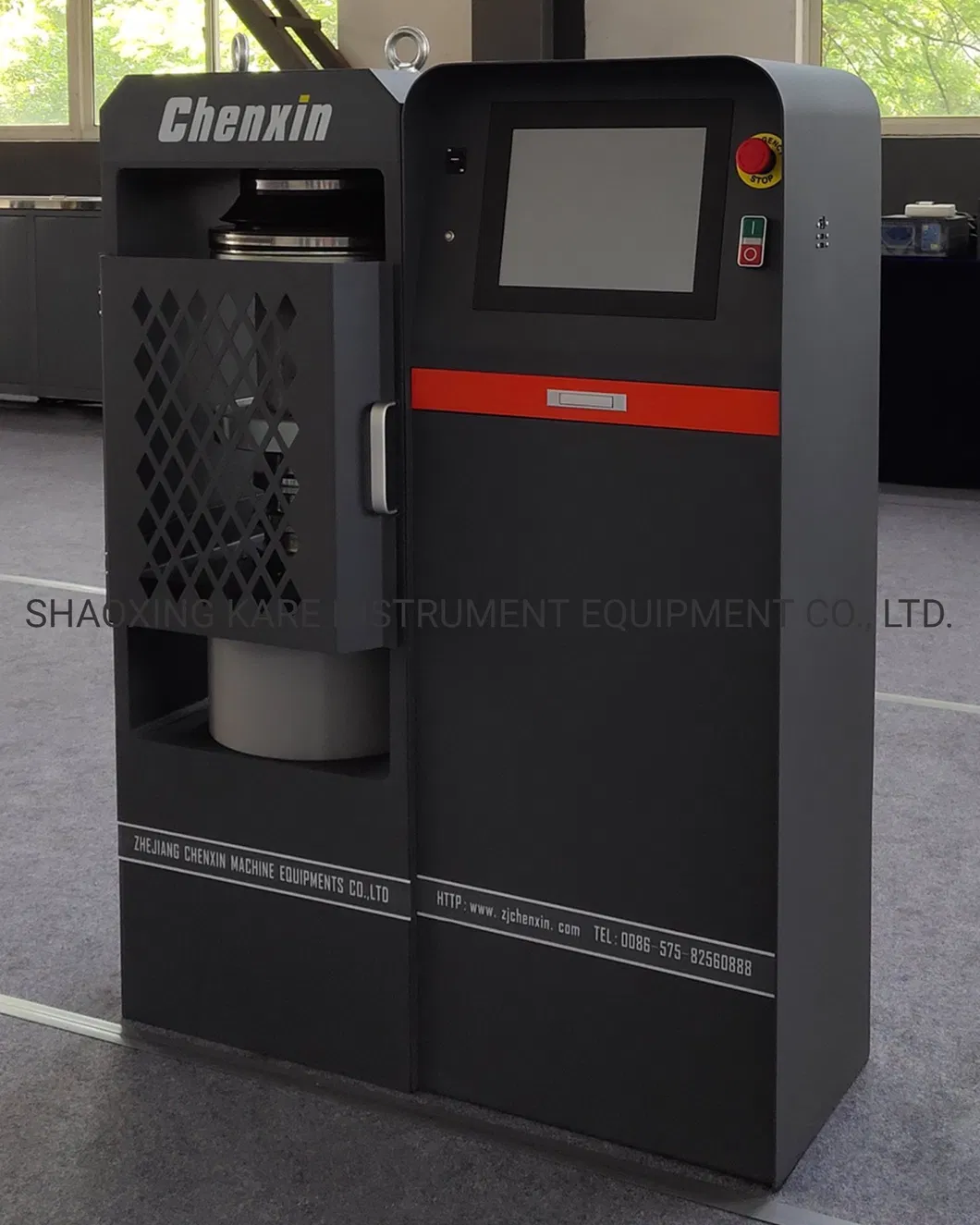

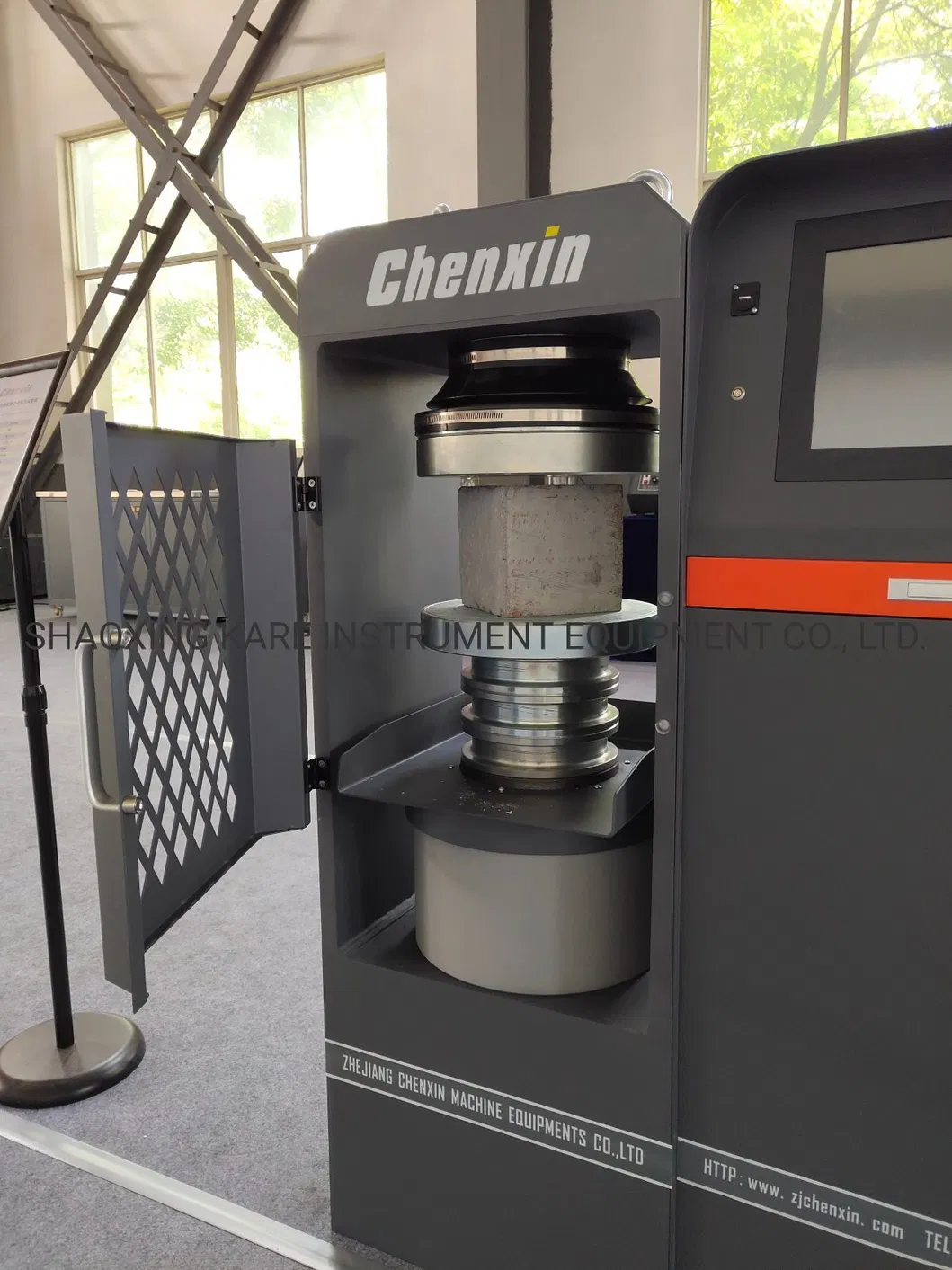

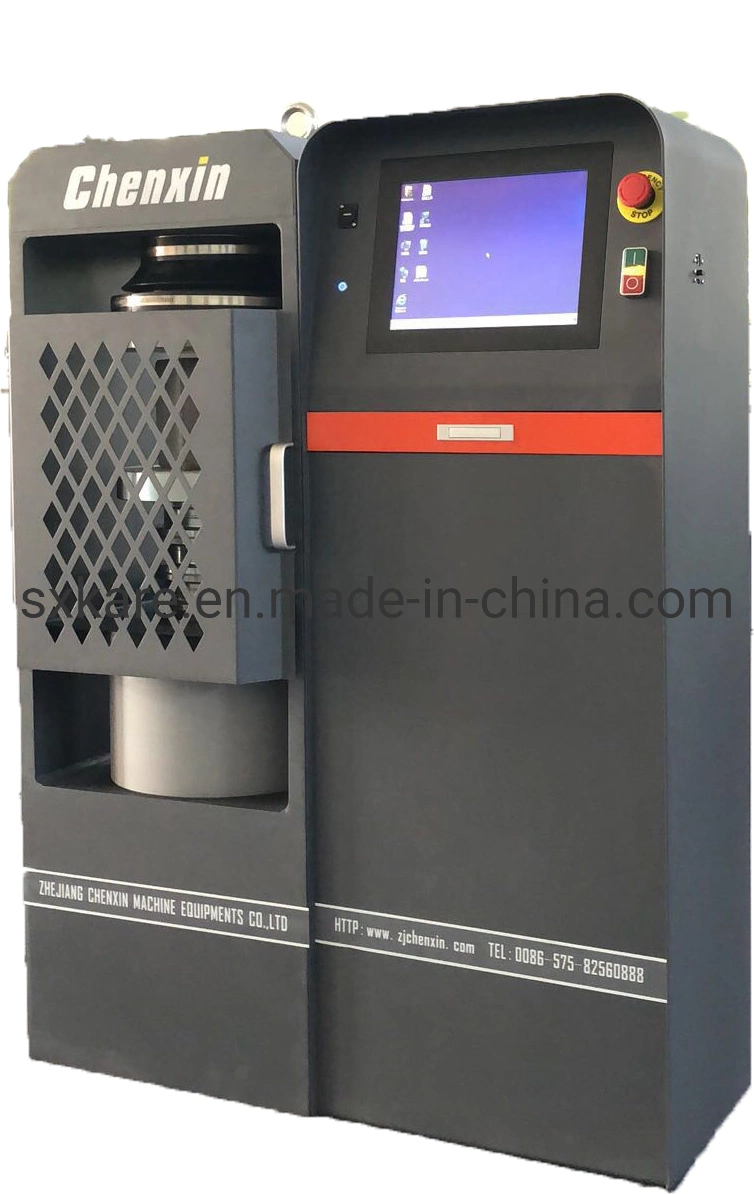

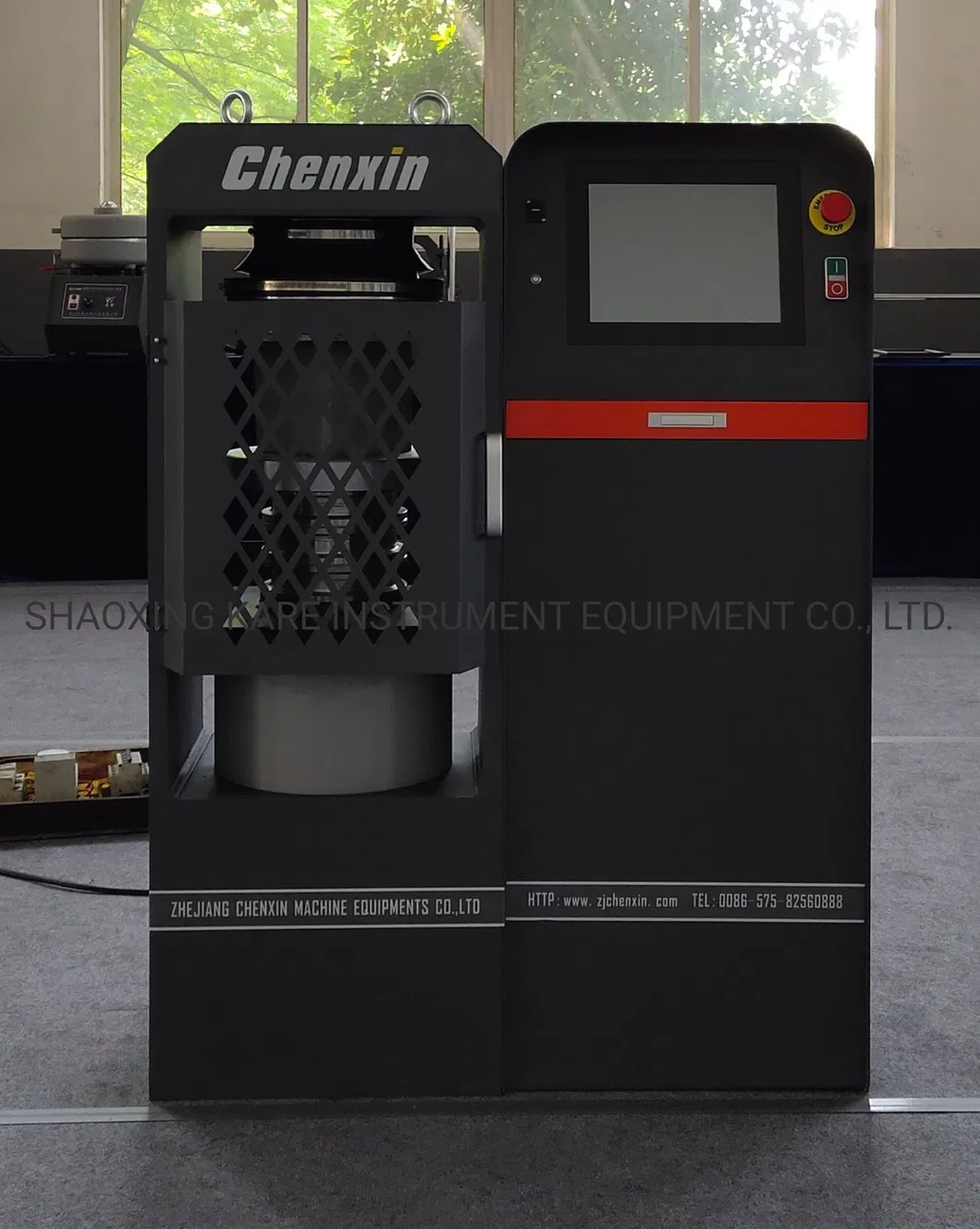

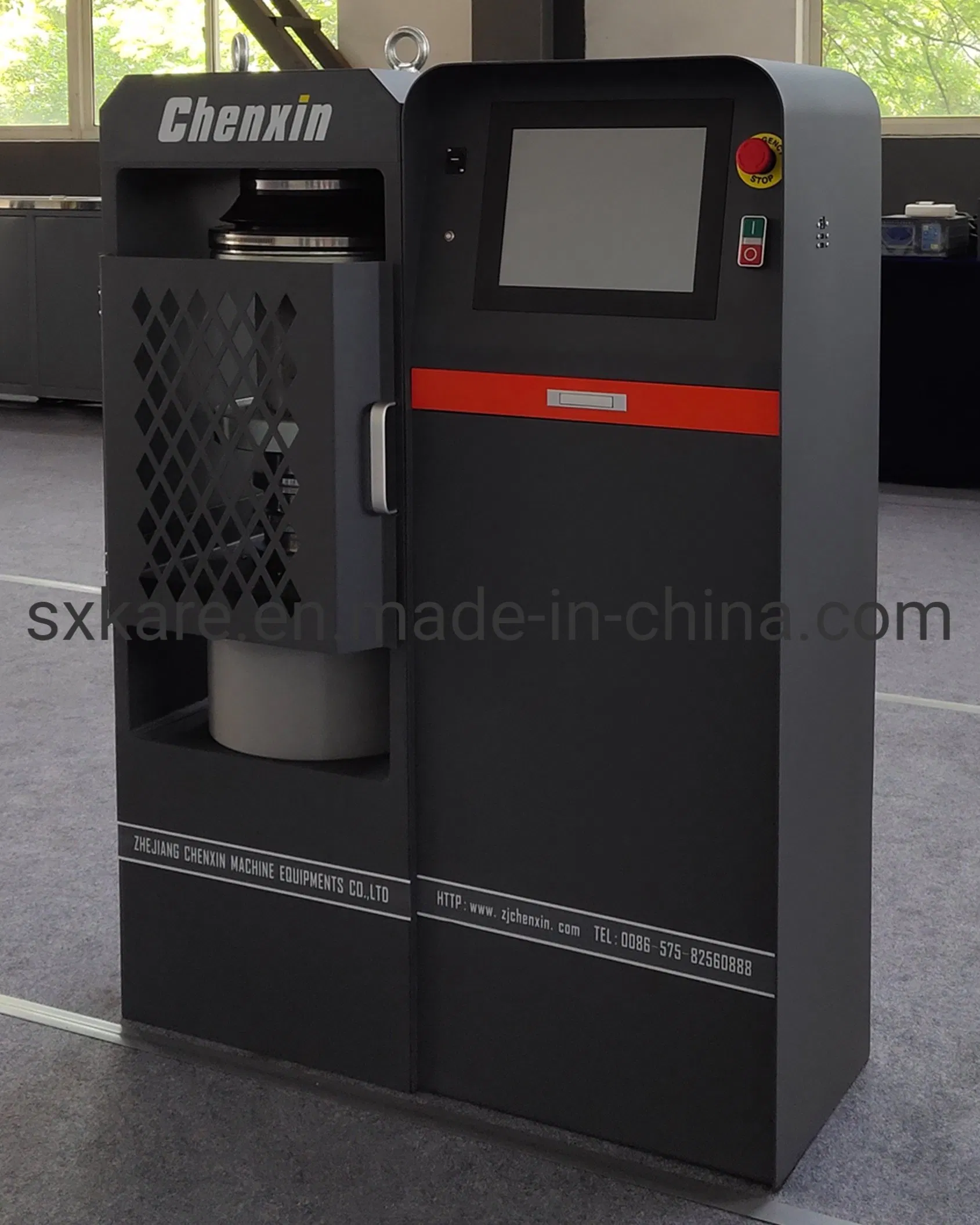

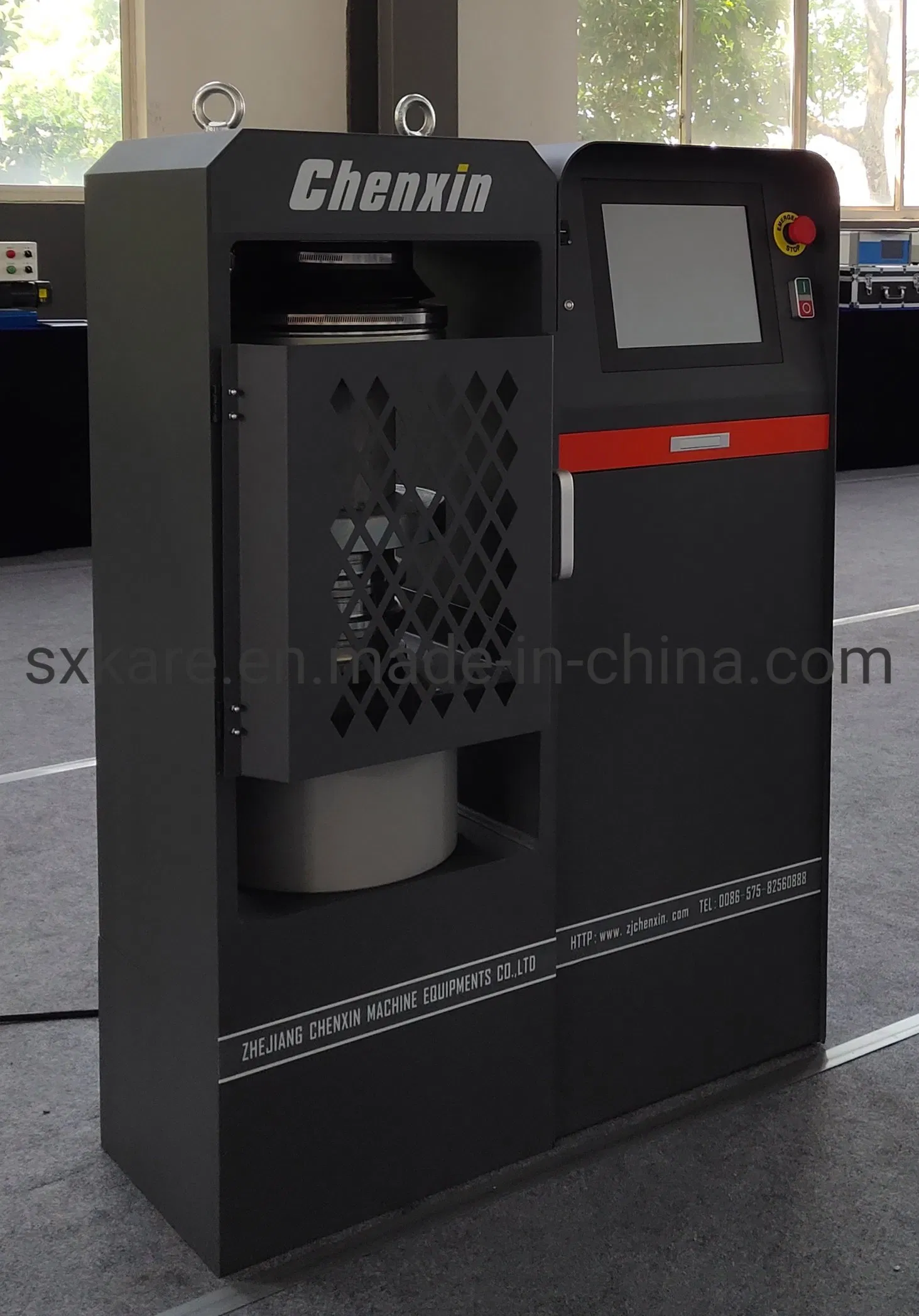

CXYAW-2000E Computerized Electro-hydraulic Servo Compression Testing Machine

Usage
Mainly used for testing the compressive strength of concrete and the compressive strength of refractory bricks and other materials.

Characteristics

1. Frame structure has good toughness and rigidity.

2. The use of bolt-free connections increases the stability of the machine

3. Adopt no base design, no need to connect tubing, more convenient operation.

4. The design of touch screen and keyboard is used to meet the preferences of different technicians.

5. According to the principle of ergonomics, the test process is easy to operate.

6. The test space is adjusted by the pad and the width of the space is increased, so the elastic modulus of concrete can be operated. When reading the percentile meter, there is no visual occlusion, which is more convenient and faster.

Main technical parameters

Model	CXYAW-2000E
Max. force	2000KN
Measuring range	1%-100%FS
Range	Gearless, equivalent four gears
Force indicating relative error	≤±1%
Force resolution	1/300000FS
Force control range with constant speed	0.1%-4%FS/s
Speed control accuracy error	≤±2% set value
Distance between two columns	340mm
Max. distance between platens	340mm
Platens size	φ295mm
Test space	340400110-310mm
Piston movement	Single way
Piston rising max. speed	60mm/min
Piston max. stroke	80mm
System work pressure	40mpa
Indicating value accuracy	≤±0.5%,≤±1%
Motor power	2.2kw
Dimension	9205001240mm
Weight	500kg
