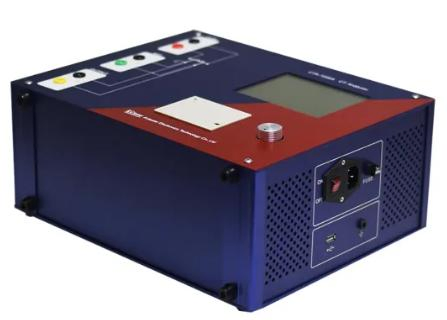

CT Transformer Analyzer with Variable Frequency Volt- Ampere Characteristics Tester
Product DescriptionCTA-1000A CT Analyzer automatically determines all relevant current transformer values and compares the results with the selected standard. The device evaluates the current transformer as per the IEC or IEEE standard within seconds with the push of a button. It facilitates fa......
Send Inquiry
Product Description

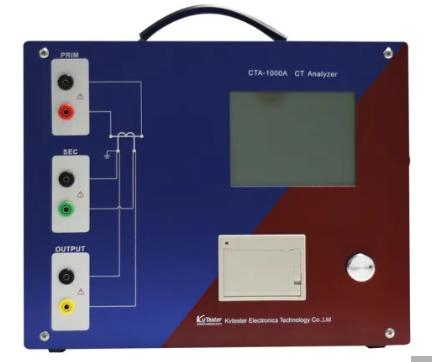

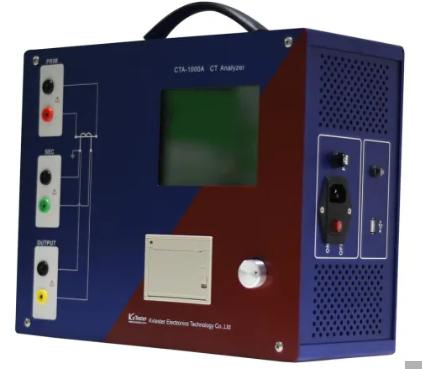

CTA-1000A CT Analyzer automatically determines all relevant current transformer values and compares the results with the selected standard. The device evaluates the current transformer as per the IEC or IEEE standard within seconds with the push of a button.
It facilitates fast and economical on-site testing and calibration of metering and protection current transformers. Manufacturers of current transformers, high voltage transformers and switchgear also use the CT Analyzer for tests during development and production.
| Type | CTA-1000A | |
| Usage | CT, PT | |
| Output | 0~180Vrms, 12Arms, 36A(peak value) | |
| Voltage measurement accuracy | ±0.1% | |
| CT Ratio | Range | 1~40000 |
| accuracy | ±0.05% | |
| PT Ratio | Range | 1~40000 |
| accuracy | ±0.5% | |
| Phase | Range | ±2min |
| accuracy | 0.5min | |
| DC resistance | Range | 0~300Ω |
| accuracy | 0.2%±2mΩ | |
| Burden | Range | 0~1000VA |
| accuracy | 0.2%±0.02VA | |
| Power supply | AC220V±10%, 50Hz | |
| Environmental Conditions | Operating temperature : -10οC~50οC Humidity :≤90% | |
| Weight and Dimensions | Dimensions: 365 mm×290mm×153mm; Weight<10kg | |
