DH-TG-15A Mini Gold Melting Furnace, Gold Melting Machine Portable Type
DH-TG-15A Mini Gold Melting Furnace, Gold Melting Machine Portable Type Working PrincipleThe power supply adopts the all-solid-state Siemens IGBT frequency conversion module technology. After the induction heating device outputs a strong variable frequency current, a strong magnetic field is generat......
Send Inquiry
Product Description

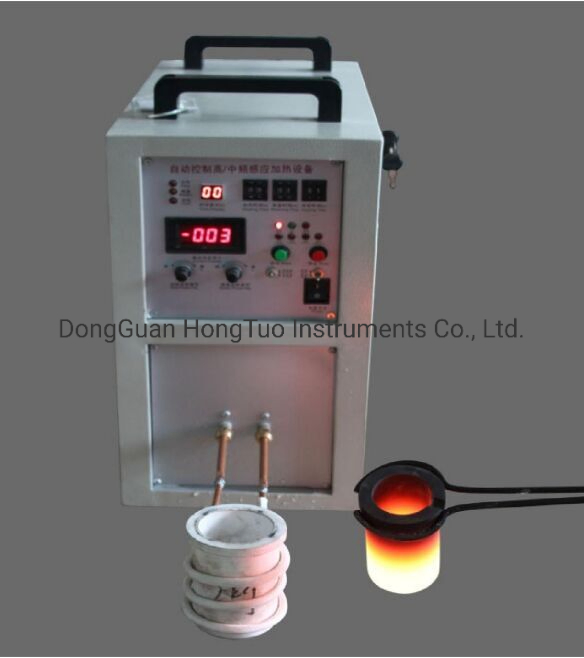

DH-TG-15A Mini Gold Melting Furnace, Gold Melting Machine Portable Type
Working Principle
The power supply adopts the all-solid-state Siemens IGBT frequency conversion module technology. After the induction heating device outputs a strong variable frequency current, a strong magnetic field is generated through the induction coil. Under the action of the magnetic field, a vortex current is formed on the surface of the heated workpiece, thereby rapidly heating the workpiece.
Main Feature
1.Fast heating: the fastest heating is less than 1 second, and the heating speed can be adjusted and controlled.
2.Energy saving and environmental protection: The thermal efficiency is over 95%, which is a perfect substitute for thyristor, gas, B, coke and electric furnace.
3.Machine safety is reliable: over-current, phase loss, water shortage, over voltage, short circuit, overheat protection, greatly improving the reliability of the equipment.
4.Small footprint: less than 1 square meter, light weight and easy to move.
5.The machine is easy to install and operate, just need to connect water and electricity.
6.It has electromagnetic stirring function to make the melt more uniform, which is beneficial to scumming, reducing impurities, making the melt or casting more bright without shrinkage and shrinkage.
7.Mainly for metals: platinum, palladium, rhodium, gold, silver, copper, steel, aluminum, activated carbon, gold ash, gold sand, electrolytic mud, gold and silver powder and other metals.
Specification
The power supply adopts the all-solid-state Siemens IGBT frequency conversion module technology. After the induction heating device outputs a strong variable frequency current, a strong magnetic field is generated through the induction coil. Under the action of the magnetic field, a vortex current is formed on the surface of the heated workpiece, thereby rapidly heating the workpiece.
Main Feature
1.Fast heating: the fastest heating is less than 1 second, and the heating speed can be adjusted and controlled.
2.Energy saving and environmental protection: The thermal efficiency is over 95%, which is a perfect substitute for thyristor, gas, B, coke and electric furnace.
3.Machine safety is reliable: over-current, phase loss, water shortage, over voltage, short circuit, overheat protection, greatly improving the reliability of the equipment.
4.Small footprint: less than 1 square meter, light weight and easy to move.
5.The machine is easy to install and operate, just need to connect water and electricity.
6.It has electromagnetic stirring function to make the melt more uniform, which is beneficial to scumming, reducing impurities, making the melt or casting more bright without shrinkage and shrinkage.
7.Mainly for metals: platinum, palladium, rhodium, gold, silver, copper, steel, aluminum, activated carbon, gold ash, gold sand, electrolytic mud, gold and silver powder and other metals.
Specification
| Model | Portable type | Cabinet type | ||||
| Parameter | DH-TG-15A | DH-TG-25A | DH-TG-35AB | DH-TG-15A | DH-TG-25A | DH-TG-35AB |
| Imput voltage(V) | Single phase 220V | Three phase 380V | Three phase 380V | Single phase 220V | Three phase 380V | Three phase 380V |
| Power(KW) | 5KW | 5KW | 10KW | 5KW | 5KW | 10KW |
| Melting precious metal weight(KG) | 2 | 4 | 8 | 2 | 4 | 8 |
| Melting time(Minutes) | ≤3 | ≤5 | ≤5 | ≤3 | ≤5 | ≤5 |
| Host dimension(CM) | 49*24*48 | 59*26*48 | 59*26*48 | 50*50*100 | ||
| Weight (KG) | 20 | 28 | 35 | 75 | 85 | 85 |
We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.
