Digital Plastic Izod & Charpy Pendulum Impact Strength Testing Equipment / Machine / Apparatus / Method
Digital Plastic Izod & Charpy Pendulum Impact Strength Testing Equipment / Machine / Apparatus / Method ApplicationThe cantilever beam impact tester is used to measure the impact toughness of non-metallic materials such as plastic, reinforced nylon, fiberglass, ceramics, cast stone, plastic elec......
Send Inquiry
Product Description
Digital Plastic Izod & Charpy Pendulum Impact Strength Testing Equipment / Machine / Apparatus / Method
Application
The cantilever beam impact tester is used to measure the impact toughness of non-metallic materials such as plastic, reinforced nylon, fiberglass, ceramics, cast stone, plastic electrical appliances, and insulating materials. It is a common equipment for quality inspection by scientific research institution, universities and non-metallic materials manufacturers. It has the feature of simple structure, easy operation and high test accuracy.
Features
2. It has the characteristics of high precision, good stability and large measuring range.
3. Digital Displaying the value of impact strength, pre-elevation angle, rising angle, and average value.
4.It has the function of automatic correction of energy loss, printing test report, etc.
5.The new material carbon brazing is used to make the swing arm, which is stronger than steel and lighter than aluminum.
Standards
Comply with ISO179-92, GB1043-93, JB/T 8762-1998, JB/T8761-1998 standards
Specification
| Model | HT-5D-CM | HT-25D-CM | HT-50D-CM |
| Pendulum energy | 1J,2J,2.75J,4J, 5.5J | 11J,22J,25J | 22J,50J |
| Impact speed | 2.9 m/s ,3.5m/s | ||
| Pendulum | 150° | ||
| The distance of pendulum center to impact blade | 221mm/335m/380mm | ||
| The distance of impact blade to clamp upper flat | 22mm,40mm,60mm,70mm,95mm | ||
| Blade radius | R=0.8mm, R=2mm | ||

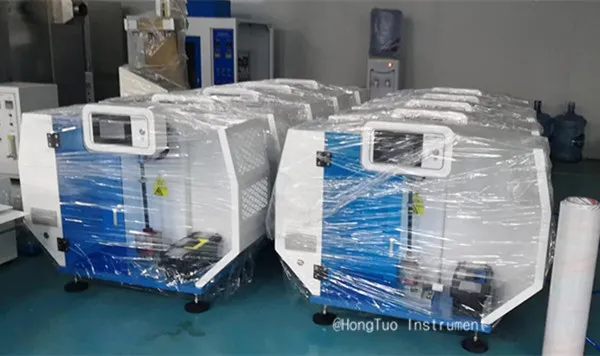

Packaging & Shipping
Company Information
We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.
