Product Description

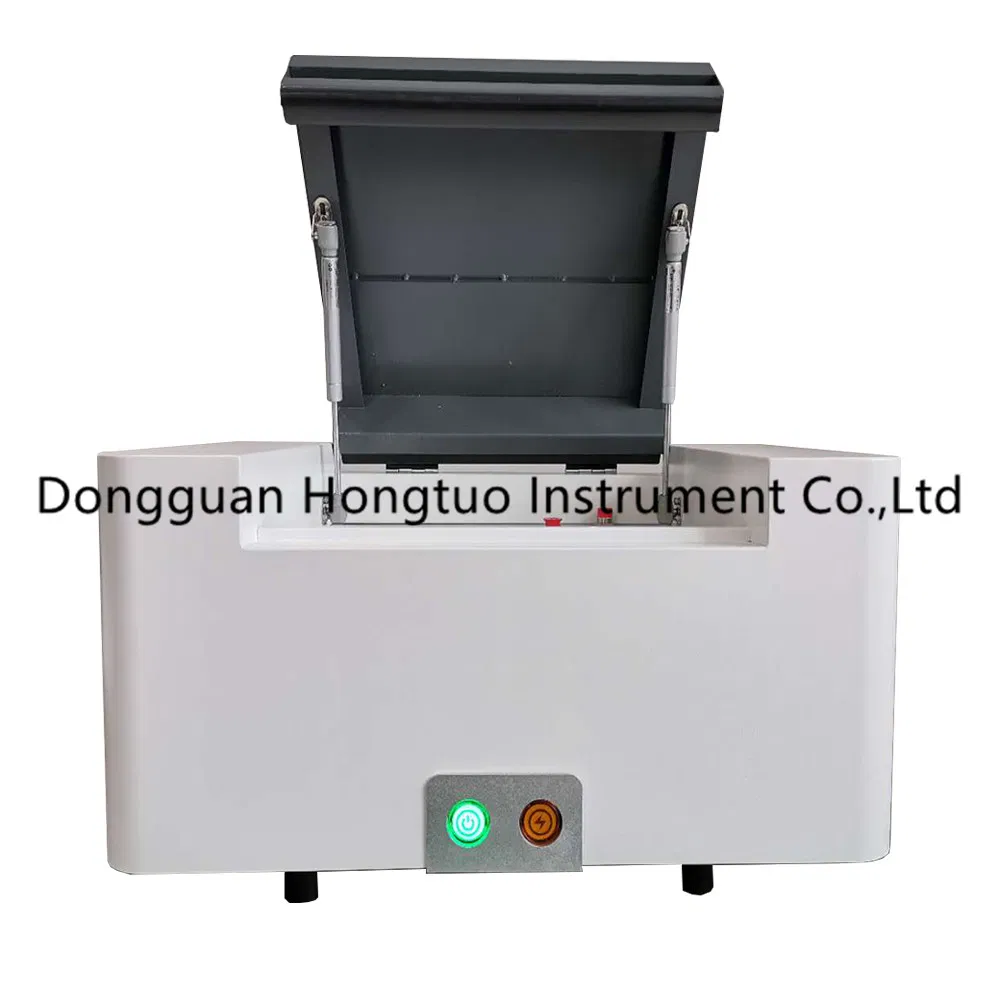

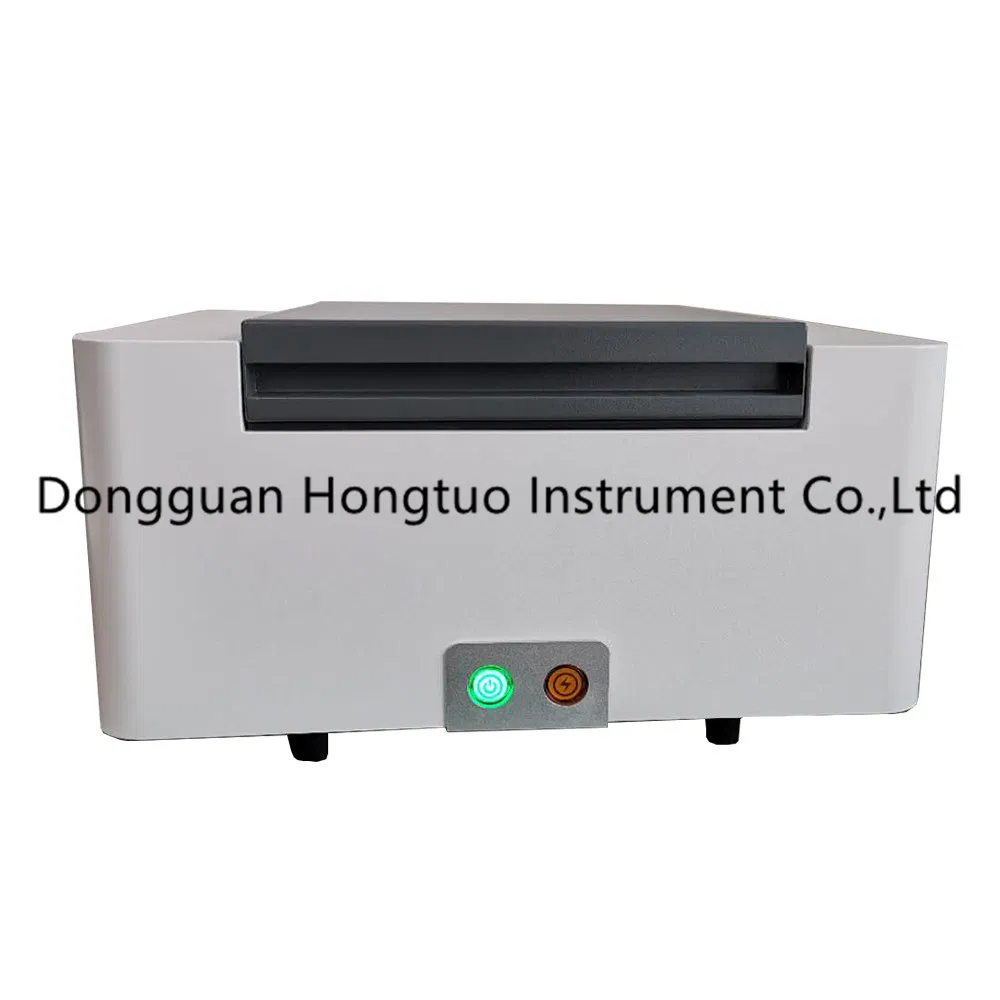

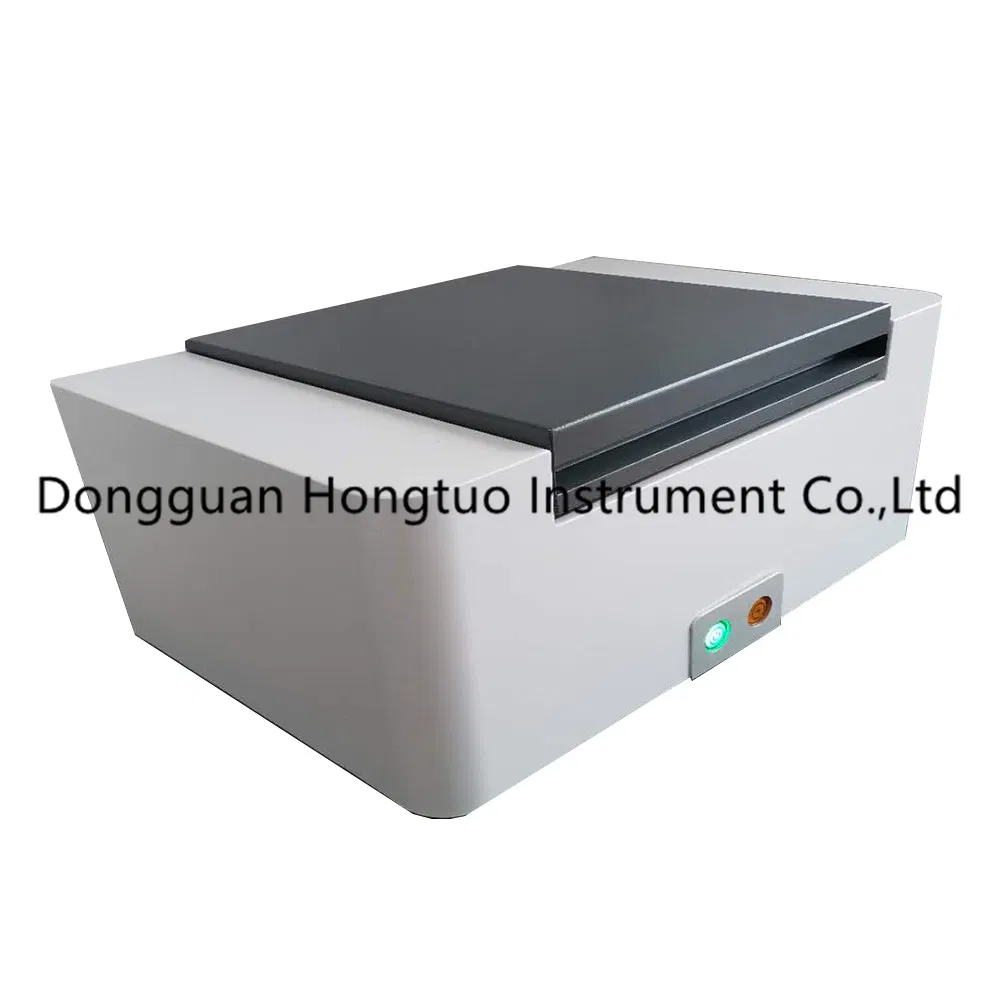

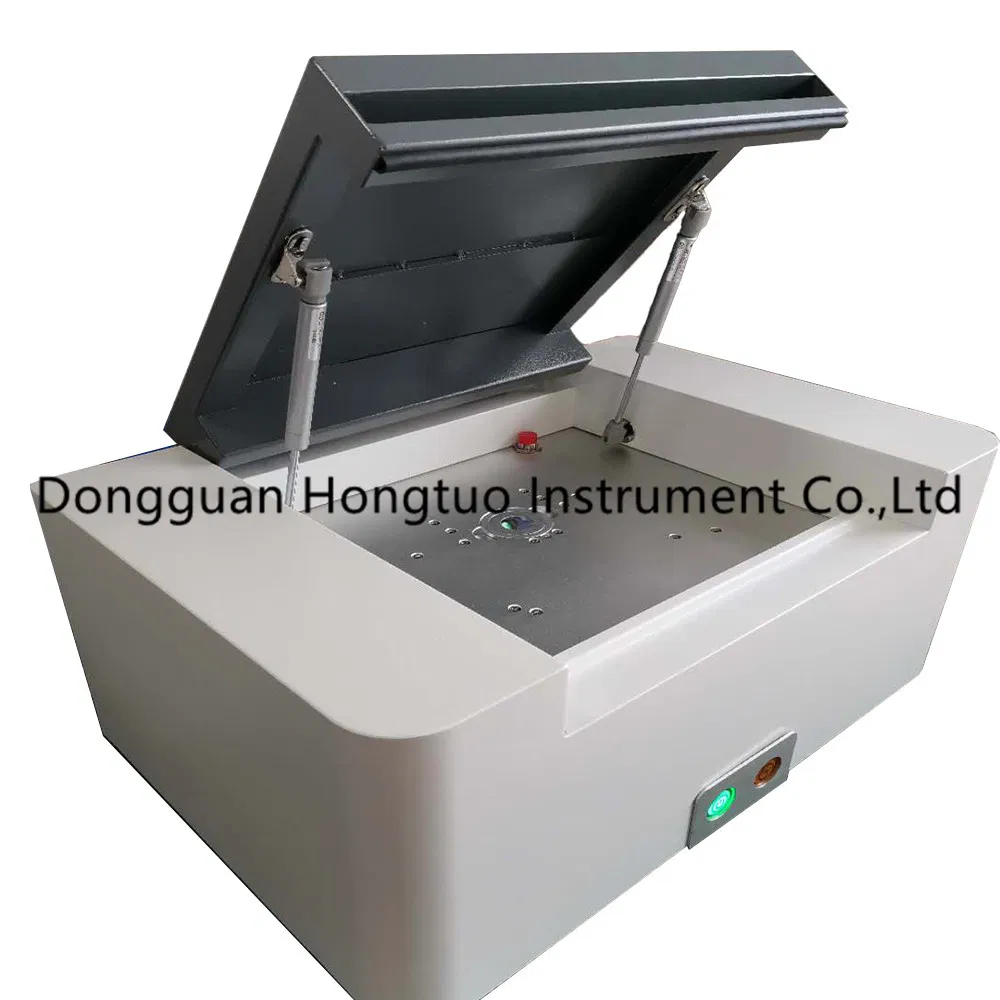

DX-2800M Portable Xrf Spectrometer For Gold Purity And Karat Test

Analysis Of Precious Metals And Identification Of Carats

At present, the use of XRF analyzer for chemical composition analysis and purity
determination of precious metals has become a widely used, extremely popular, and
supported by national standards, and reliable methods. The use of XRF for the analysis of
precious metals is a faster and more economical method of multi-element detection than spark
test and chemical reagent testing.

The XRF Analyzer provides users with an easy-to-use, cost-effective inspection technology: no
need to inspect the tool into the material of the sample being tested, or damage the sample.
The chemical composition information of the alloy can be obtained.thus determines the carat
rating of the sample. Whether you are buying precious metals such as gold, selling or producing jewelry, making metals, or recycling used metals, you need a quick way to determine the carat grade and other precious and non-precious metal content with extreme precision.

In the first time, to effectively control product quality, set a reasonable price. The xrf analyzer quickly provides accurate analysis of all types of samples.

Advantages And Characteristics Of Analysis

1. Ultra-high resolution, ultra-clear camera, ultra-easy operation, ultra-fast detection speed,
superhuman interface
2. Easy to use, one-button operation, you can get the analysis results of carat grade and
composition
3. Innovative features that help identify gold-plated samples
4. The structure of the fuselage is small and strong, and the shape is very beautiful, suitable
for placement in the exhibition room
5. Accurate results on the chemical composition and carat rating of the sample within
seconds of pressing the button
6. Quick and easy to produce test results certificate for samples by using PC and software
7. Through the camera and the cabin lighting system, the user can see the test position of the
sample and improve the user's confidence in the test Instrument model analyzer test data can be downloaded and uploaded to the network,and
the test results are easy to view and share
8. X-ray protection lock, X-ray emission only in the closed state, safe and reliable to ensure
customer use

Instrument Performance And Configuration

Analysis range 1ppm to 99.99%
Accuracy RSD ≤ 0.015% (Au ≥ 90%)
Sample form Solid, powder, liquid light
Tube voltage 5KV ~ 50KV (USA)
High Voltage Power Supply 0 ~ 50KV Spellman (USA)
Tube current 0μA ~ 1000μA
Camera HD camera
Filters Choose a variety of customized sections
Detector type SDD (USA)
Resolution 135 ± 5eV
Multichannel analyzer KEY-DMCP
Sample chamber size 310 * 280 * 60 (mm)
Test time 10sec ~ 100sec
Elements of interest Noble metal Au, Ir, Ag, Pt, Pd, Ru, Rh, Os, etc.
Basic metals W, Cr, Mn, Fe, Co, Ni, Cu, Zn, Cd, Sn, Pb, etc. (Na ~ U)
Analysis software KEY-FP qualitative and quantitative analysis software
External dimensions 380 * 372 * 362 (mm)
Weight 31Kg

Shipping And Handling

Items will be shipped out within 3 to 5 working days upon verification payment.

Items will be shipped out via Fedex,DHL or UPS.it will take around 5 to 7 days to get your door given considering everything goes well.

Packaging & Shipping

DX-2800M Portable Xrf Spectrometer For Gold Purity And Karat Test

Company Information

We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.

Cetification

DX-2800M Portable Xrf Spectrometer For Gold Purity And Karat Test
