Elmendorf Automatic Full-Color Digital Touchscreentearing Tester with Pneumatic Clamps and Pendulum/Thermal Printer/RS232/Microcomputer/Horizontal Adjustment
Drick Film Tearing Tester Product introductionDRK 108C Film Tearing Tester is applicable in the tearing test of films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textile and non-woven, etc.Product featuresMicro computer control;Automati......
Send Inquiry
Product Description

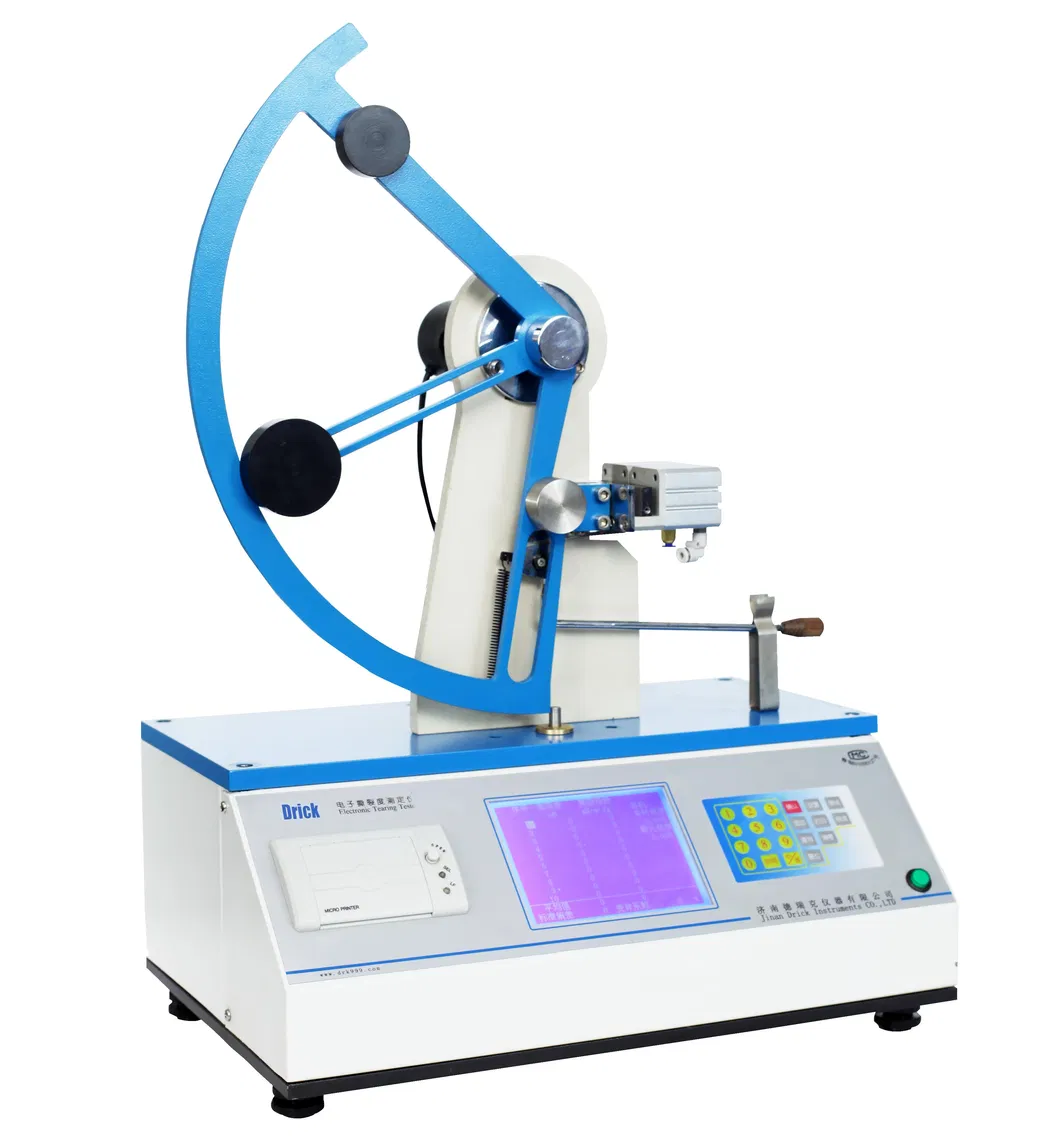

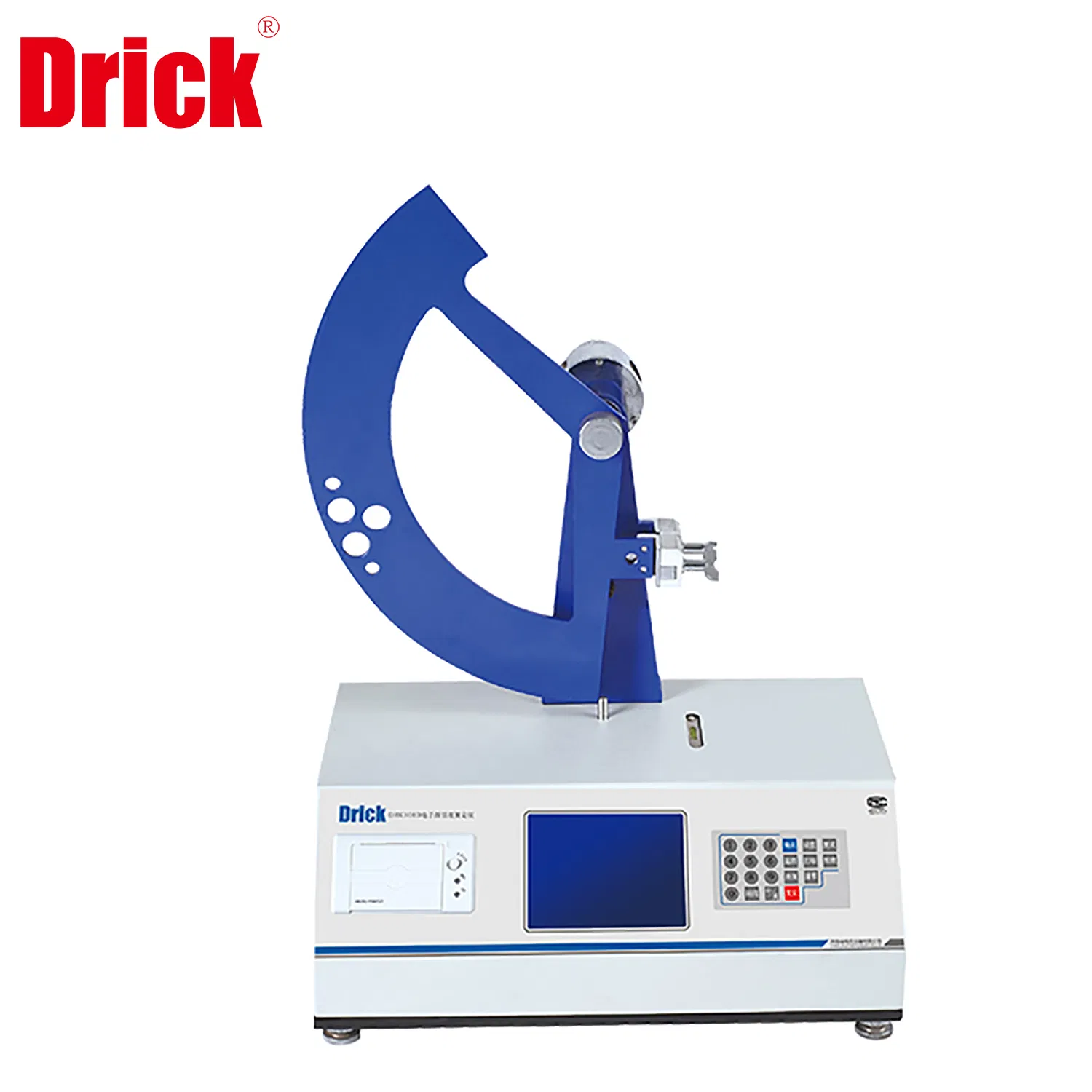

Drick Film Tearing Tester
Product introduction
DRK 108C Film Tearing Tester is applicable in the tearing test of films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textile and non-woven, etc.
Product features
Micro computer control;
Automatic and electronic measurement;
Pneumatic specimen clamping and pendulum releasing;
Horizontal adjustment system;
Multiple capacities of pendulum;
Professional software support multi-testing units;
RS232 interface.
Product application
Plastic film, sheet, PET, aluminum polymer, paper, cardboard, woven material, heavy packaging bag, rubber gloves and latex gloves, stretch-wrap film, paper ticket, etc.
Technical standards
ISO 6383-1-1983,ISO 6383-2-1983, ISO 1974,GB/T16578.2-2009,GB/T 455,ASTM D1922,ASTM D1424,ASTM D689,TAPPI T414
Product parameters
| Items | Parameter |
| Pendulum Capacities | 200gf,400gf,800gf,1600gf,3200gf,6400gf |
| Gas Source Pressure | 0.6 MPa(users provide gas source themselves) |
| Gas Inlet | Φ4 mm polyurethane pipe |
| Dimensions | 460 mm(L)× 320mm(W)× 500mm(H) |
| Power | AC 220V 50Hz |
| Net Weight | 30 Kg (200gf configuration) |
Main fixtures
Standard: Mainframe, one basic pendulum, one augmenting weight, one check weight,
Optional:
Basic pendulum: 200gf, 1600gf
Check weight: 200gf, 400gf, 800gf, 1600gf, 3200gf, 6400gf
Our Company:
Shandong Drick Analytical Instrument Co., Ltd is a professional manufacturer of laboratory & industrial test equipment since 2004, our main products involved Paper & Packaging Testing Machines, Rubber & Plastic Testing Machines, Food & Medicine Testing Machines and Environmental Testing Machines , and widely applied to many fields, such as R & D Institution, quality test department, university.
Our factory is located in Tianqiao district, Jinan city, while our head office is located in high-tech district, Jinan city.
We have more than 100 members, including 8 super R & D engineers, we offer one stop laboratory & industrial equipment solution, our customers come from all over the world, we have a strong team which consist of sales department, technical guide department and after-sale service department.
Our tenet is to serve all the customers, for customers everything.
We sincerely hope we can set up a long term cooperation with each other, we will serve you heart and soul, welcome to Drick.
Our Team / Exhibition:
Our Certificates:
Packaging:
FAQ:
1. How about your delivery?
Generally speaking, we will deliver the goods after received you money ( pre-paid or 100% ) within 15 days, we need time to produce the machine.If the goods in stock, we can delivery the goods once received money from you, the delivery of customized one would be longer since that's not standard machine, we need to produce according to your requirements.
2. Which shipment way do you have?
Sea way, air way, express ( DHL / TNT / UPS/ FeDex )
3. How can I pay for the money?
T/T, Alibaba Trade Assurance as default.
4. Do you offer after-sale service?
Of course, we have professional team to serve you after-sale.
5. What's the warranty of your machine?
Most of them are one year warranty.
6. Do you have CE certificate or vertified by other institutions?
Yes, we have many goods vertified by CE, ISO9000.
7. Do you accept customized service with my own Logo?
We can add your Logo on the machine.
8. Do you accept partial payment?
Available, we will produce the machine after received your pre-paid money, balance should be arrived before shipment.
9. What's the MOQ of your machine?
Most of our products can be start with one unit as default, except customized difficult one, more details, please contact our sales representatives.
