En 1957 / ASTM 1566 Mattress Compression Testing Machine
En 1957 / ASTM 1566 Mattress Compression Testing MachineCornell Mattress Foam Rebound Fatigue Test Machine apply to Innerspring ,Box spring mattresses and Foam mattress. The Cornell Type Tester is used to test the long term capacity of bedding to resist cyclic loading. The machine consists of a doub......
Send Inquiry
Product Description
En 1957 / ASTM 1566 Mattress Compression Testing Machine

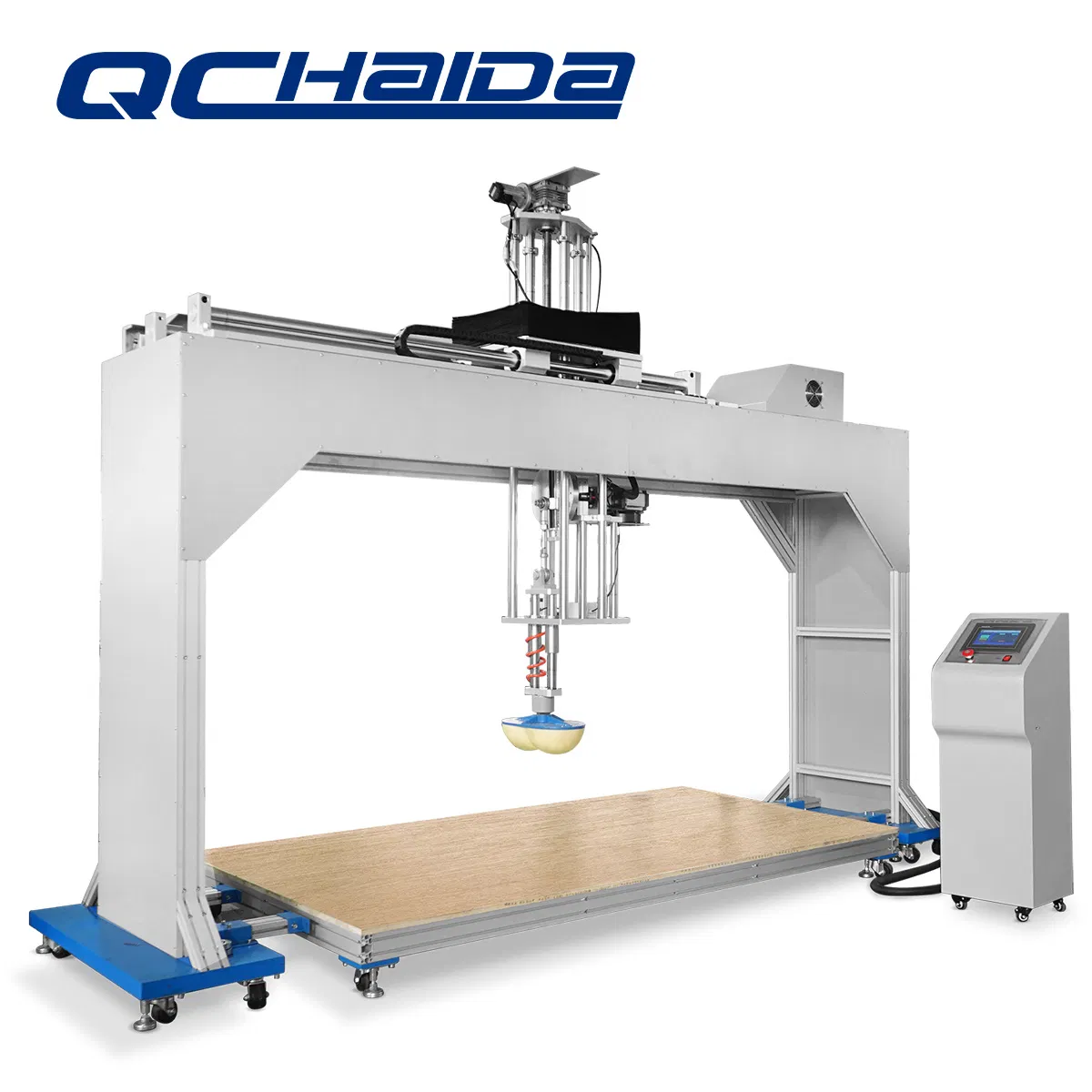

Cornell Mattress Foam Rebound Fatigue Test Machine apply to Innerspring ,Box spring mattresses and Foam mattress. The Cornell Type Tester is used to test the long term capacity of bedding to resist cyclic loading. The machine consists of a double hemispherical ram head on a manually adjustable shaft. A load cell is located on the ram head to measure the force being applied to the mattress. The shaft is connected to an adjustable eccentric which is rotated by an electric motor at up to 100 cycles per minute variable.
Main parameters and features:
Use specific block impact on the mattress over and over again,
to assess their durability, and the fastness of mattress spring.
(The table parameters for the company Standard Model parameters, we support customer customization parameters)
Our Company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Packaging & Shipping:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Cornell Mattress Foam Rebound Fatigue Test Machine apply to Innerspring ,Box spring mattresses and Foam mattress. The Cornell Type Tester is used to test the long term capacity of bedding to resist cyclic loading. The machine consists of a double hemispherical ram head on a manually adjustable shaft. A load cell is located on the ram head to measure the force being applied to the mattress. The shaft is connected to an adjustable eccentric which is rotated by an electric motor at up to 100 cycles per minute variable.
Main parameters and features:
Use specific block impact on the mattress over and over again,
to assess their durability, and the fastness of mattress spring.
Display Accuracy | 0.001kgf | |
Deformation precision | 0.001mm | |
Impact height | 0-300mm adjustable | |
Counter range | 0-99999 times | |
Machine size: ( L x W x H) | 3000x 2800x 2500mm | |
Weight | Approx. 600Kg | |
Control method | PLC | |
Display interface | LCD Touch screen, can display test graph, with USB port to output test results. | |
Test status | 200, 6000, 12500, 25000, 50000, 75000, 100000 adjust the height loss automatically. | |
Design criteria | ASTM F 1566 | |
Power | Single phase, AC 220V, 50-60Hz. | |
Other parameters | 1. Adjust the pushrod stroke on mattress , maximum force = 1025N, minimum force = 22N 2. Pusher travel speed adjustable, about 100 weeks times per minute 3. Imposed the pressure on mattress by a transducer, pressure range to 300KG | |
Our Company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Packaging & Shipping:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
