Product Description

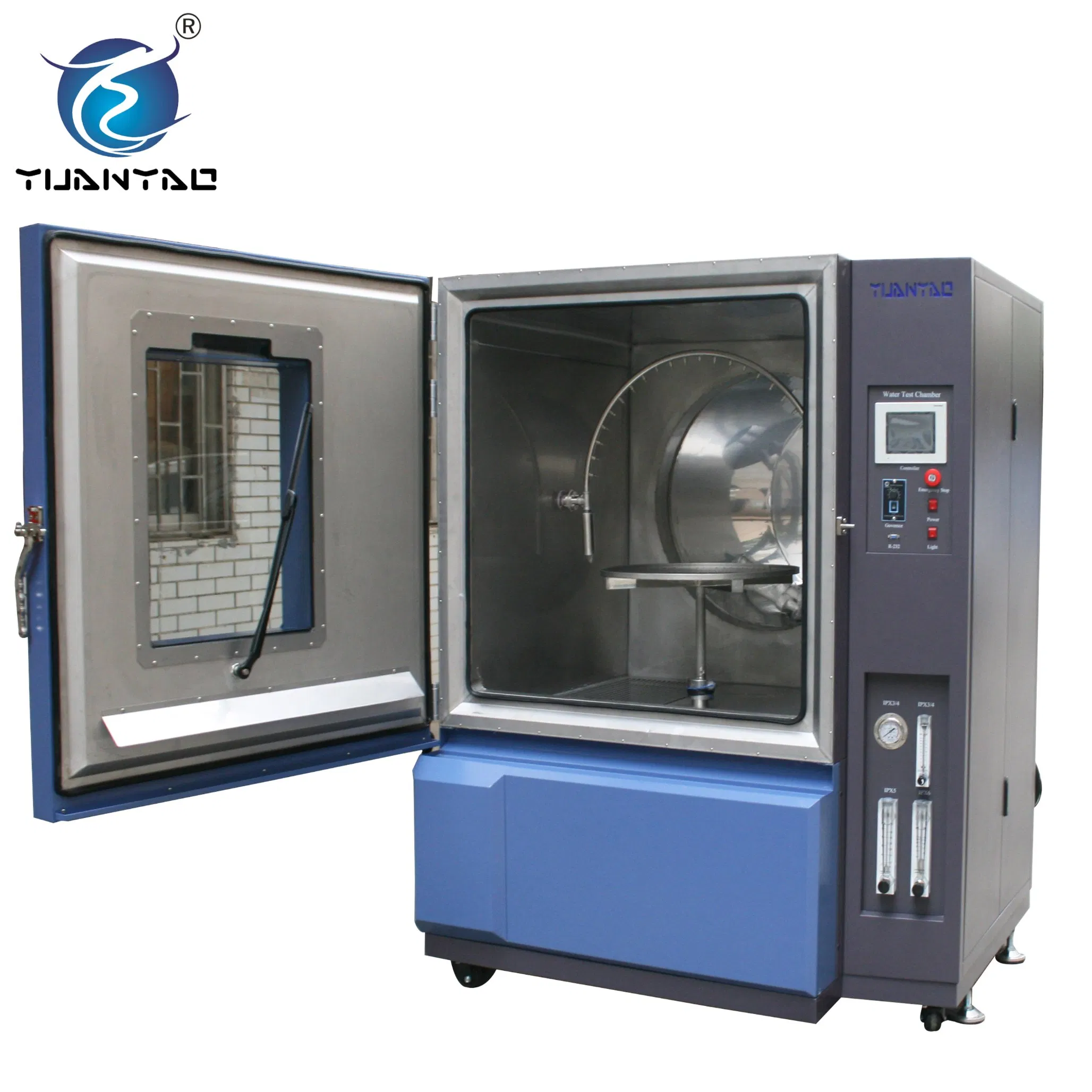

Environment Simulate Ipx6-Ipx7 Rain Spray Tester for Mobile Phone
Description

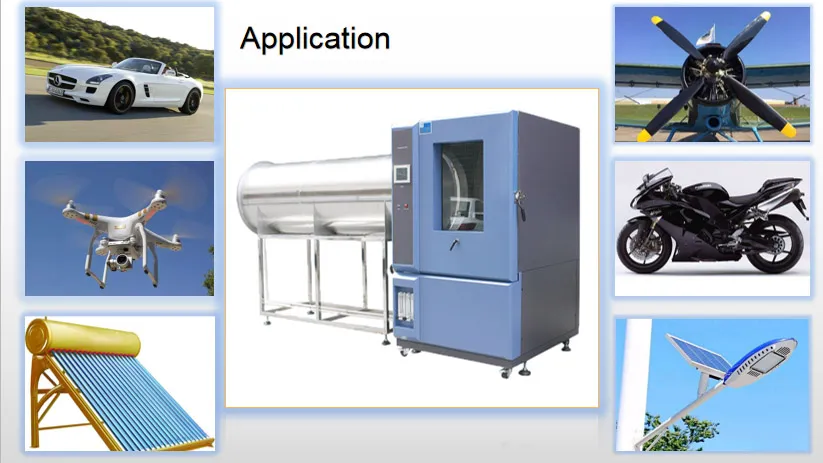

This equipment is mainly used in electronic, electrical products, lamps and lanterns, electrical cabinets, electrical components, automobiles, motorcycles and their parts, and other products under the condition of the climate simulation in the rain, for the physical test of the products. Determine whether the product performance meets the requirements by measuring.
This equipment is mainly used in electronic, electrical products, lamps and lanterns, electrical cabinets, electrical components, automobiles, motorcycles and their parts, and other products under the condition of the climate simulation in the rain, for the physical test of the products. Determine whether the product performance meets the requirements by measuring.
Product Specification:
| Model No. | YSRT-1728 |
| Inner chamber size(W*H*D) | 1200*1200*1200mm |
| Exterior chamber size (W*H*D) | 1700*1950*1370mm |
| Temperature range | Normal |
| Inner diameter of spray inlet | φ10mm |
| Sprinkler | Made and mounted vertically according to stand JIS D0203 and IEC60529 |
| Length of sprinkler pipe | 400mm |
| Distance between | 400mm |
| Inner diameter of spraying pipe | 16mm |
| Diameter of spraying holes | 1.2mm |
| Distanxe between spraying holes | 12.5mm |
| Raining pressure | 0.003~0.1Mpa (adjustable) |
| Water flow | 1.9 ~ 39.2L/min adjustable |
| Sprinkler pipe speed adjustmeter | Step-less speed regulating (0~23r/min) |
| Rotating platform speed adjusment | Step-less speed regulating (0~17r/min) |
| Structure and material | Both inner and outer body are made of SUS#304 stainless steel (outer body is made of hairline finished stainless steel plate) all other water-connect parts are made of stainless steel. |

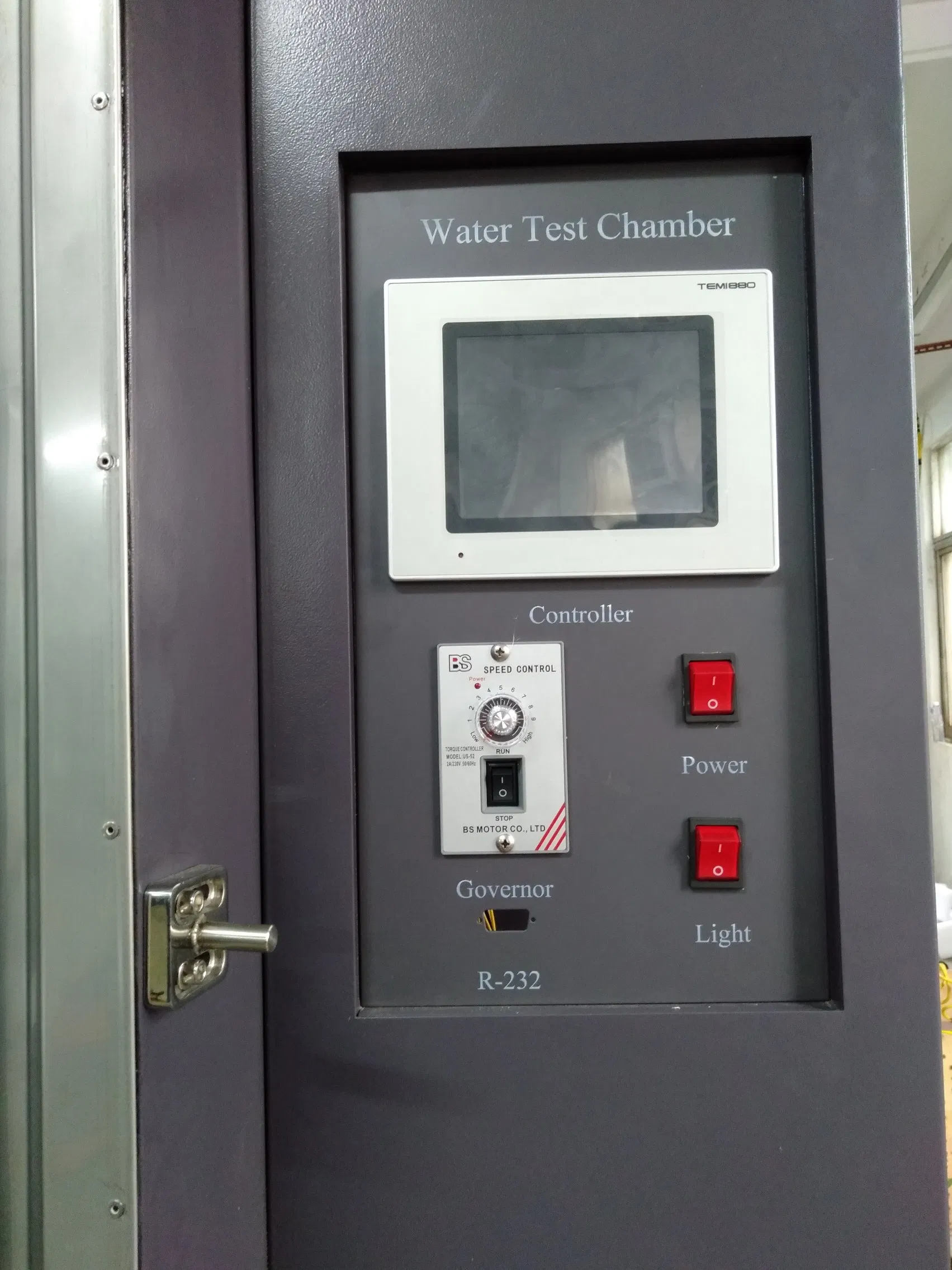

| Control system | 1. Adjustment device: Spraying pipe and rotating platform adopt step-less speed regulating. |
| 2. Electric conponents: Main components are imported. | |
| Main configurations: Water pump, water flow meter, speed reducer, presure meter, ball valve, filter, etc. | |
| Testing standards | This equipment comply with IPx1, IPx2,IPx3, IPx4, IPx5, IPx6 water resistance test standards of JIS D0203-1994, standard of IEC60529, standard CB4208-93 and other technical standards equivalent to thest rules. |
| Package | Packing is by strong plywood box suitable for long distance transportation. |
| Warranty | Free parts warranty service for 12 months, during the warranty period, we will provide free parts maintenance service, over the warranty period, lifelong maintenance also available with charges. |
