Product Description

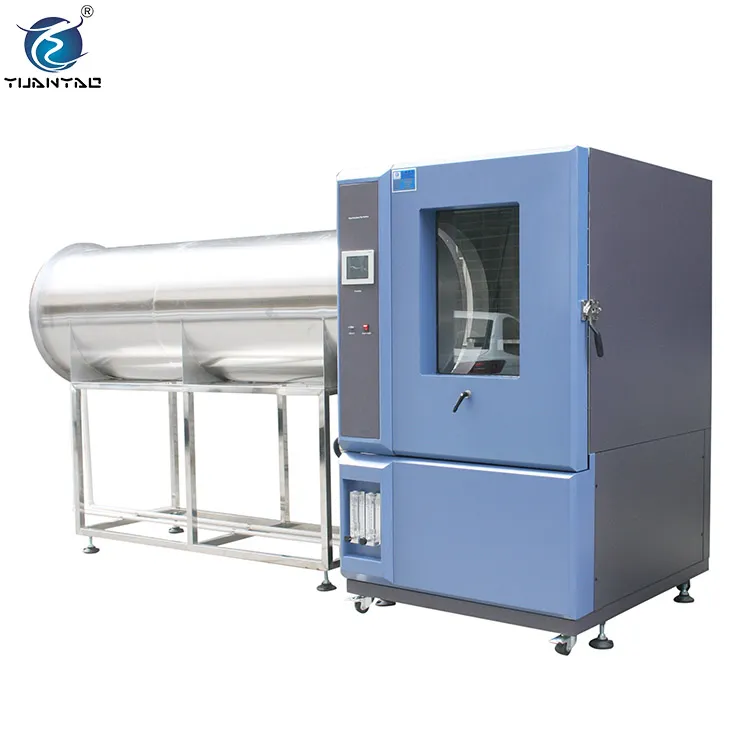

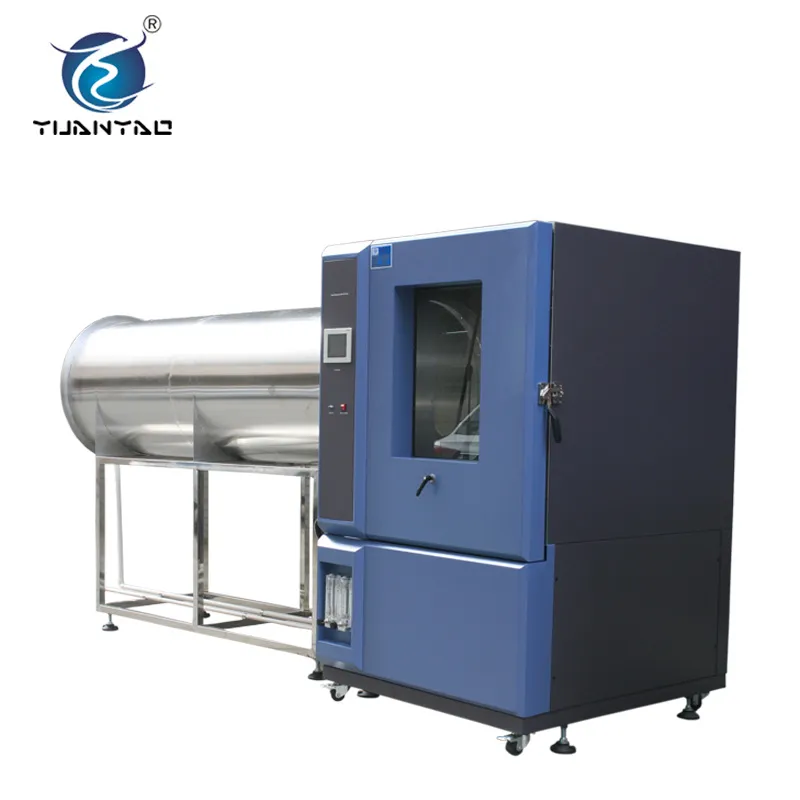

Environment Tester Ipx1~ Ipx6 Splash Rain Spray Test Equipment
Description
Waterproof test equipment mainly applies to communications products, auto parts (such as automotive rear-view mirror, car audio, automotive electronics, automotive lighting, car lights, motorcycle lamps, motorcycle mirrors), outdoor lighting and signaling devices rain resistance test usage.
Package ang Delivery
Package: Strong wooden cases, meet the international standard.
Delivery details: In 15-20 working days.
Feature

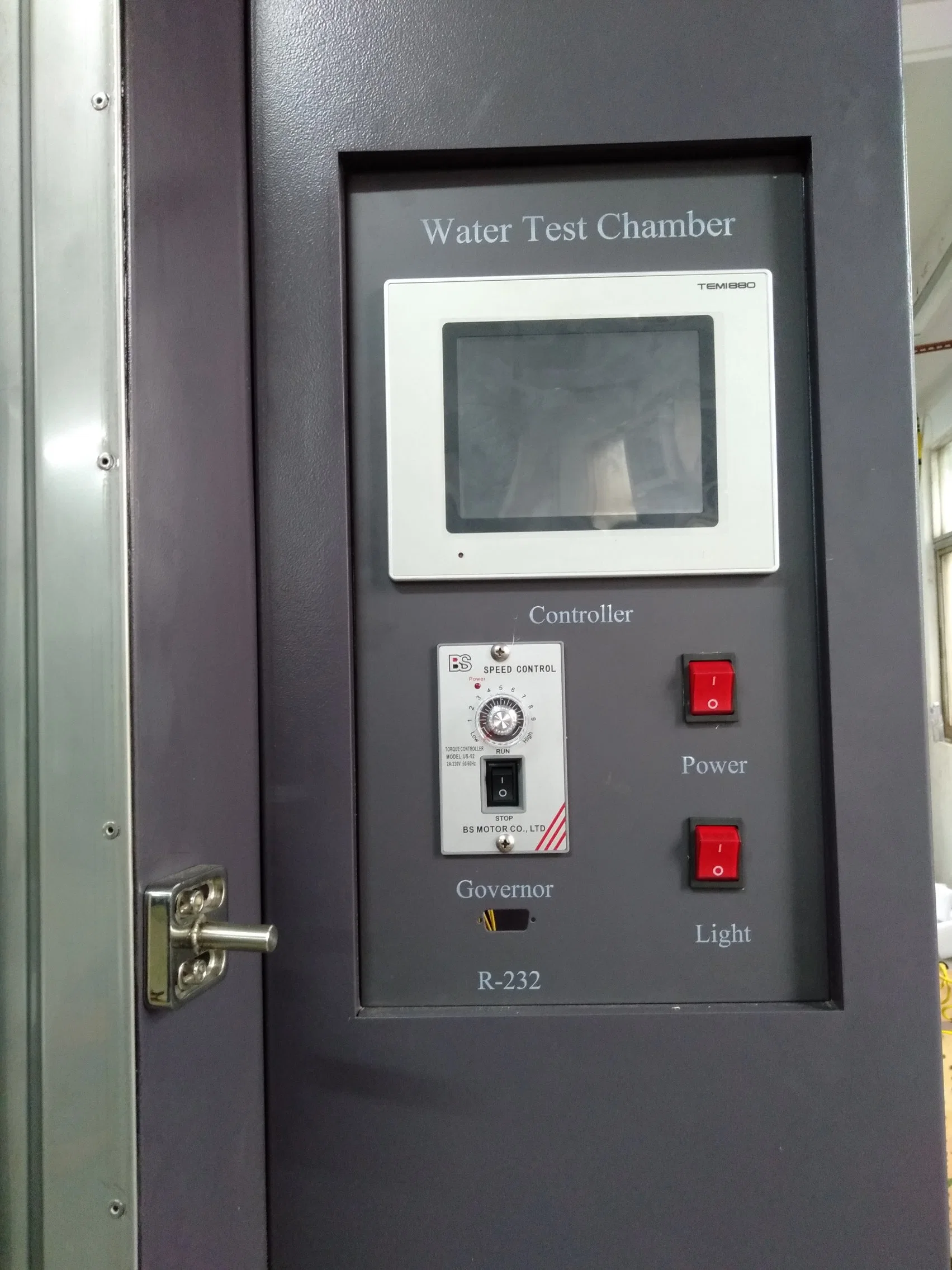

1. Digital setting, operating easy, maintenance quickly.
2. Design consider auto maker's sand electronic industry testing.
3. Adopt large viewing glass can let operator see the specimen clearly.
Technical Parameters
Waterproof test equipment mainly applies to communications products, auto parts (such as automotive rear-view mirror, car audio, automotive electronics, automotive lighting, car lights, motorcycle lamps, motorcycle mirrors), outdoor lighting and signaling devices rain resistance test usage.
Package: Strong wooden cases, meet the international standard.
Delivery details: In 15-20 working days.
Feature
1. Digital setting, operating easy, maintenance quickly.
2. Design consider auto maker's sand electronic industry testing.
3. Adopt large viewing glass can let operator see the specimen clearly.
| Model No. | YSRT-500 | YSRT-1000 | YSRT-1728 | ||
| Inner chamber size W×H×D(cm) | 80×80×80 | 100x100x100 | 120x120x120 | ||
| Exterior chamber size W×H×D(cm) | 125×180×340 | 145x200x360 | 165x220x380 | ||
| Rain drop area (IPX1-IPX2) | 60x60cm | 60x60cm, 80x80cm | 80x80cm, 100x100cm | ||
| Swing pipe radius (IPX3-IPX4) | 30cm | 40cm | 50cm | ||
| Rotary table diameter&load | 50cm,50KG | 60cm,50KG | 80cm,50KG | ||
| Spray nozzle diameter & jet distance (IPX5-IPX6) | 6.3mm(IPX5),12.5mm(IPX6); 2.5~3m | ||||
| Water flow and jet distance (IPX1-IPX6) | 1~1.5mm/min(IPX1),3~3.5mm/min(IPX2); 1.1L/min(IPX3),1.8L/min(IPX4); 12.5L±0.625L/min(IPX5),100±5L/min(IPX6) | ||||
| Rotating speed of rotary table | 1~5r/min,ajustable | ||||
| Material | Inner chamber | SUS#304 stainless steel plate | |||
| External chamber | Cold rolled sheet + powder coating | ||||
| Other components | Indoor light, wiper, caster adjuster | ||||
| Power supply | AC 3Ψ 380V 60/50Hz | ||||
| Customization service | Non standrad special requirement can be customized. | ||||
Our main products include temperature humidity chambers, thermal shock test chambers, Walk-in
stability test chambers, Salt spray testers, LCM9LCD) aging chambers, Hot ovens, Vacuum ovens, Steam
aging tester, drop testers, UV aging test chambers, Xenon aging test chambers, etc.
