Product Description

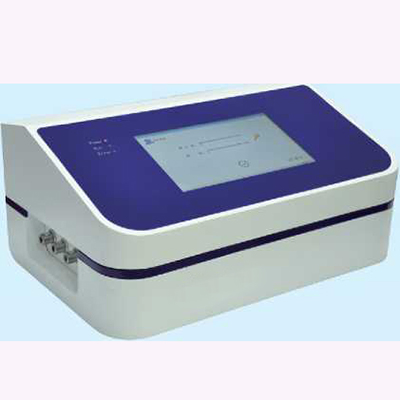

Item: Filter integrity testing instrument/Filter integrity tester/Bubble Point Tester
Modle: FIT-V8

Filter Integrity Testing Instrument/Filter Integrity Tester/Bubble Point Tester

Feature

1. Powerful, covers all existing test methods regarding the integrity of the filter;

2.To meet offline /online testing, using pressure sensors with higher accuracy and lower deviation bands to improve the test accuracy of the instrument;

3.After turning on ,the instrument self-test automatically, report faults in time.

4.Scientific user management, password login, user classification, electronic signature, etc., in compliance with GMP and FDA CFR 21 part 11, support multi-level user access permission settings, ensure data integrity, have comprehensive audit trail functions, and support manual or electronic signature;

5.The instrument comes with an audit trail function, truly meets the requirements of data integrity;

6.Establish 1000 sets of pre-stored programs, convinent for more filter types and different test conditions;

7.Increased the display curve of diffusion flow-pressure, realized the display and printing function of three curves, optimized the air inlet control unit, and greatly increased the air inlet speed and stability;

8.Support USB disk data export, not only export the original test data, but also the source data and configuration data; single data export in PDF style directly;

9.Can expand data communication and network interface requirements according to customer requirements, and support wireless communication functions;

10.Staubli connectors be used to avoid incorrect connection of the inlet and outlet pipes;

11.Test records and audit trails of the instrument both can be queried and exported

12.High-precision sensors and optimized algorithms can extend the gas path to 100m, make the upstream volume test more accurate, and the instrument can better meet the conditions of field use without affecting the test results;

13.The built-in thermal printer avoids the risk of particle and ink contamination, and can keep the handwriting clear for more than 10 years under appropriate conditions;

14.Multiple pressure units can be switched flexibly (mbar,kpa,psi,kgf/cm2)

15.Can test most up to 12-core 20-inch filter cartridges, which greatly improves the user's work efficiency;

16. The instrument has passed the CE certification.

Technical Parameters

Power Supply	100-240 VAC, 50HZ, 120W
Operation Pressure	100-10000 mbar (150psi)
Unit	Mbar ,kpa, psi, kgf/cm²
Operation Condition	Ambient Temperature:+5°C -40°C;Relative Humidity:10-80%
Dimension(mm)	480(Depth) x300 (Width) x 210(Height1)
Function	Manual Bubble point Test;Basic Bubble Point Test;Extensive Bubble Point Test; Pressure Holding Test;Diffusion Flow Test;Water Instrusion Test;Ultrafitration Membrane Test
Test Accuracy	Net Volume Test:± 4%;Bubble Point Test:± 50mbar ; Diffusion Flow Test:± 4% ; Water Intrusion:± 0.01ml
Test Scope	BP:100-8000mbar DF:1-1000ml/min WI:0.01-100ml/min
Applied Range	Symmetric and asymmetric membrane test, needle filters, capsule filters,plat filters, cartridge filters (within 12 cores and 20 inches), ultrafiltration membrane packages, ultrafiltration columns, various irregular filters
Audit Trial	Audit trail records can exportable and ireeversible
Authority Management	User Name and Password to Login ,4 Authority Grades,meeting the FDA 21CFR PART 11requirements
Reservation Solution(programs)	1000sets
Audit trail record storage	5 years
Anti-backflow(liquid) device	Customization
Number of users	1000sets
Operating System	Linux system
Operation Interface	Chinese and English bilingual operation interface
Dust and splash level	IP54
Print Function	Built-in printer,can control on PC;choose print subject
Historical Record	300000 sets records storage
Records Copy	Support USB disk to export (include test curve);
Display Screen	High definition 10 inch ,color touch screen;
Serial Connection	RS232/USB/Support wireless connection;
Language	Chinese/English
Work Mode	Online/Offline
Applicable Environment	Above D level
Weight	10KG
Signal output	(4-20)mA,RS485,12V output

Selection guide

Model Function	V8	Customer-made
Manual Bubble Point Test	V	Can be customized according to customer's actual require
Basic Bubble Point Test	V
Extensive Bubble Point Test	V
Pressure Holding Test	V
Diffusion Flow Test	V
Water( instrusion) Test	V
Ultrafiltration Test	V
Input Method	Chinese/English/ Number
Electronic Signature	V
4 level user management	V
Users quantity	1000 sets
Audit trail	V
Reservation Solution	1000sets
Screen	Touch Screen
Historical Records	300000sets
Records Print	V
Export Data	V
Password lock screen after setting time	V
More units switch (mbar,kpa,psi,kgf/cm2)	V
Blow sweeping inside tube	V
