Product Description

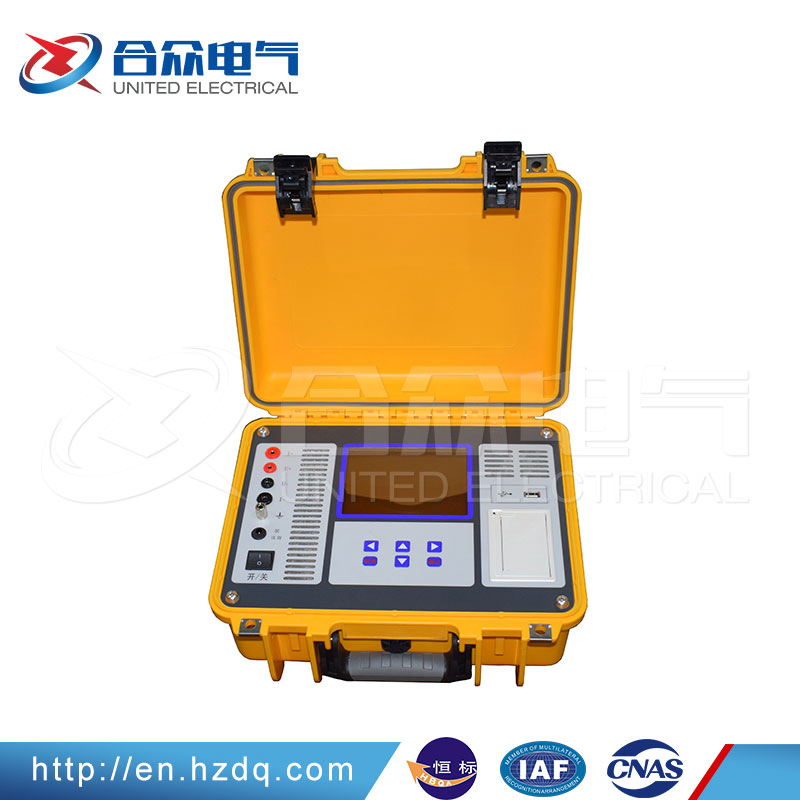

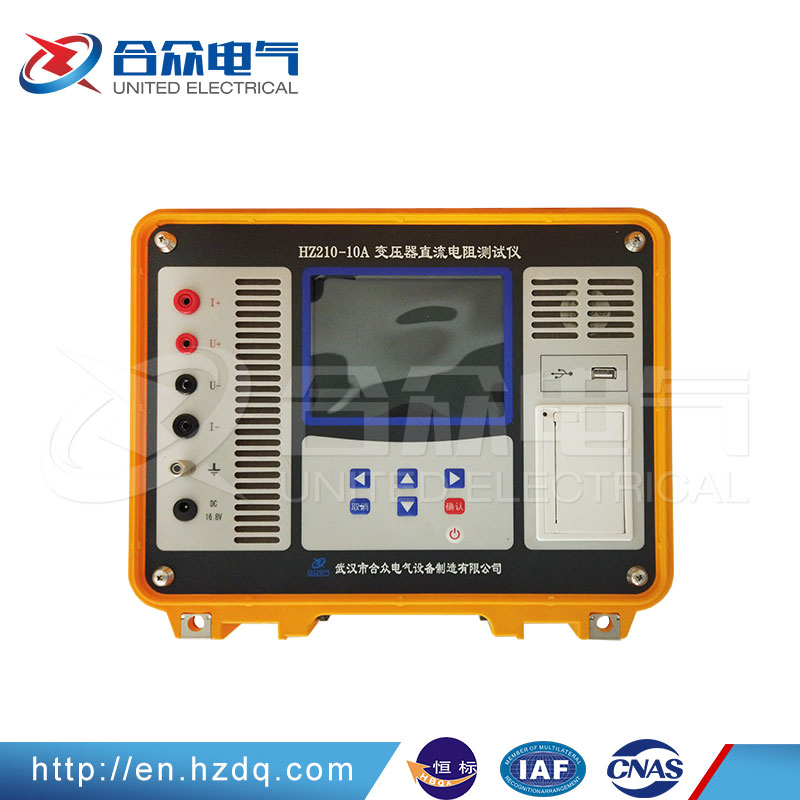

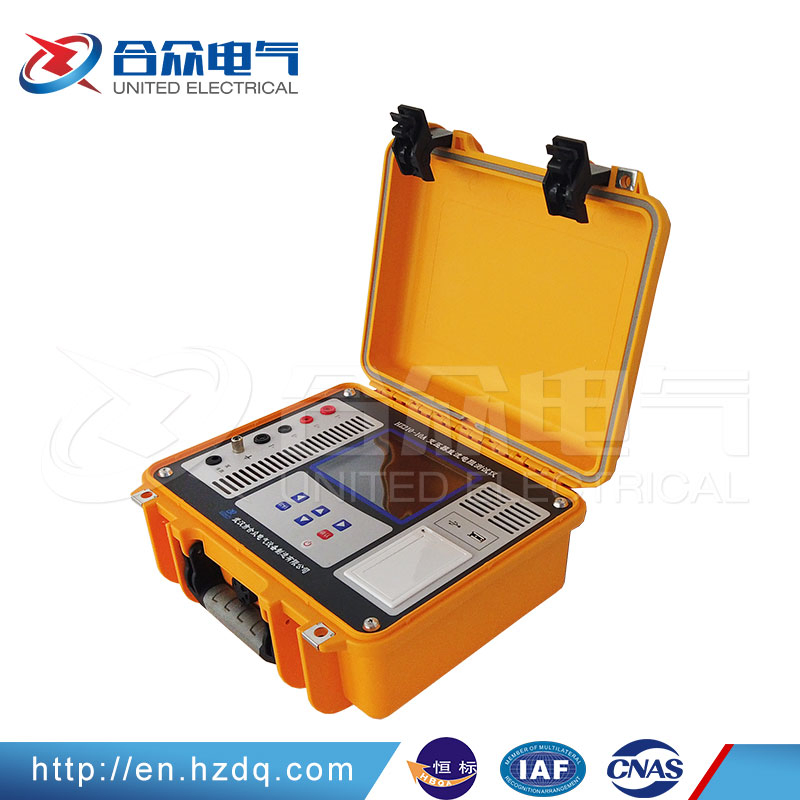

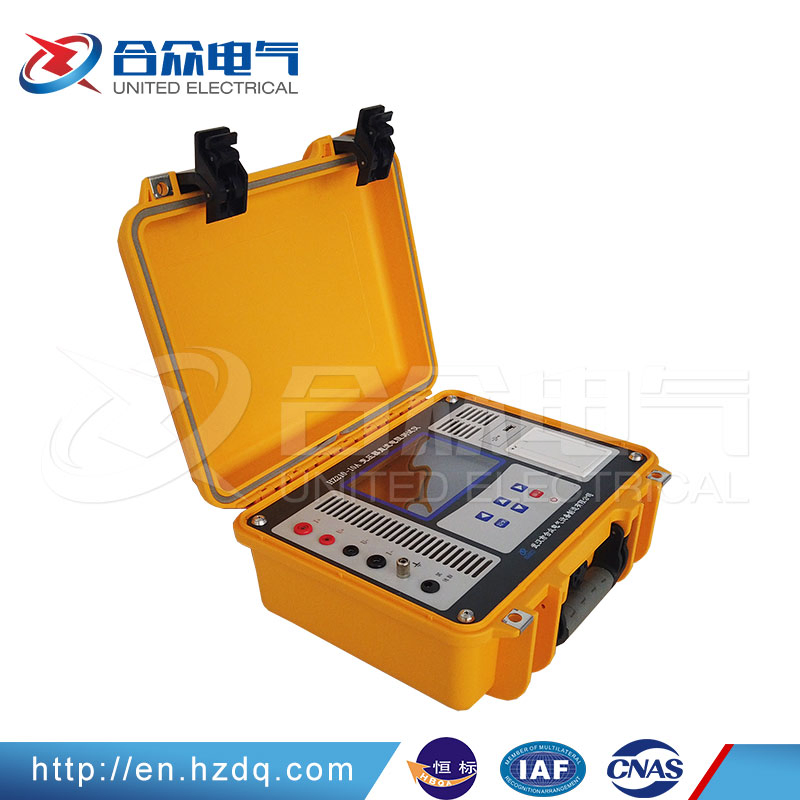

The DC resistance test of transformer winding is an indispensable test item after transformer is transferred, overhauled and changed. It adopts new power technology, with stable performance, quick measurement, compact size, easy to use, high precision of measurement and good repeatability of data. It is the ideal equipment to measure the DC resistance of transformer windings and high power inductance devices.
| Item | Technology Indication and Parameter | Remark | |
| Test Current | 1A 5A 10A 20A | ||
| Measurement Range | 1A: 5A: 10A: 20A: | 10mΩ~20Ω 1mΩ~4Ω 1mΩ~2Ω 1mΩ~1Ω | |
| Measurement Accuracy | ±(0.2% full range ±2 letter) | ||
| Data Storage | 255 groups | ||
| Display | LCD | Resistance display 4 1/2 | |
| Max Resolution | 0.1μΩ | ||
| Power Supply | AC 220V±22V,50Hz/60Hz±2Hz | Protective tube 5A | |
| Max Consumption | 600W | ||
| Work Environment | Environment Temperature:0°~40° Relative humidity:≤80% | ||
| Volume | 200*400*280(mm) | ||
| Weight | 10kg | Including accessory | |
