GB/T 11132 Fluorescent Indicator Adsorption Liquid Hydrocarbon Test Machine
Product DescriptionGB/T 11132 Fluorescent Indicator Adsorption Liquid Hydrocarbon Test Machine ApplicationThe instrument is designed and manufactured in accordance with the requirements of ASTM D1319 and the People's Republic of China standard GB/T 11132-2008 Hydrocarbon Types in Petroleum Prod......
Send Inquiry
Product Description

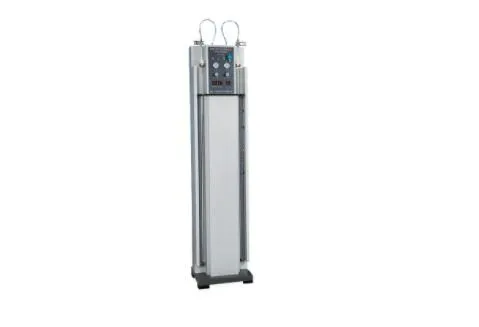

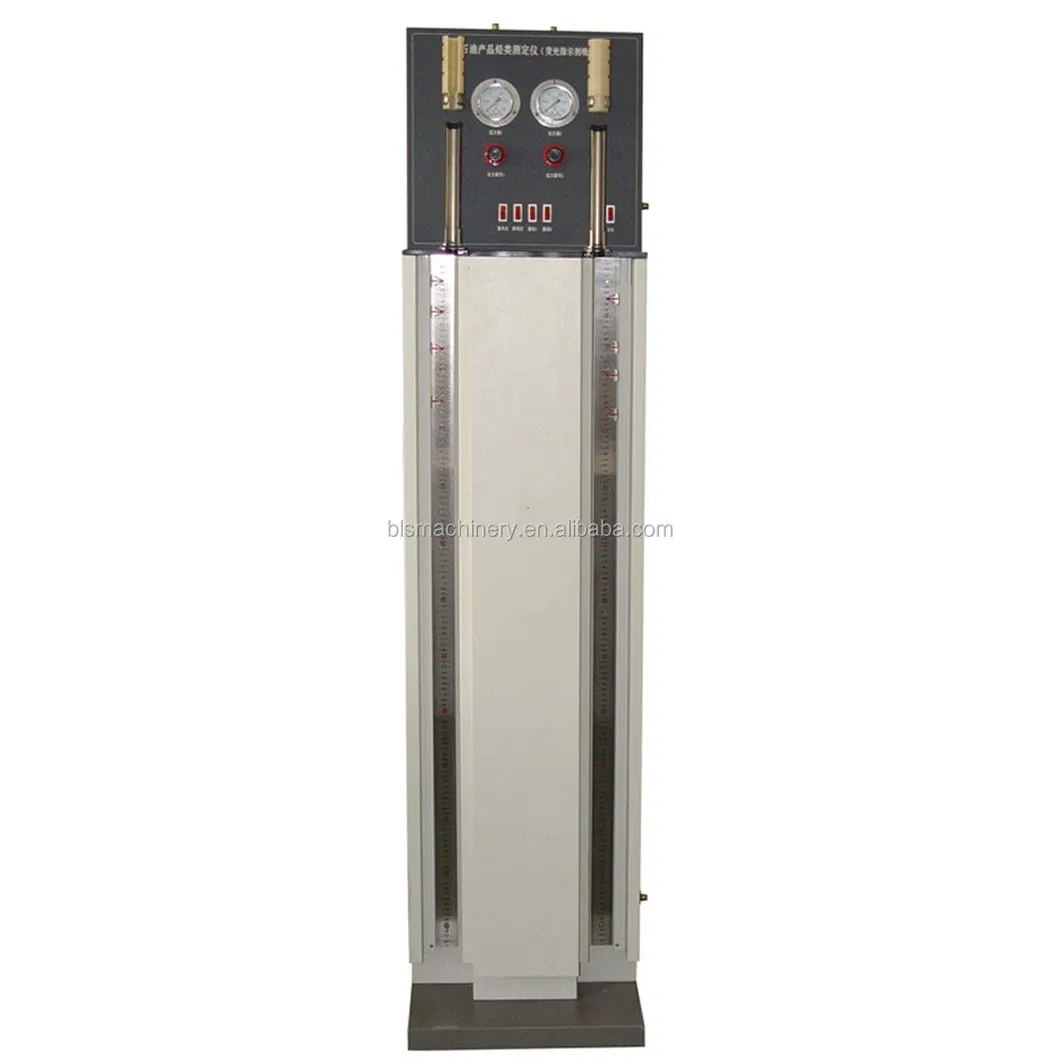

GB/T 11132 Fluorescent Indicator Adsorption Liquid Hydrocarbon Test Machine
Application
The instrument is designed and manufactured in accordance with the requirements of ASTM D1319 and the People's Republic of China standard GB/T 11132-2008 Hydrocarbon Types in Petroleum Products Measurement Method(Fluorescent Indicator Adsorption Method). Use fluorescent indicator to make the main hydrocarbons in liquid petroleum products display on the silica gel absorption column, and calculate the volume percentage of hydrocarbons. It is the measurement index of fuel oils such as engine fuel and aviation fuel, etc.
The instrument is a special instrument for determining the volume percentage of aromatics, olefins and saturated hydrocarbons in petroleum distillate.
Main Technical Features
1. The instrument adopts integrated vertical structure design, no need to install when use. It can be used by directly place in suitable position indoor.
2. The instrument consists of pneumatic system, vibration part, scale and scale indication, system illumination, ultraviolet light detection and other components. It is smooth from Silica gel filling, vibration, loading, and test result reading.
3. Directly adopt two imported precision inner diameter glass tube adsorption columns, which is more convenient.
4. The instrument is equipped with automatic absorption column cleaning device to solve the trouble of adsorption column cleaning.
Main Technical Parameters
Power supply | AC(220±5%)V, 50Hz, single phase(customizable) |
Pressure regulating range of pressure reducing valve | (0~400)kPa |
Electric oscillator | Two channels are separately controlled |
UV light source tube | 1220mm long, power consumption:400W, wavelength:(365 ± 5) nm |
Lighting | 1220mm long, power:400W |
Gas supply(self-provided) | Nitrogen cylinder (or compressed air cylinder, air compressor) . It is recommended to use nitrogen cylinder or compressed air cylinder |
Ambient temperature | 5-35ºC |
Relative humidity | <85% |
Dimensions | 300×400×1770mm(L×W×H) |
Total power consumption | ≤600W |
