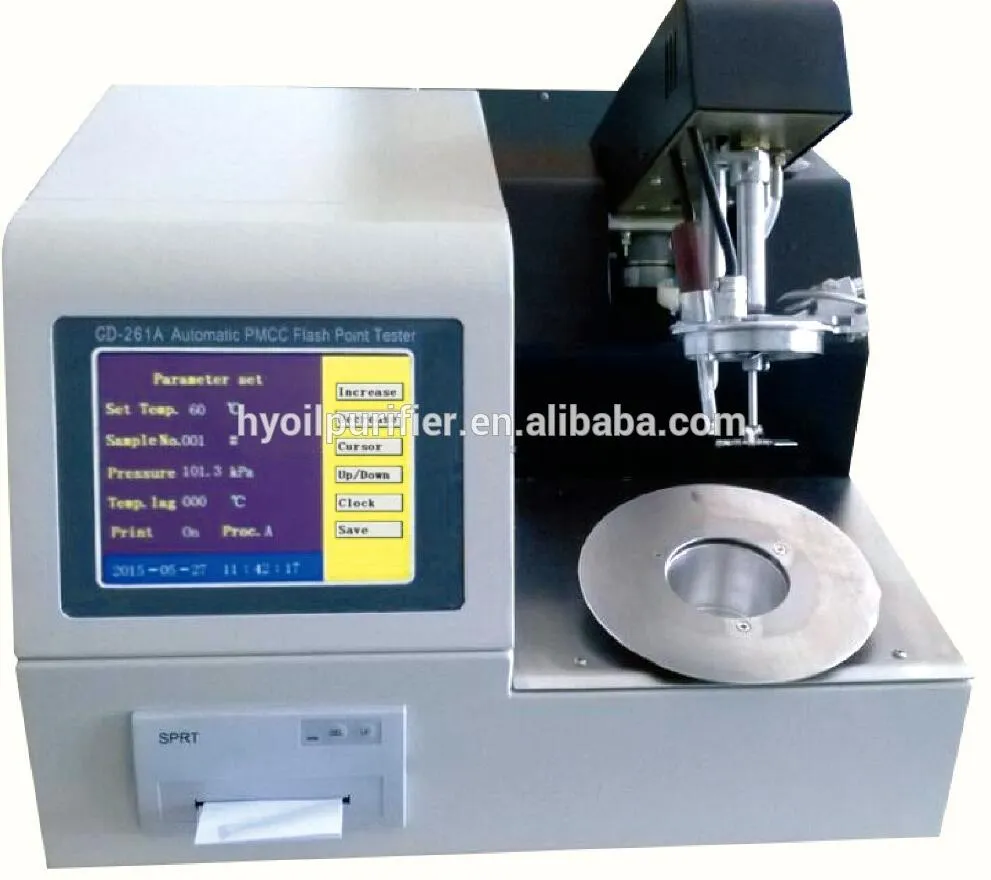

Gd- 261A ASTM D93 Automatic Pensky-Martens Closed-Cup Flash Point Tester for Petroleum
Gd-261A ASTM D93 Automatic Pensky-Martens Closed-Cup Flash Point Tester Introduction:ASTM D93 Automatic Pensky-Martens Closed-Cup Flash Point Tester is designed and manufactured asper standards ASTM D93 Standard Test Methods for Flash Point by Pensky-Martens Closed Cup Tester. ASTM D93 Automatic Pe......
Send Inquiry
Product Description

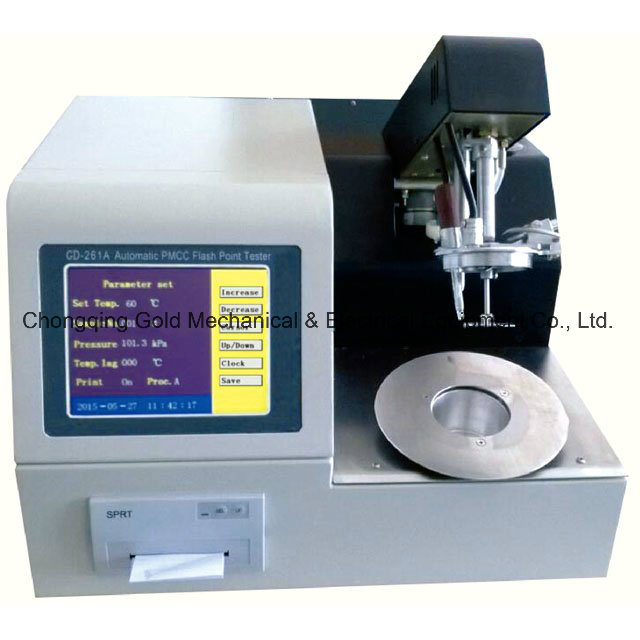

Gd-261A ASTM D93 Automatic Pensky-Martens Closed-Cup Flash Point Tester
Introduction:
ASTM D93 Automatic Pensky-Martens Closed-Cup Flash Point Tester is designed and manufactured as
per standards ASTM D93 Standard Test Methods for Flash Point by Pensky-Martens Closed Cup Tester.
ASTM D93 Automatic Pensky-Martens Closed-Cup Flash Point Tester is used to make determination of
the closed cup flash point of the petroleum products.
Features:

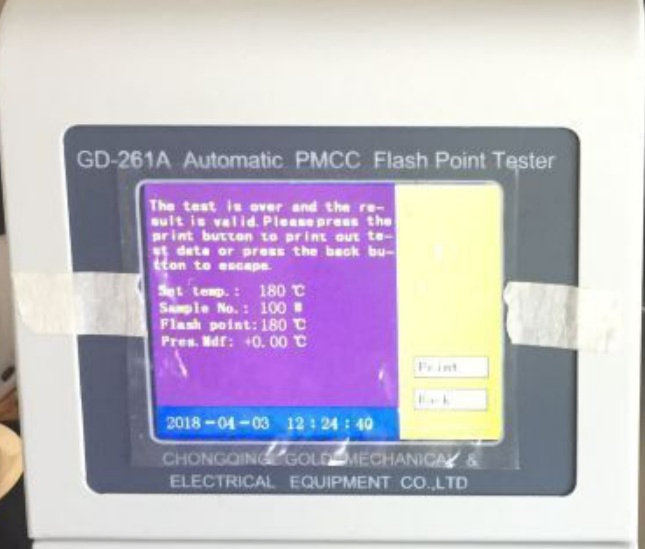

1. Light-touch colored LCD. English man-machine dialog interface. All parameters including preset flash
temperature, sample number, atmospheric pressure and date can be set by prompt menu.
2. Simulation tracking of temperature rising curve with time. Prompt function. Test date and time can be
modified.
3. 120 groups of data can be saved.
4. Automatically calculate the corrected flash point when the pressure differs from standard atmospheric
pressure.
5. Differential detection. Automatic correct the system bias.
6. Automatically open cover, ignite, detect and print result.
7. Safe and easy to operate.
Specifications:
| Product name | GD-261A Automatic Pensky-Martens Closed-Cup Flash Point Tester(ASTM D93) |
| Power supply | AC(220±10%)V, 50Hz |
| Flash point determination | Range: Ambient to 300ºC Meet requirement of GB/T 261-2008 Meet requirement of GB/T 261-2008 Resulotion: 0.1ºC |
| Heating rate | Procedure A: (5~6)ºC/min Procedure B:(1~1.5)ºC/min Automatic control and manually adjustable |
| Stirring rate | Procedure A: (90~120)RPM Procedure B: (250±10)RPM Automatic control and manually adjustable |
| Igniting mode | Igniting source: gas (or other civilian fuels) Electric ignition. Gas flame diameter:3.2mm~4.8mm |
| Ambient temperature | ≤ 40ºC |
| Relative humidity | ≤ 80% |
| Maximum power consumption | 500W |
| Overall dimension | 410*360*310mm |
More Closed Cup Flash Point Apparatus
Model | GD-261 | GD-261-1 | GD-261A | GD-261D | GD-5208 | GD-5208A |
Standard | ASTM D93 | ASTM D93 | ASTM D93 | ASTM D93 | ASTM D3934 | ASTM D3934 |
Range | ambient~300°C | ambient~250°C | ambient~200°C | ambient~300°C | -30~50°C | 50~100°C |
Repeatability | ≤2°C | ≤2°C | Flash point≤104°C, error: 2°C Flash point>104°C, error: 6°C | ≤2°C | <2°C(same operator) <3°C(different operators) | |
Reproductivity | ≤4°C | ≤4°C | Flash point≤104°C, error :4°C Flash point>104°C, error:8°C | ≤4°C | ||
Automatic up/down | N | N | Y | Y | N | N |
With micro printer | N | Y | Y | Y | Y | Y |
Display | N | N | Y | Y | Y | Y |
Communication port | N | N | N | Y | N | N |
Sample |
Standard oil cup |
Standard oil cup |
Standard oil cup |
Standard oil cup |
2ml |
2ml |

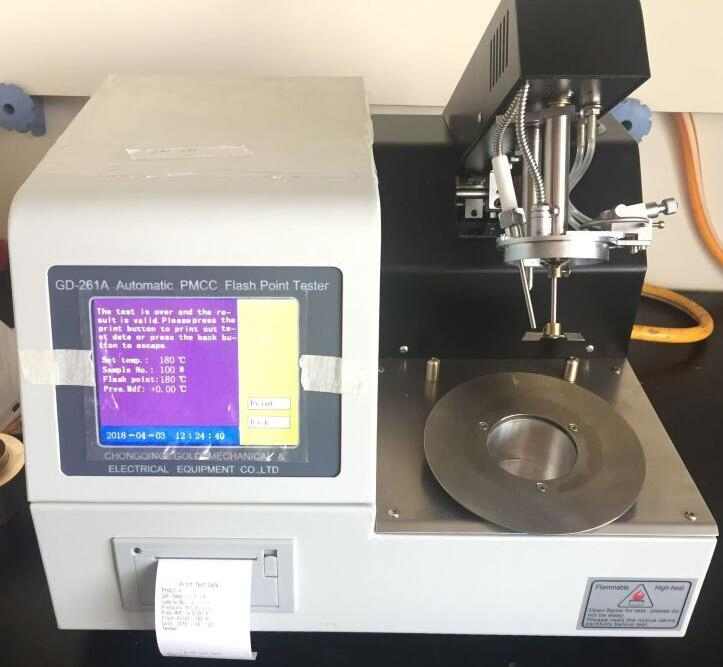

Detail Images:

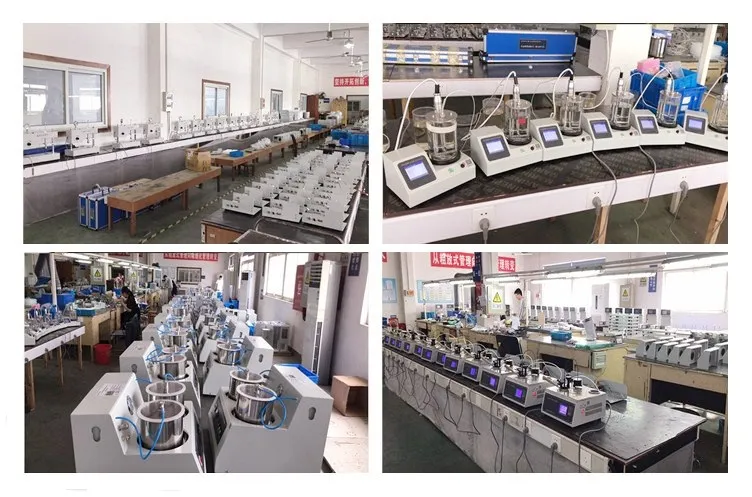

Company Information:
