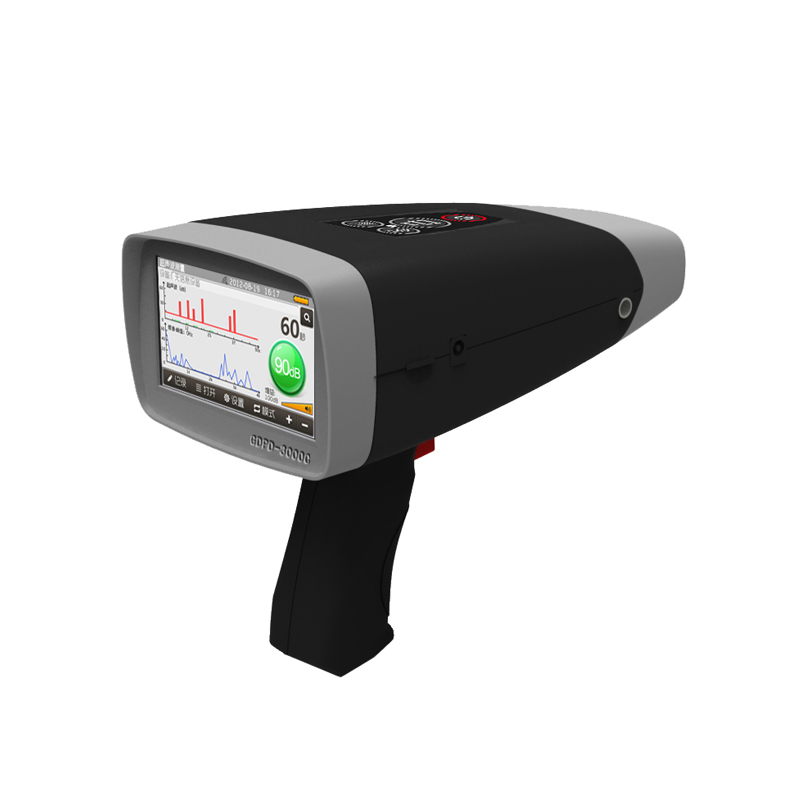

Handheld Partial Discharge Detector GDPD-3000C
General Information

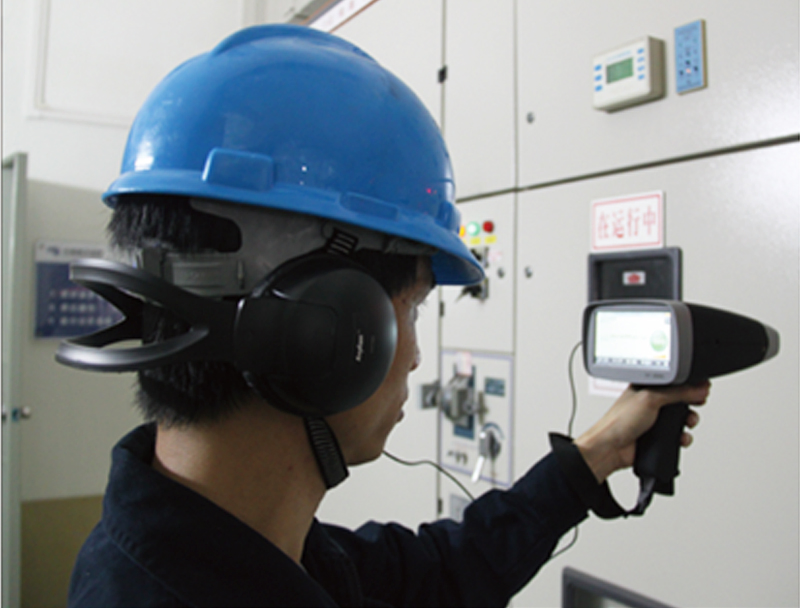

GDPD-3000C Potable Ultrasonic Partial Discharge Detector uses advanced cloud computing and automatic modeling technology to achieve the partial discharge signal measurement, recording, transmission, storage, analysis and exchange, providing powerful technical support for on-site measurement of partial discharge. The measurement personnel collect the partial discharge information by using GDPD-3000C, and the cloud computing can be used to intelligently diagnose the insulation state of detection equipment in real time.
Specification
Hardware
Operating Environment
Ultrasonic Parameters
TEV Parameters
Power Supplies
General Information
GDPD-3000C Potable Ultrasonic Partial Discharge Detector uses advanced cloud computing and automatic modeling technology to achieve the partial discharge signal measurement, recording, transmission, storage, analysis and exchange, providing powerful technical support for on-site measurement of partial discharge. The measurement personnel collect the partial discharge information by using GDPD-3000C, and the cloud computing can be used to intelligently diagnose the insulation state of detection equipment in real time.
Specification

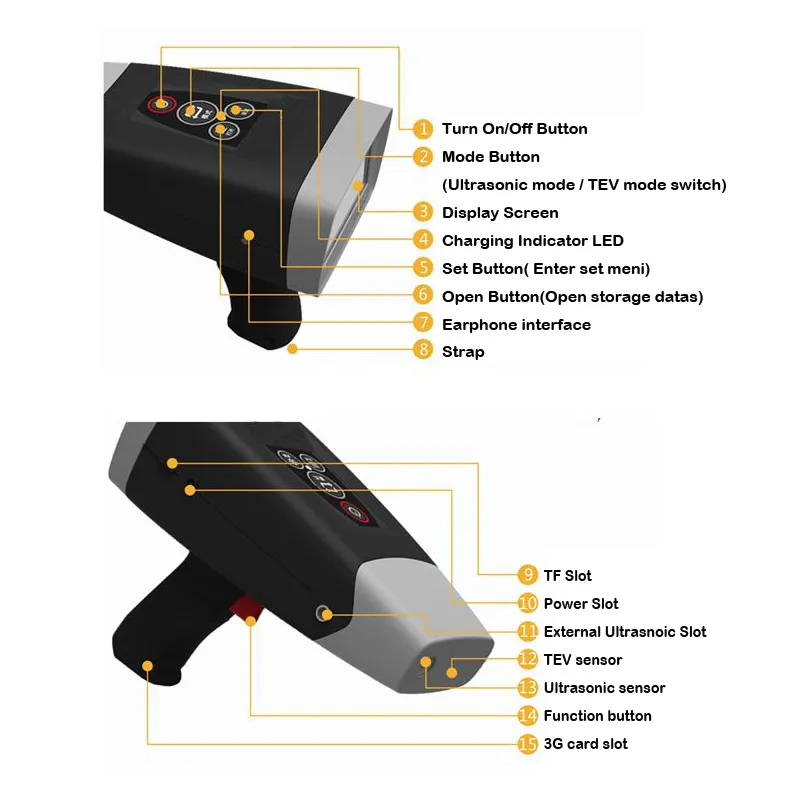

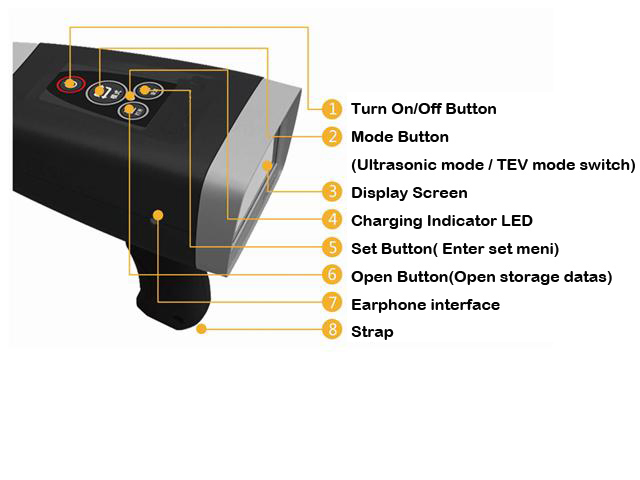

Hardware
- Processor: high performance intelligent processor.
- Screen: 4.3 Inch Touch Screen.
- Operation keys: PVE film keyboard.

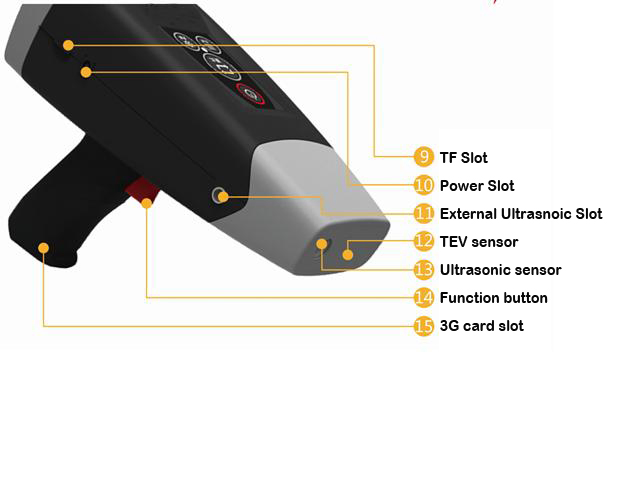

- Interface:
- 3.5mm stereo headphone interface
- DC LV current charging interface
- USB 2.0 3G wireless network interface
- TF memory card interface
- External probe sensor interface
- TF memory card: 4G~32G.
- Headphones: Min. 8Ω.
- External probe: Ultrasonic probe extension line 250mm.
- Enclosures material: ABS+PC Plastique.
- Weight: 0.7kg.
- Dimension: 241*126*189mm.
Operating Environment
- Operation temperature: 0~55ºC.
- Operation humidity: 0~90% RH, non-condensing.
- IP rates: 54.
Ultrasonic Parameters
- Measuring range: -20dBµV~65dBµV.
- Resolution: 1dB.
- Accuracy: ±1dB.
- Transducer Sensitivity: -65dB.
- Transducer Frequency: 20-100kHz.
- Transducer Diameter: 16mm.
- Test source: 25dB~35dB.
TEV Parameters
- Sensor: Capacitive.
- Measuring range: 0dBµV~60dBµV.
- Resolution: 1dB.
- Accuracy: ±1dB.
- Max number of Pulses/Cycle: 655.
- Min number for pulses: 5Hz.
Power Supplies
- Internal Batteries: 3.7V, 5.6Ah rechargeable Lithium-ion.
- Typical Operating Time: approx. 6 hours.
- Battery Conservation: Auto shutdown of inactivity, 10 mins.
- Rated voltage of charger: 90-264V AC.
- Charging voltage/current: 5V/2.4A.
- Charging Time: approx. 9 hours.
