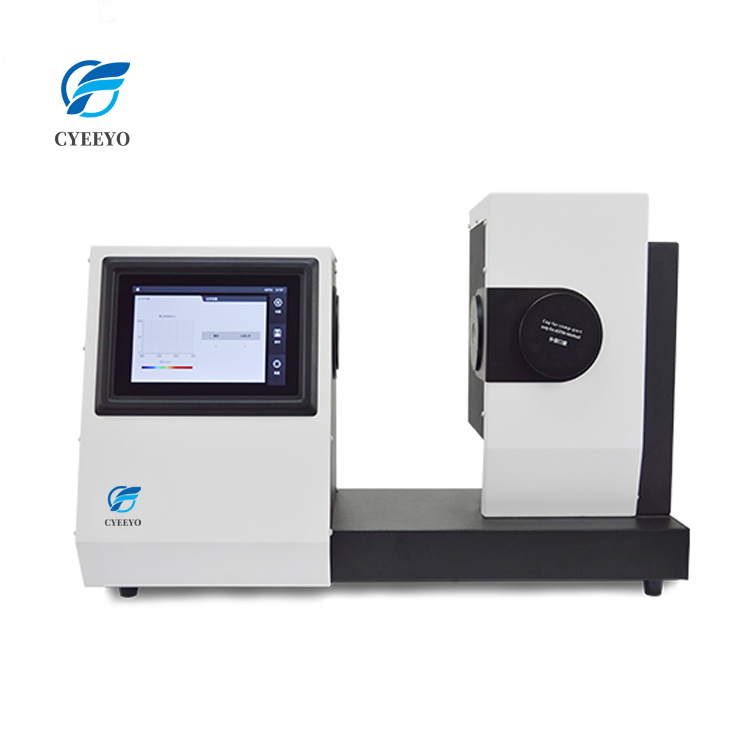

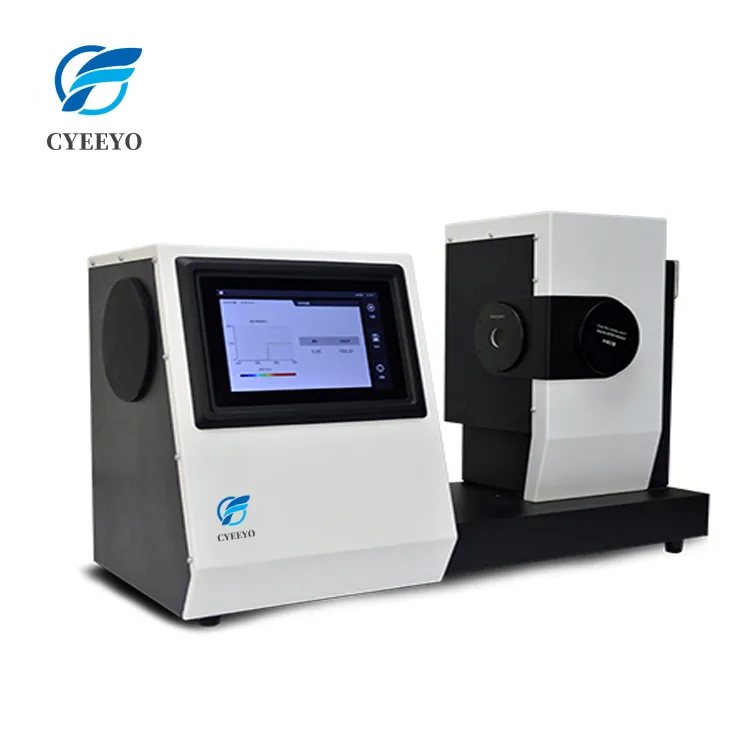

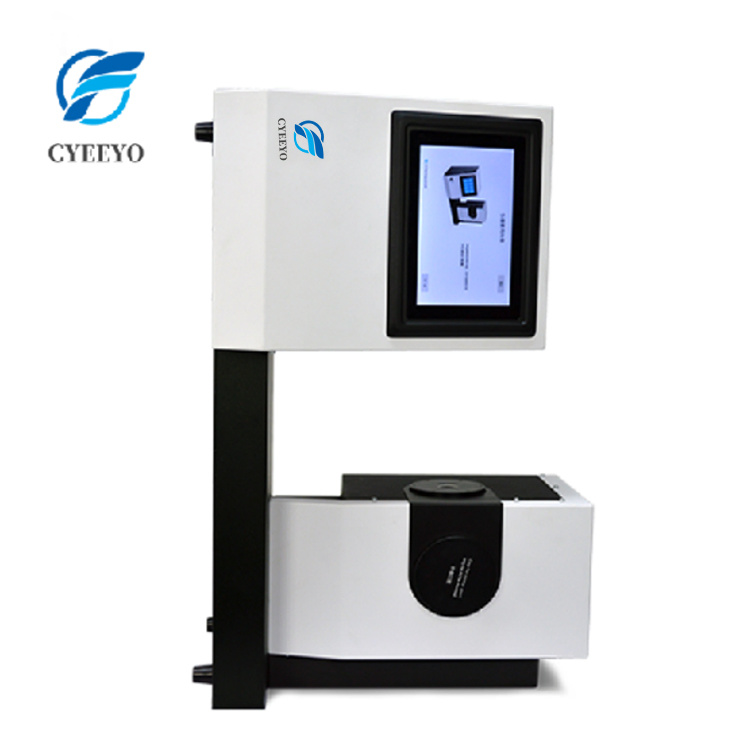

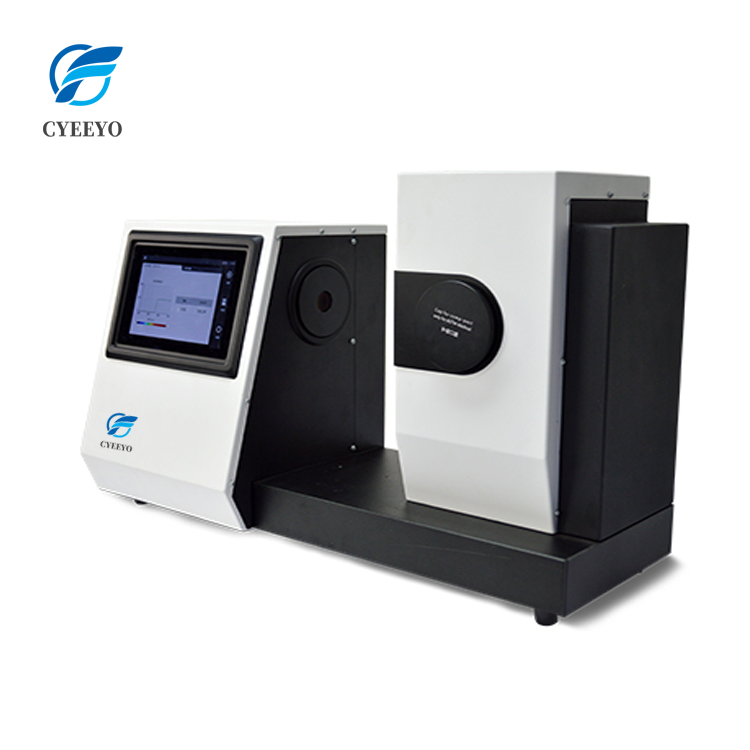

Hazemeter Price Transparency Tester Digital High Precision Haze Meter
Glass Transmittance Film Optical Plastic Reflection Haze Test Instrument MeterProduct DescriptionIt is designed for plastic sheets, films, glasses, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement. Our haze meter does not need warm-up du......
Send Inquiry
Product Description
It is designed for plastic sheets, films, glasses, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement. Our haze meter does not need warm-up during test which saves customer's time. Instrument conforms to ISO, ASTM, JIS, DIN and other international standards to meet all customers' measurement requirement.
Type | Haze Meter CY-CS-700 |
Light Source | CIE-A,CIE-C,CIE-D65 |
Standards | ASTM D1003/D1044 ISO13468/ISO14782 |
Parameters | HAZE,Transmittance(T) |
Spectral Response | CIE Luminosity function y |
Wavelength | 400-700nm |
Wavelength Interval | 10nm |
Geometry | 0/d |
Measurement Area/Sample Port | 16.5mm/21mm |
Measurement Range | 0-100% |
Haze Resolution | 0.01 |
Haze Repeatability | ≤0.1 |
Sample Size | Thickness ≤150mm |
Display | 5 inch TFT LCD screen |
Memory | 20000 value |
Interface | USB |
Power | 220V (with power cable) |
Working Temperature | 10-40 ºC |
Storage Temperature | 0-50ºC |
Size (LxWxH) | 598mm X 247mm X 366mm |
Standard Accessory | PC software (Color QC) |
Optional | Measurement Fixture, Haze standard film |
