Heat Compression Test Apparatus of IEC 60884 Test Machine
Heat Compression Test ApparatusProduct details: Model ZLT-RS1.To determine the verification of resistance of accessories and surface-type mounting at a temperature of (80± 2)° C, according to IEC 60884-1 figure 38 and clause 25.4, VDE 0620 figure 37, BS 1363 figure 23,IS 1293 Fig.......
Send Inquiry
Product Description

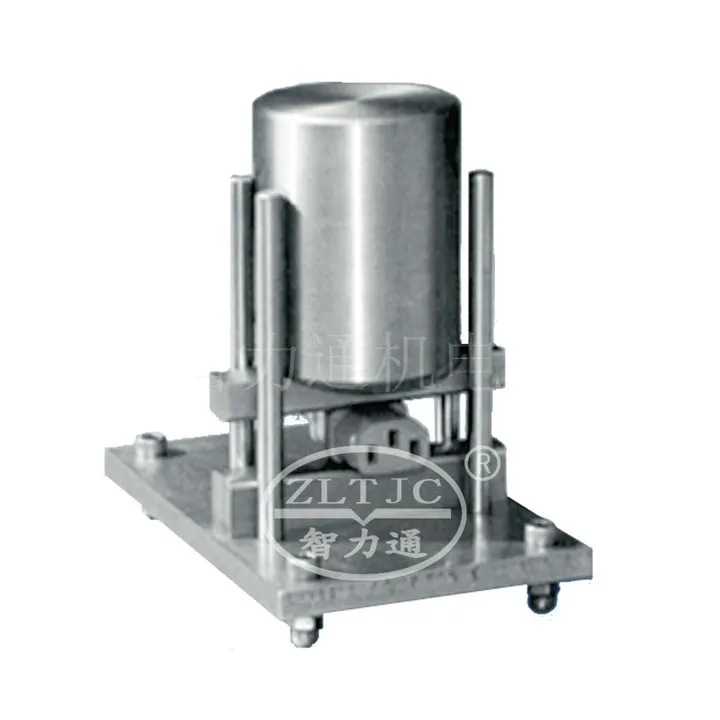

Heat Compression Test Apparatus
Product details: Model ZLT-RS1.
To determine the verification of resistance of accessories and surface-type mounting at a temperature of (80± 2)° C, according to IEC 60884-1 figure 38 and clause 25.4, VDE 0620 figure 37, BS 1363 figure 23,IS 1293 Fig.28.
Standard outfit:

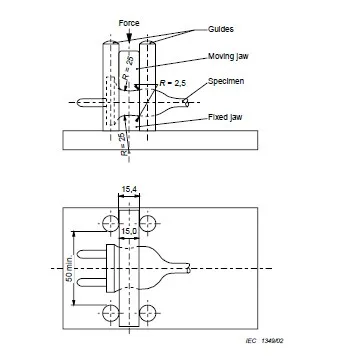

2 steel jaws, a moving jaw and fixed jaw, cylindrical face of 25 mm radius, width of 15 mm and length of 50 mm, the corners with a radius of 2, 5 mm,
1 weight of 20N,
4 brackets for fixed jaws,
All stainless steel.
Product details: Model ZLT-RS1.
To determine the verification of resistance of accessories and surface-type mounting at a temperature of (80± 2)° C, according to IEC 60884-1 figure 38 and clause 25.4, VDE 0620 figure 37, BS 1363 figure 23,IS 1293 Fig.28.
Standard outfit:
2 steel jaws, a moving jaw and fixed jaw, cylindrical face of 25 mm radius, width of 15 mm and length of 50 mm, the corners with a radius of 2, 5 mm,
1 weight of 20N,
4 brackets for fixed jaws,
All stainless steel.
