Product Description

1.1 Main purpose and scope of application
The automatic fatigue testing machine is a new type of fatigue testing machine that combines advanced electronic technology and efficient and precise mechanical transmission. This series of automatic fatigue tensile and compression testing machines are based on the international JB/T7796-2005 "Technical Conditions for Fatigue Tension and Compression Testing Machines" Technical requirements are made. It is equipped with high-precision sensors for precise loading and positioning. It is mainly suitable for testing the tensile force, compression force, stiffness, fatigue, etc. of elastic devices such as springs, rubbers, reeds, buttons, etc. under a certain working length. It is widely used in fatigue manufacturing companies.
1.2 Product features
1.2.1 It can measure the tension, pressure, stiffness, displacement and display the date and number of the measured object.
1.2.2 Three units display: N, Kg, Lbat
1.2.3 Can specify 1, 2, 3, 4, 5 segments.
1.2.4 There are two modes: long-charge and charge-long
1.2.5 Sampling rate is adjustable, multiple measurement methods can be selected
1.2.6 The use of large-scale integrated circuits improves the test accuracy, and the man-machine Chinese dialogue is intuitive and clear.
1.2.7 The fatigue testing special program designed according to national standards has high efficiency, complete functions and convenient operation.
1.2.8 Considering both the principle and the program software, the accurate measurement range of the measuring range has been improved.
1.2.9 It is not only suitable for batch inspection and sorting of fatigue on the production line, but also suitable for precision sampling in the laboratory.
1.2.10 It has program control and mechanical two-level limit protection, and the accuracy of the measured value is ensured by preloading and deflection compensation correction.

Model	ETSM-10	ETSM-20	ETSM-50	ETSM-100	ETSM-200	ETSM-500
Load capacity	10N	20N	50N	100N	200N	500N
Minimum graduation value	0.0001N	0.001N	0.001N	0.001N.	0.01N	0.01N
Unit selection	N,Kg,g,lb
Precision	±0.5%
Length (displacement) accuracy	0.01mm
Maximum stroke	200mm
Speed range	1-500mm/min

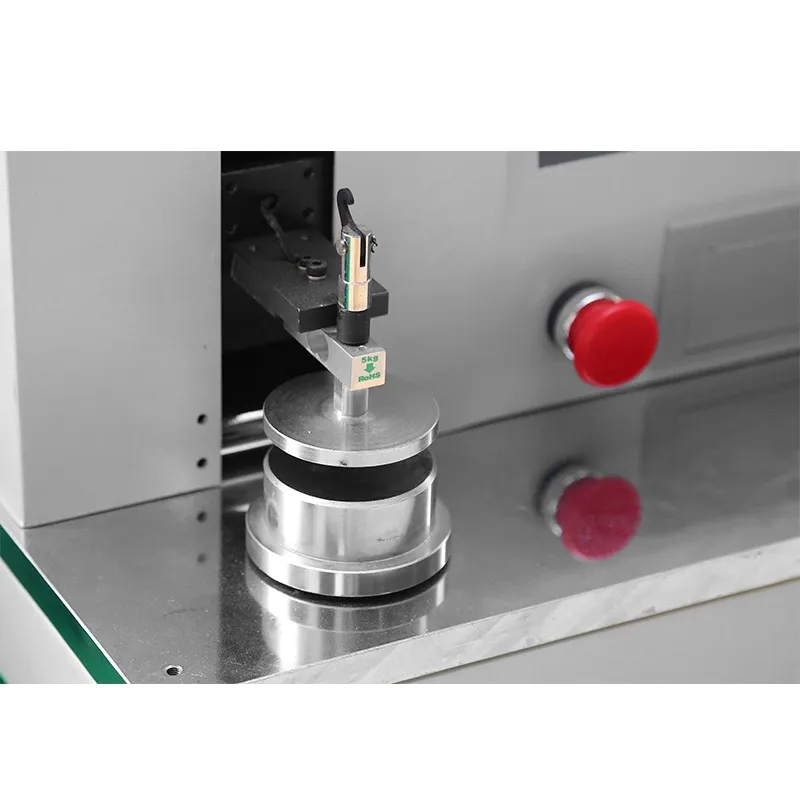

Standard pressure plate diameter	φ20mm		φ60mm
Manual button can move at one time	1mm,0.1mm,0.01mm
Test selection	Compression, tensile
Fatigue test selection	1. Set the length to measure the load 2. Set the load to measure the length
Dimensions	450mm380mm550mm
weight	About 60kg
power supply	220V 0.5A
Machine characteristics	1. Free length can be automatically tested 2. Automatic compensation for deformation of load cell and tension spring test hook 3. Load cell overload protection function and emergency stop function 4. Can be connected to a mini printer

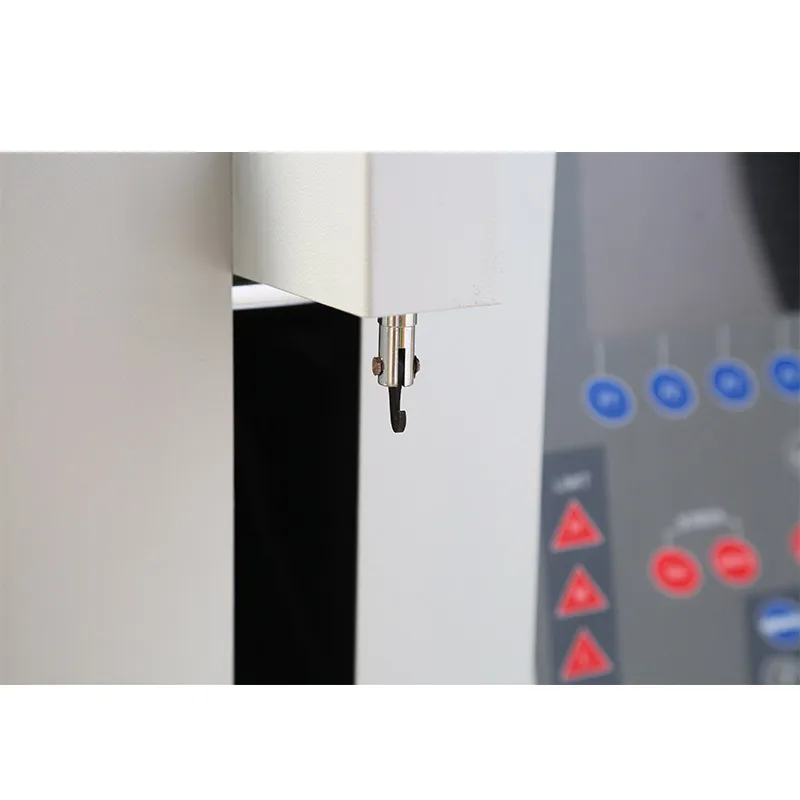

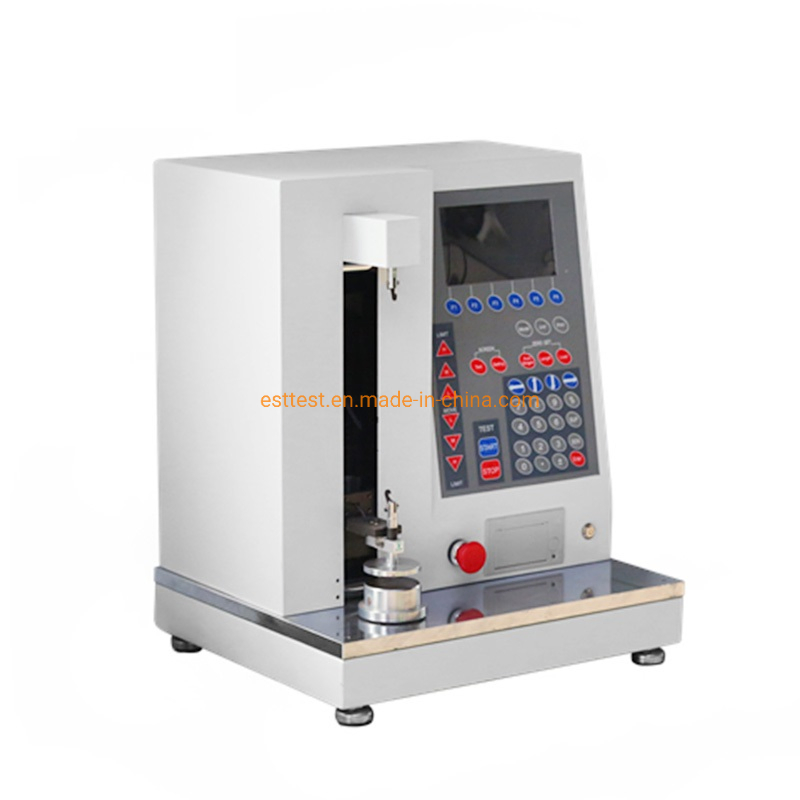

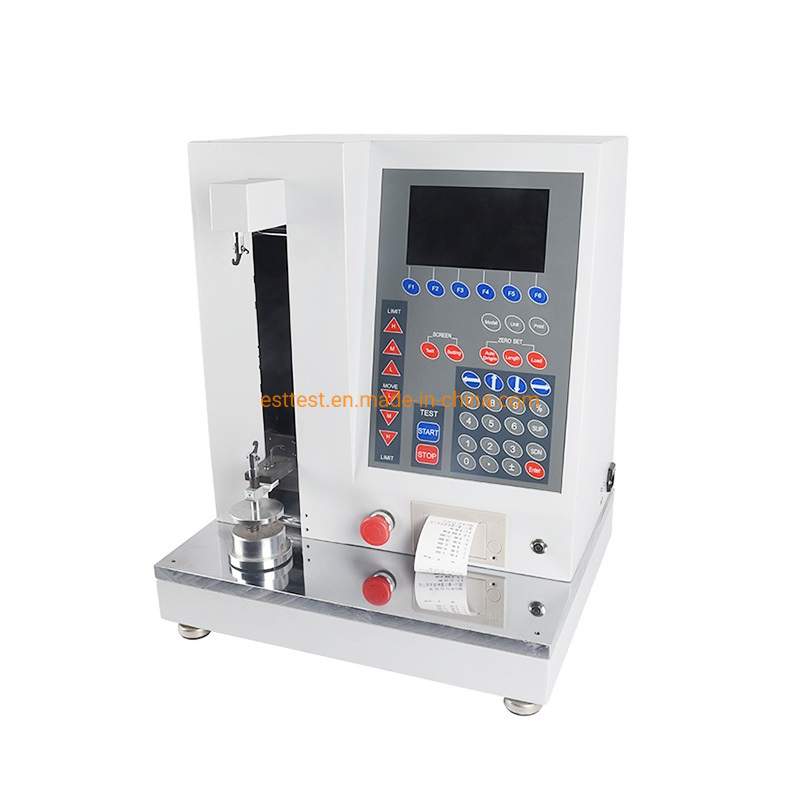

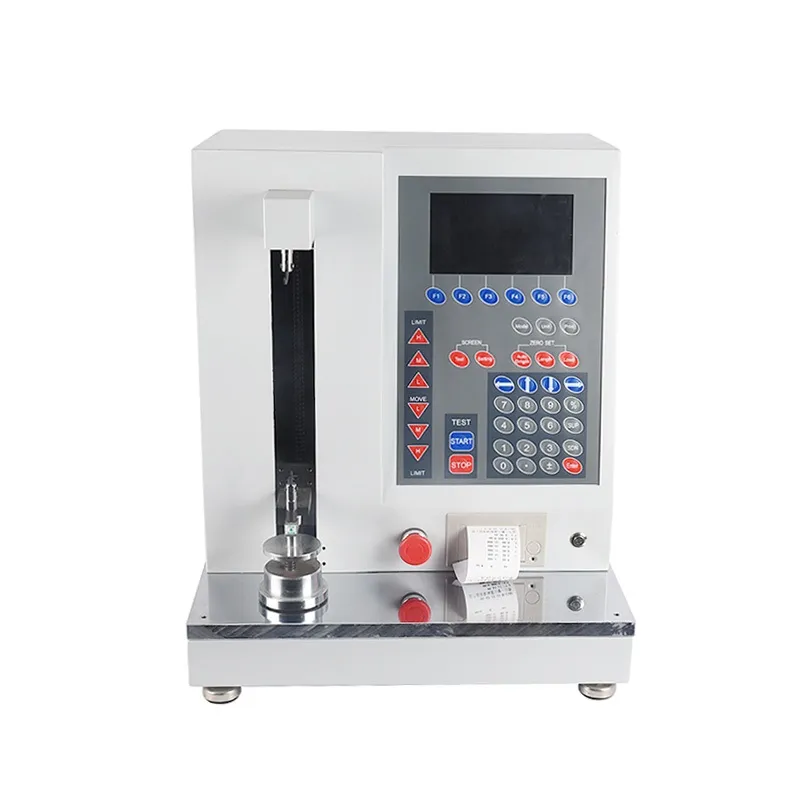

High Accuracy 0.5% Maximum Stroke 200mm 50n Automatic Spring Tester Spring Tensile Fatigue Testing Machine
