Product Description
Introduction
Wuhan Precise Instrument Co.,Ltd has been creating S series source meter for so many years.
The source meter function has high-precision, large dynamic range, digital touch screen, four-quadrant operation, collect and test input & output voltage and current, meanwhile, maximum output voltage 300V, and minimum output current 100pA.
Therefore, it is widely used in electrical characteristics tests.
8 inch Touch Screen, graphical operation
LIV,PIV software quickly testing
High-accuracy at 0.1%
Four-quadrant operation, range: 10pA~1A , 30uV~300V
Various scanning modes, support linear, exponential and user-defined scanning
USB storage and export
Multiple communication interfaces RS-232/GPIB/LAN
Applications
Semiconductor device test: Resistance, Diode, Transistor, MOSFET, SiC, GaN, etc .
Energy and efficiency test: LED / AMOLED, Solar cells, DC-DC converters, etc .
Sensor characteristic test: Resistivity, Hall effect, etc .
Organic material test: Electronic ink, Printed electronic technology, etc .
Nanomaterial test: Graphene, Nanowires, etc .
Four quadrant diagram
S100 S200 S300
Capabilities
| Max output power | 30W, four quadrant source or sink operation |
| Source/sink limits | ±30V (≤1A), ±300V (≤100mA), |
| ±1.05A (≤30V), ±105mA (≤300V) | |
| Overrange | 105% of range, source and measure |
| On-load capacitance | <22nF |
| Noise (20MHz) | 2mV RMS, <20mV Vp-p |
| Voltage guard | Output impedance 1 kΩ, Deflection-Voltage<80uV |
| Max sampling rate | 1000 sample/s |
| Trigger | I/O |
| Communication Interface | RS-232,GPIB,LAN |
| Power supply | AC100V~240V 50/60Hz |
| Temperature coefficient | 25±10 ºC |
| Length,Width and Height | 425mm L x 255mm W x 106mm H |
| Weight | 5KG |
| Warranty | 1 year |
Voltage and current accuracy: (Different models have different voltage and current ranges, please refer to the selection guide )
| Voltage | Source | Measure | ||
| Range | Programming resolution | Accuracy±(% rdg.+ volts) | Programming resolution | Accuracy±(% rdg.+ volts) |
| 300mV | 30uV | 0.1%±300uV | 30uV | 0.1%±300uV |
| 3V | 300uV | 0.1%±500uV | 300uV | 0.1%±500uV |
| 30V | 3mV | 0.1%±3mV | 3mV | 0.1%±3mV |
| 300V | 30mV | 0.1%±30mV | 30mV | 0.1%±30mV |
| Current | Source | Measure | ||
| Range | Programming resolution | Accuracy±(% rdg.+ A) | Programming resolution | Accuracy±(% rdg.+ A) |
| 100nA | 10pA | 0.1%±0.5nA | 10pA | 0.1%±0.5nA |
| 1uA | 100pA | 0.1%±3nA | 100pA | 0.1%±3nA |
| 10uA | 1nA | 0.1%±5nA | 1nA | 0.1%±5nA |
| 100uA | 10nA | 0.1%±50nA | 10nA | 0.1%±50nA |
| 1mA | 100nA | 0.1%±300nA | 100nA | 0.1%±300nA |
| 10mA | 1uA | 0.1%±5uA | 1uA | 0.1%±5uA |
| 100mA | 10uA | 0.1%±20uA | 10uA | 0.1%±20uA |
| 1A | 100uA | 0.1%±2mA | 100uA | 0.1%±2mA |

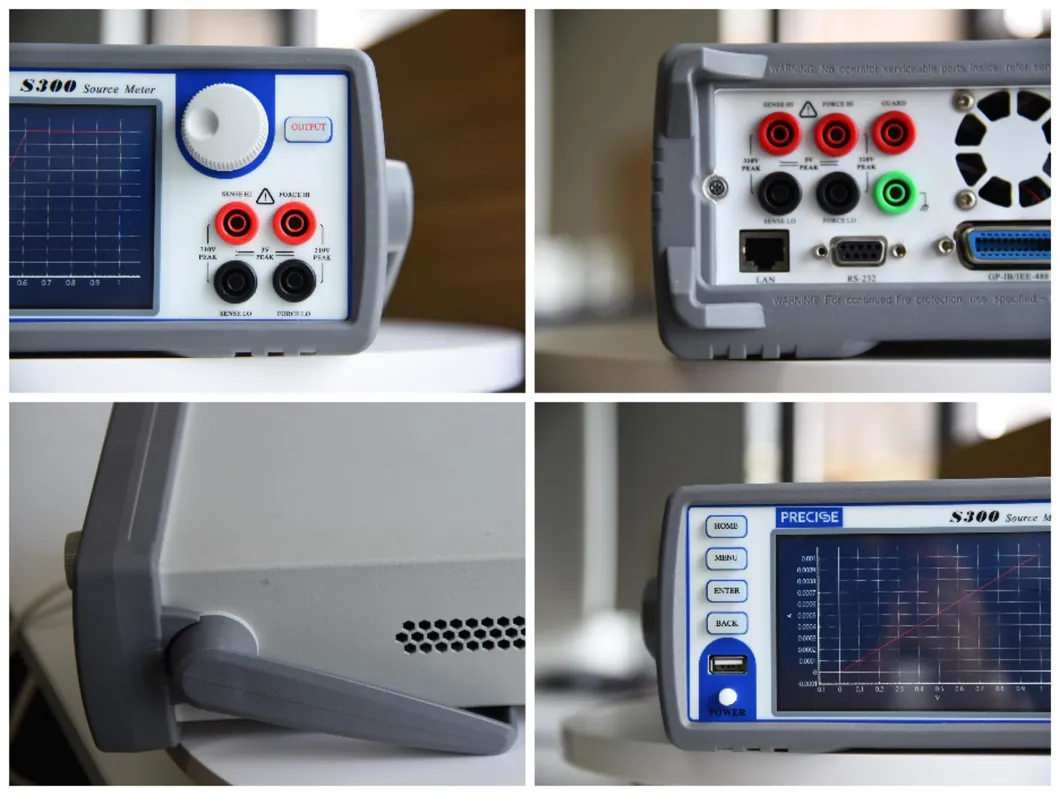

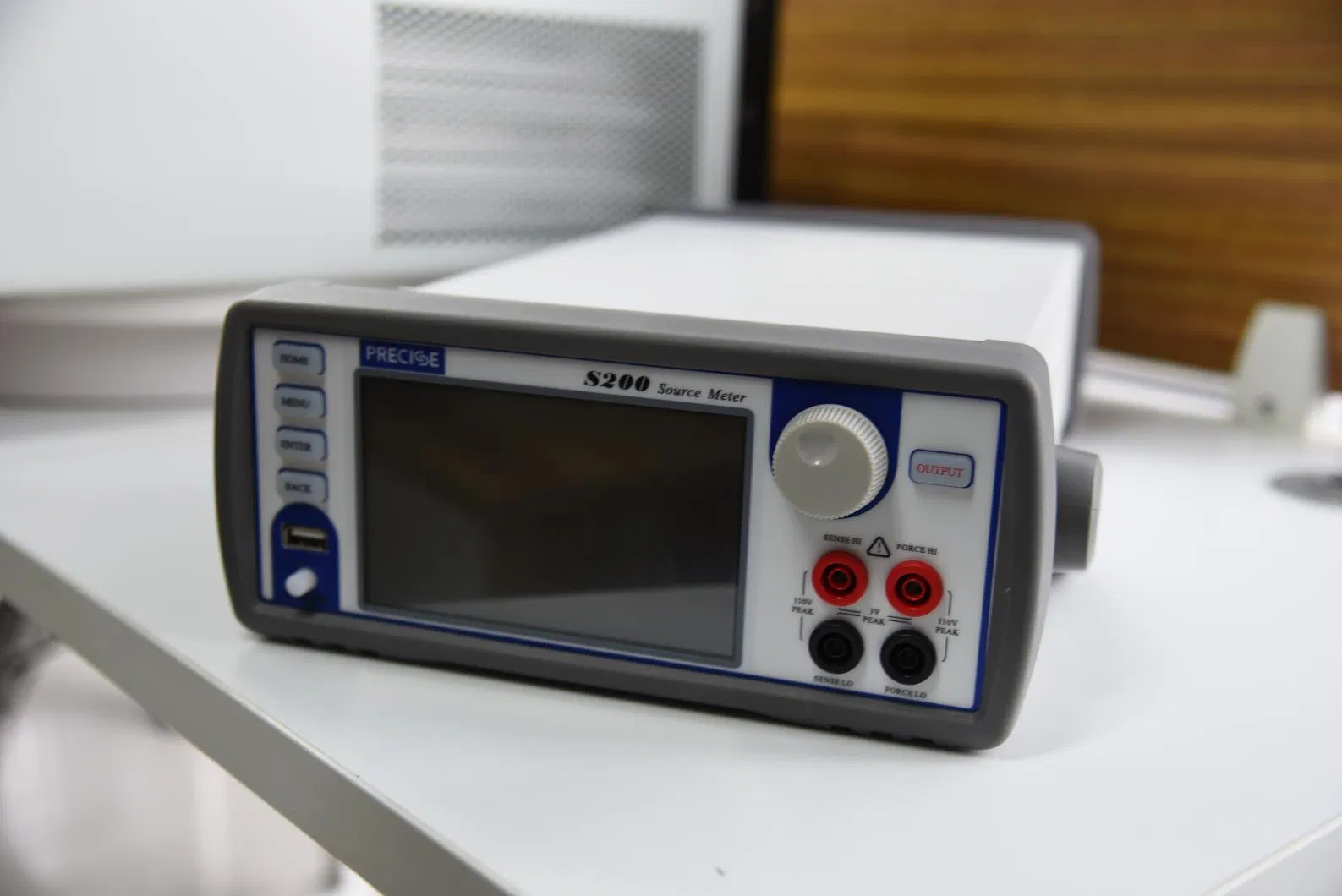

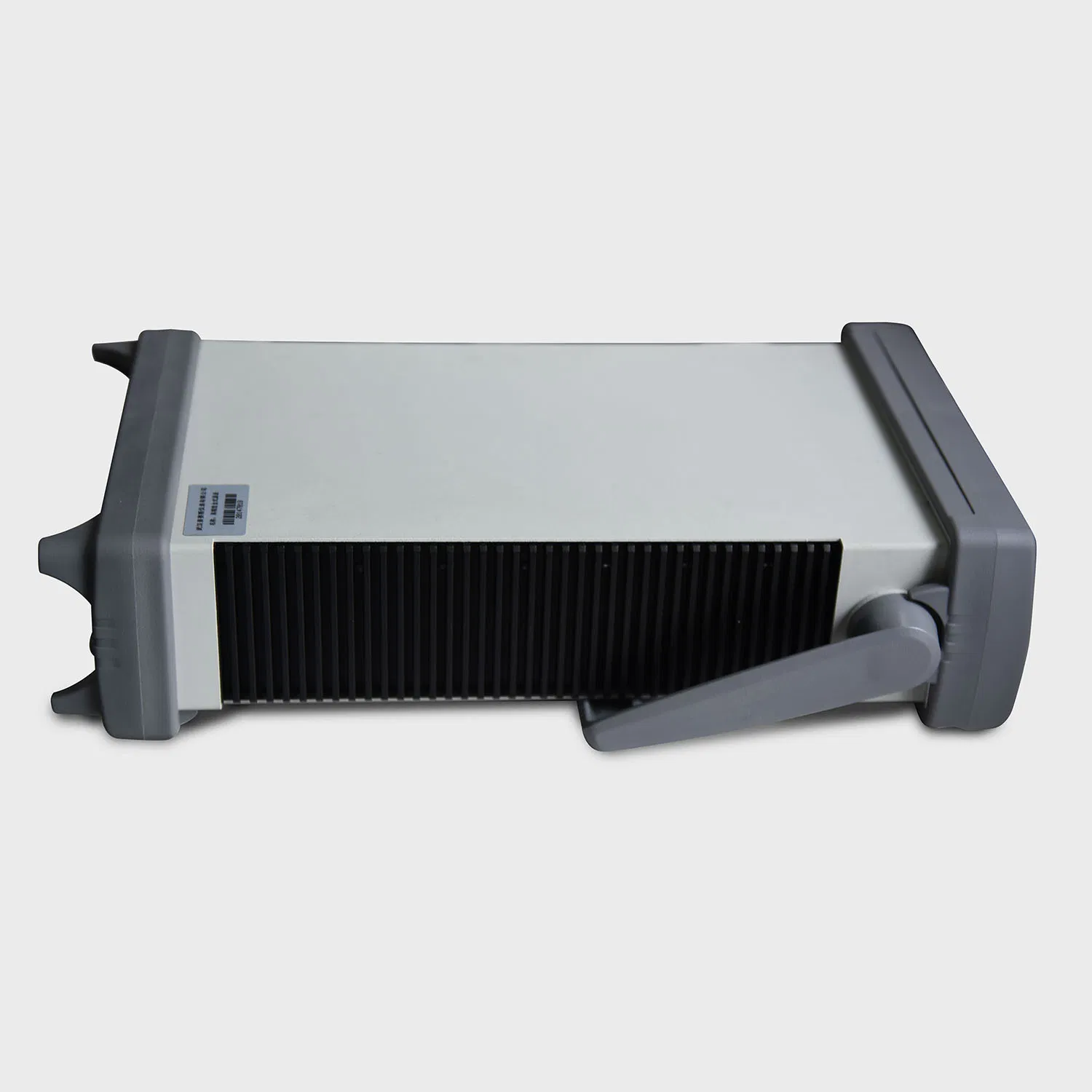

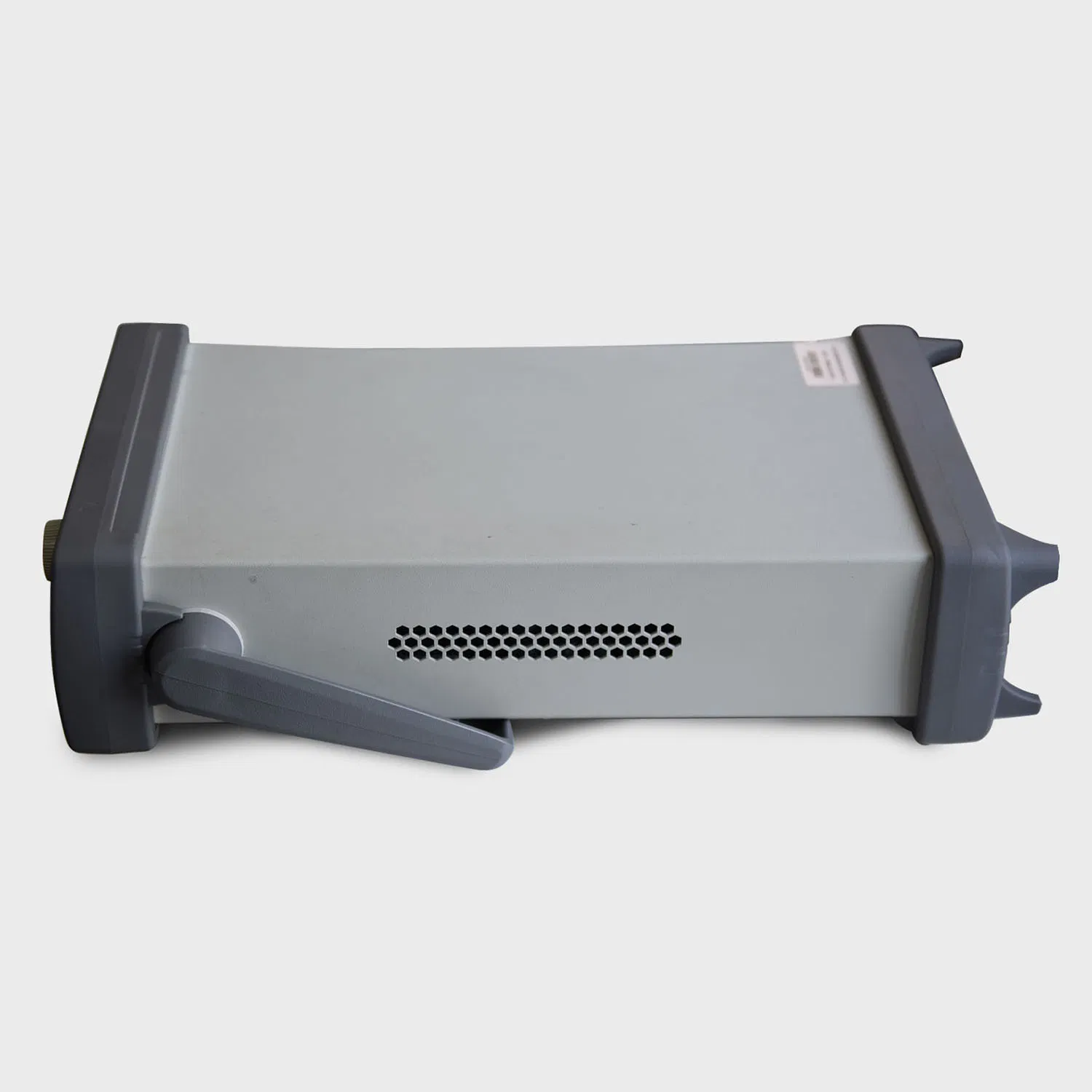

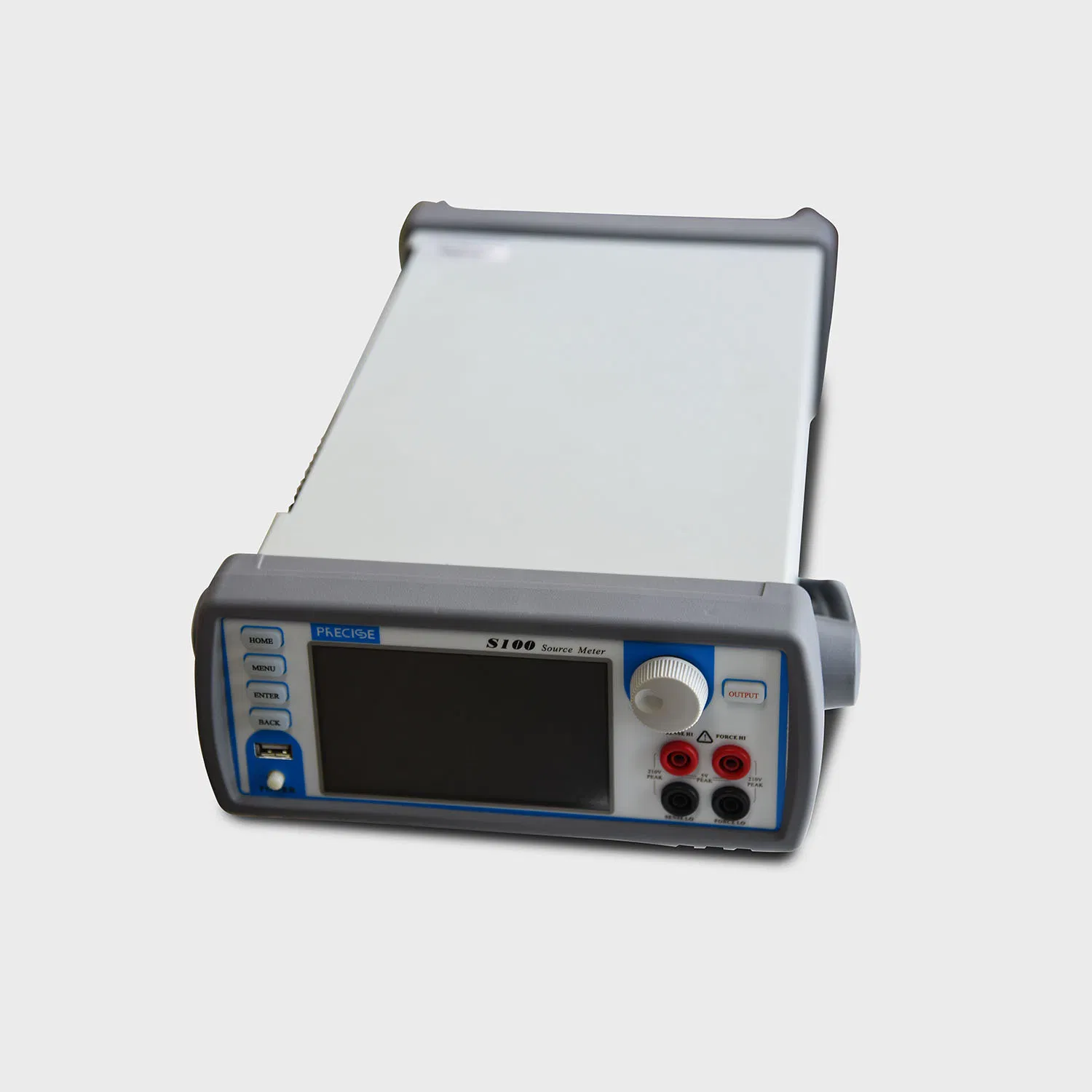

Detailed Photos

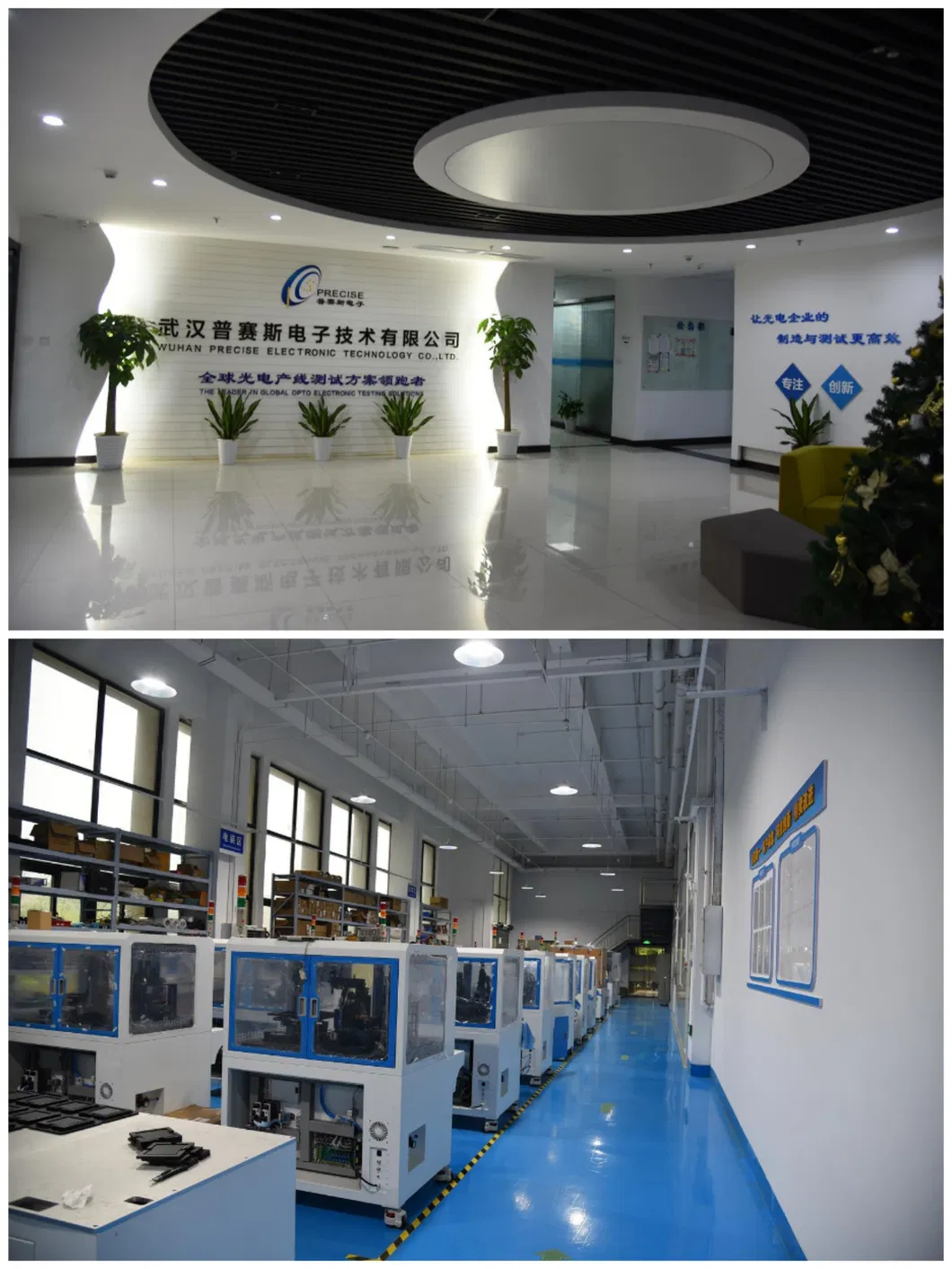

Company Profile
Established in 2009,Wuhan Precise Electronic technology Co., Ltd is a high-tech enterprise, research and develop automatic test equipment, optical communication device production line monitoring and test program. We are a technology-based enterprise integrating research and development, production, sales and services. Meanwhile, R&D team consists of masters and doctors, and the management, marketing, service teams are composed of experienced professionals
Precise products include: CHIP,BAR,TO,OSA,optical model and BOB production line, etc.
Precise customers include: Huawei, Hisilicon, Accelink, HG Genuine ZTE, and Hisense, et
Wuhan Precise Instrument Co., Ltd is a wholly-owned subsidiary of Wuhan Precise Electronic technology Co., Ltd. Located in "Wuhan·Optics Valley of China ", Our main product are high-Precision digital source meter and system, mainly used in the testing process of semiconductor devices. Meanwhile, provide modular hardware, efficient drivers and algorithm software to help users build custom solutions.
