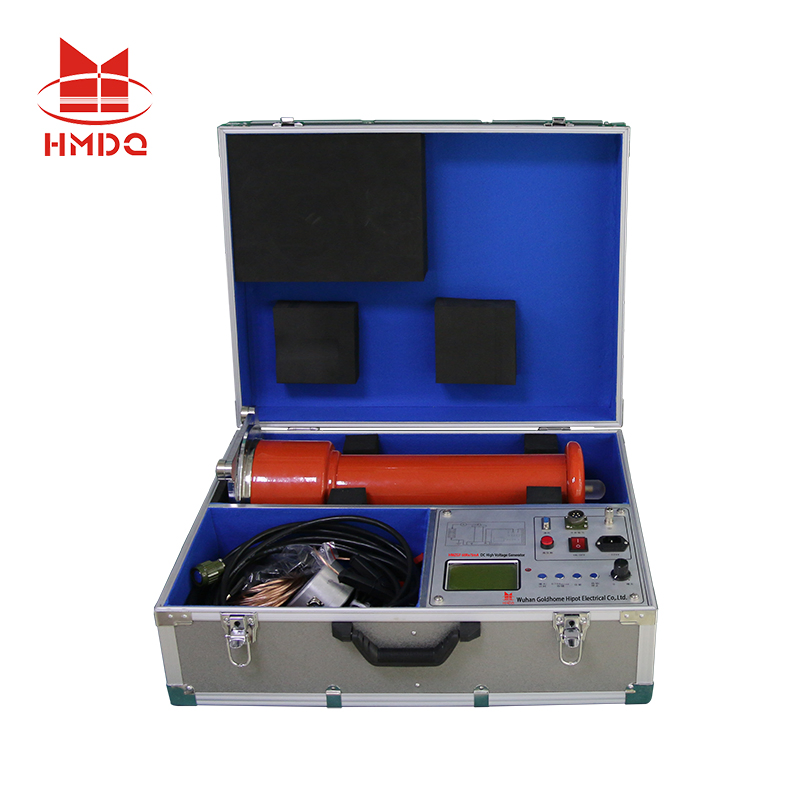

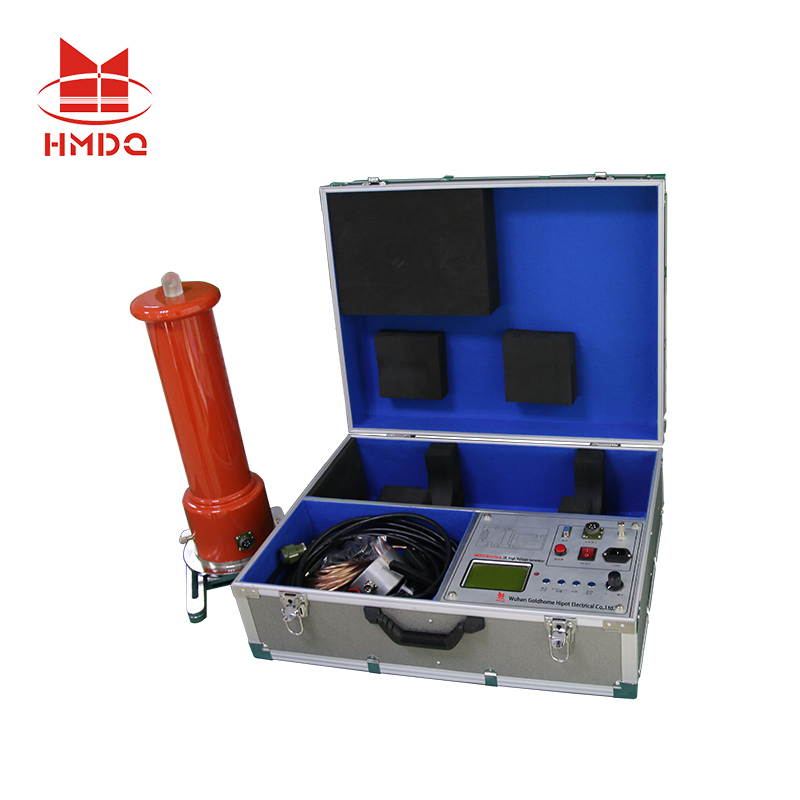

Hmzgf-60kv/5mA DC High Voltage Generator DC Hipot Tester Made in China
SummaryNewly researched, designed, and manufactured according to "Common technical condition for portable DC HV generator" of China Industry Standard, the HMZGF series DC HV generator is a technology product of new era, suitable for DC HV test on zincoxidearrester, magnetic blow-out arrest......
Send Inquiry
Product Description
Newly researched, designed, and manufactured according to "Common technical condition for portable DC HV generator" of China Industry Standard, the HMZGF series DC HV generator is a technology product of new era, suitable for DC HV test on zincoxidearrester, magnetic blow-out arrester, power cable, generator, transformer, and switch in electric power department, scientific research unit, railway station, power plant, chemical plant, etc., a optimal upgrading product in new era.
Technical parameters
Output voltage(kV):60
Output current (mA):5
Output power (W):300
Charging current (mA):7.5
Case weight (kg):13
Height of multivoltage tube (kg):4
HV polarity | Polarity of negative volt, zero voltage start, continuous adjustable |
Work power | AC 220V±10%;50Hz |

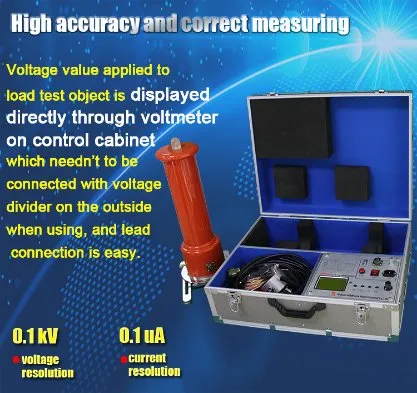

Voltage measuring accuracy | 1.0%(full scale)±1character, max resolution 0.1%kV |
Current measuring accuracy | 1.0%(full scale)±1character, max resolution 0.1%uA |
Over voltage rectify accuracy | ≤0.5% |
0.75 switch over accuracy | ≤1.0% |
Ripple factor | ≤0.5% |
Voltage stability | Random fluctuation, when voltage change of power supply±10% ≤0.5% |
Work manner | Intermittent service; 30min of rated load;1.1 times of rated voltage use:10min |
Temperature | -10ºC~40ºC |
Relative humidity | When at 25ºC,no more than 85%(no condensation) |
Altitude | Below 1500m |
