Hv Hipot DC Tester with Step Voltage Zgf 60kv 3mA
Hipot DC Tester With Step Voltage Zgf Hipot Tester 60kvI.IntroductionDC high voltage generator is DC high voltage power supply equipment.It have functions of switch on protection under 0 voltage,over voltage and over current protection.They are high stability and reliability.It is easy to operate , ......
Send Inquiry
Product Description
I.Introduction
DC high voltage generator is DC high voltage power supply equipment.
It have functions of switch on protection under 0 voltage,over voltage and over current protection.
They are high stability and reliability.
It is easy to operate , small in size and light in weight.
II.Function
DC high voltage test for the power supply department, for example: DC HV withstand and leakage current test in power cables, the conductance current and 1mA reference voltage of magnetic blow out arrester and zinc oxide arrester test.
Using as power supply of laser, also electrostatic painting and twine and so on.
Other place required DC high voltage.
III.Major parameters
Voltage (KV)/mA Current (mA) |
Control Box |
High-Voltage Unit | |||
Rated Voltage | Size (mm) | Weight kg | Size (mm) | Weight kg | |
60/2-5 | 60KV | 310 * 250 * 230 | 5kg | 470 * 260 * 220 | 6kg |
80/2-5 | 80KV | 310 * 250 * 230 | 6kg | 490*260*220 | 8kg |
100/2-5 | 100KV | 310 * 250 * 230 | 6kg | 550*260*220 | 8kg |
120/2-5 | 120KV | 310 * 250 * 230 | 7kg | 600 * 260 * 220 | 10kg |
200/2-5 | 200KV | 310 * 250 * 230 | 8kg | 1000 * 280 * 270 | 20kg |
300/2-5 | 300KV | 310 * 250 * 230 | 9kg | 1300 * 280 * 270 | 22kg |
output polarity |
Negative polarity, no-voltage start, linear continuous adjustment | ||||
working power supply |
50HZ AC220V±10% | ||||
voltage error | 0.5%±2,minimum solution 0.1KV | ||||
current error | 0.5%±2,minimum solution 0.1µA | ||||
ripple factor | better than 0.5% | ||||
voltage stability | Random flunctuation , grid change is 10% , the flunctuation <=0.5% | ||||
working manner | Interval working, less than 30 minutes under rated load | ||||
working condition | Temperature: 0-40ºC, humidity: less than 90% | ||||
storage condition | Temperature: -10ºC~40ºC, humidity: less than 90% | ||||

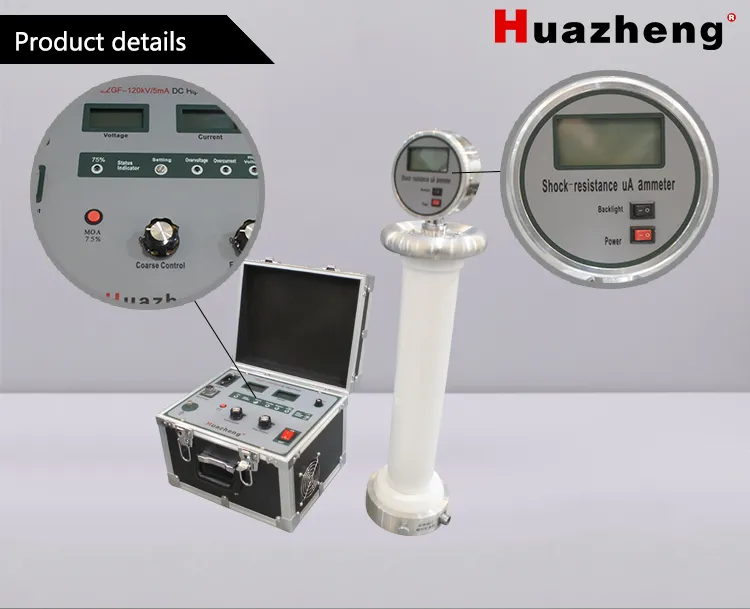

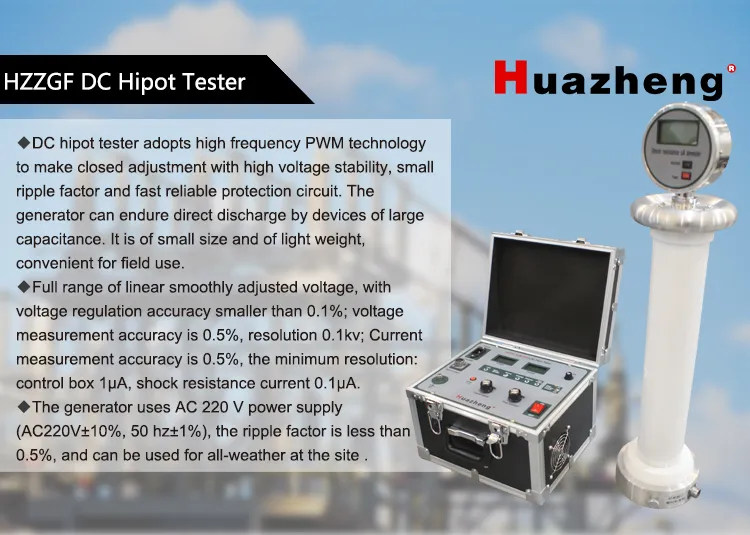

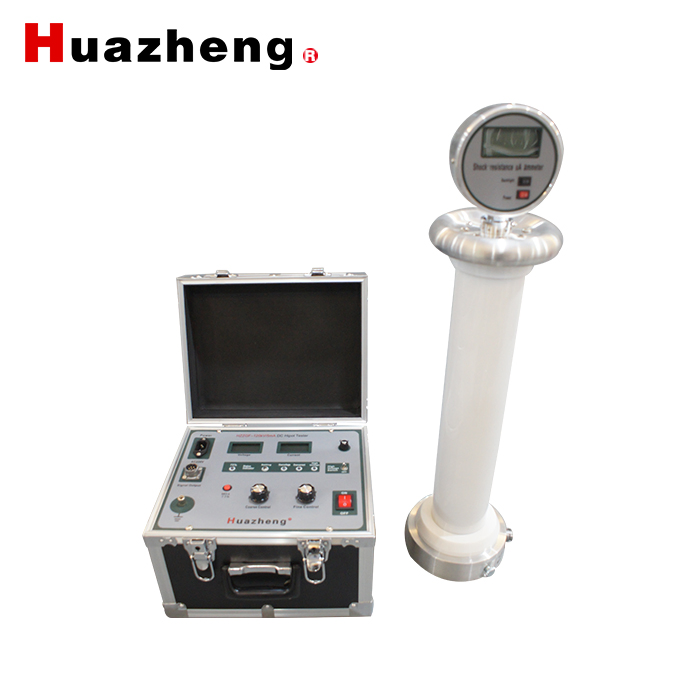

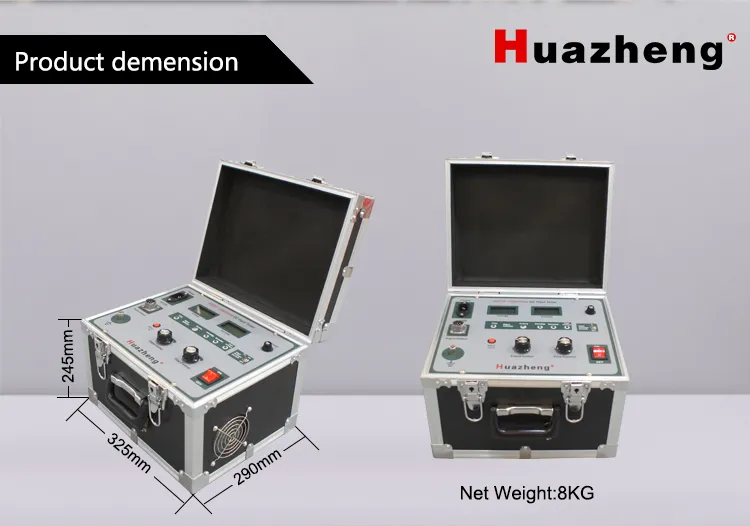

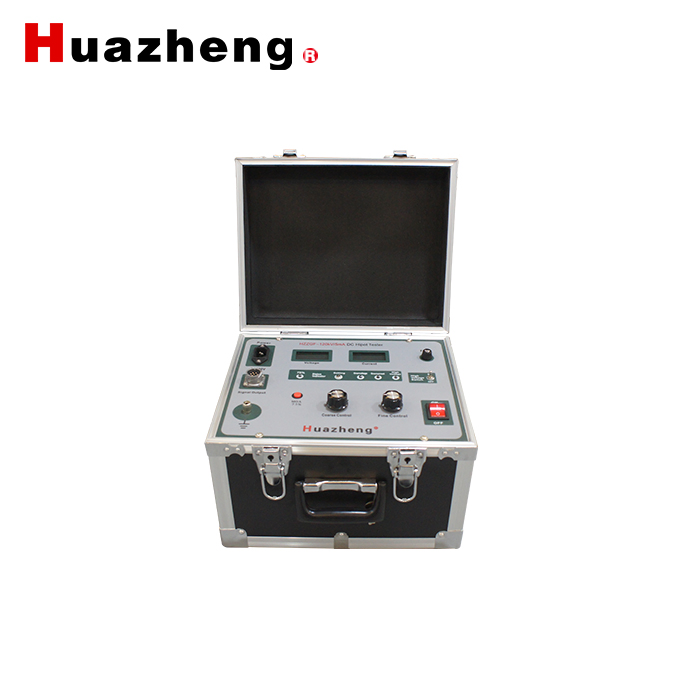

IV.Detailed Photos
V.Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
VI.Customer Visit
VII.Exhibition

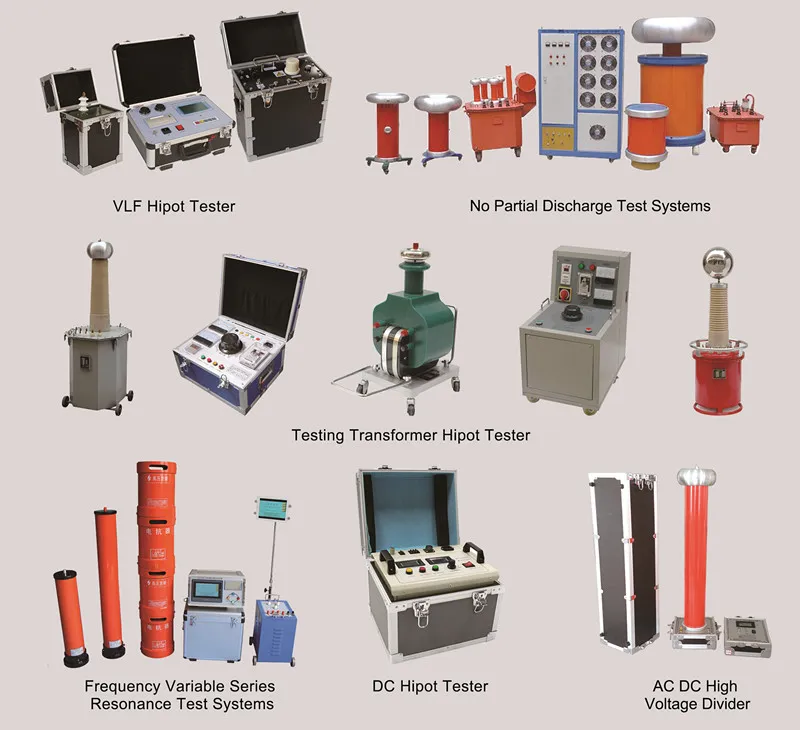

IX.Similar Recommendation
