IEC60529 Ipx5 Ipx6 Automatic Strong Flush Water Jet Test Chamber
Drop rain test machineIntroduction: This set of equipment can meet the IPx1 and IPx2 standards specified in GB4208 IEC60529 GB7000.1 enclosure protection level. This product is mainly used for the waterproof performance test and IPx1, 2 waterproof level test of communication products, auto parts......
Send Inquiry
Product Description

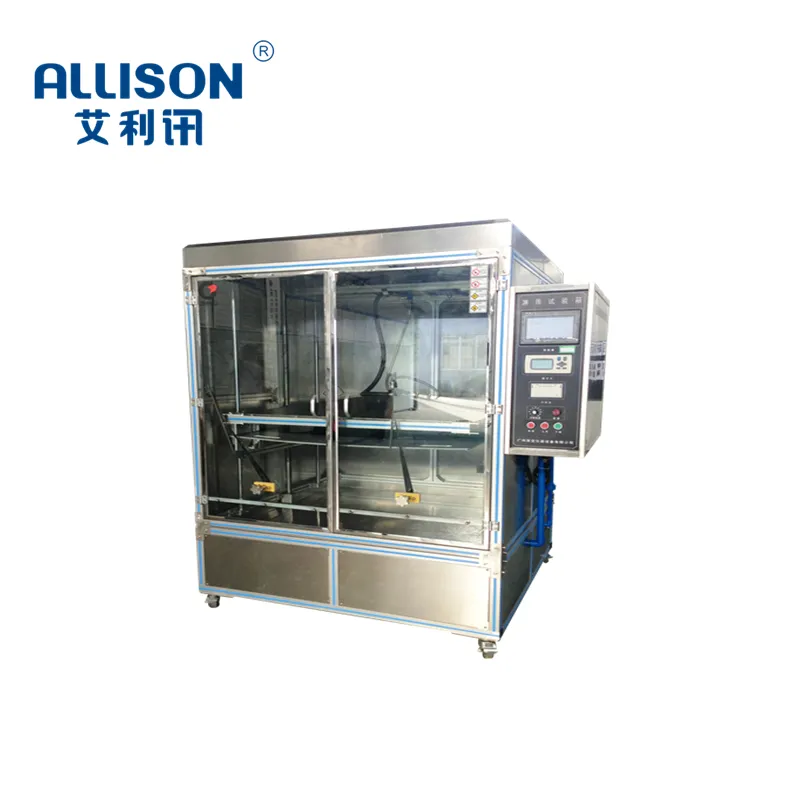

Drop rain test machine
Introduction:
This set of equipment can meet the IPx1 and IPx2 standards specified in GB4208 IEC60529 GB7000.1 enclosure protection level.
This product is mainly used for the waterproof performance test and IPx1, 2 waterproof level test of communication products, auto parts, outdoor lighting, signal devices and other electronic products.
. Technical characteristics:
Size of water drip: 1000mm × 1000mm × 100mm;
Precipitation: 1-5mm / min; (± 0.5mm, adjustable);
Dripping area: 1m ;
Drip hole diameter: Φ 0.4mm; drip hole spacing: 20 × 20mm(25×25mm);
Test stand: 500 × 500mm (L × w);
Test stand speed: 0-17r / min adjustable);
Turntable height / angle (adjustable);
Height of water drip: (adjustable); Control mode: mechanical / Mitsubishi PLC control;
Turntable motor: stepping motor;
Power supply: 0-380V 50Hz/60Hz 3.5kw;
Equipment size: 1500×1500×1650mm.
------------------------------------------------------------------
Introduction:
This set of equipment can meet the IPx1 and IPx2 standards specified in GB4208 IEC60529 GB7000.1 enclosure protection level.
This product is mainly used for the waterproof performance test and IPx1, 2 waterproof level test of communication products, auto parts, outdoor lighting, signal devices and other electronic products.
. Technical characteristics:
Size of water drip: 1000mm × 1000mm × 100mm;
Precipitation: 1-5mm / min; (± 0.5mm, adjustable);
Dripping area: 1m ;
Drip hole diameter: Φ 0.4mm; drip hole spacing: 20 × 20mm(25×25mm);
Test stand: 500 × 500mm (L × w);
Test stand speed: 0-17r / min adjustable);
Turntable height / angle (adjustable);
Height of water drip: (adjustable); Control mode: mechanical / Mitsubishi PLC control;
Turntable motor: stepping motor;
Power supply: 0-380V 50Hz/60Hz 3.5kw;
Equipment size: 1500×1500×1650mm.
------------------------------------------------------------------

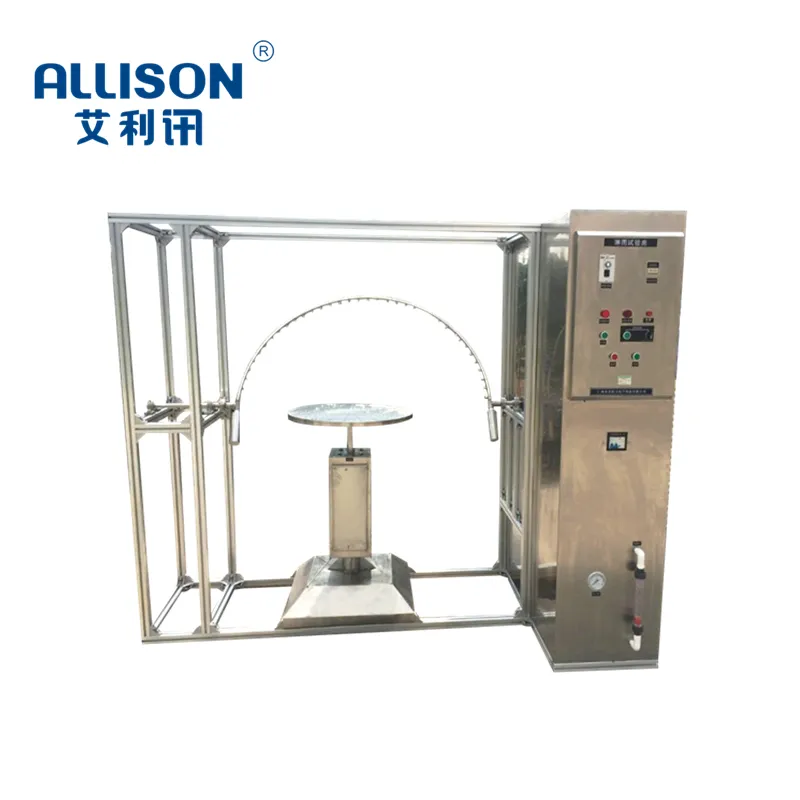

Rain drop pendulum test machine
Introduction:
This set of equipment can meet the requirements of IPx1, IPx2, IPX3, IPx4 in GB4208 IEC60529 GB7000.1 enclosure protection level. This product is mainly used for the waterproof performance test and IPx1234 waterproof level test of communication products, auto parts, outdoor lighting and signal devices.
The main technical parameters:
1. Model: QX-P3-4A;
2. Pendulum tube half warp: 400/600/800/1000/1200/1400/1600
3. Spray hole: Φ0.4; distance between two holes: 50mm;
4. Swing tube swing: ±0--170° adjustable
5. Outer diameter of pendulum tube: Φ20mm (stainless steel);
6. Pendulum tube height: the center of the pendulum tube is 1.4m away from the ground;
7. Rain water pressure: 50--300kpa (adjustable);
8. Water flow: displayable
9. Test bench: turntable 300-500mm; speed: 1~17r/min
10. Control mode: mechanical/Mitsubishi PLC control
11. Power supply voltage: AC220V,; 4.5KW
12. Equipment size: 2000 X 1200 X 1650 Unit: MM
------------------------------------------------------------------
Introduction:
This set of equipment can meet the requirements of IPx1, IPx2, IPX3, IPx4 in GB4208 IEC60529 GB7000.1 enclosure protection level. This product is mainly used for the waterproof performance test and IPx1234 waterproof level test of communication products, auto parts, outdoor lighting and signal devices.
The main technical parameters:
1. Model: QX-P3-4A;
2. Pendulum tube half warp: 400/600/800/1000/1200/1400/1600
3. Spray hole: Φ0.4; distance between two holes: 50mm;
4. Swing tube swing: ±0--170° adjustable
5. Outer diameter of pendulum tube: Φ20mm (stainless steel);
6. Pendulum tube height: the center of the pendulum tube is 1.4m away from the ground;
7. Rain water pressure: 50--300kpa (adjustable);
8. Water flow: displayable
9. Test bench: turntable 300-500mm; speed: 1~17r/min
10. Control mode: mechanical/Mitsubishi PLC control
11. Power supply voltage: AC220V,; 4.5KW
12. Equipment size: 2000 X 1200 X 1650 Unit: MM
------------------------------------------------------------------

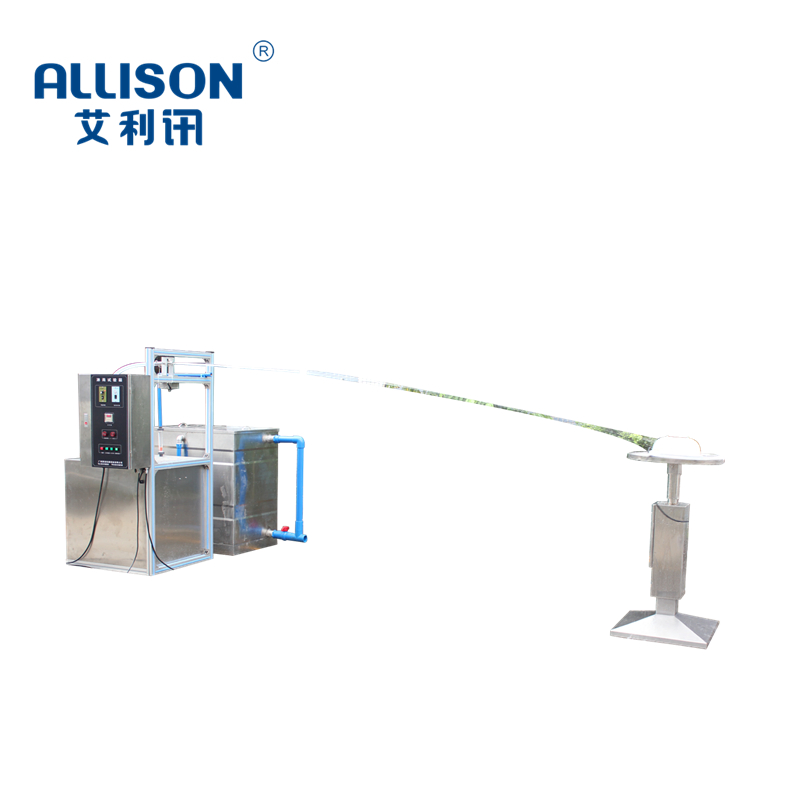

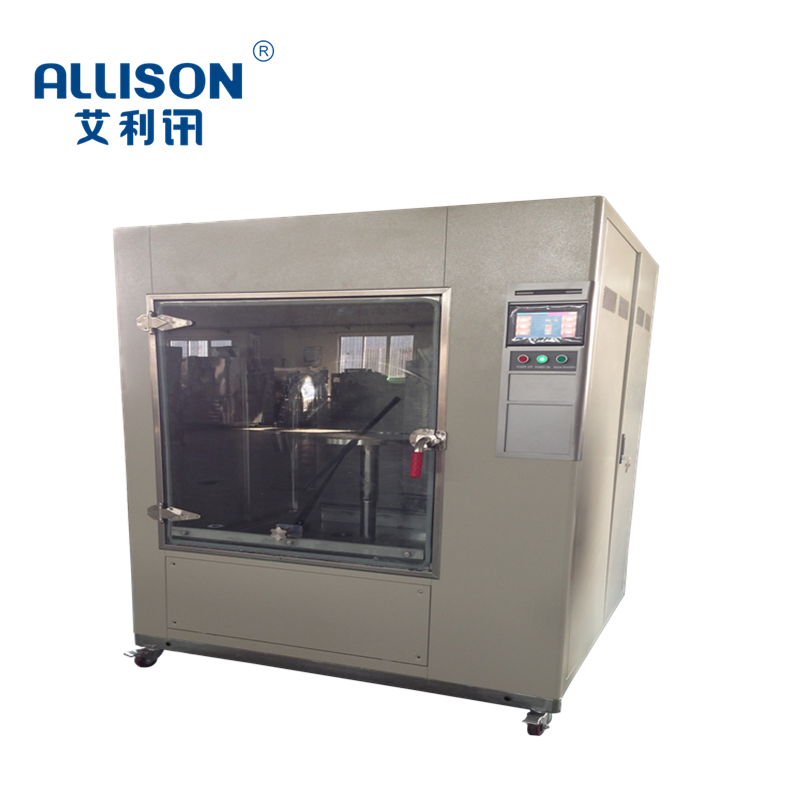

Water Jetting Test Chamber
The technical requirements in GB4208-2008/IEC60529-2001 IP code of enclosure protection grade are IPX5, IPX6; GB/T2423.38-2005; GB/T4942.2-93 and other relevant national standards. This product is mainly suitable for waterproof performance test and IP5-IPX6 waterproof level test of electronic products, auto parts, outdoor lighting and signal devices, military industry and other products.
Technical parameters:
1. Model: QX-P5-6B
2. Nozzle diameter: φ6.3mm/φ12.5mm
3. Water spray pressure: adjusted according to the specified water flow 4. Water spray angle: arbitrarily adjustable
5. Water spray volume: nozzle diameter 6.3mm (12.5L/min)
6. Water spray volume: nozzle diameter 12.5mm (100L/min)
7. Internal size of storage tank: 800×800×1000:mm
8. Water pressure: displayable
9. Control method: mechanical/Mitsubishi PLC control
10. Power supply voltage: AC2200V 4.5KW 11. Equipment size: 2000 X 1200 X 1650 Unit: MM
------------------------------------------------------------------
The technical requirements in GB4208-2008/IEC60529-2001 IP code of enclosure protection grade are IPX5, IPX6; GB/T2423.38-2005; GB/T4942.2-93 and other relevant national standards. This product is mainly suitable for waterproof performance test and IP5-IPX6 waterproof level test of electronic products, auto parts, outdoor lighting and signal devices, military industry and other products.
Technical parameters:
1. Model: QX-P5-6B
2. Nozzle diameter: φ6.3mm/φ12.5mm
3. Water spray pressure: adjusted according to the specified water flow 4. Water spray angle: arbitrarily adjustable
5. Water spray volume: nozzle diameter 6.3mm (12.5L/min)
6. Water spray volume: nozzle diameter 12.5mm (100L/min)
7. Internal size of storage tank: 800×800×1000:mm
8. Water pressure: displayable
9. Control method: mechanical/Mitsubishi PLC control
10. Power supply voltage: AC2200V 4.5KW 11. Equipment size: 2000 X 1200 X 1650 Unit: MM
------------------------------------------------------------------

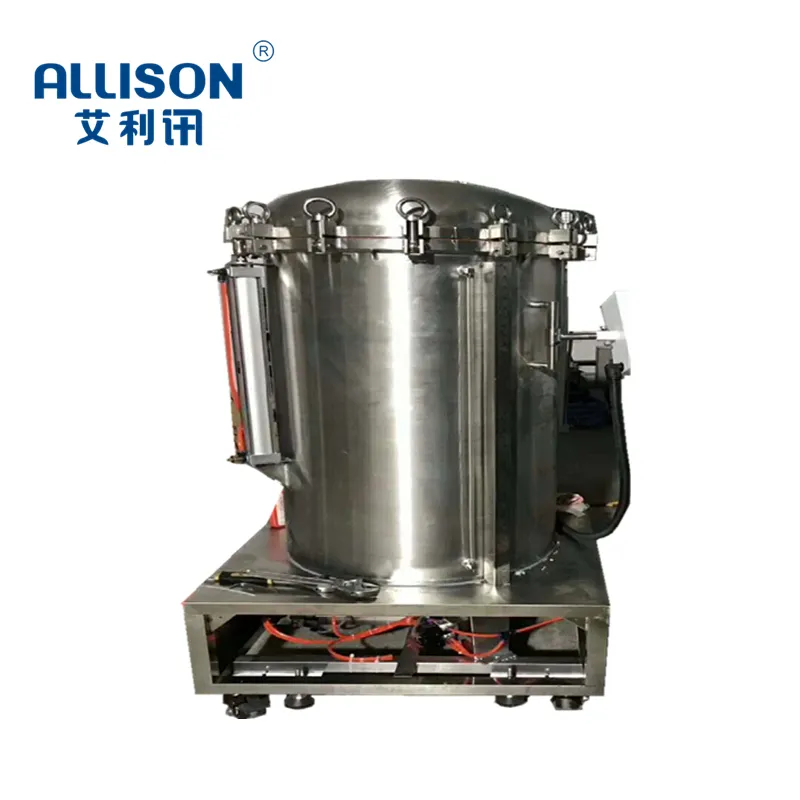

IPX7-IPX8 water immersion test box
The IP waterproof rating tester is designed and manufactured in accordance with the GB4208-2008<<Shell protection rating (IP code)>> standard requirements. This equipment is widely used in lamps, electrical and electronic, military products, certification and testing institutions and quality control departments of manufacturers IPX7, IPX8 waterproof level detection.
Specific parameters:
1. Box body size: D800×H1000mm. (The size is designed according to customer samples)
2. Equipment structure: 304 stainless steel water tank with scaled plexiglass window in front of the water tank.
3. Liquid level control: float switch
4. Ruler length: 1000mm, accuracy 1mm.
5. The box body is reinforced with stainless steel square tube.
6. Pressure adjustment range: 0~1.5Mpa.
7. Pressurization system: stainless steel water pump + frequency converter.
8. The pressure gauge has an accuracy of 0.25 grade and a measuring range of 1.6Mpa.
9. Test time: 0-999min.
10. Maximum ultimate pressure: 1.6Mpa.
11. Pressure protection: pressure switch protection.
12. Control method: mechanical/Mitsubishi PLC control
13. Power supply: 220V 1.5KW
------------------------------------------------------------------
The IP waterproof rating tester is designed and manufactured in accordance with the GB4208-2008<<Shell protection rating (IP code)>> standard requirements. This equipment is widely used in lamps, electrical and electronic, military products, certification and testing institutions and quality control departments of manufacturers IPX7, IPX8 waterproof level detection.
Specific parameters:
1. Box body size: D800×H1000mm. (The size is designed according to customer samples)
2. Equipment structure: 304 stainless steel water tank with scaled plexiglass window in front of the water tank.
3. Liquid level control: float switch
4. Ruler length: 1000mm, accuracy 1mm.
5. The box body is reinforced with stainless steel square tube.
6. Pressure adjustment range: 0~1.5Mpa.
7. Pressurization system: stainless steel water pump + frequency converter.
8. The pressure gauge has an accuracy of 0.25 grade and a measuring range of 1.6Mpa.
9. Test time: 0-999min.
10. Maximum ultimate pressure: 1.6Mpa.
11. Pressure protection: pressure switch protection.
12. Control method: mechanical/Mitsubishi PLC control
13. Power supply: 220V 1.5KW
------------------------------------------------------------------
Rain drop pendulum test machine
This set of equipment can meet the IPX3, IPX4, waterproof level tests and equivalent waterproof test methods specified in GB4208 IEC60529 GB7000.1 "Enclosure Protection Level".
The main technical parameters:
1. Model: QX-P3-4A;
2. Pendulum tube half warp: 400/600/800/1000/1200/1400/1600
3. Spray hole: Φ0.4; distance between two holes: 50mm;
4. The swing range of the pendulum tube: ±0--170°
5. Outer diameter of pendulum tube: Φ20mm (stainless steel);
6. Pendulum tube height: the center of the pendulum tube is 1.4m away from the ground;
7. Rain water pressure: 50--300kpa (adjustable);
8. Water flow: displayable
9. Test bench: turntable 300-500mm; speed: 1~17r/min
10. Control mode: mechanical/Mitsubishi PLC control
11. Power supply voltage: AC220V, 4.5KW
12. Equipment size: 2000 X 1200 X 1650 Unit: MM
------------------------------------------------------------------
This set of equipment can meet the IPX3, IPX4, waterproof level tests and equivalent waterproof test methods specified in GB4208 IEC60529 GB7000.1 "Enclosure Protection Level".
The main technical parameters:
1. Model: QX-P3-4A;
2. Pendulum tube half warp: 400/600/800/1000/1200/1400/1600
3. Spray hole: Φ0.4; distance between two holes: 50mm;
4. The swing range of the pendulum tube: ±0--170°
5. Outer diameter of pendulum tube: Φ20mm (stainless steel);
6. Pendulum tube height: the center of the pendulum tube is 1.4m away from the ground;
7. Rain water pressure: 50--300kpa (adjustable);
8. Water flow: displayable
9. Test bench: turntable 300-500mm; speed: 1~17r/min
10. Control mode: mechanical/Mitsubishi PLC control
11. Power supply voltage: AC220V, 4.5KW
12. Equipment size: 2000 X 1200 X 1650 Unit: MM
------------------------------------------------------------------
