IEC60529 Standard Lab Ipx3ipx4 Water Shower Test Machine
IEC60529 Standard Lab Ipx3ipx4 Water Shower Test MachineDecriptionwater rain spray test chamber simulates the watet drip environment to test the water resistance and sealing of thesamples during storage, transportation and usage. It is widely applied to electrical and electronic products, lamps and ......
Send Inquiry
Product Description

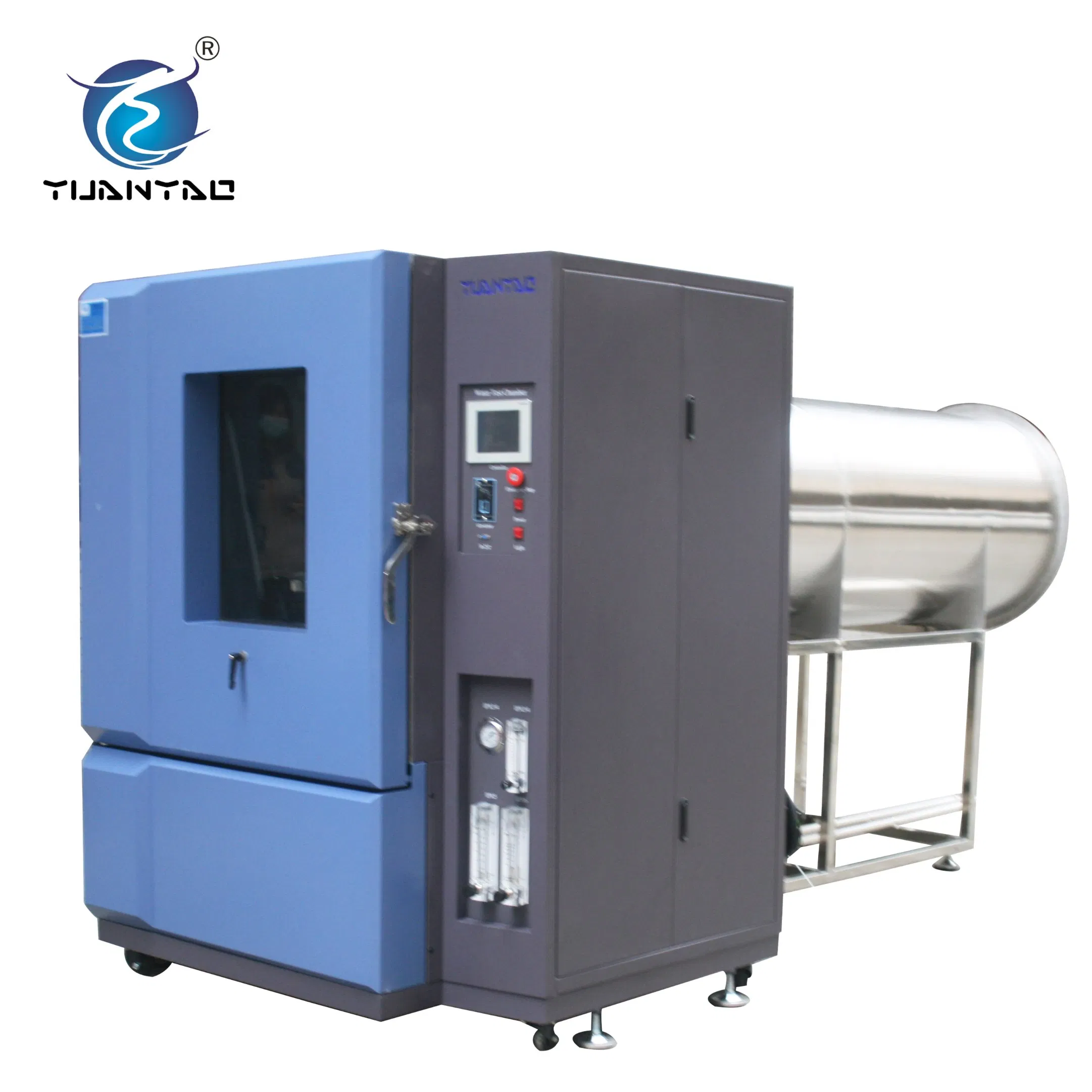

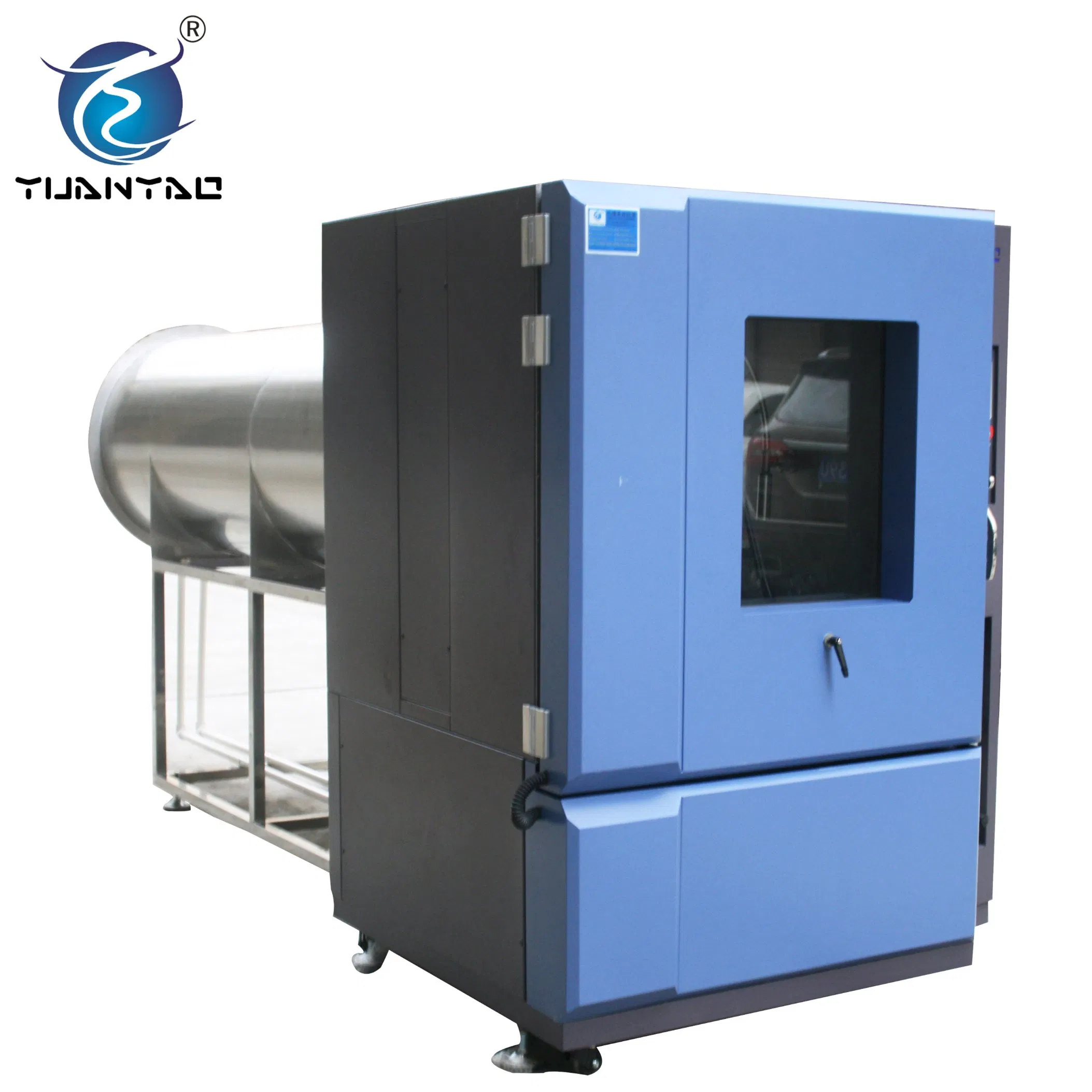

IEC60529 Standard Lab Ipx3ipx4 Water Shower Test Machine
Decription
water rain spray test chamber simulates the watet drip environment to test the water resistance and sealing of the
samples during storage, transportation and usage. It is widely applied to electrical and electronic products, lamps and lanterns, electrical cabinet,
electrical components, automobile, motorcycle and its spare parts and other products. It provides the basis to improve the performance of the products.
Features:

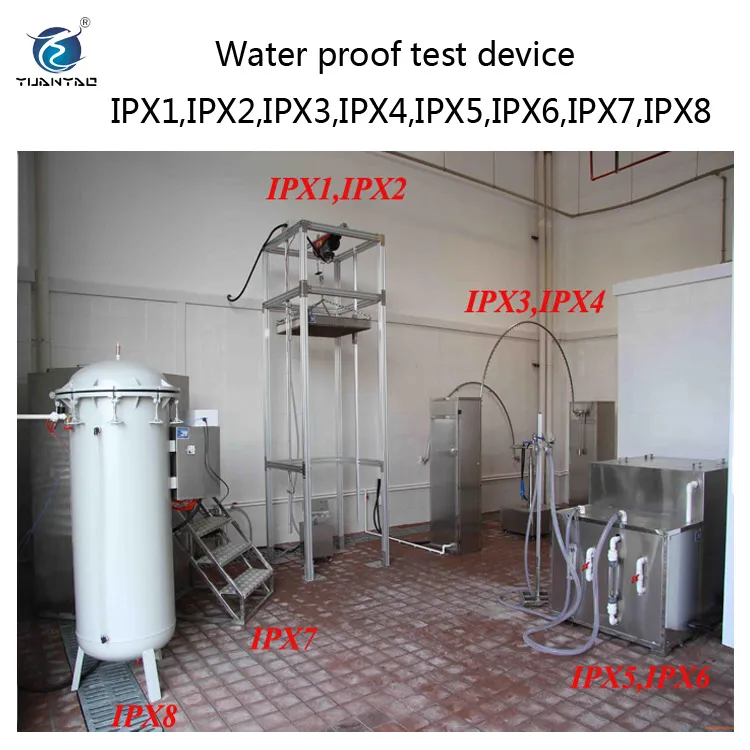

1. Comply with requirement of IEC60529 standard IPX1 to IPX6 water sproof test.

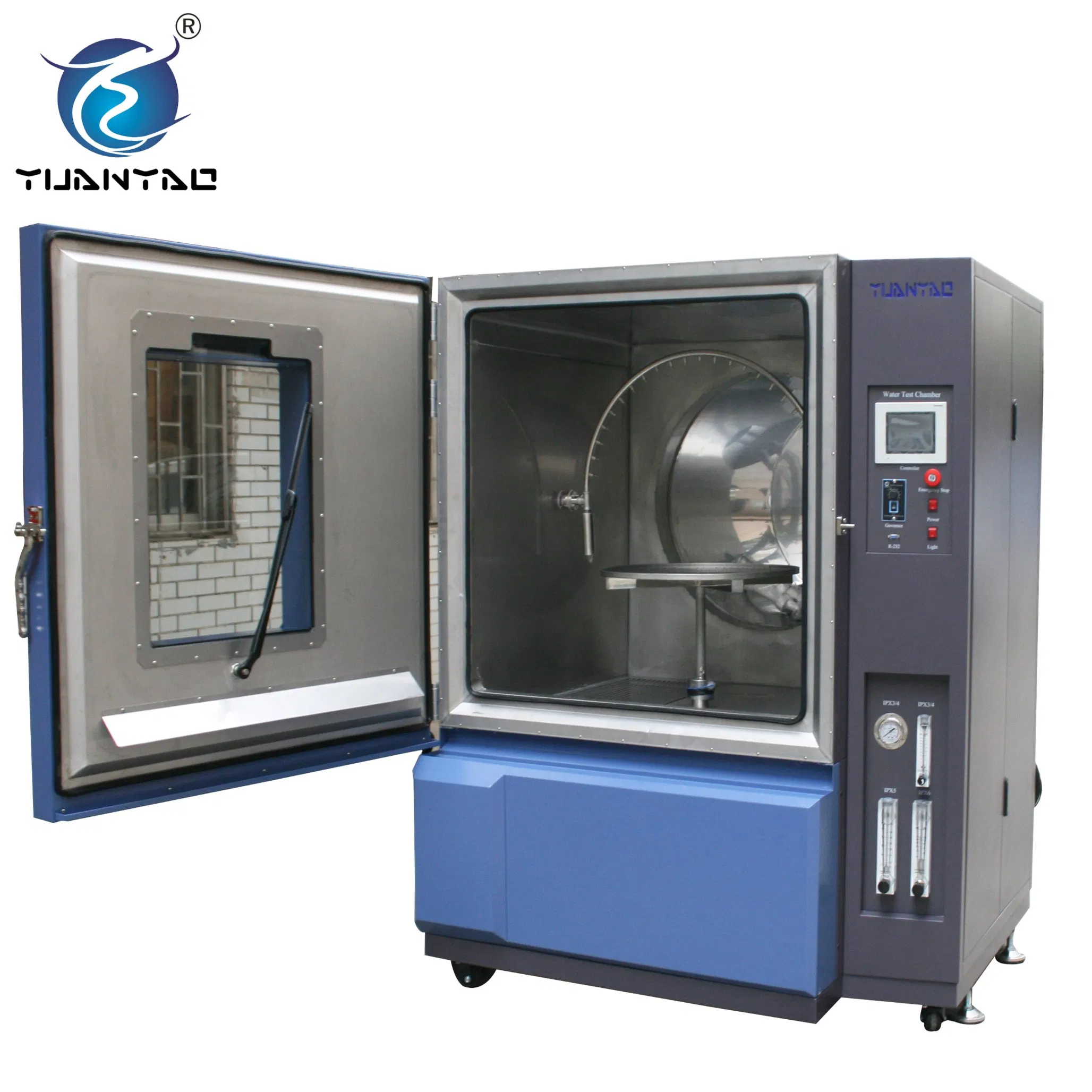

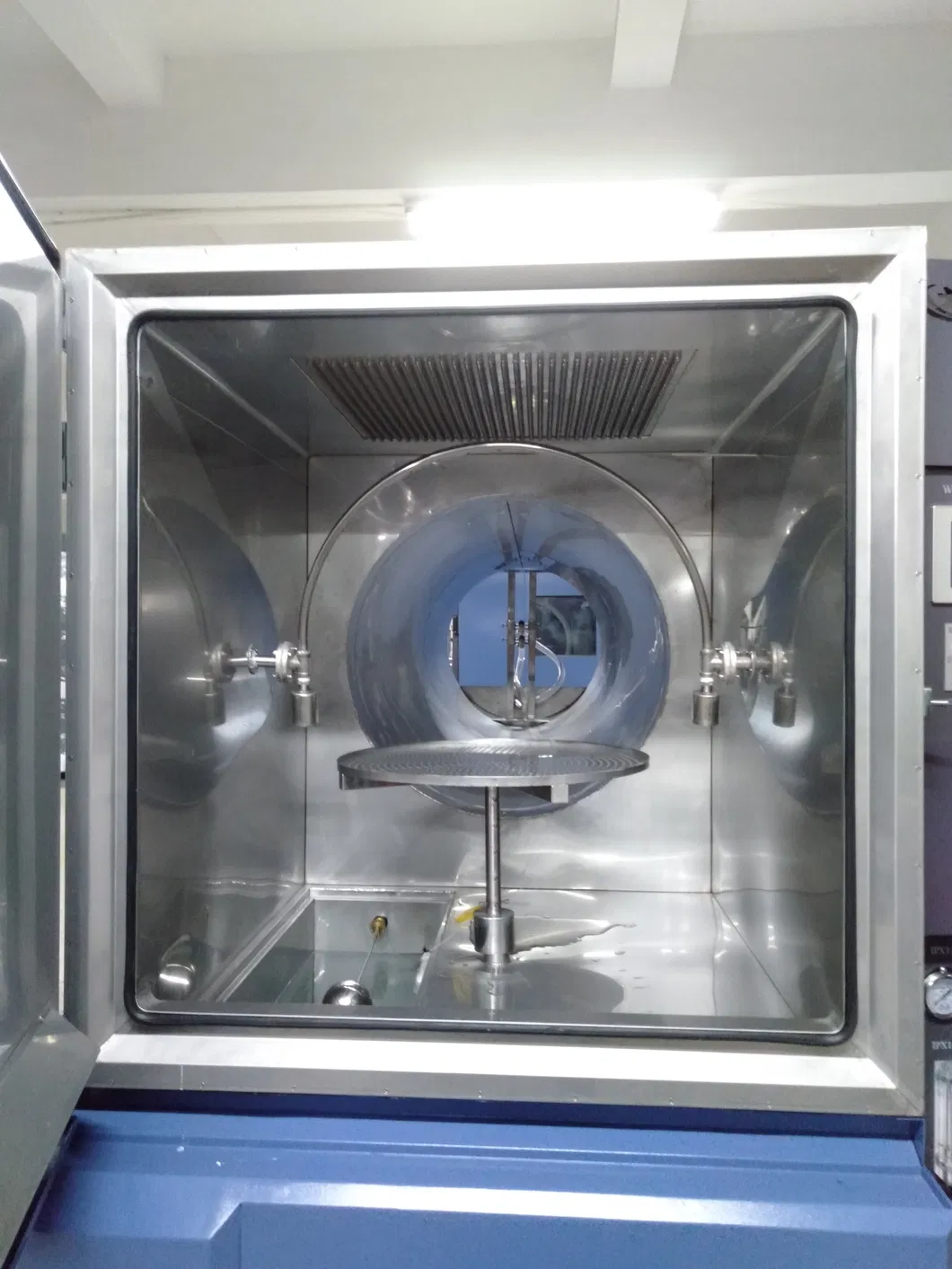

2. Chamber type structure: chamber body is consisted of test area and mechanical room, IPX5&IPX6 water flush
channel is installed at the back of the chamber body.
3. SUS 304 S.S plate material for inner chamber , cold rolled sheet with white coated color for external chamber,
other parts touched to water is made of stainless steel materials or anti corrosion materials.

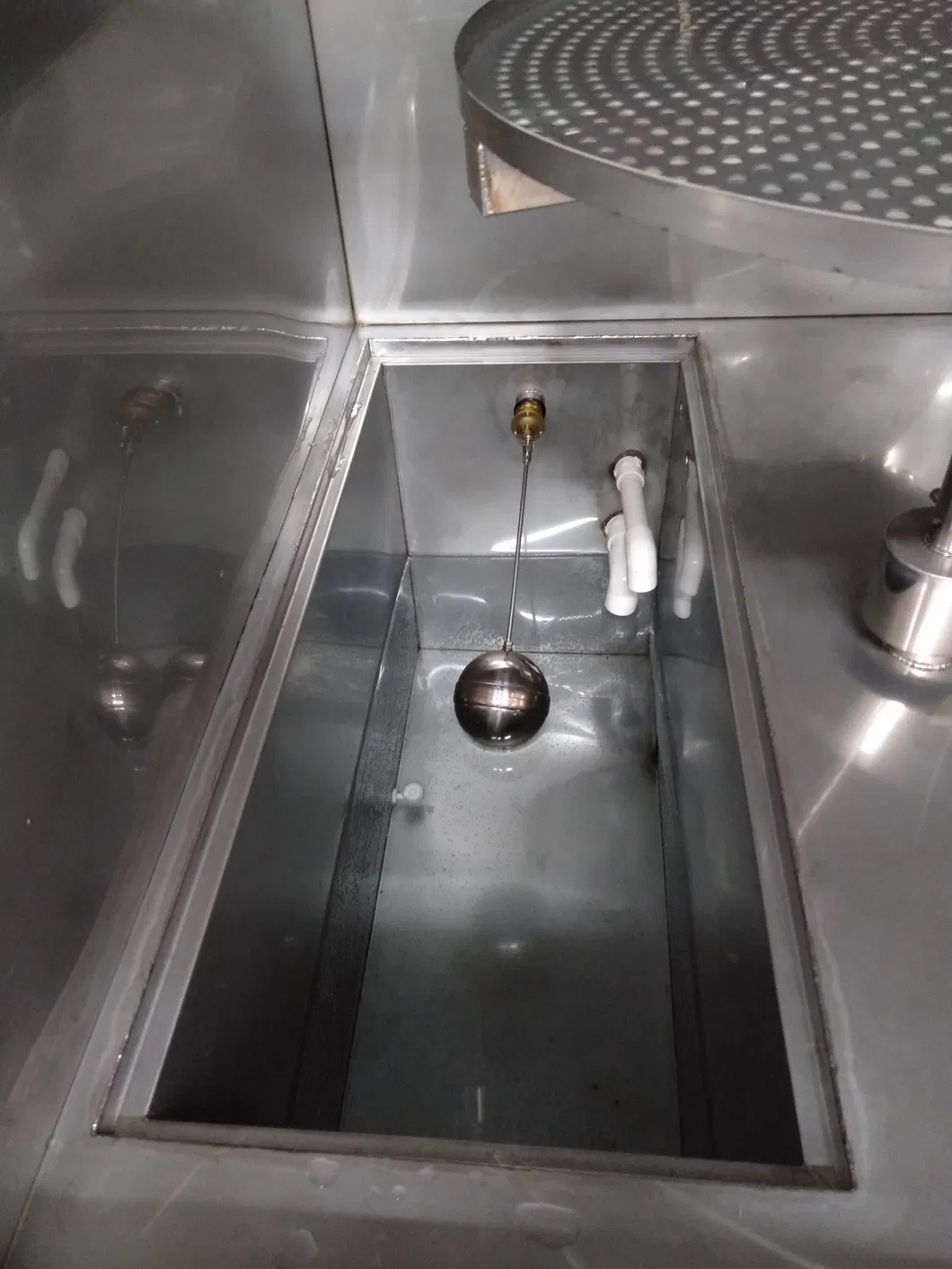

4. Water cycle system: burn-in water tank. Use pressure relief valve to drain the extra water.
5. Tempered glass observation window
6 Best after sales service: One year free parts maintenance, extending warranty is available.
7 Customization is available & welcomed.
Products details:
Technical data
In addition to water rain spray test chamber, we are also manufacturing:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Other styles / size with different configurations are available upon request, welcome to enquire and purchase!
Company profile
If you have any question,please feel free to contact us.
We are here waiting for you !
Decription
water rain spray test chamber simulates the watet drip environment to test the water resistance and sealing of the
samples during storage, transportation and usage. It is widely applied to electrical and electronic products, lamps and lanterns, electrical cabinet,
electrical components, automobile, motorcycle and its spare parts and other products. It provides the basis to improve the performance of the products.
Features:
1. Comply with requirement of IEC60529 standard IPX1 to IPX6 water sproof test.
2. Chamber type structure: chamber body is consisted of test area and mechanical room, IPX5&IPX6 water flush
channel is installed at the back of the chamber body.
3. SUS 304 S.S plate material for inner chamber , cold rolled sheet with white coated color for external chamber,
other parts touched to water is made of stainless steel materials or anti corrosion materials.
4. Water cycle system: burn-in water tank. Use pressure relief valve to drain the extra water.
5. Tempered glass observation window
6 Best after sales service: One year free parts maintenance, extending warranty is available.
7 Customization is available & welcomed.
Products details:
Technical data
| Water proof test chamber | ||||
| Model | YSRT-512 | YSRT-1000 | YSRT-1728 | |
| Test area size W×H×D(cm) | 80×80×80 | 100×100×100 | 120×120×120 | |
| Exterior chamber size W×H×D(cm) | 125×180×340 | 145×200×360 | 165×220×380 | |
| Rain drop area (IPX1-IPX2) | 60×60cm | 60×60cm,80×80cm | 80×80cm,100×100cm | |
| Swing pipe radius(IPX3-IPX4) | 30cm | 40cm | 50cm | |
| Rotary table diameter&load | 50cm,50KG | 60cm,50KG | 80cm,50KG | |
| Spray nozzle and diameter& jet distance (IPX5-IPX6) | 6.3mm(IPX5),12.5mm(IPX6); 2.5~3m | |||
| Water flow and jet distance (IPX5-IPX6) | 1~5r/min(IPX1),3~3.5mm/min(IPX2); 1.1L/min(IPX4); 12.5L±0.625L/min(IPX5);100±5L/min(IPX6) | |||
| Rotating speed of rotary table | 1~5r/min,adjustable | |||
| Material | External chamber | SUS#304 Stainless steel plate | ||
| Inner chamber | Cold rolled sheet + powder coating | |||
| Other components | Indoor light,wiper, caster adjuster | |||
| Power supply | AC 3ψ 380V 60/50Hz, | |||
| Customization service | No-standard or special requirements are all welcome | |||
In addition to water rain spray test chamber, we are also manufacturing:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Other styles / size with different configurations are available upon request, welcome to enquire and purchase!
