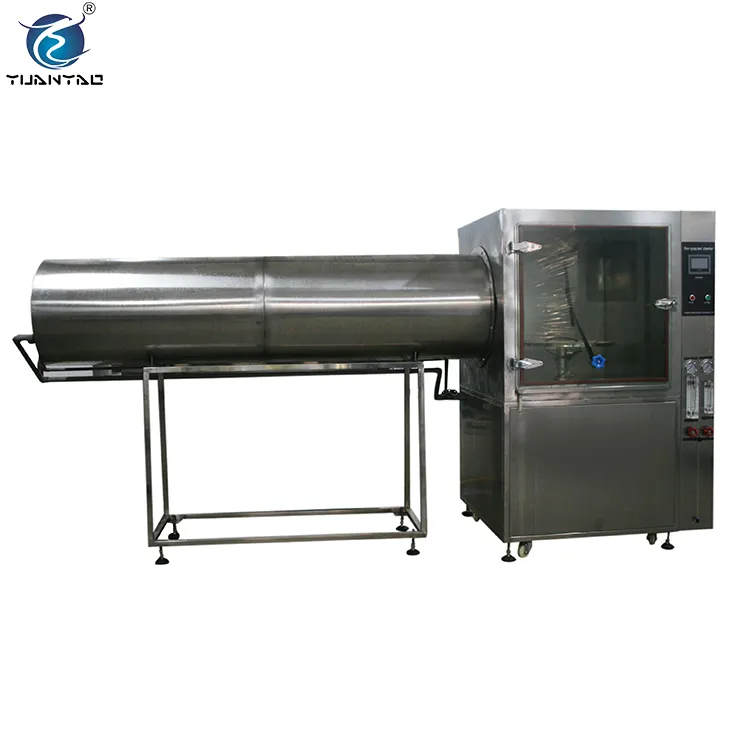

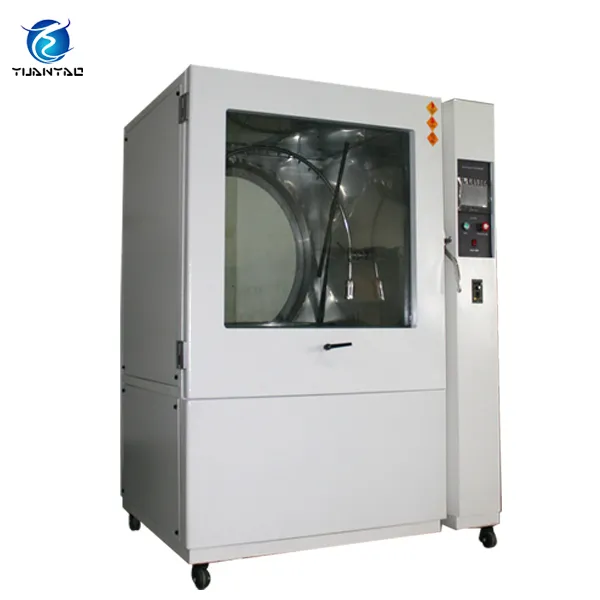

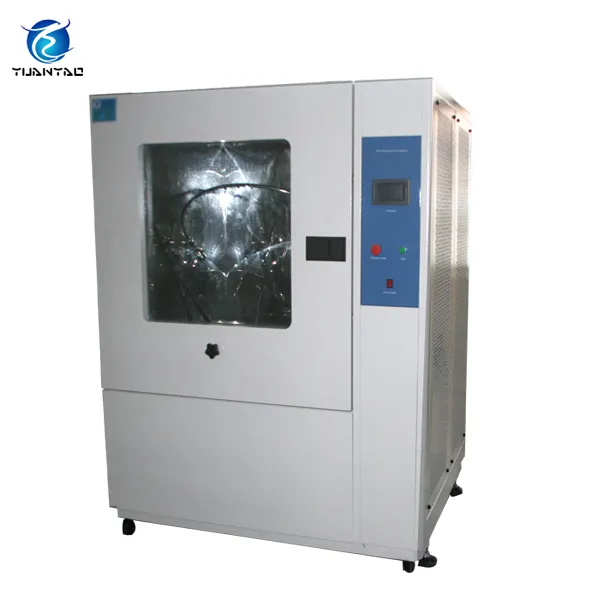

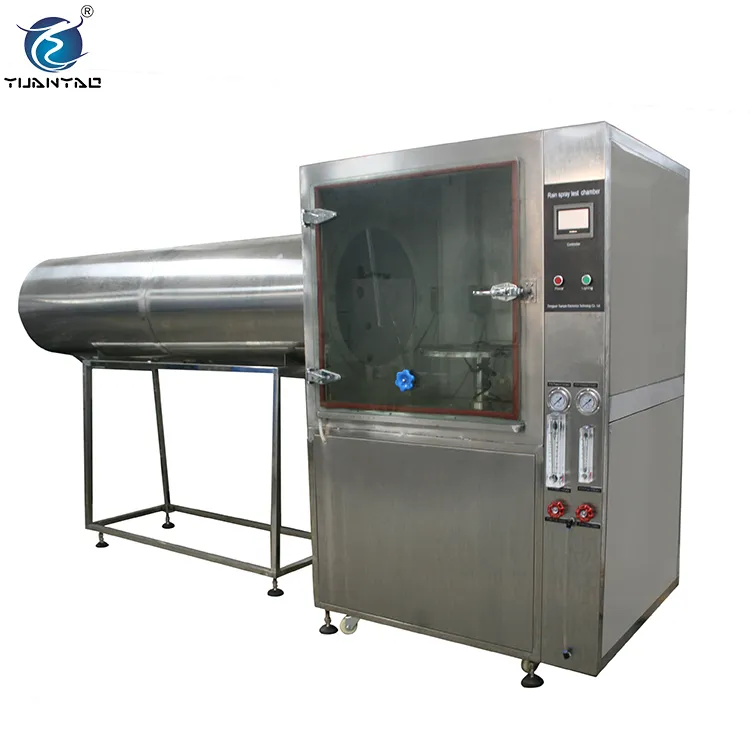

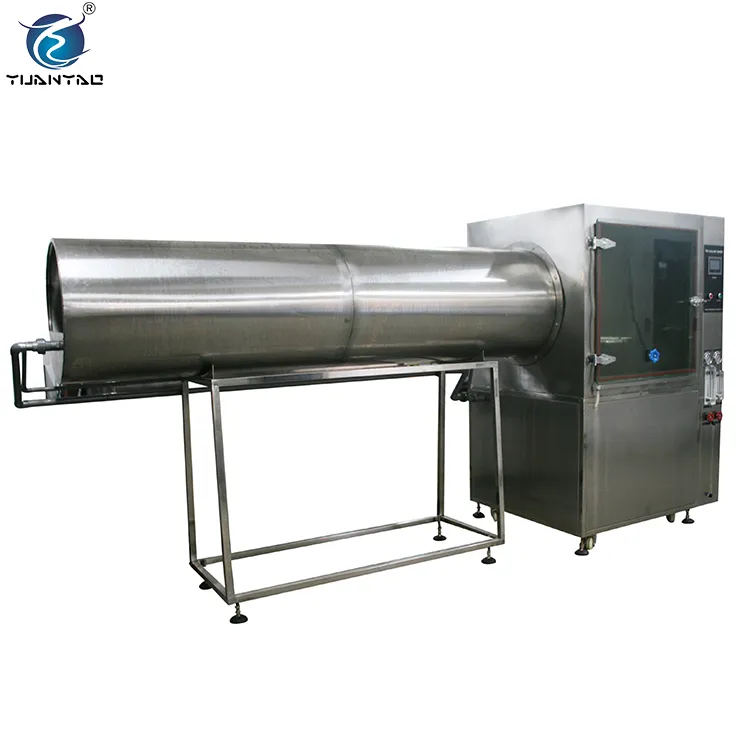

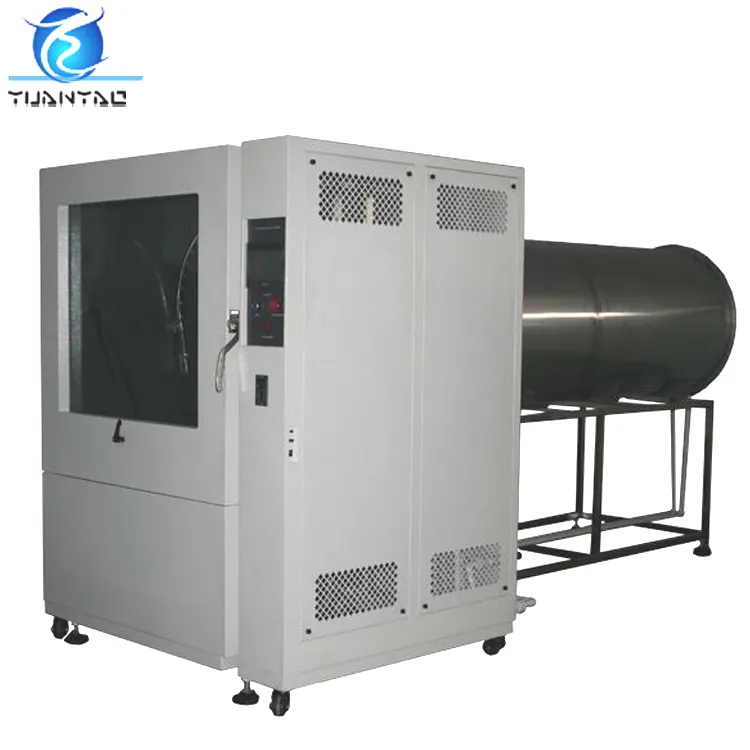

IEC60529 Water Resistance Spray Test Equipment for Leather Testing

Product Description

IEC60529 Water Resistance Spray Test Equipment for Leather Testing

Application
The waterproof test chamber is suitable for external lighting and signaling devices and automotive lamp housing protection, and can provide various environments for realistic simulation of electronic products and their components that may be subjected to water spray and spray tests during transportation and use. In order to achieve the waterproof performance of various products.Rain test chamber mainly applies to communications products, auto parts (such as automotive rear-view mirror, car audio, automotive electronics, automotive lighting, car lights, motorcycle lamps, motorcycle mirrors), outdoor lighting and signaling devices.

Package ang Delivery
Package: Strong wooden cases, meet the international standard.
Delivery details: In 15-20 working days.

IEC60529 Water Resistance Spray Test Equipment for Leather Testing

Specification
1. Digital electronic controller
2. With viewing glass
3. Protection: IP
4. Excellent performance
5 Easy operation
6.. Internal material: SUS#304
7. High quality, good performance
8. Protection: IP

Feature
1. Digital setting, operating easy, maintenance quickly.
2. Design consider auto maker's sand electronic industry testing.
3. Adopt large viewing glass can let operator see the specimen clearly.

IEC60529 Water Resistance Spray Test Equipment for Leather Testing

Technicial parameters

Model		YSRT-1728-A		YSRT-1728-E(IEC-529)(CNS14165)
Internal Dim.W×H×D(mm)		1200×1200×1200		1200×1200×1200
External Dim.W×H×D(mm)		1750×1850×1300		1750×1850×1300
Water Temp.		Normal		Normal
Spray Type	Total Water Flow(L/min)	R1	1.8	IP×1	With in 1~1.5mm/min(In drip box)
		R2	3.2	IP×2	With in 3~3.5mm/min(In drip box)
		S1	24.5	IP×3	angle±600,R:400mm,1.1L/min
		S2	39.2	IP×4	angle±1800,R:400mm,1.8L/min
	Pressure of spray nozzle(kgf/cm*2)	R1	0.1	1.Flow rate of the water=0.07L/min 2.1P×3,Radius:400mm,16Number or open holes=16,total water flow:1:1L/min. 3.1P×4,Radius:400mm,25Number or open holes=25,total water flow:1:8L/min. *Radius:200mm,R400mm. (For 1P×3,1P×4 only)
		R2	0.3
		S1	1
		S2	3

(RPM)Test Specimen Frame		17RMP		1RPM
Spray Nozzle Rotation Speed		23RPM		Promote the pipe on both sides of the vertical line of 30 ° each time back and forth about four seconds to promote Swing 60 ° from vertical for 4 seconds at one time Promote the pipe on both sides of the vertical line of 180 ° for about 12 seconds to promote one round Swing 180 ° from vertical for 12 seconds at one time





Material	Interior	SUS#304
	Exterior
Other Components		Chamber lamp.Wiper casters with Adjusters		Chamber lamp.Wiper,casters with Adjusters

Power Source(K.W.)		AC 1Ψ 220V 60/50Hz 4KW
