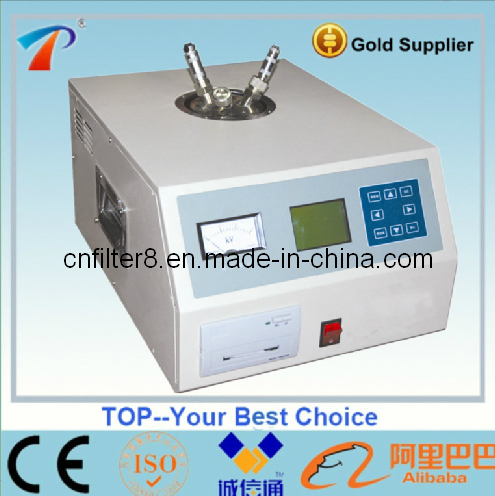

Insulation Oil Dielectrid Loss Tester (DLT-0820)

Insulating oil Tan Delta tester (DLT-0820)
1. High quality, portable, easy to use
2. Compact and ultra-light
3. Meet IEC

Oil dielectric loss tester based on IEC and the relevant provisions of the state, to play their own technological superiority, and carefully developed high-precision, digital instrumentation. The apparatus uses high-frequency induction heating, even heating, fast temperature rise speed, short time. The microprocessor control and calculation, realize automation, capacitance and dielectric loss of high measuring precision, stability, good repeatability of data. Output voltage of 0 ~ 2000V is continuous and adjustable, suitable for different sample the voltage level required. Widely used in transformer oil, capacitor oil and cable oil dielectric loss measurement.

Two, safety measures
1, the use of the apparatus before must carefully read this manual.
2, the operator should have the general electrical equipment or instruments to use common sense.
3, the instrument should avoid vibration.
4, the apparatus must be grounded reliably, to prevent the risk of electric shock.
5, after the test, press the reset button, turn off the power switch, and is charged each test cable and replace the oil sample.
6, equipment maintenance, must not in the case of electricity, or high risk.
7, prohibit the empty cup if heating, heating temperature, must be added to the measurement of dielectric loss of oil and oil

Three, performance characteristics
1, using electromagnetic induction heating technique, even heating, fast temperature rise speed, short time.
2, the output voltage 500V ~ 2000V is continuous and adjustable, suitable for different sample the voltage level required.
3, the temperature control is accurate, is not affected by environment temperature influence.
4, high measurement accuracy, stable, reproducible data.
5, a boot detection circuit, no grounding or earthing is not good to give a hint.
6, a short-circuit protection circuit, short circuit and high voltage output circuit.
Four, technical indicators
1, measurement range: Capacitance: 1pF ~ 200pF
Dielectric loss: 0 ~ 10%
2, measurement precision:
Capacitance: + ( 0.5% C+1pF )
Dielectric loss: + ( 1% D+0.00008 )
3, resolution: : 0.01pF capacitor
Dielectric loss: 1 x 10-5
4, range of temperature: Room temperature to 100 DEG C.
5: + / - 0.5 DEG C, the precision of temperature control
6, the output voltage: 0 ~ 2000V continuously adjustable
7, a working power supply: AC220V + 10% 50HZ
8, the use of temperature: 0 ~ 40
9, the relative humidity: Less than or equal to 90% without dew
10, heavy weight: 10kg
