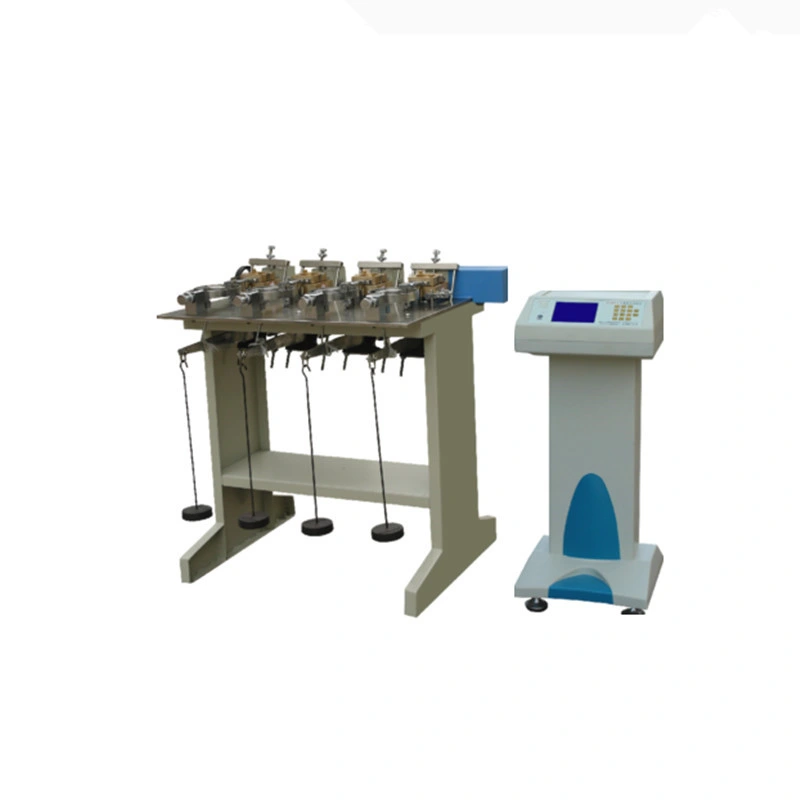

Intelligent Electric Tetragenous Direct Shear Testing Apparatus
STSJ-5A Digital Shear Testing MachineASTM D3080, BS 1377:7 , AASHTO T236 NF P094071-1/21.Application:This apparatus is used to test resisting shear strength of soil specimen. It usually adopts four specimens under the different vertical pressure exerted on the specimens to obtain shear stress when ......
Send Inquiry
Product Description
STSJ-5A Digital Shear Testing Machine
ASTM D3080, BS 1377:7 , AASHTO T236 NF P094071-1/2
1.Application:
This apparatus is used to test resisting shear strength of soil specimen. It usually adopts four specimens under the different vertical pressure exerted on the specimens to obtain shear stress when the specimen is destroyed
This apparatus is used to determine the shearing strength of the soil. Generally, to shear four specimens with horizontal shear force under different vertical pressure respectively, obtain the shearing strength when the soil specimen destructed, then according to the Coulomb law to determine the anti-shear strength coefficient, internal friction angle and cohesive force.
2.Features: Stainless steel working table, stepping motor as pushing mechanism, high precision, low noise, MCU control, variable speed displayed by the controller, easy to operate, ABS vertical type controller, LCD display.
3.Technical Parameters:
ASTM D3080, BS 1377:7 , AASHTO T236 NF P094071-1/2
1.Application:
This apparatus is used to test resisting shear strength of soil specimen. It usually adopts four specimens under the different vertical pressure exerted on the specimens to obtain shear stress when the specimen is destroyed
This apparatus is used to determine the shearing strength of the soil. Generally, to shear four specimens with horizontal shear force under different vertical pressure respectively, obtain the shearing strength when the soil specimen destructed, then according to the Coulomb law to determine the anti-shear strength coefficient, internal friction angle and cohesive force.
2.Features: Stainless steel working table, stepping motor as pushing mechanism, high precision, low noise, MCU control, variable speed displayed by the controller, easy to operate, ABS vertical type controller, LCD display.
3.Technical Parameters:
| Model | STSJ-5A |
| Vertical Load | Max. 400KPa |
| Pressure Grade | 50KPa,100KPa, 200KPa, 300KPa, 400KPa |
| Lever Ratio | 1:12 |
| Shear Cell | 4 |
| Horizontal Shear Force | Max. 1.2KN |
| Specimen Area | 30 (cm2) * 2 cm (H) |
| Speed | 0.01~25mm/min |
| Power Supply | 220V, 50Hz |
| Main frame measurement | 1160x900x1160mm |
| Controller | 500x500x1020mm |
| Weight | 240 KG |
