IP Code Enclosure Protective Level Waterproof Test Machine

Product Description

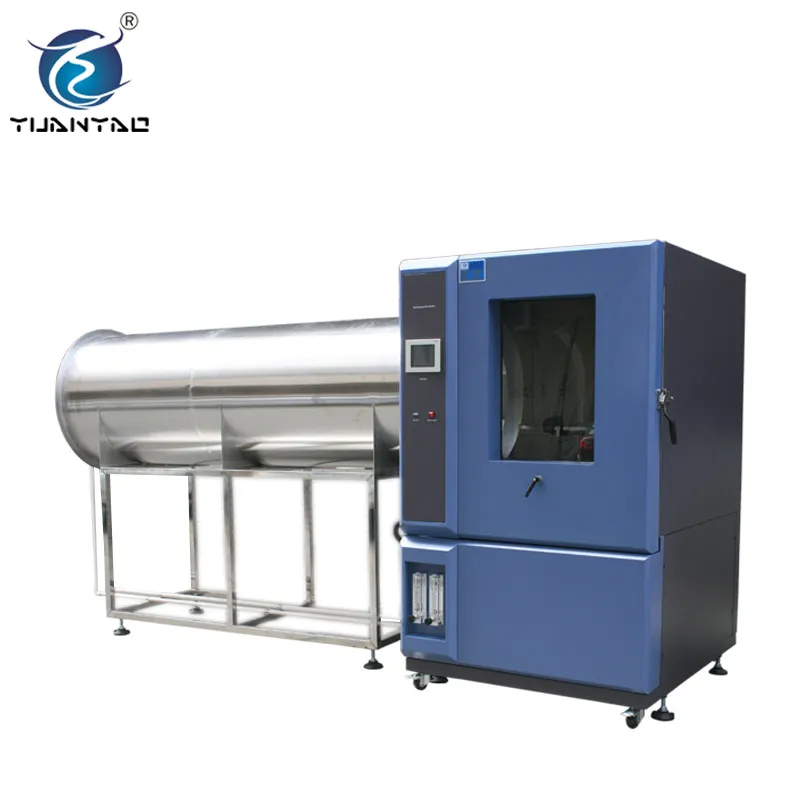

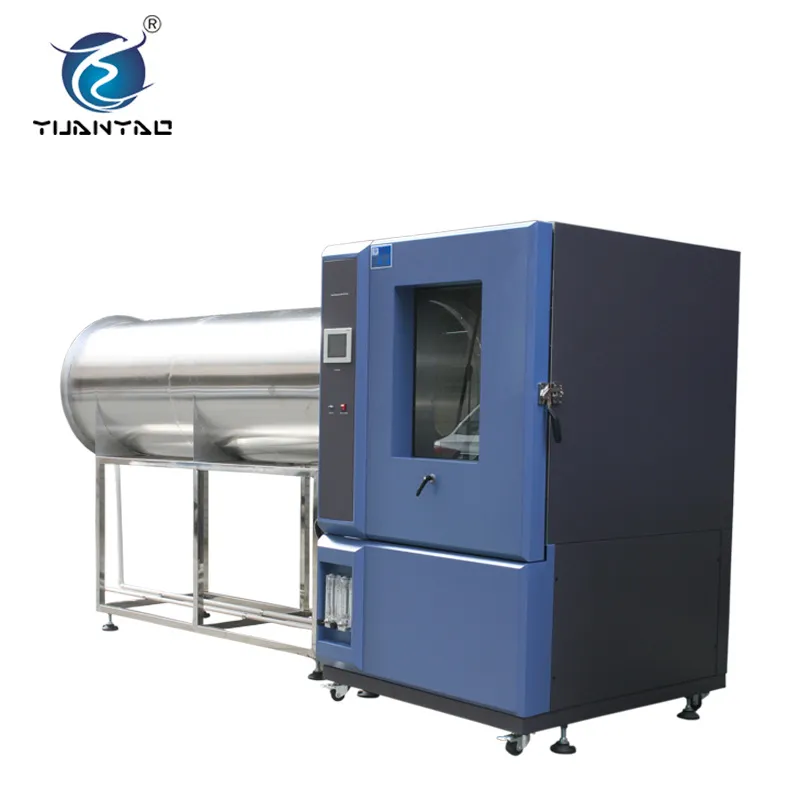

IP Code Enclosure Protective Level Waterproof Test Machine

Decription

water rain spray test chamber simulates the watet drip environment to test the water resistance and sealing of the
samples during storage, transportation and usage. It is widely applied to electrical and electronic products, lamps and lanterns, electrical cabinet,
electrical components, automobile, motorcycle and its spare parts and other products. It provides the basis to improve the performance of the products.

Features:

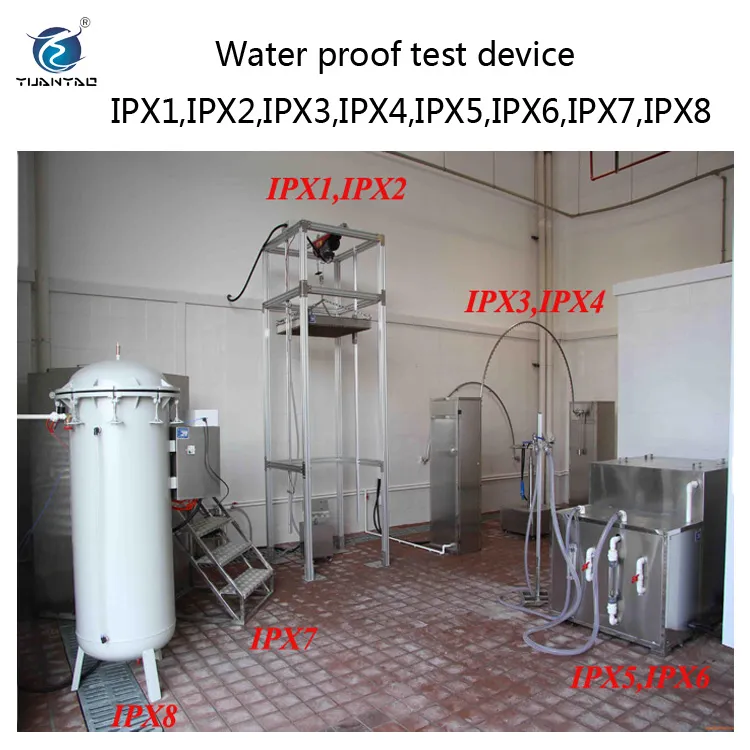

1. Comply with requirement of IEC60529 standard IPX1 to IPX6 water sproof test.

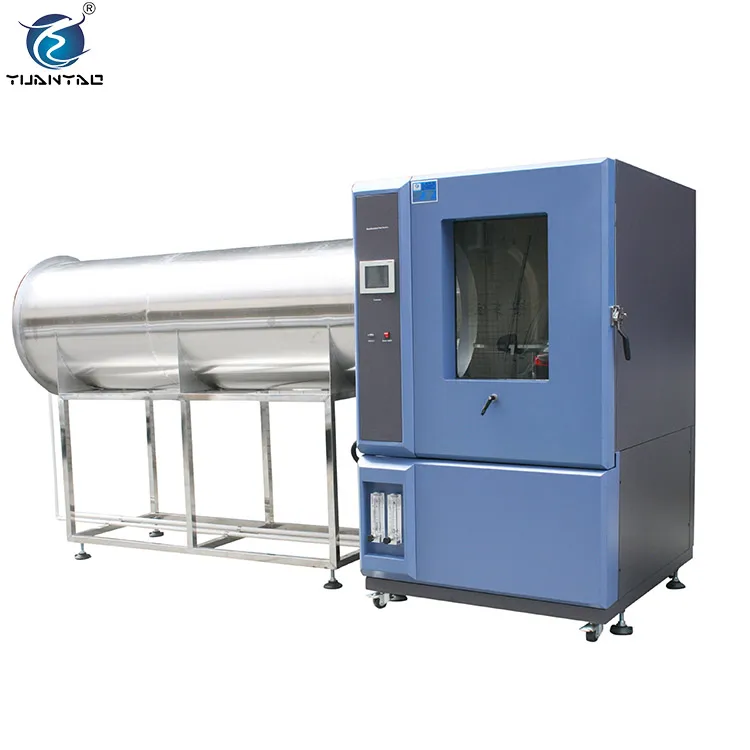

2. Chamber type structure: chamber body is consisted of test area and mechanical room, IPX5&IPX6 water flush
channel is installed at the back of the chamber body.

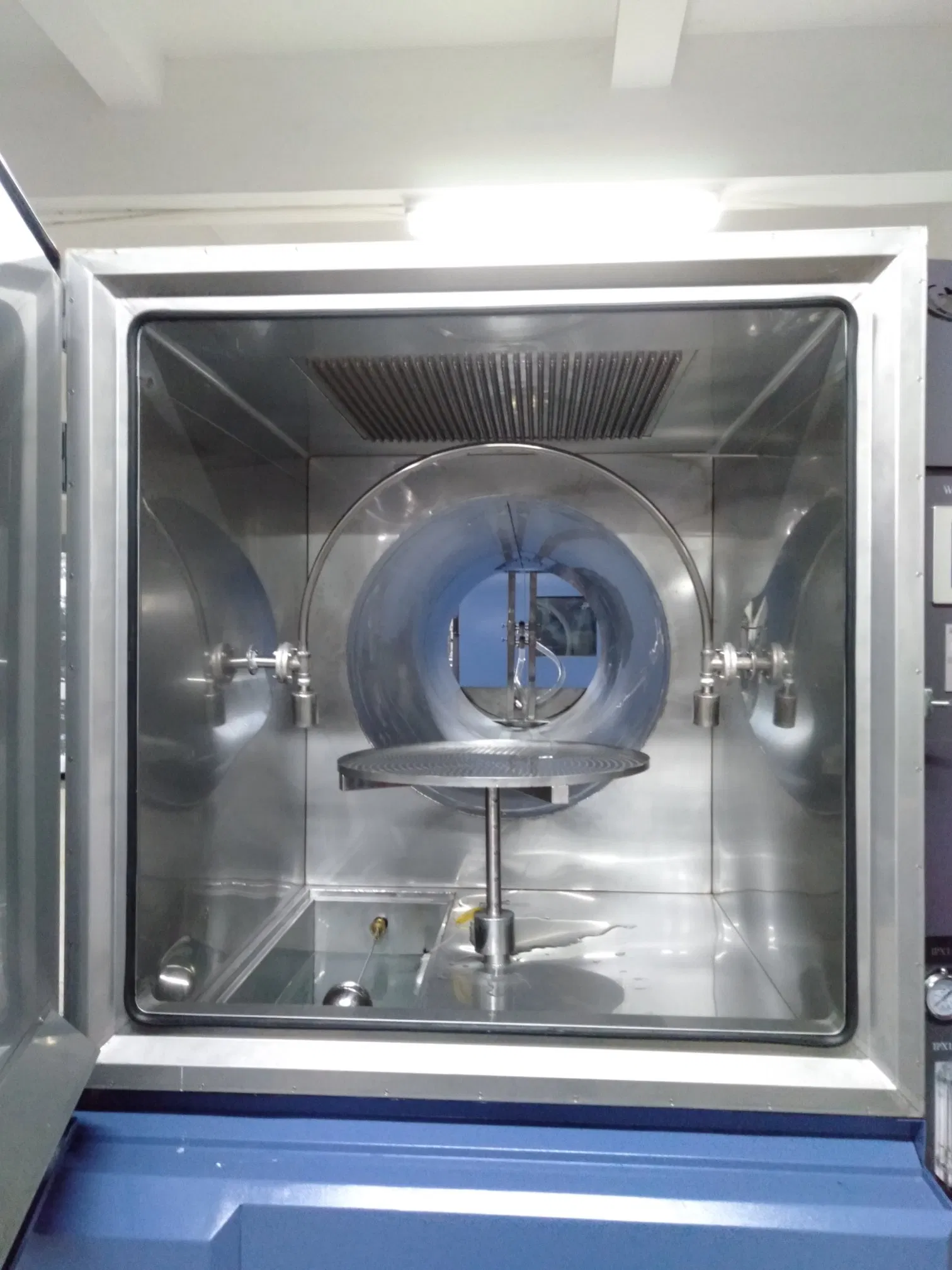

3. SUS 304 S.S plate material for inner chamber , cold rolled sheet with white coated color for external chamber,
other parts touched to water is made of stainless steel materials or anti corrosion materials.

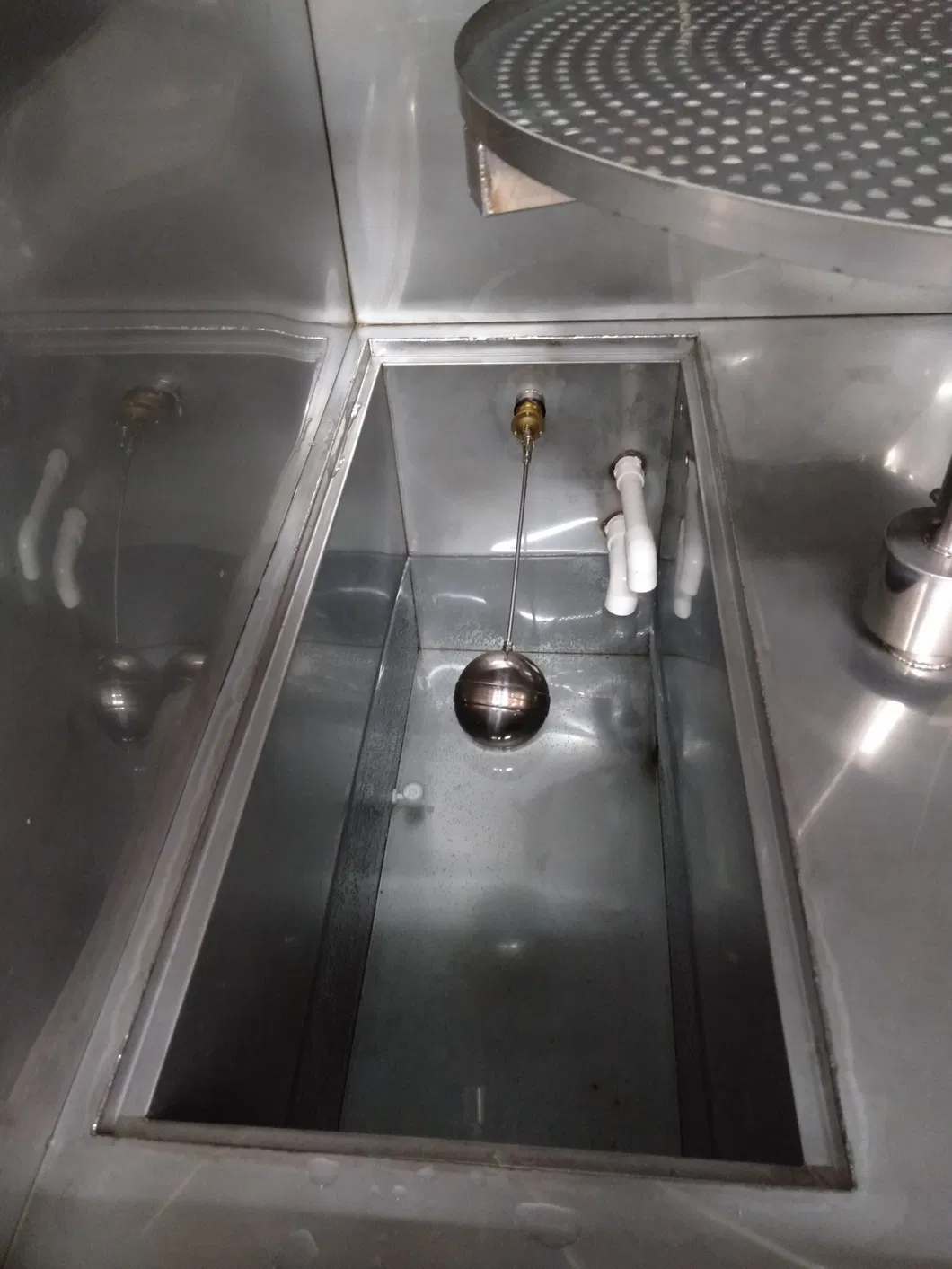

4. Water cycle system: burn-in water tank. Use pressure relief valve to drain the extra water.

5. Tempered glass observation window

6 Best after sales service: One year free parts maintenance, extending warranty is available.

7 Customization is available & welcomed.

Products details:
IP Code Enclosure Protective Level Waterproof Test Machine

Technical data

Major Specifications:
Model		YSRT-1728-A		YSRT-1728-E(IEC-529)(CNS14165)
Internal Dim.WHD(mm)		1200×1200×1200		1200×1200×1200
External Dim.WHD(mm)		1750×1850×1300		1750×1850×1300
Water Temp.		Normal		Normal
Spray Type	Total water flow(L/min)	R1	1.8	IP×1	With in 1--1.5mm/min(In drip box)
		R2	3.2	IP×2	With in 3--3.5mm/min(In drip box)
		S1	24.5	IP×3	angle±600,R:400mm,1.1L/min
		S2	39.2	IP×4	angle±1800,R:400mm,1.8L/min
	Preesure of spray nozzle (kgf/cm 2 )	R1	0.1	1.Flow rate of the water=0.07L/min 2.IP×3,Radius:400mm,Number or open holes=16,total water flow:1:1L/min. 3.IP×4,Radius:400mm,Number or open holes=25,total water flow:1:8L/min. *Radius:200mm,R400mm.(For IP×3,IPx4)
		R2	0.3
		S1	1
		S2	3
(RPM)Test Specimen Frame		17RPM		1RPM
Spray Nozzle Rotation Speed		23RPM		Swing 60°from vertical for 4 seconds at one time Swing 180°from vertical for 12 seconds at one time
Material	Interior	SUS#304
	Exterior
Other Components		Chamber lamp.Wiper casters with Adjusters		Chamber lamp.Wiper,casters with Adjusters
Power Source [K.W]		AC 1Ψ 220V 60/50Hz 4KW

In addition to water rain spray test chamber, we are also manufacturing:

Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.

Other styles / size with different configurations are available upon request, welcome to enquire and purchase!
