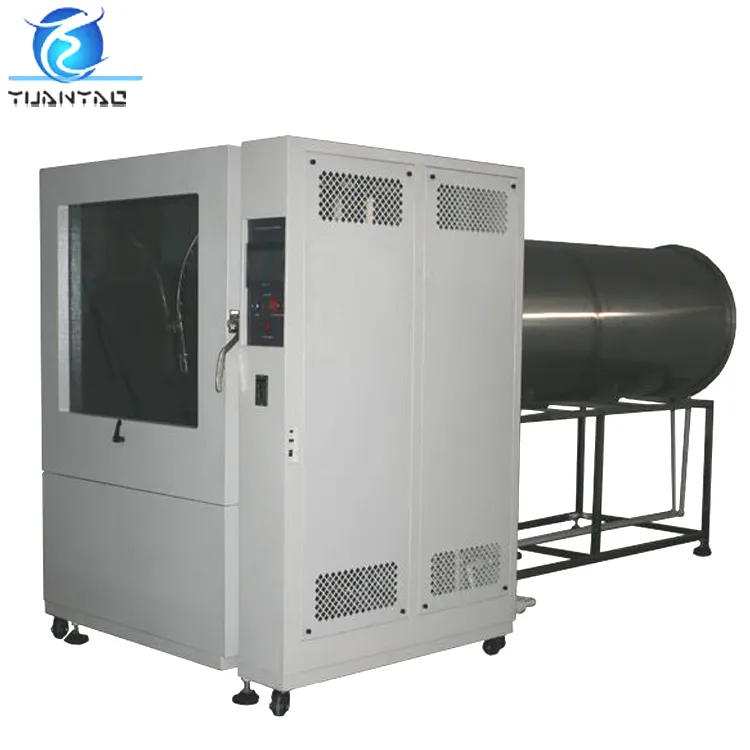

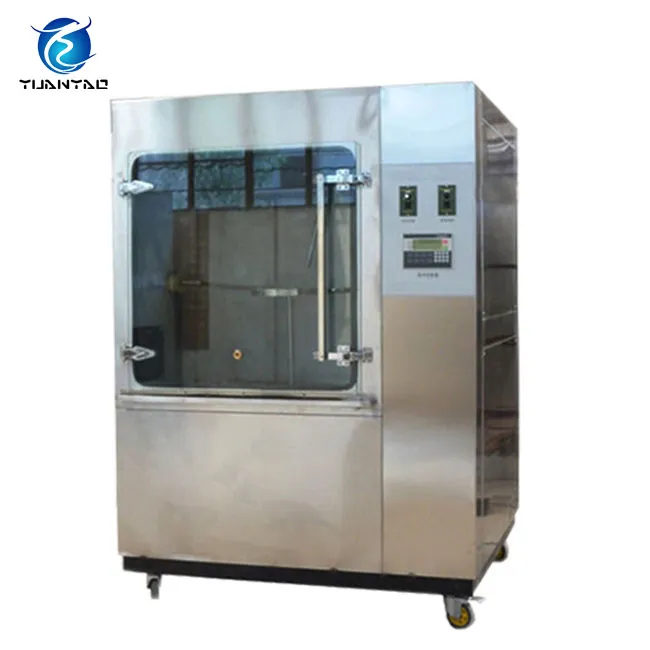

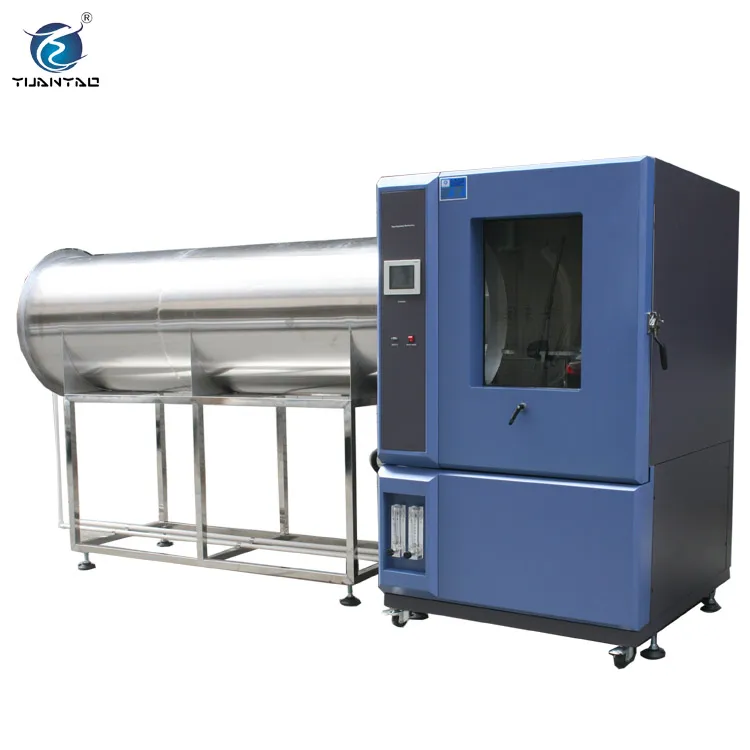

Ipx1~ Ipx8 IEC60529 Mobile Phone Water Resistance Test Chamber

Product Description

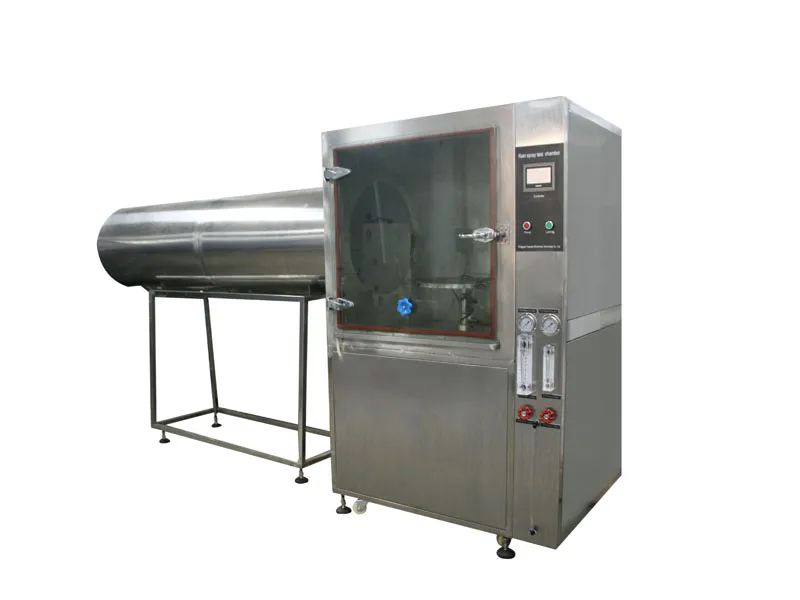

Ipx1~ Ipx8 IEC60529 Mobile Phone Water Resistance Test Chamber

Decriptions of water proof test chamber:
IP test IEC60529 water flush Test Chamber is mainly applies to communications products, auto parts (such as automotive rear-view mirror, car audio, automotive electronics, automotive lighting, car lights, motorcycle lamps, motorcycle mirrors), outdoor lighting and signaling devices. This chamber meets with the IEC60529 test standards. IPX1~IPX8 Ip class test is available for us.
Ipx1~ Ipx8 IEC60529 Mobile Phone Water Resistance Test Chamber

Package ang Delivery
Package: Strong wooden cases, meet the international standard.
Delivery details: In 15-20 working days.

Feature
1. Digital setting, operating easy, maintenance quickly.
2. This chamber is designed to test water-proofing properly of automobile and electronic parts.
3. Adopt large viewing glass can let operator see the specimen clearly.

Technicial parameter:

Model		YSRT-1728-A		YSRT-1728-E(IEC-529)(CNS14165)
Internal Dim.W×H×D(mm)		1200×1200×1200		1200×1200×1200
External Dim.W×H×D(mm)		1750×1850×1300		1750×1850×1300
Water Temp.		Normal		Normal
Spray Type	Total Water Flow(L/min)	R1	1.8	IP×1	With in 1~1.5mm/min(In drip box)
		R2	3.2	IP×2	With in 3~3.5mm/min(In drip box)
		S1	24.5	IP×3	angle±600,R:400mm,1.1L/min
		S2	39.2	IP×4	angle±1800,R:400mm,1.8L/min
	Pressure of spray nozzle(kgf/cm*2)	R1	0.1	1.Flow rate of the water=0.07L/min 2.1P×3,Radius:400mm,16Number or open holes=16,total water flow:1:1L/min. 3.1P×4,Radius:400mm,25Number or open holes=25,total water flow:1:8L/min. *Radius:200mm,R400mm. (For 1P×3,1P×4 only)
		R2	0.3
		S1	1
		S2	3

(RPM)Test Specimen Frame		17RMP		1RPM
Spray Nozzle Rotation Speed		23RPM		Promote the pipe on both sides of the vertical line of 30 ° each time back and forth about four seconds to promote Swing 60 ° from vertical for 4 seconds at one time Promote the pipe on both sides of the vertical line of 180 ° for about 12 seconds to promote one round Swing 180 ° from vertical for 12 seconds at one time





Material	Interior	SUS#304
	Exterior
Other Components		Chamber lamp.Wiper casters with Adjusters		Chamber lamp.Wiper,casters with Adjusters

Power Source(K.W.)		AC 1Ψ 220V 60/50Hz 4KW

Except IPX5 IPX6 IEC60529 street lights water flush Test Chamber, we also can supply:

1) Temperature/ humidity test series: Temperature humidity test chamber, Walk in environmental room, Thermal shock test chamber,
High altitude low pressure simulation test chamber

2) Aging test series: Hot air oven, Vacuum drying oven, Air ventilation aging test chamber, Steam aging test chamber, Ozone resistance test chamber, Burn in test equipment

3) Weather simulation tes series: Rain spray test chamber, dust test chamber, Xenon lamp aging test chamber, UV test chamer

4) Mechanical test series: High frequency vibration test machine, drop test machine , Glue dispensing machine etc.
