Ipx3/Ipx4 Water Spray Test Equipment for Testing Vehicles

Product Description

IPX3/IPX4 Water Spray Test Equipment for testing vehicles

Application

Water resisitance test chamber mainly applies to communications products, auto parts (such as automotive rearview mirror, car audio, automotive electronics, automotive lighting, car lights, motorcycle lamps, motorcyclemirrors),outdoor lighting and signaling devices.

Ipx3/Ipx4 Water Spray Test Equipment for Testing Vehicles

Package and Delivery
Package: Well package with strong wooden cases, meet the international standard.
Delivery details: In 15-25 working days.
Feature

1. Digital setting, operating easy, maintenance quickly.
2. Design consider auto maker's sand electronic industry testing.
3. Adopt large viewing glass can let operator see the specimen clearly.
4.Digital electronic controller
5.With viewing glass

Advantage
1 Easy operation
2 Internal material: SUS#304
3 High quality, good performance
4 Protection: IP

Specification

Model		YSRT-1728-A		YSRT-1728-E(IEC-529)(CNS14165)
Internal Dim.W×H×D(mm)		1200×1200×1200		1200×1200×1200
External Dim.W×H×D(mm)		1750×1850×1300		1750×1850×1300
Water Temp.		Normal		Normal
Spray Type	Total Water Flow(L/min)	R1	1.8	IP×1	With in 1~1.5mm/min(In drip box)
		R2	3.2	IP×2	With in 3~3.5mm/min(In drip box)
		S1	24.5	IP×3	angle±600,R:400mm,1.1L/min
		S2	39.2	IP×4	angle±1800,R:400mm,1.8L/min
	Pressure of spray nozzle(kgf/cm*2)	R1	0.1	1.Flow rate of the water=0.07L/min 2.1P×3,Radius:400mm,16Number or open holes=16,total water flow:1:1L/min. 3.1P×4,Radius:400mm,25Number or open holes=25,total water flow:1:8L/min. *Radius:200mm,R400mm. (For 1P×3,1P×4 only)
		R2	0.3
		S1	1
		S2	3

(RPM)Test Specimen Frame		17RMP		1RPM
Spray Nozzle Rotation Speed		23RPM		Promote the pipe on both sides of the vertical line of 30 ° each time back and forth about four seconds to promote Swing 60 ° from vertical for 4 seconds at one time Promote the pipe on both sides of the vertical line of 180 ° for about 12 seconds to promote one round Swing 180 ° from vertical for 12 seconds at one time





Material	Interior	SUS#304 Stainless steel
	Exterior	Cold rolled plate + Powder coating
Other Components		Chamber lamp.Wiper casters with Adjusters		Chamber lamp.Wiper,casters with Adjusters

Power Source(K.W.)		AC 1Ψ 220V 60/50Hz 4KW

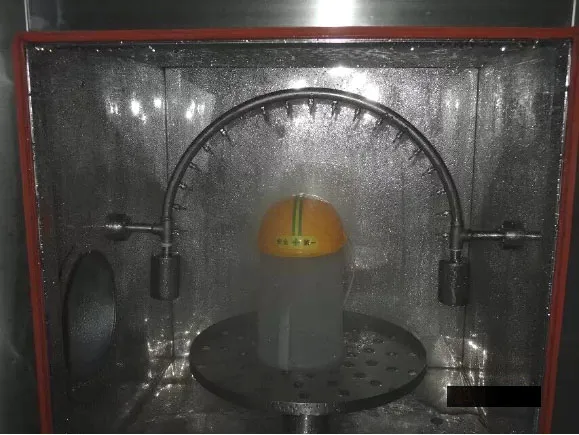

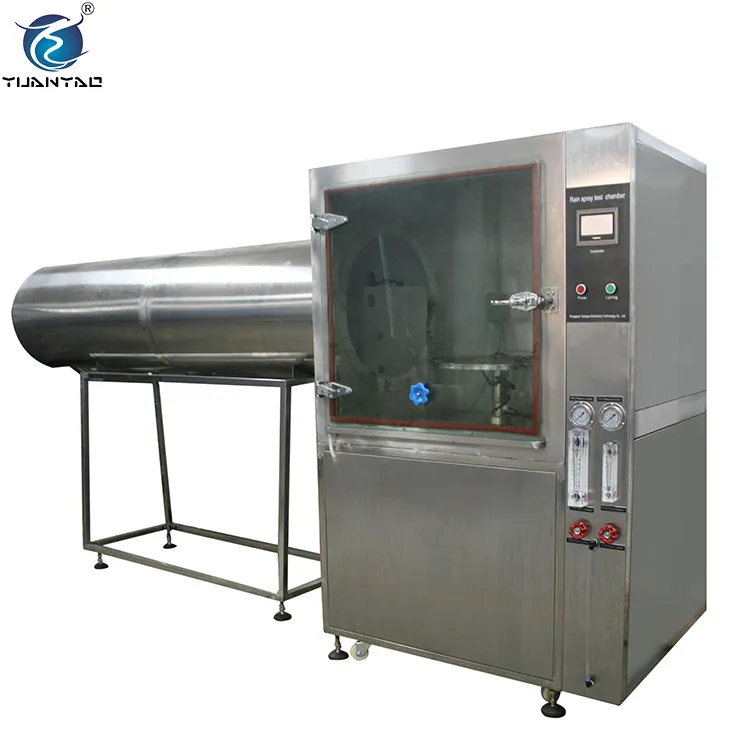

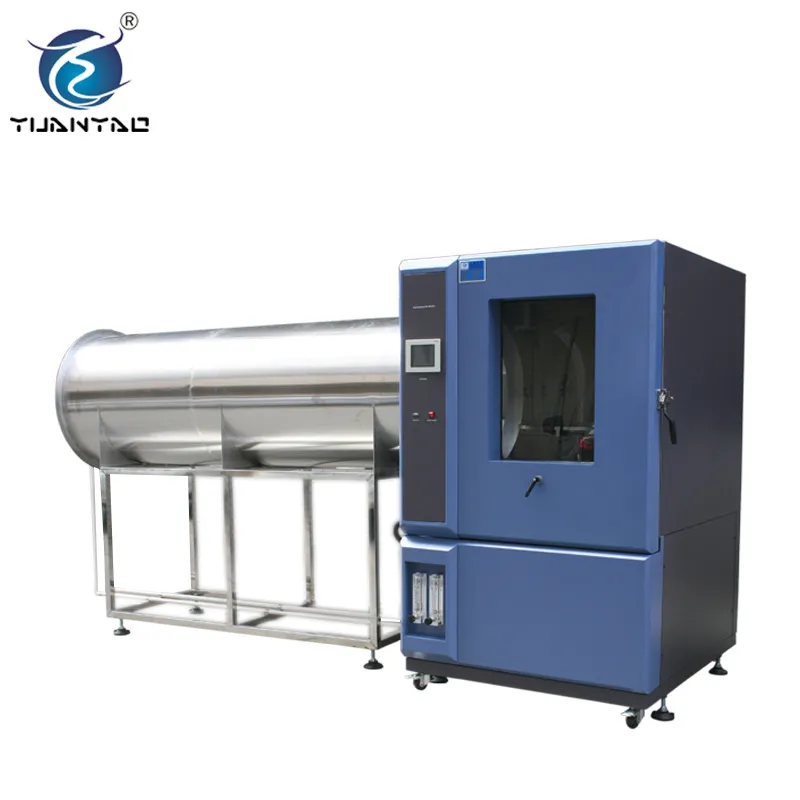

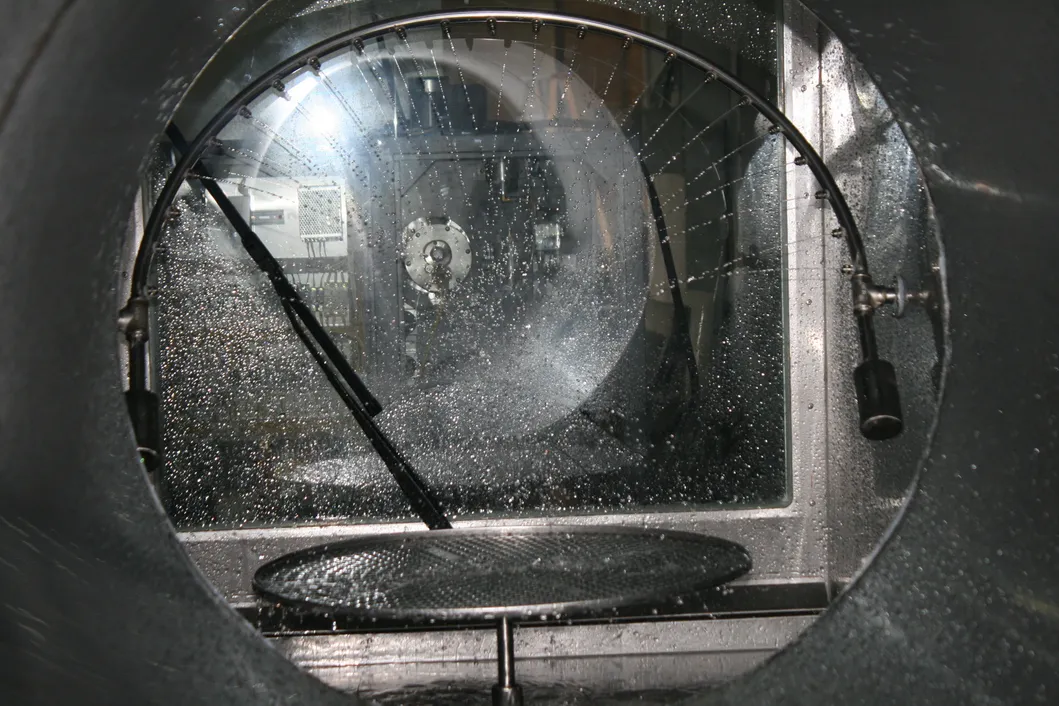

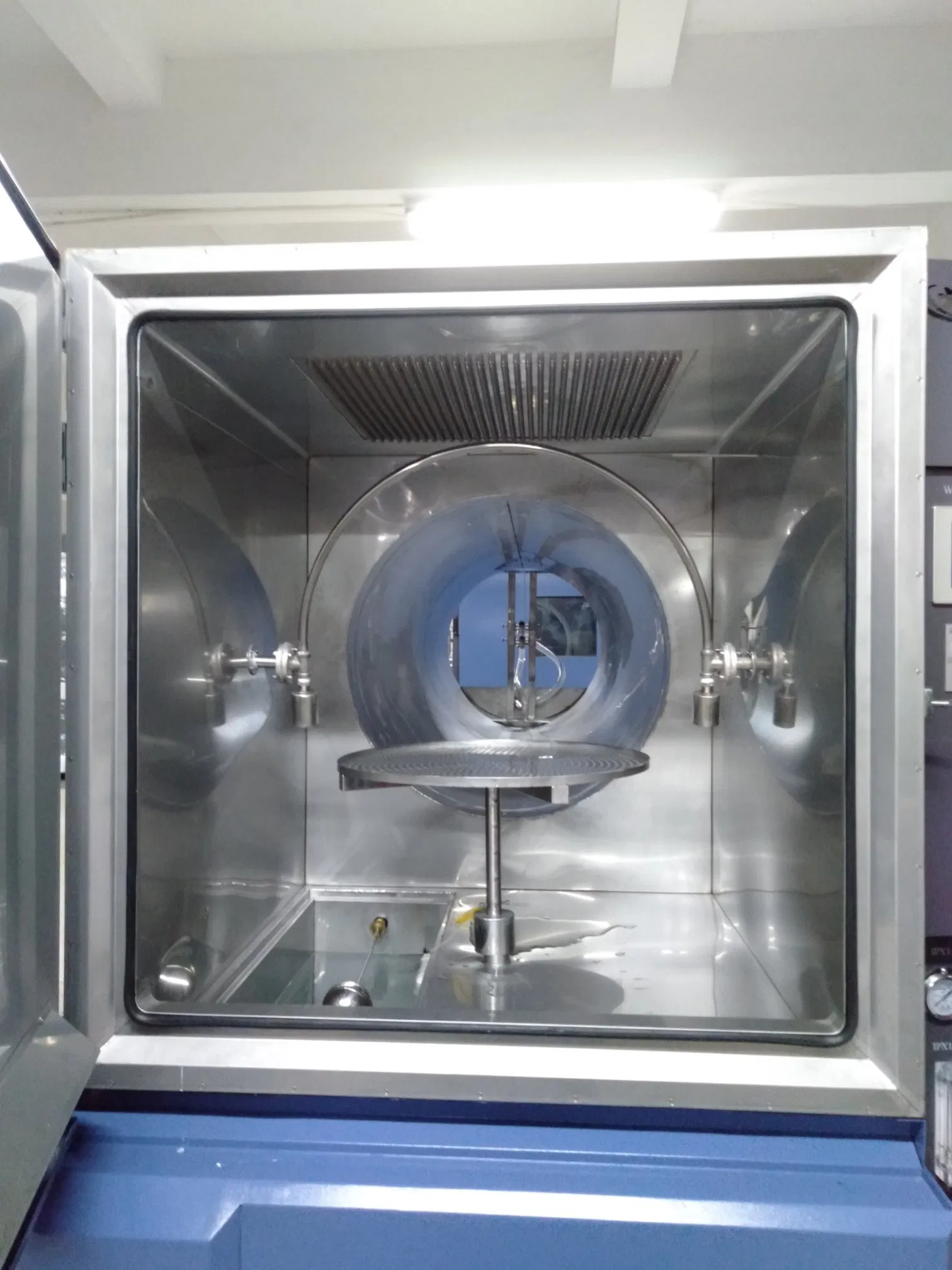

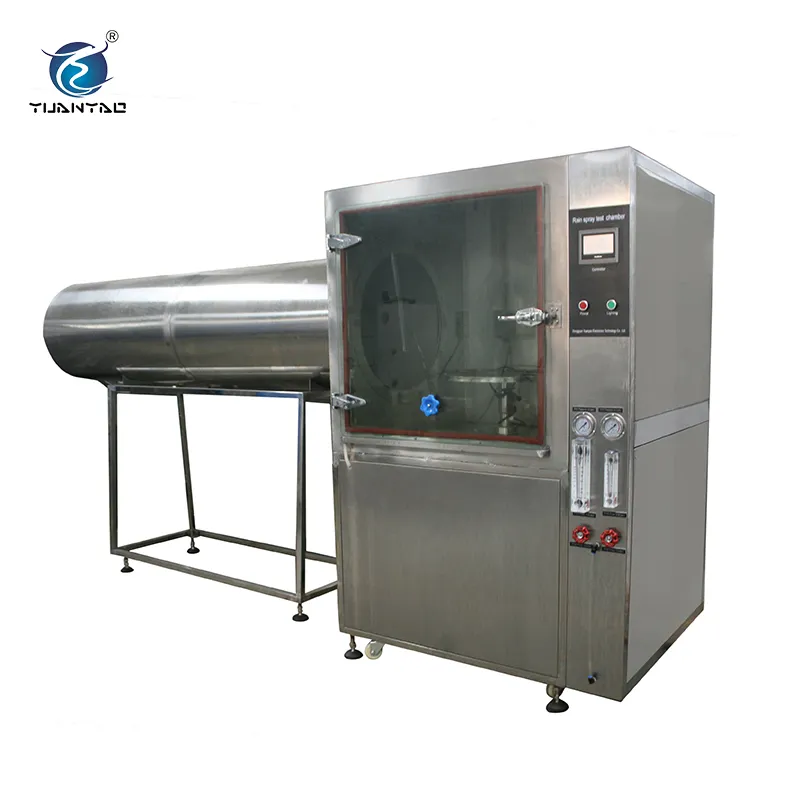

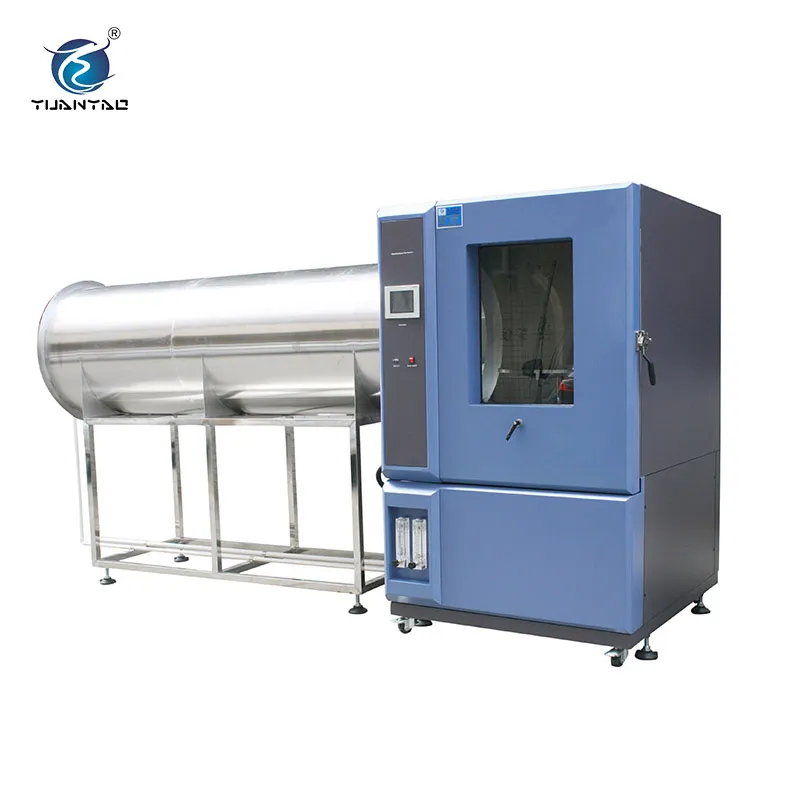

Product detail

Ipx3/Ipx4 Water Spray Test Equipment for Testing Vehicles

Company profile

Ipx3/Ipx4 Water Spray Test Equipment for Testing Vehicles

In addition to water rain spray test chamber, we are also manufacturing:

Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.

Other styles / size with different configurations are available upon request, welcome to enquire and purchase!
