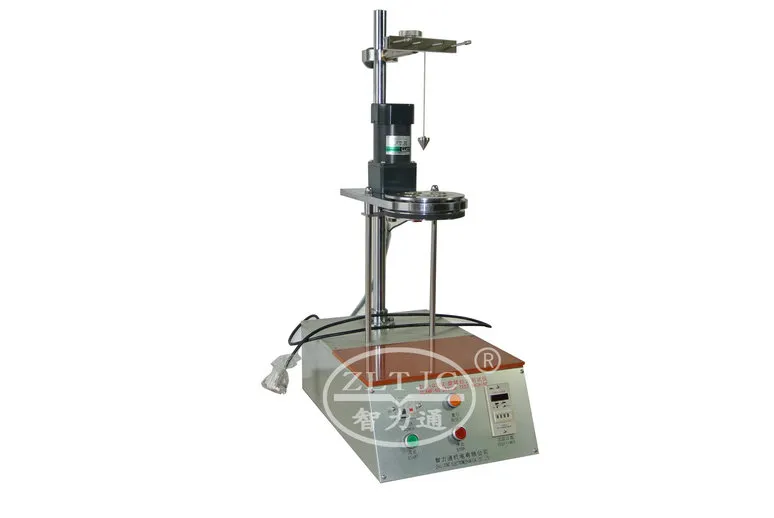

Is 1293 Clamping Device Test Machine

Clamping Device Test Machine:

Product details: Model ZLT-DSG2

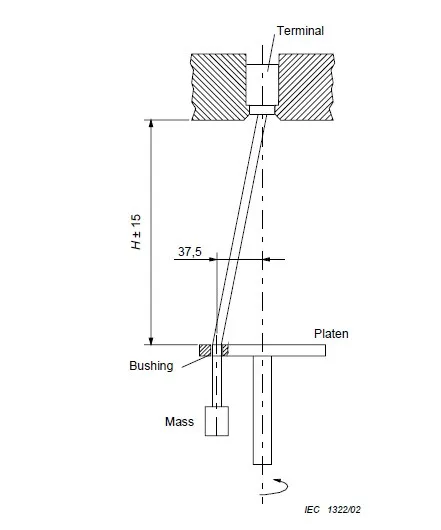

To test the reliability of clamping devices to hold flexible electrical conductors, according to IEC60884-1 figure 11 and clause 12.2.5, VDE0620, IS 1293 Fig.32,however for cross-sectional areas up to 10mm2 only.

Standard Outfit:
1 revolving platen with vertical axis of rotation, to move the conductor, clamped into the specimen,

1 accommodation for bushings, with angular contact ball bearing, built into the revolving platen with eccentricity 37.5mm, to guide the conductor clamped into the specimen, bore 15mm,

1 AC motor to drive the revolving platen at 10± 2rpm,

1 hand vice to fix the specimen, height(H) adjustable to 260mm-280mm-300mm-320mm, with interchangeable jaws,

4 collar bushings with bore hole diameter 6.5mm-9.5mm-12.7mm-14.3mm, to be inserted into the accommodation of the revolving platen,

1 set of weight pieces, mass 300g-400g-700g-900g-1400g-2000g, with clamping device, to be suspended from the testing conductor

1 circuit continuity tester to monitor the clamping point, to stop the timer and to switch off the whole machine,

1 rack mounted unit with control panel, with main switch, timer to preselect the desired test duration, push-button for inching, start and stop push-buttons as well as switch to activate monitoring by the circuit continuity tester.

Power supply: 220V 50Hz, other voltages request
