Product Description

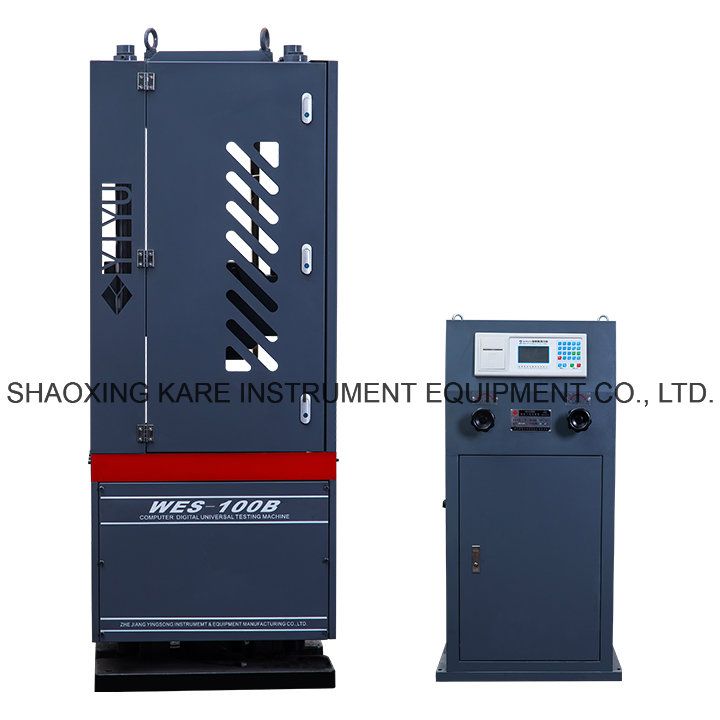

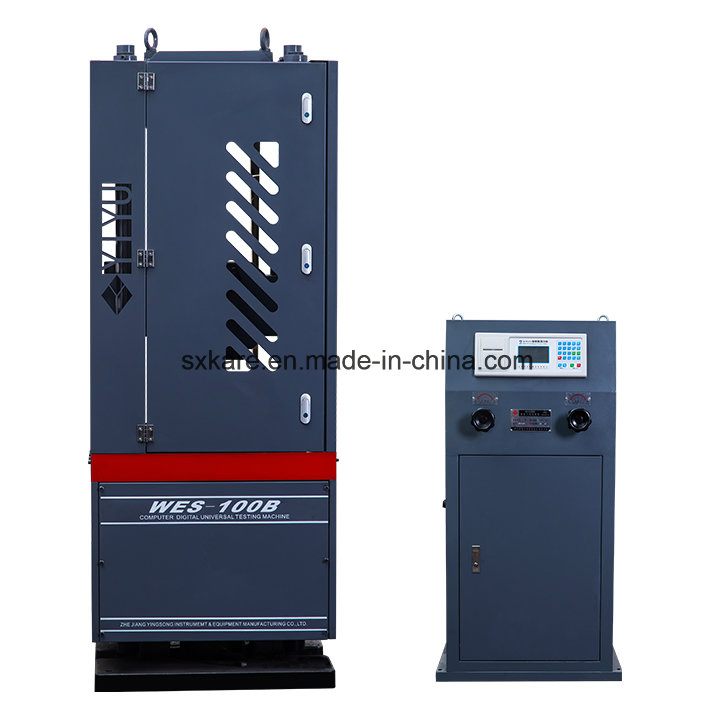

WES-100B Lab Equipment of Digital Display Universal Testing Machine

1. Instroduction
Model WES-100B Lab Equipment of Digital Display Universal Testing Machine is designed of electro-hydraulic digital display and manual hydraulic loading system, main engine controller separately fixed. It has the characteristics of operation amenity, working steady, high accuracy and loading steady. It can implement the experimentations such as the tensile, compression, bending, cutting etc. To the metal, nonmetallic composite materials.

2. Structure

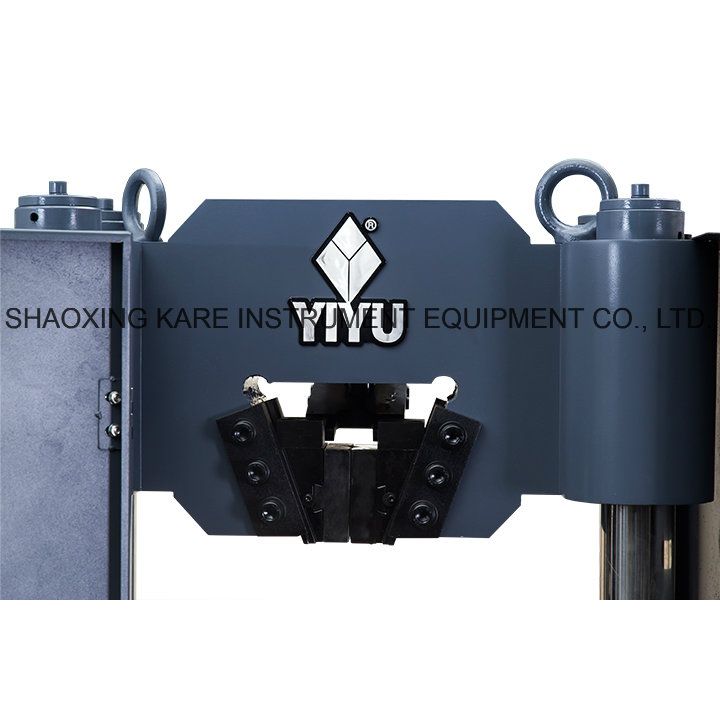

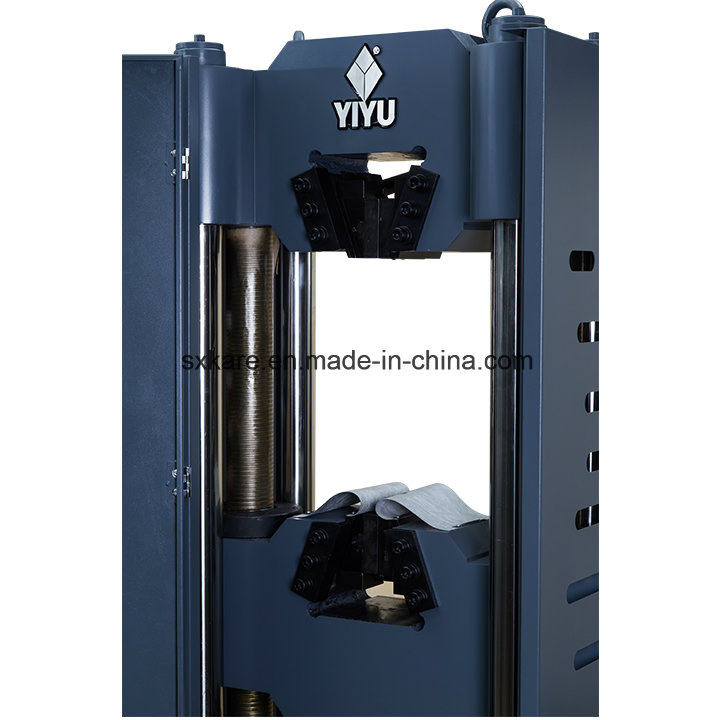

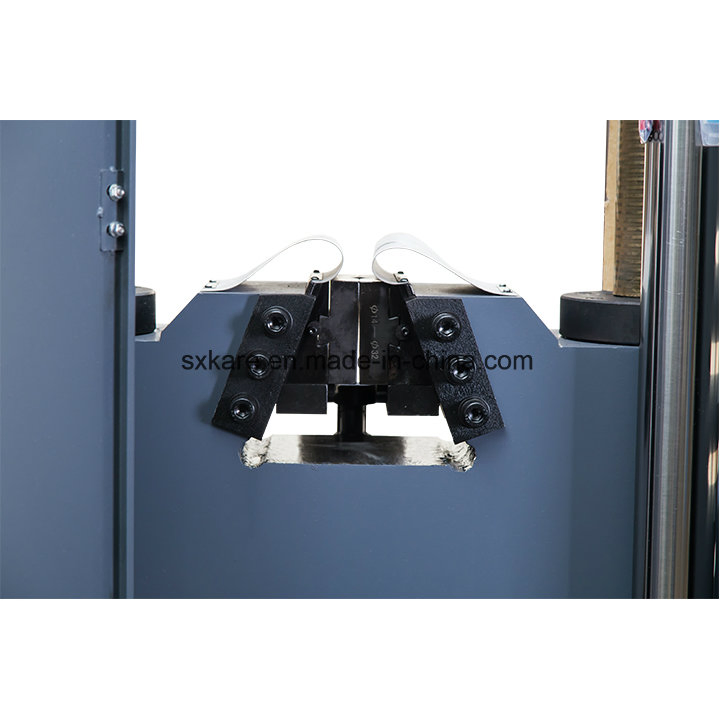

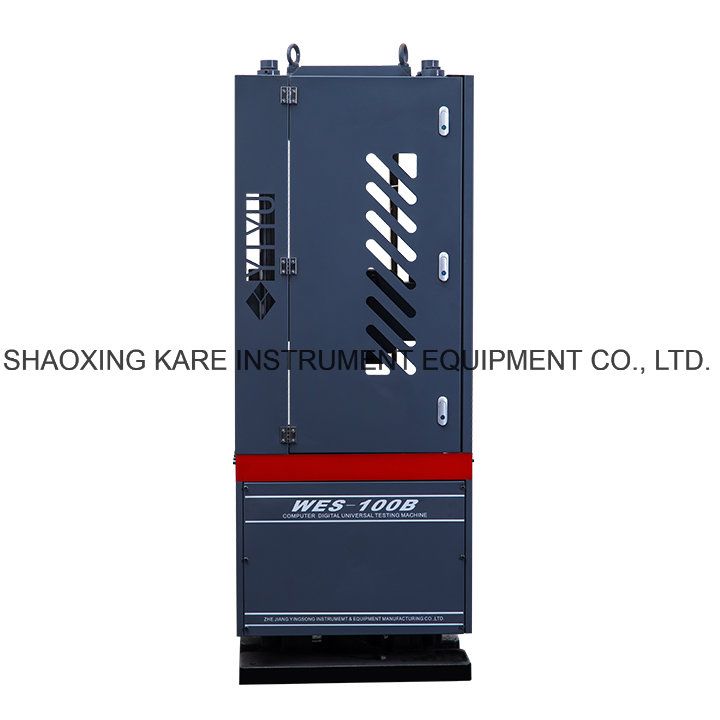

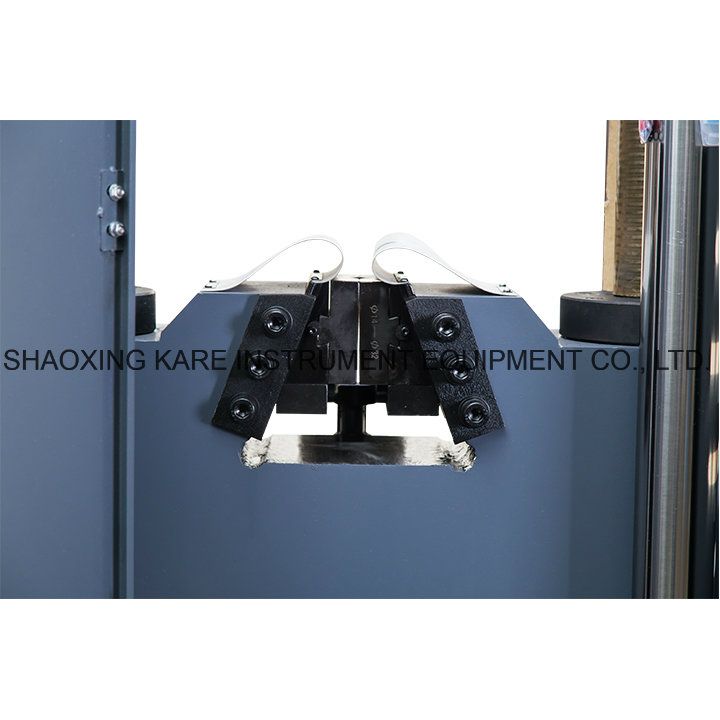

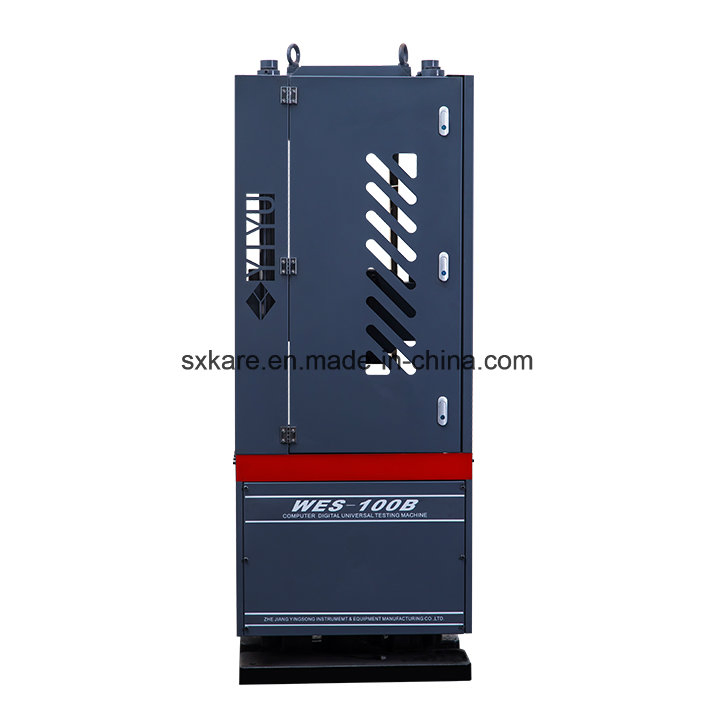

The main engine consists of an adjustable support (base, screw thread pole, moveable crossbeam (lower clamp set)) and a working frame (working oil tank, piston, platform, support crossbeam (upper clamp set)). Element of the machine: High-pressure oil pump supply oil to the working oil tank, the piston moves and press board and upper crossbeam to do stretch and press test. The stretch test is done in the space between upper crossbeam and movable crossbeam. The life motor, gear, chain drive rotate at a same speed to move the crossbeam.

3. Characteristics
It has advantages such as high precision, light weight, easy operation, clamping automatic hydraulic pressure, long use life and so on. It is applicable for detecting various indexes such as tension, compression resistance, bending etc. To metal and non-metallic material in various laboratories.

4. Electro-hydraulic measurement control cabinet
4.1 Internal micro-computer control panel, communicate with PC by RS232 series port.
4.2 Adopts famous brand import integrated component, such as BB, AD, Atmel, and so on, fully digitized design.
4.3 Adopts integrated high precision meter amplifier.
4.4 18 bits high accuracy analog-to-digital conversion.

Max. test force	100KN
Measuring range	4%-100%F.S.
Measuring relative error (no higher than)	±1%
Max. distance between tensile jaws	650mm
Width of flat plate specimen	75mm
Flat specimen holding thickness	0-15mm
Diameter of round specimen	10-20mm
Distance between bending support rollers	200mm
Piston stroke	200mm
Distance between two columns	385mm
Main frame dimension	550×400×1200mm
Oil source cabinet dimension	620×510×1700mm
Net Weight	1100Kg
