              Lubricant Laboratory Equipments/ ASTM D445 Kinematic Viscosity Tester


               Application

               It is applicable for People's Republic of China standard GB / T265 "petroleum products Determination of kinematic viscosity and calculation of dynamic viscosity" provisions, the determination of liquid petroleum products (refer to Newtonian fluid) the kinematic viscosity at a constant temperature. Kinematic viscosity of the liquid at a constant temperature measured kinematic viscosity and density of the product at the same temperature of the liquid.



              Features:

              1.It is a kind of specially-made testing machine which the temperature control accuracy can reach ±0.01ºC and having digital display.

              2.It adopts hard glass bath and heat preservation cover(double shell).Good heat prevention and easy to observe the sample.

              3.It adopts desktop and all-in-one machine design, convenient to use.

              4.It adopts electric stirrer to ensure the uniform of bath temperature.





              Technical Parameters



              Power supply

              AC 220 ± 10 %, 50 Hz

              Heating power

              1000W(auxiliary heating), 600W(temperature control heating)

              Power for stirrer

              6W, rotating speed:1200RPM

              Temperature range

              room temperature~100ºC

              Temperature control accuracy

              ±0.01ºC

              Timer

              0.0s~999.9s

              Constant temperature bath

              20L, double shall structure

              Ambient temperature

               -10ºC~+35ºC

              Relative humidity

              <85%

              Maximum power consumption

              1800W

              Capillary viscometer tubes(Pinkevitch viscometer)

              7 pieces in total. The inner diameters for each: 0.6, 0.8,1.0, 1.2, 1.5, 2.0 and 2.5mm

              Dimension

              540mm*410mm*680mm

              Net weight

              about 40Kg

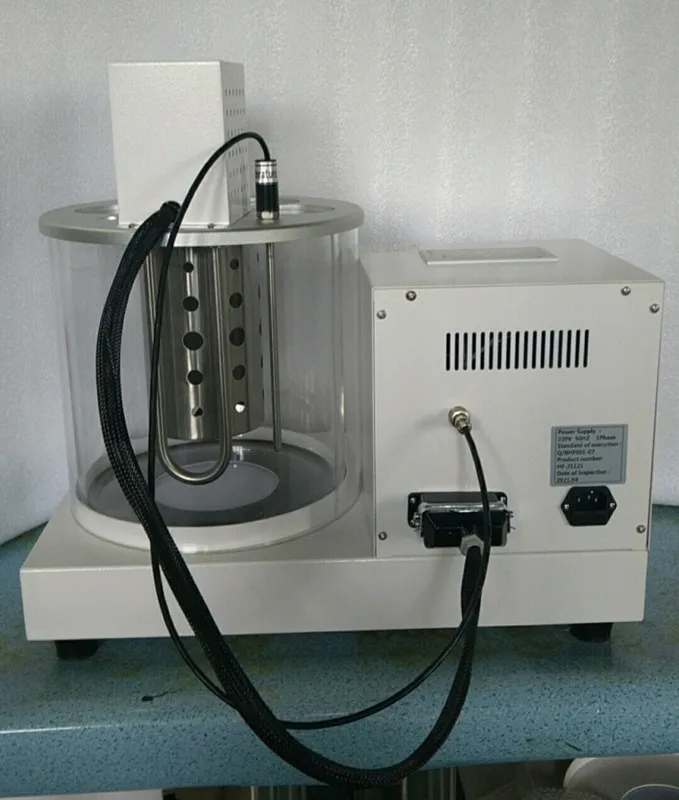

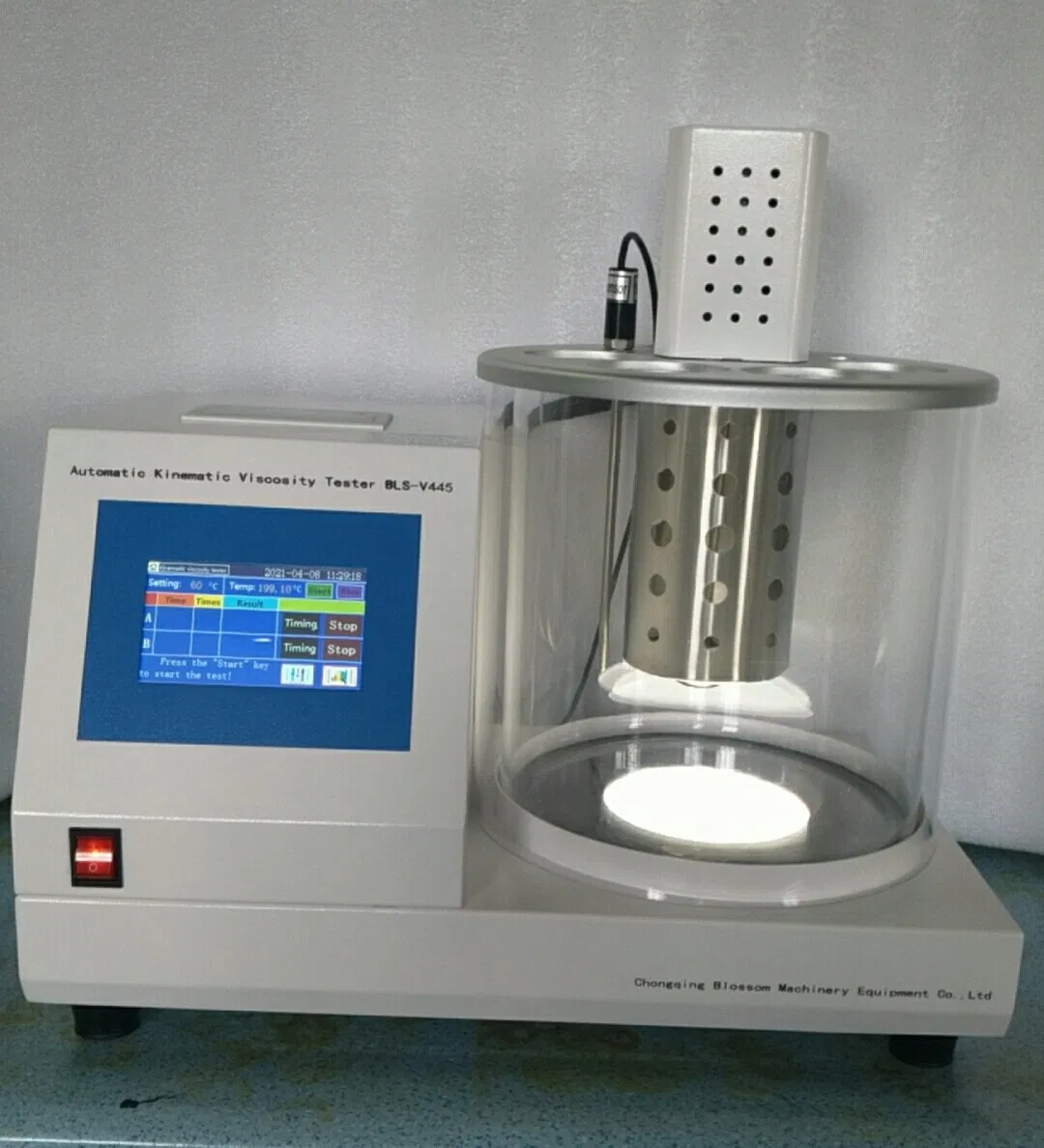

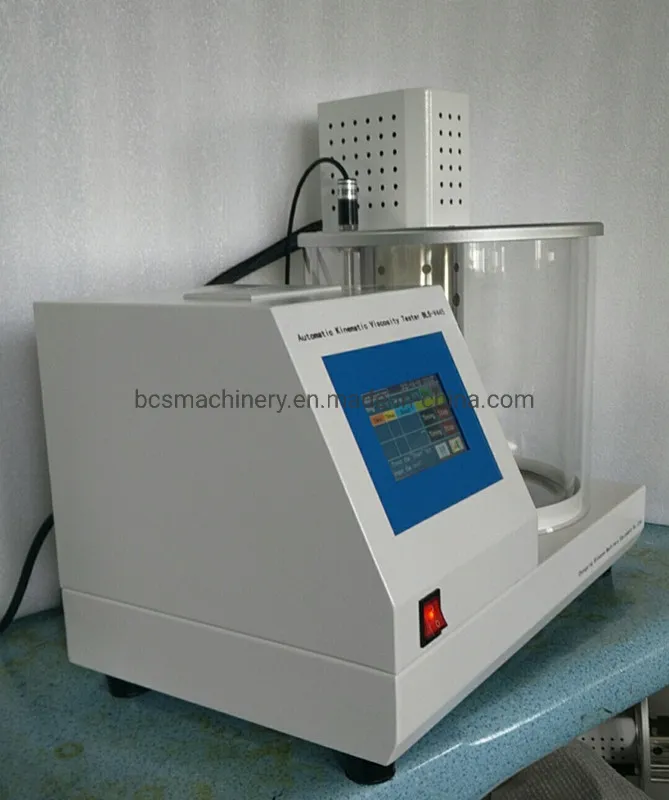

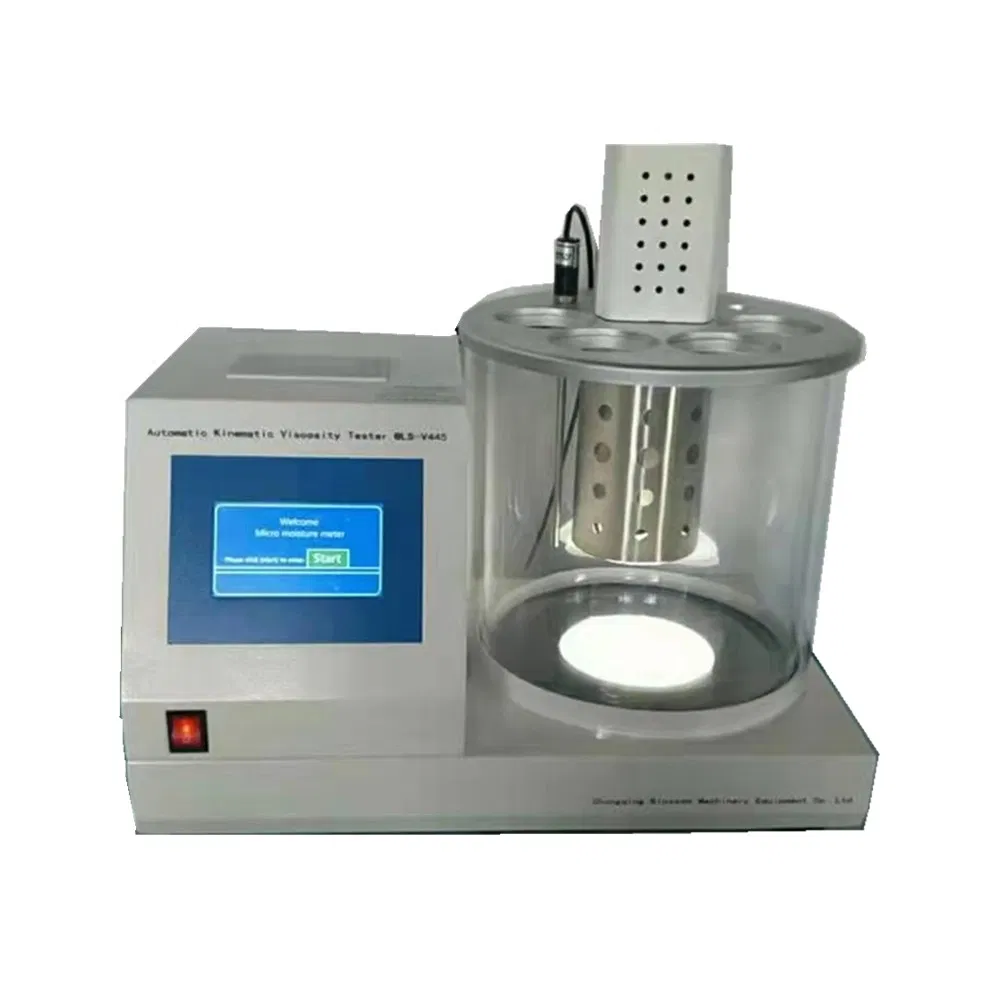

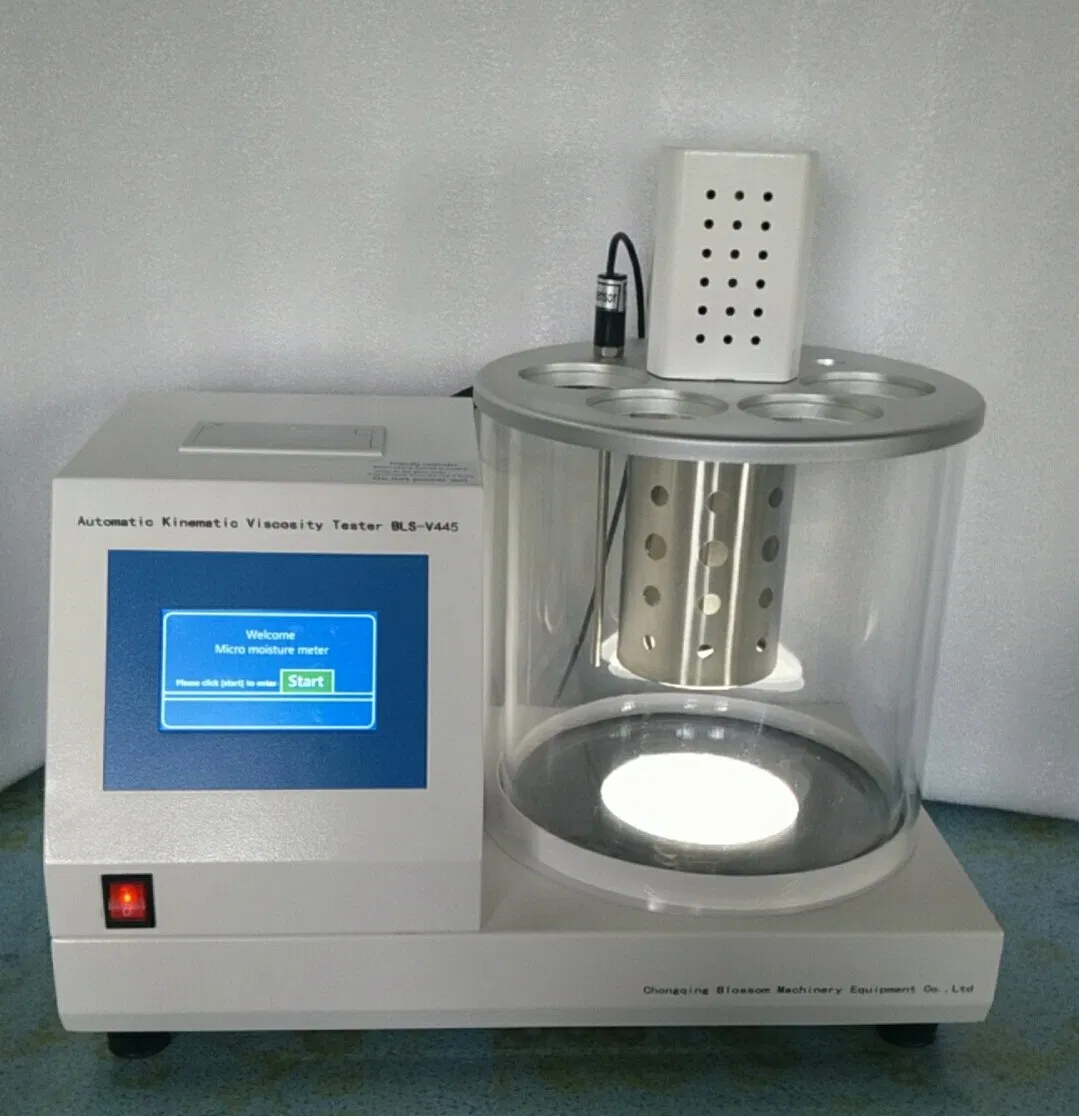

              Detailed Photos

              Lubricant Laboratory Equipments/ ASTM D445 Kinematic Viscosity Tester
              Lubricant Laboratory Equipments/ ASTM D445 Kinematic Viscosity Tester
              Lubricant Laboratory Equipments/ ASTM D445 Kinematic Viscosity Tester

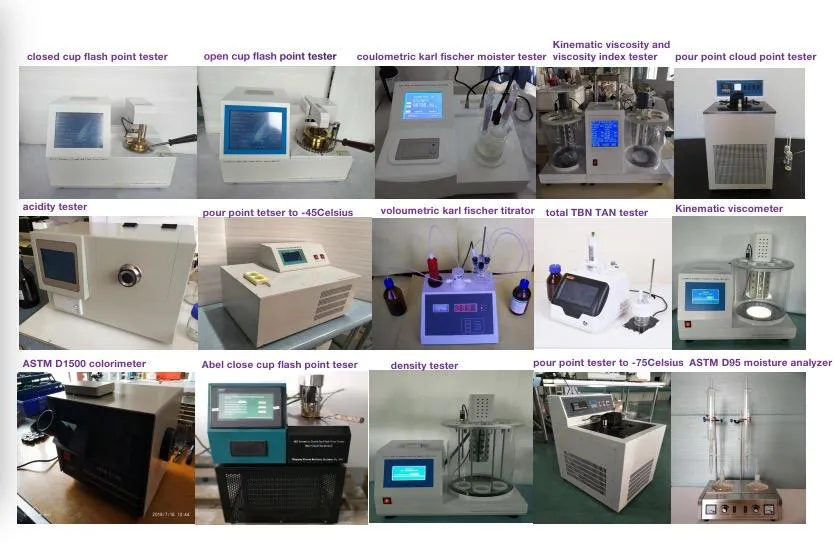

              Related Oil Testers

              1.Karl Fisher Oil Water Content Tester BLS-6304
              2.Digital Oil Moisture Meter BLS-D6304
              3.Petroleum Products Kinematic Viscosity and Viscosity Index Tester BLS-445
              4.Digital Kinematic Viscosity Meter BLS-D445
              5.Fully Automatic Petroleum Products Acidity Meter BLS-974
              6.Cleveland Open Cup Flash and Fire Point Tester BLO-92
              7.Pensky-Martens Closed Cup Flash Point Tester BLC-93
              8.Pour Point and Cloud Point Tester BLS-97
              9.Petroleum Products Density Meter BLS-1298
              10.Copper Corrosion Tester BLS-130
              11.Petroleum Products Aniline Point Tester BLS-611
              12.Petroleum Products Colorimeter BLS-1500
              13.Petroleum Products Carbon Residue Tester (Micro Method) BLS-4530
              14.Petroleum Product Vapor Pressure Tester (Reid Method) BLS-3231
              15.Total Acid Number and Total Base Number TAN/TBN Tester BLS-2896
              16.Petroleum Products X-ray Fluorescence XRF Sulfur Analyzer Sulfur BLS-4294
              17.Petroleum Products Online Moisture Meter BLS-PPM
              18.Online Moisture ppm Meter/ Particle Counter/ Pollution Degree Analyzer NAS-01
              19.Petroleum Products Saponification Number Tester BLS-94
              20.Micro Coulometry Sulfur and Chlorine Content Tester BLS-3120
              21.Ultraviolet Fluorescence Sulfur Analyzer BLS-5453
              22.Conradson Method Petroleum Products Carbon Residue Tester BLS-189
              23.Ramsbottom(Electric Furnace) Method Petroleum Products Carbon Residue Tester BLS-524
              24.Hydrogen Sulfide in Liquefied Petroleum (LP) Gases Tester (Lead Acetate Method) BLS-2420
              25.Hydrocarbon Types in Petroleum Products Tester by Fluorescent Indicator Adsorption BLS-1319

              Lubricant Laboratory Equipments/ ASTM D445 Kinematic Viscosity Tester
              Packaging & Shipping

              1. Outside package: Standard export packing or neutral packing if needed, carton box, wooden case or upon request, packing carefully.

              2. Inside package: strength film and foams.
              Lubricant Laboratory Equipments/ ASTM D445 Kinematic Viscosity Tester
              Shipping Method: Air / Sea / Express(UPS, FEDEX, DHL, TNT, EMS, etc)

              Lubricant Laboratory Equipments/ ASTM D445 Kinematic Viscosity Tester
              Company Profile

              Chongqing Blossom Machinery Equipment Co., Ltd is located in Chongqing, one of the municipalities directly under the central government. The main products include instrument and apparatus, mechanical machinery such as liquid purification equipment and electric hoist, etc. The equipment is widely applied in construction, petroleum, mechanical, ships, pharmaceutical, lab test and edible oil processing, etc.

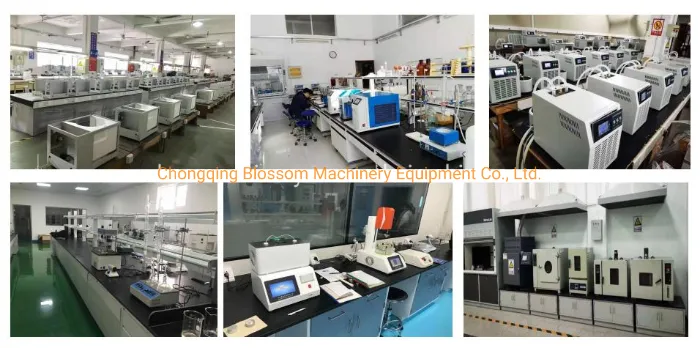

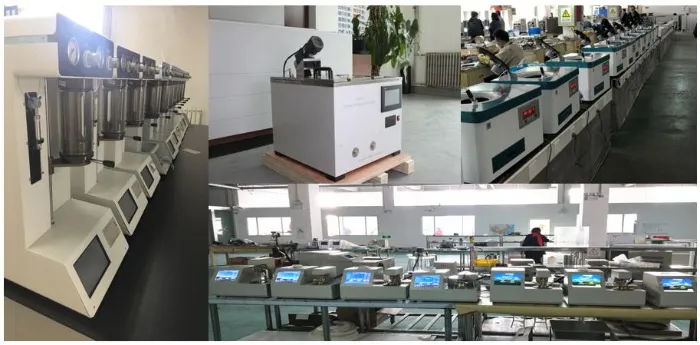

              Our Lab
              Lubricant Laboratory Equipments/ ASTM D445 Kinematic Viscosity TesterLubricant Laboratory Equipments/ ASTM D445 Kinematic Viscosity TesterCertificates
              Lubricant Laboratory Equipments/ ASTM D445 Kinematic Viscosity Tester
              Exhibition
              Lubricant Laboratory Equipments/ ASTM D445 Kinematic Viscosity Tester
              FAQ

              1. What's the payment method?
              Payment can be done by cash T/T, L/C, Western Union, Alibaba Trade Assurance,etc.

              2. How long is the delivery period?
              Generally it takes about 10 working days for production and then the delivery will be done timely.

              3.What's the package made of?
              The package is made of international export standard wooden case.

              4.What's the delivery method?
              By train, by air, by sea, by truck, by express(TNT, DHL, FedEx, Ups, etc).

              5. How long is the guarantee period?
              The guarantee period is 2 years due to the product quality problems itself.

              6.What services can you provide?
              Online support through email, telephone, Whatsapp or other communication method; onsite taining and installation if you need;filed maintenance and repair, technical video support, etc
