Metallographic Sample Grinding Polishing Machine (GP-1B)
Metallographic Sample Grinding Polishing Machine (GP-1B)GP-1B/GP-2B Metallurgical Specimen Grinder/PolisherGP-1B, GP-2B are grinding/polishing machine with single or double discs, They may meet the sampling requirement for kibbling, fine grinding, rough polishing till fine polishing, which are ideal......
Send Inquiry
Product Description

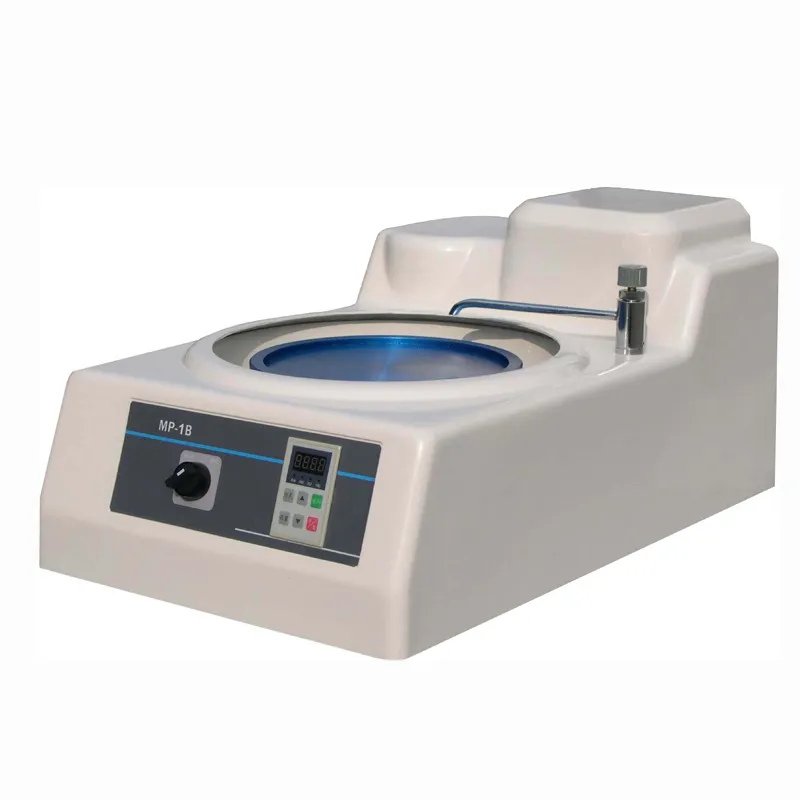

Metallographic Sample Grinding Polishing Machine (GP-1B)
GP-1B/GP-2B Metallurgical Specimen Grinder/Polisher
GP-1B, GP-2B are grinding/polishing machine with single or double discs, They may meet the sampling requirement for kibbling, fine grinding, rough polishing till fine polishing, which are ideal sampling equipments for the small and medium enterprises.
Note: Polishing Head PH-100 is Optional!
| Technical Specification | GP-1B | GP-2B |
| Order# | 712*101 | 712*201 |
| Diameter of Grinding Disc | Φ230mm | Φ230mm |
| Diameter of Polishing Disc | Φ200mm | Φ200mm |
| Speed of Grinding Disc | 50-1000rpm | 50-1000rpm |
| Speed of Polishing Disc | 50-1000rpm | 50-1000rpm |
| Power Supply | 250W/220V/50Hz | 550W/220V/50Hz |
| Dimension | 615 x 380 x270mm | 690 x 715 x310mm |
| Net Weight | 30kg | 45kg |
