Portable Plastic Film Belt Tension Gauge
Guangzhou Amittari instruments Co., LTD. specialize in manufacturing coating thickness gauge, ultrasonic thickness gauge, hardness tester, surface roughness tester, vibration meter, gloss meter, whiteness meter, reflectance meter, tint meter, lux meter, stroboscope, tachometer moisture meter, tensio......
Send Inquiry
Product Description
Product Description
The Belt Tension Meter Mainly use for automotive belt tension measurement, also can measure and adjust ribbon, filamentous, linear, reticular and other wide objects tension. Applicable to the automotive, textiles, wire and cable, metal wire, plastic film, paper, printing, film industries etc.
Product Feature
* With metric and imperial conversion.
* Auto switch off and manual shutdown.
* With average value calculation function.
* With low battery alarm indicator & With maximum value stored.
* Provide "Bluetooth data output" choice.
Product Parameters
| Measuring Range | 0~750N, 0~120lb, 0~77Kg, 0~114Seems |
| Accuracy | ≤ ±5% |
| Belt State Indication | Low, OK, High |
| Resolution | ± 1N (or other units) |
| Overload Alarm | 750N (Newton) |
| Maximum Load | 850N (Newton) |
| Working Environment | Temperature 0°C ~ 50°C |
| Humidity <85% RH | |
| Size | 140×70×30 mm |
| Power Supply | 4x1.5v AAA (UM-4) battery |
| Host Weight | 130g (Not including Batteries) |
| Probe Weight | 230 g |

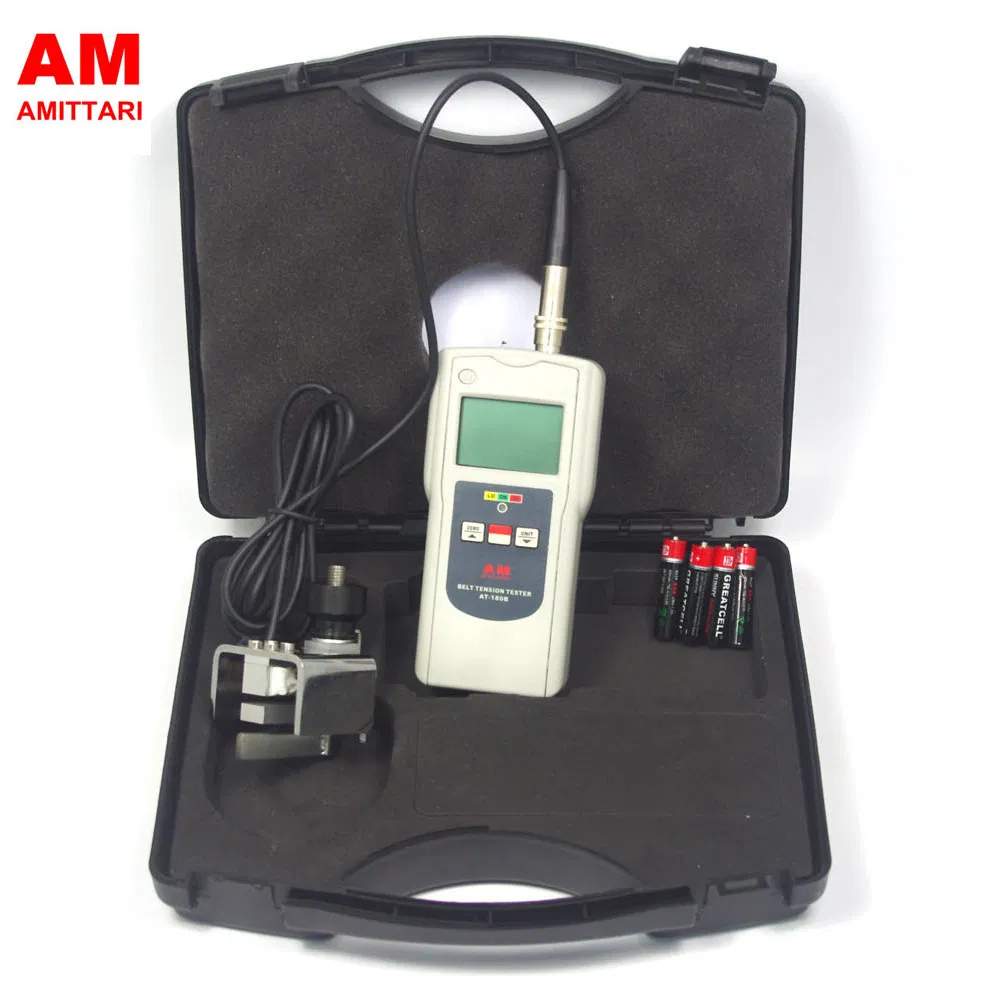

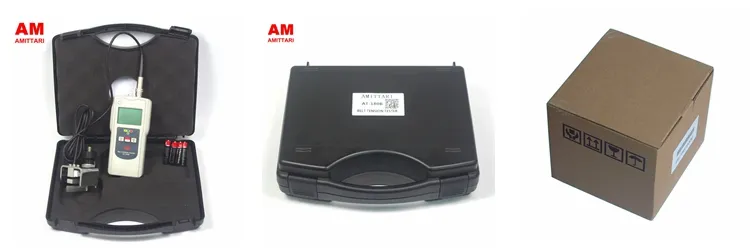

Product Accessories
Standard Accessories | Main Unit |
Test Block | |
| Carrying Case | |
| Operation Manual | |
Optional Accessories | USB data output,Bluetooth |
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+USB data output
Standard Accessories+Bluetooth data output
Bluetooth Accessories
Amittari instruments generally can be supplied with Bluetooth™ data output function ( except few instruments ) . As Bluetooth™ data output is included in optional accessories, not standard delivery,it needs to be indicated when choose.10 meters to 100 meters distance can be chosen.Please kindly contact with the customer-service worker if you need Bluetooth™ data output.
