Portable Xrf Spectrometer for Gold Purity and Karat Test
Instrument introductionCube100 is a new portable XRF for precious metals test. As it is small sized and light weight, you can easily carry the machine to any place you want.Instrument FeaturesQuick TestWithin one second, you can get both the Karat value and content value of your gold sample.Accurate......
Send Inquiry
Product Description
Instrument introduction

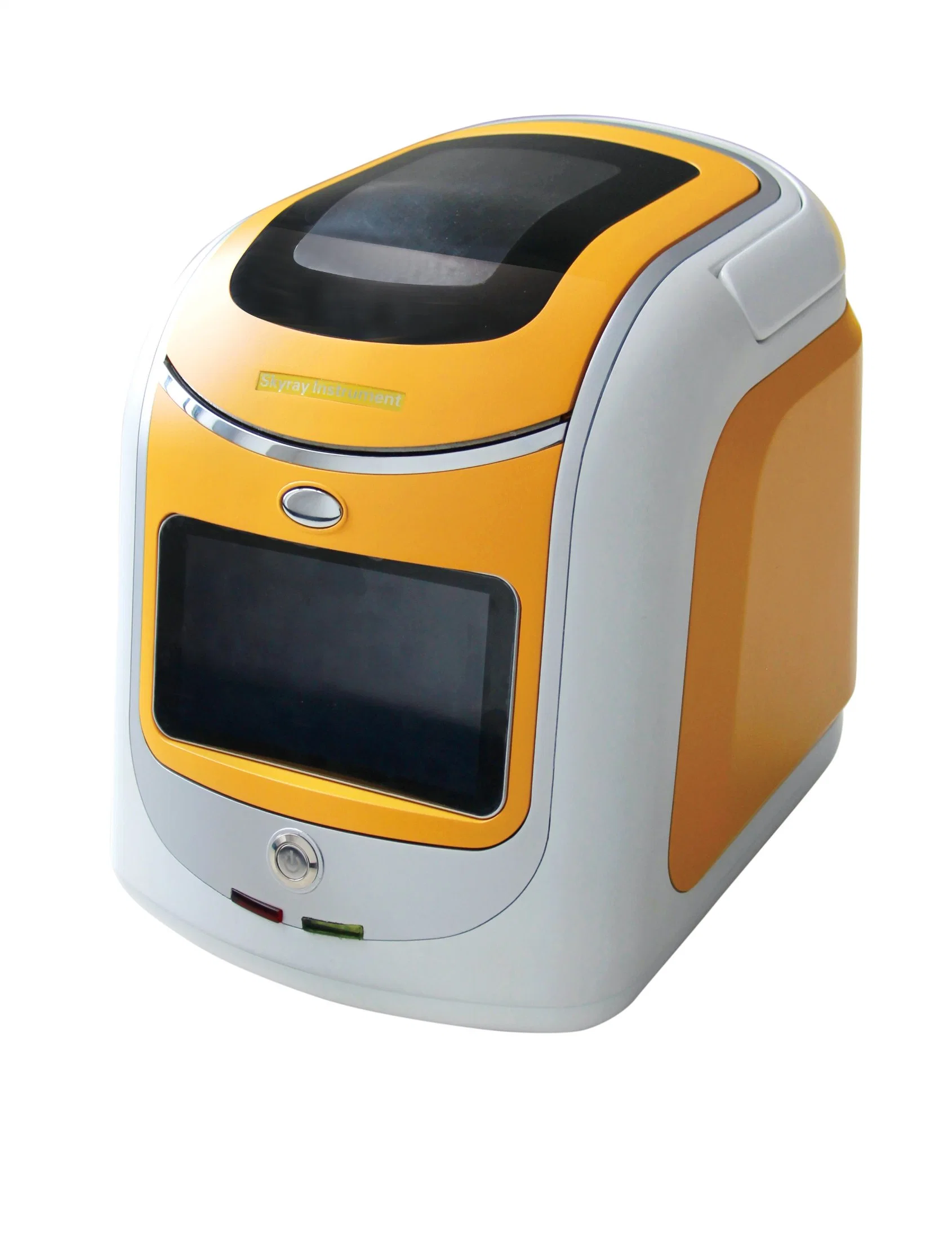

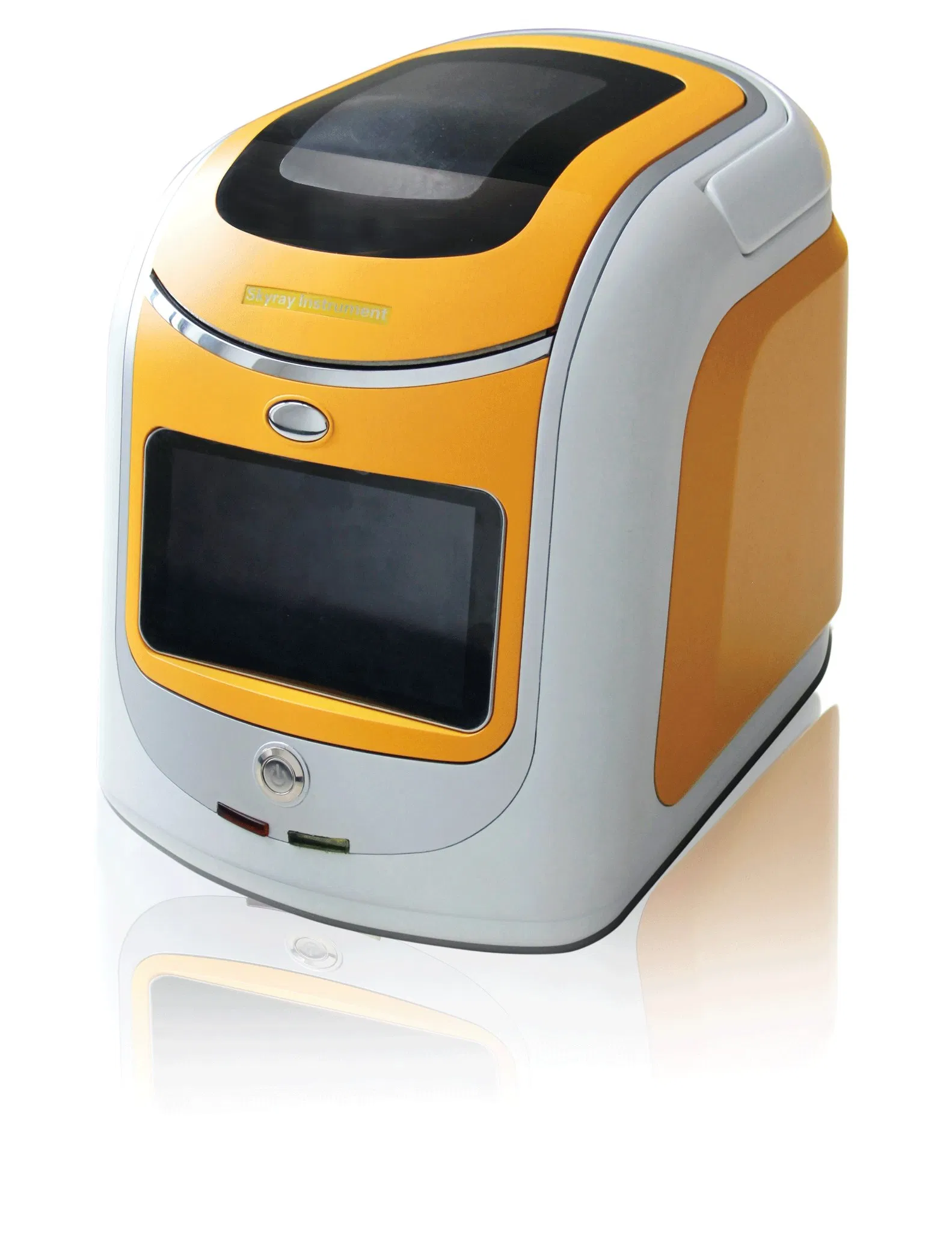

Cube100 is a new portable XRF for precious metals test. As it is small sized and light weight, you can easily carry the machine to any place you want.
Instrument Features
Quick Test
Within one second, you can get both the Karat value and content value of your gold sample.
Accurate
Testing result of our XRF is comparable to the fire assay.
Non destructive
XRF test will not destroy your gold sample.
Multi-functional
Besides the gold, the non precious metals, such as Ni,Cu and Zn which are frequently used in the jewelries can also be simultaneously tested by our XRF. What's more, our XRF can also be used to test the plating thickness of the gold plated jewelry.
Applications fields:
Jewelry factories
Jewelry shops
Pawnshops
Banks
Gold testing labs or fire assay labs
Refiners who buy and sell gold
Details of Cube100 is in the below
Cube100 is a new portable XRF for precious metals test. As it is small sized and light weight, you can easily carry the machine to any place you want.
Instrument Features
Quick Test
Within one second, you can get both the Karat value and content value of your gold sample.
Accurate
Testing result of our XRF is comparable to the fire assay.
Non destructive
XRF test will not destroy your gold sample.
Multi-functional
Besides the gold, the non precious metals, such as Ni,Cu and Zn which are frequently used in the jewelries can also be simultaneously tested by our XRF. What's more, our XRF can also be used to test the plating thickness of the gold plated jewelry.
Applications fields:
Jewelry factories
Jewelry shops
Pawnshops
Banks
Gold testing labs or fire assay labs
Refiners who buy and sell gold
Details of Cube100 is in the below
| Specification | |
| Measurable elements | K to U |
| Measurable range | ppm to 99.99% |
| Sample type | Solid and liquid |
| Analysis accuracy | 0.05% (content ≥96%) |
| Ambient temperature: | 15ºC-30ºC |
| Operation humidity | ≤70% |
| Power supply | AC 220V/110V/Battery |
| Sample chamber size | 15*15*10cm |
| Instrument dimension | 22*26*26cm |
| Net weight | 4.8Kg |
| Simultaneous test of more than 24 elements | |
| Multi-optional analysis and identification models | |
| Configurations | |
| Detector | Si Pin detector/SDD detector Optional |
| X-ray tube | 40kV,100uA |
| Collimator | Auto switch of Ф1mm,Ф2mm & Ф4mm |
| Filter types | Al, Ti, Cu |
| PDA | High definition & resolution 5 inch PDA. |
| Light indications | Power and radiation lights. |
| Protection system | High voltage auto switch-off while cover is open |
| Carryring Case | Carrying case with wheels for easy transportation |
